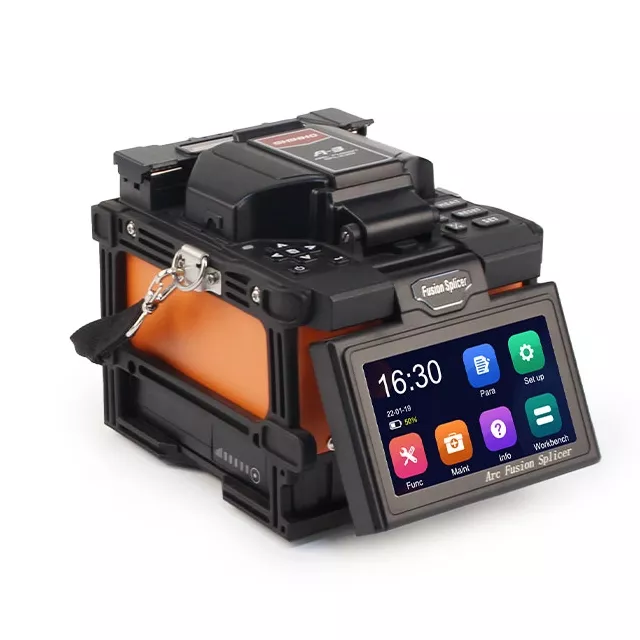

Shinho A3 Fusion Splicing Machine
+ Free ShippingThe Shinho A3 Fusion Splicer is a compact, handheld fiber splicing machine designed for FTTx, FTTH, and CATV projects. With 7‑second splicing, 26‑second heating, and a detachable 5200mAh battery supporting 250+ cycles, it delivers stable performance, low splice loss, and strong durability. Available now at Universal Fiber Solutions (UFS) — the trusted place to buy Shinho A3 fusion splicers online at the best price.
Overview
The Shinho A3 Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is engineered for stable, efficient, and reliable fiber splicing. Featuring automatic real‑time ARC calibration and inductive automatic heating, it delivers 7‑second splicing and 26‑second heating cycles.
Its touchscreen GUI, dual high‑sensitivity cameras, and rugged anti‑shock, water‑resistant design make it ideal for telecom operators, FTTH projects, and security monitoring installations.
⚡ Key Features
- 7‑second splicing – fast and efficient performance
- 26‑second heating – suitable for 40mm and 60mm sleeves
- Four‑motor alignment – clad‑to‑clad precision with active V‑groove design
- High‑capacity battery – 5200mAh detachable, supports 250+ cycles per charge
- 4.3‑inch HD LCD display – dual camera with touch interface
- Automatic ARC calibration – real‑time discharge correction
- Data storage – 8,000 splice records with loss evaluation
- Durable build – waterproof, dustproof, windproof, anti‑shock protection
- Multi‑fiber application – suitable for bare fiber, pigtails, drop cable, and patch cords
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | 4 motors, clad‑to‑clad alignment |
| Splicing time | 7–12s |
| Heating time | 20–26s |
| Fiber types | G.651, G.652, G.653, G.655, G.657 |
| Splicing loss | 0.01–0.04dB depending on fiber type |
| Display | 4.3‑inch HD LCD touchscreen |
| Battery | 5200mAh detachable, >250 cycles per charge |
| Magnification | 320x single axis / 160x dual axis |
| Protection | Waterproof, dustproof, windproof, anti‑shock |
| Operating environment | ‑10°C to +50°C, ≤95%RH, altitude ≤5000m |
| Weight | 1.97kg (including battery) |
📦 Standard Package
- A3 Fusion Splicer (Main Unit)
- Carrying case
- Fiber cleaver
- Fiber stripper + drop cable stripper
- Power plug + adapter
- Cooling tray
- Spare electrodes
- Cleaning brush
- Strap
- User manual
🛡️ Service Commitment
Purchasing the Shinho A3 Fusion Splicer from UFS includes:
- Warranty coverage (battery, adapter, and consumables per manufacturer policy)
- Professional support and authorized servicing
- Commitment to industry‑standard quality and reliability
