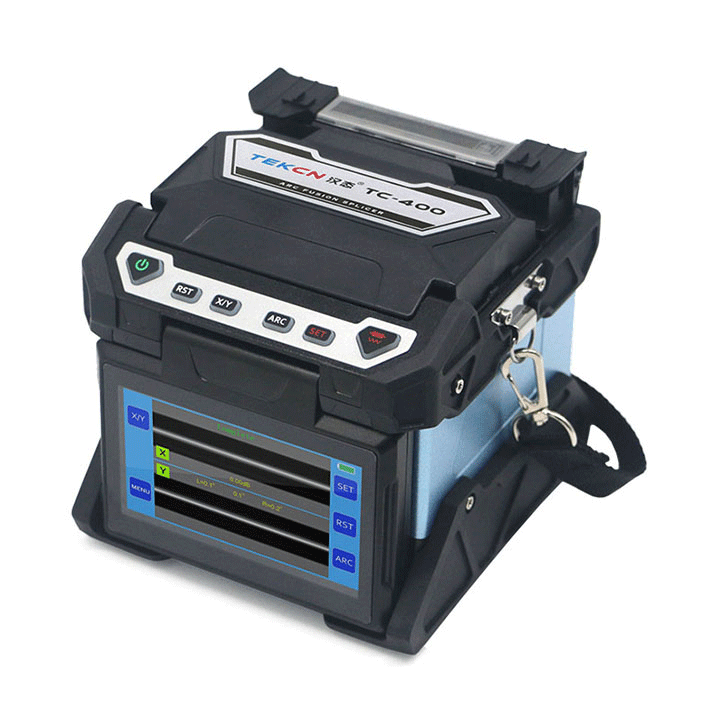

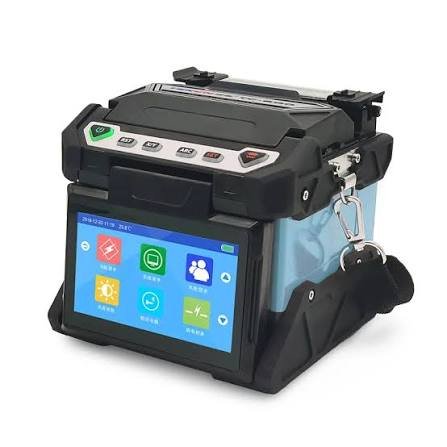

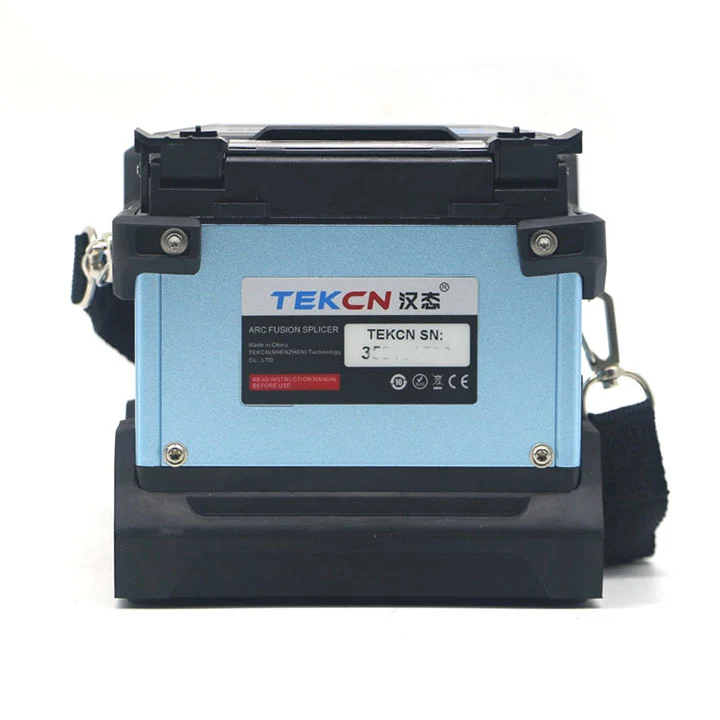

Tekcn TC 400 Fusion Splicing Machine
+ Free ShippingThe Tekcn TC‑400 Fusion Splicer is a compact, high‑precision PAS core alignment machine designed for FTTH, telecom, and ISP projects. With 6‑second splicing, 16‑second heating, and a 4000mAh battery supporting 220+ cycles, it delivers stable performance, low splice loss, and durability in harsh environments. Available now at Universal Fiber Solutions (UFS) — the trusted place to buy Tekcn TC‑400 fusion splicers online at the best price.
Overview
The Tekcn TC‑400 Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is engineered for stable, efficient, and reliable fiber splicing. Featuring PAS core alignment with four motors, it delivers 6‑second splicing and 16‑second heating cycles.
Its button + touchscreen interface, anti‑fake electrodes, and multi‑layer protection (waterproof, dustproof, windproof, anti‑shock, theft‑proof) make it ideal for telecom operators, FTTH projects, and ISP/OSP deployments.
⚡ Key Features
- 6‑second splicing – ultra‑fast performance
- 16‑second heating – customizable heating cycles
- PAS core alignment – four‑motor precision system
- Compact design – lightweight at 1.5kg (1.8kg with battery)
- High‑capacity battery – 4000mAh, supports 220+ cycles per charge

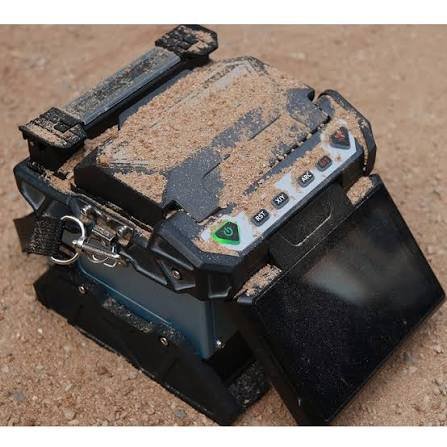

- Durable build – waterproof, dustproof, windproof, anti‑shock, theft‑proof
- 4.3‑inch HD touchscreen – dual CMOS camera display
- Data storage – up to 20,000 splice records with image capture
- Optional GPS tracking – SIM‑based positioning system
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | 4 motors PAS core alignment |
| Splicing time | 6s (SM fast mode) |
| Heating time | 16s (adjustable) |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS), 0.02dB (BI) |
| Display | 4.3‑inch HD color touchscreen |
| Battery | 4000mAh, >220 cycles per charge |
| Magnification | Up to 760x (X/Y simultaneous) |
| Protection | Waterproof, dustproof, windproof, anti‑shock, theft‑proof |
| Operating environment | ‑20°C to +55°C, ≤95%RH, altitude ≤5000m |

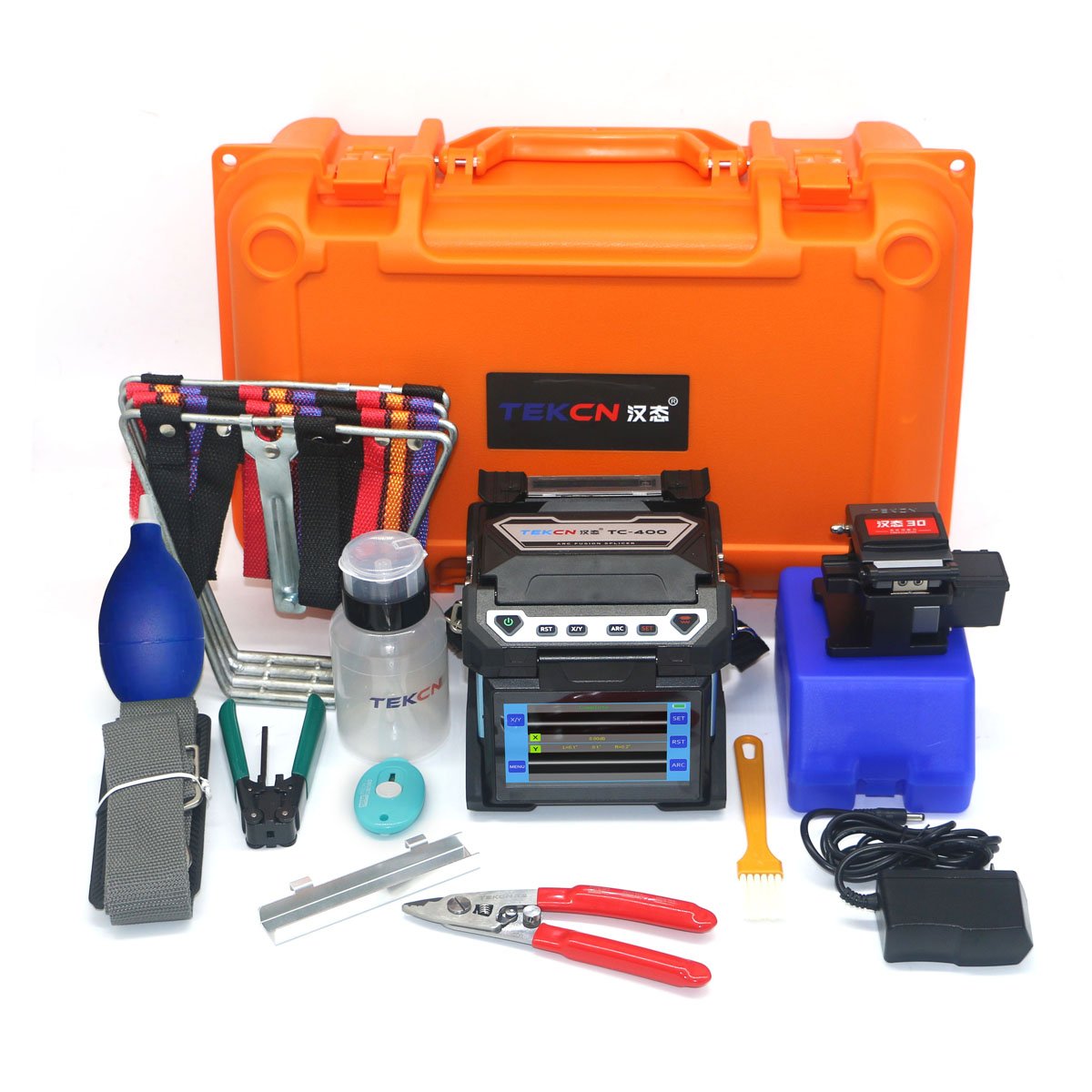

📦 Standard Package
- TC‑400 Fusion Splicer (Main Unit)
- Carrying case (doubles as work platform)
- High‑precision cleaver
- Fiber stripper + drop cable stripper
- Alcohol bottle
- AC adapter + power cord
- Cooling tray
- Extra electrodes
- Air‑blowing ball + brush
- Hand strap + shoulder strap
- Folding stool (optional)
🛡️ Service Commitment
Purchasing the Tekcn TC‑400 Fusion Splicer from UFS includes:
- Warranty coverage (battery, adapter, and consumables per manufacturer policy)
- Professional support and authorized servicing
- Commitment to industry‑standard quality and reliability
| Color | Aqua |
|---|
