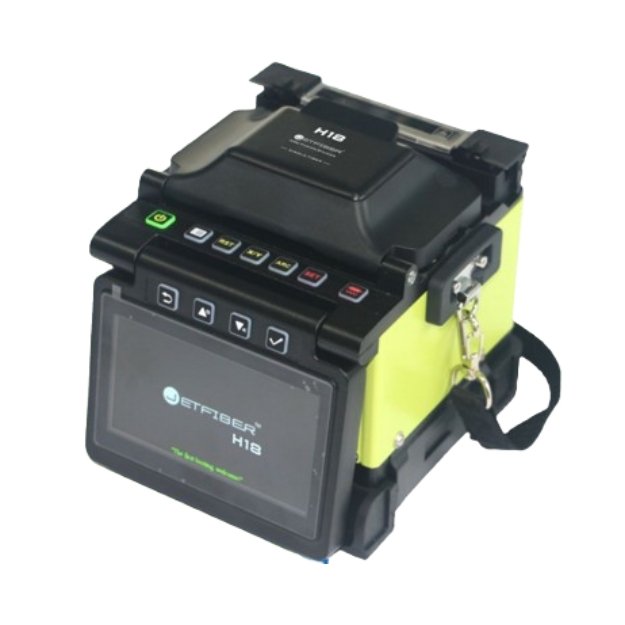

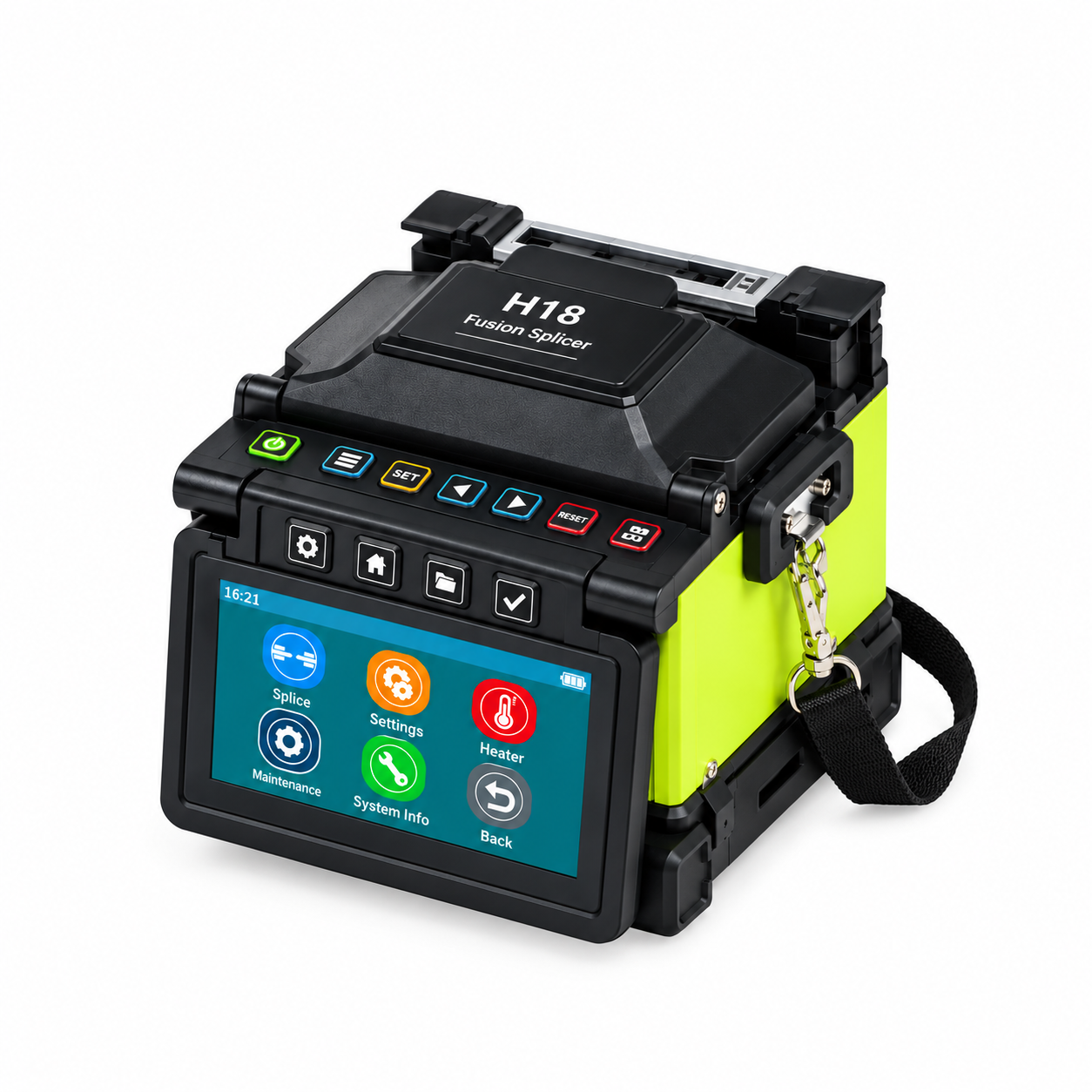

New Model Jet Fiber H-18 Splicing Machine
+ Free ShippingThe JetFiber H18 Fusion Splicer is a compact, lightweight, and ultra‑fast fiber splicing machine designed for FTTH installations, telecom projects, and security monitoring. With 5‑second splicing, 12‑second heating, and a 4000mAh battery supporting 240+ cycles, it delivers precision, stability, and efficiency. Available now at Universal Fiber Solutions (UFS) — the trusted place to buy JetFiber H18 fusion splicers online at the best price.
Overview
The JetFiber H18 Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is a mini fusion splicer built for core alignment precision. With its small size, light weight, and stable performance, it is ideal for field engineers, FTTH projects, and emergency fiber repairs.
Featuring 5‑second splicing time, 12‑second adjustable heating, and low splice loss values (SM: 0.02dB, MM: 0.01dB, DS/NZDS: 0.04dB, BI: 0.02dB), the H18 ensures reliable connections with minimal signal loss.
⚡ Key Features
- Ultra‑fast performance – 5s splicing, 12s heating
- Compact design – mini fusion splicer, lightweight at only 1.5kg (1.8kg with battery)
- High‑capacity battery – 4000mAh, supports 240+ cycles per charge
- Precision alignment – core alignment with single fiber splice mode
- Durable build – waterproof, dustproof, and anti‑shock protection
- 4.3‑inch color screen – clear fiber view with dual 300x cameras
- USB interface – supports external LED lighting and mobile charging
- Data storage – up to 20,000 splice records with export capability
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | Core alignment |
| Splicing mode | Single fiber |
| Splicing time | 5s |
| Heating time | 12s (adjustable) |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS), 0.02dB (BI) |
| Display | 4.3‑inch high‑light color screen |
| Battery | 4000mAh, >240 cycles per charge |
| Magnification | 300x dual axis / 150x dual axis view |
| Protection | Waterproof, dustproof, anti‑shock |
| Operating environment | ‑20°C to +50°C, ≤95%RH, altitude ≤5000m |
🔧 Built‑in Functions
- Automatic fiber identification – intelligent detection for splice accuracy
- Smart ARC calibration – reduces splice loss and improves efficiency
- USB interface – external LED lighting and mobile charging
- Mobile app integration – remote monitoring, splice records, and software upgrades
🛡️ Service Commitment
Purchasing the JetFiber H18 Fusion Splicer from UFS includes:
- Warranty coverage (battery, adapter, and consumables per manufacturer policy)
- Professional support and authorized servicing
- Commitment to industry‑standard quality and reliability
| Color | Aqua |
|---|
