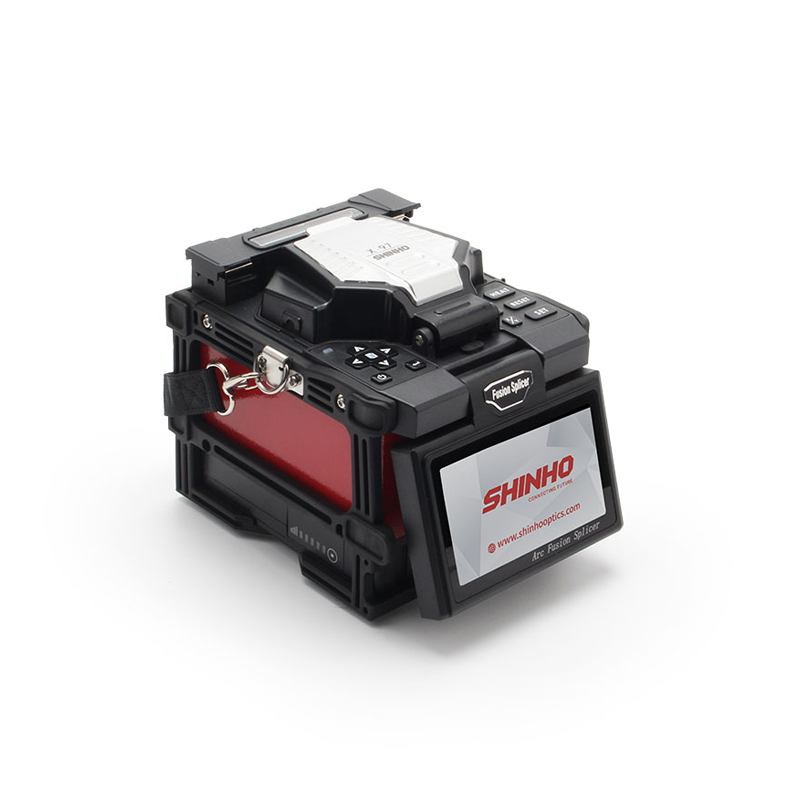

Shinho X97 Splicing Machine

Overview

The Shinho X‑97 Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is engineered for economical, stable, and efficient fiber splicing. Featuring four‑motor core alignment technology, it delivers 7‑second splicing and 26‑second heating cycles.

Its touchscreen + keypad interface, automatic ARC calibration, and industrial quad‑core CPU make it ideal for telecom operators, FTTH projects, and security monitoring installations.

⚡ Key Features

• 1‑second boot up – instant start for field use
• 7‑second splicing – fast and efficient performance
• 26‑second heating – suitable for 40mm and 60mm sleeves
• Four‑motor core alignment – precision fiber positioning
• Stable performance – average splice loss ≤0.03dB
• High‑capacity battery – 5200mAh, supports 250+ cycles per charge
• 4.3‑inch LCD display – color monitor with GUI interface
• Automatic ARC calibration – intelligent discharge control
• Data storage – 8,000 splice records with loss evaluation
• Durable build – waterproof, dustproof, windproof, anti‑shock protection

📊 Technical Specifications

📦 Standard Package

• X‑97 Fusion Splicer (Main Unit)
• Carrying box
• Fiber cleaver
• Fiber stripper + drop cable stripper
• Power cord + adapter
• Cooling tray
• Spare electrodes
• Cleaning brush
• Strap
• User manual (USB)

🛡️ Service Commitment

Purchasing the Shinho X‑97 Fusion Splicer from UFS includes:

• Warranty coverage (battery, adapter, and consumables per manufacturer policy)
• Professional support and authorized servicing
• Commitment to industry‑standard quality and reliability
