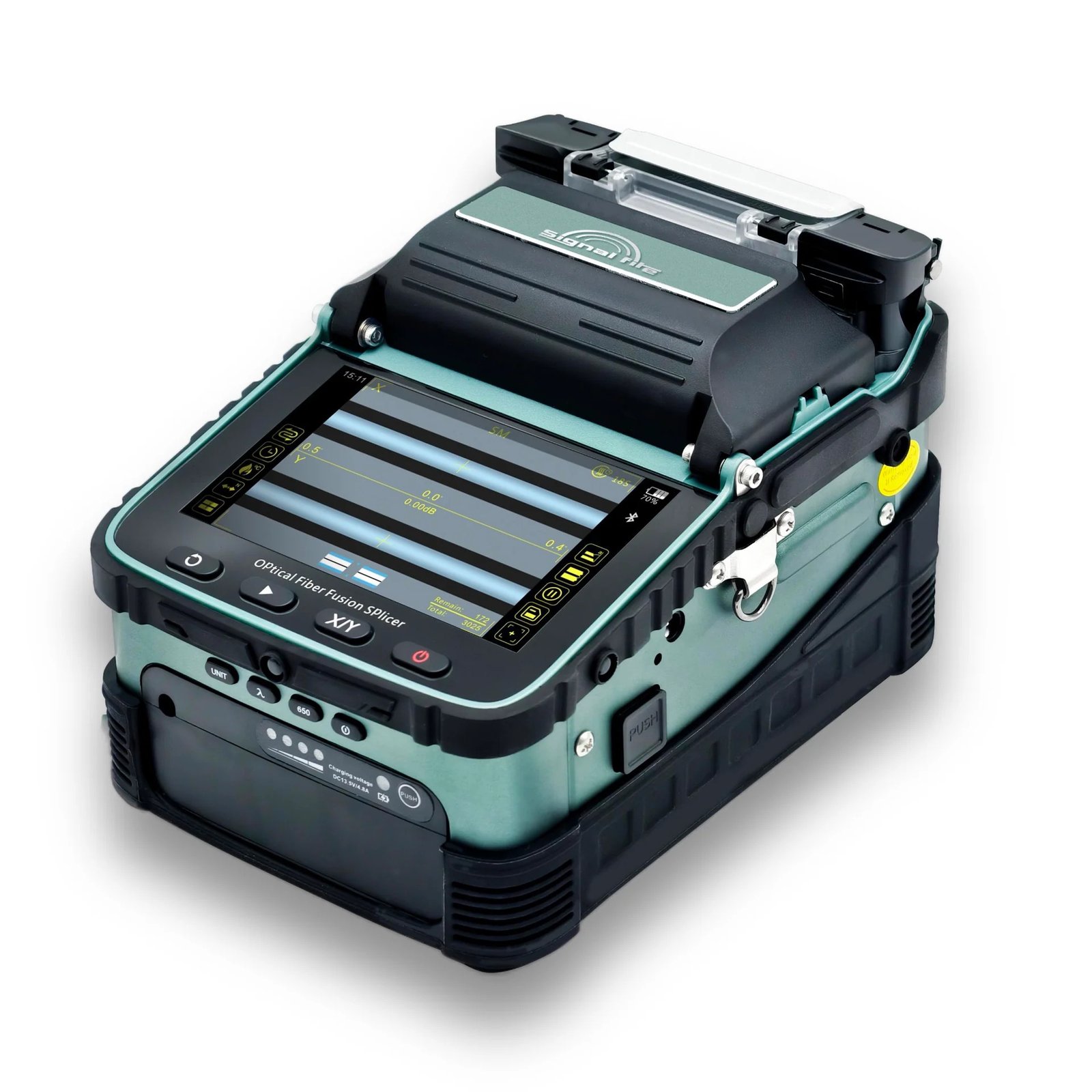

New Model Signal Fire Ai-6A+ Fusion Splicing Machine
+ Free ShippingThe AI‑6A+ Fusion Splicer is a cost‑effective six‑motor fiber core alignment machine designed for FTTH installations, security monitoring, and short‑distance outdoor fiber splicing. With 8‑second splicing, 18‑second heating, and a 5200mAh battery supporting up to 160 cycles, plus built‑in OPM and VFL functions, it delivers professional performance at an affordable price. Available now at Universal Fiber Solutions (UFS) — the trusted place to buy fiber splicers online at the best price.
Overview
The Signal Fire AI‑6a+ Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is an economical yet advanced splicing solution. Built with an industrial CPU and a 5‑inch color touchscreen, it offers fast operation and a user‑friendly interface. With 320x magnification, technicians can easily observe fiber cores with the naked eye.
Unlike ordinary splicers, the AI‑6a+ comes with integrated OPM (Optical Power Meter) and VFL (Visual Fault Locator) functions, making it more efficient and versatile for professional use.
⚡ Key Features
- 8‑second splicing and 18‑second heating
- 5‑inch color touchscreen with intuitive interface
- 320x magnification for clear fiber core observation
- 5200mAh lithium battery – supports ~160 cores per charge
- Built‑in OPM & VFL functions for enhanced efficiency
- Bluetooth 4.2 wireless connectivity – remote monitoring via mobile app
- Multi‑language support – 11 global languages with remote software upgrades
- Waterproof, dustproof, and drop‑resistant design
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | Core/cladding, 6 motors |
| Splicing time | 8s |
| Heating mode | 18s (customizable) |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, G.654, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Display | 5‑inch color touchscreen |
| Battery | 5200mAh, ≤3h charging, ~160 cores per charge |
| Magnification | 300x single axis / 150x dual axis |
| Wireless | Bluetooth 4.2, 60m range |
| Protection | Waterproof, dustproof, drop‑resistant |
| Operating environment | ‑15°C to +50°C, ≤95%RH, altitude ≤5000m |
🔧 Built‑in Functions
- OPM – supports multiple wavelengths (850nm–1625nm), accurate loss measurement
- VFL – 15mW output, flashing and steady modes
- 3‑in‑1 fiber holder – compatible with single/multi‑mode, bare fiber, pigtail, jumper, drop cable
- Mobile app integration – remote monitoring, splicing records, software upgrades
🛡️ Service Commitment
Purchasing the AI‑6a+ Fusion Splicer from UFS includes:
- 1‑year warranty (excluding consumables like electrodes, cleaver blades, and stripping tools)
- Professional support and authorized servicing
| Color | Aqua |
|---|
