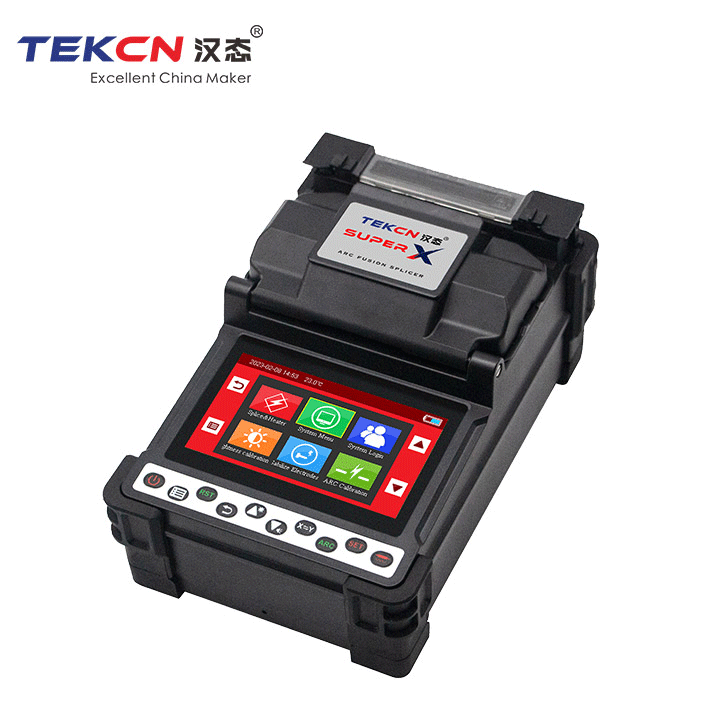

Tekcn Super X Fusion Splicing Machine
+ Free ShippingThe TEKCN Super X Fusion Splicer is a high‑performance, cost‑effective PAS alignment machine designed for FTTH and CATV projects. With 7‑second splicing, 15‑second heating, and a 4000mAh battery supporting 240+ cycles, it delivers precision, durability, and efficiency. Available now at Universal Fiber Solutions (UFS) — the trusted place to buy TEKCN Super X fusion splicers online at the best price.
Overview
The TEKCN Super X Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is engineered for fast, stable, and reliable fiber splicing. Featuring PAS core alignment with four motors, it delivers 7‑second splicing and 15‑second heating cycles.
Its mini handheld design, exclusive UI, and double V‑groove technology make it easy to use even for beginners, ensuring efficient fiber splicing without requiring advanced skills.
⚡ Key Features
- 7‑second splicing – ultra‑fast performance
- 15‑second heating – customizable heating cycles
- PAS core alignment – four‑motor precision system
- Double V‑groove design – simplifies fiber placement for faster work
- High‑capacity battery – 4000mAh, supports 240+ cycles per charge
- Durable build – waterproof, dustproof, windproof, anti‑shock protection
- 4.3‑inch touchscreen – smart GUI with dual CMOS camera display
- Data storage – up to 10,000 splice records with image capture
- Electrode life – ≥5000 discharges with anti‑counterfeit QR code
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | 4 motors PAS alignment |
| Splicing time | 7s (SM fast mode) |
| Heating time | 15s (adjustable) |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS), 0.02dB (BI) |
| Display | 4.3‑inch 480×272 pixel touchscreen |
| Battery | 4000mAh, >240 cycles per charge |
| Magnification | 300x single axis / 130x dual axis |
| Protection | Waterproof, dustproof, windproof, anti‑shock |
| Operating environment | ‑20°C to +50°C, ≤95%RH, altitude ≤5000m |
📦 Standard Package
- TEKCN Super X Fusion Splicer (Main Unit)
- 3‑in‑1 multifunctional fiber holder
- High‑precision cleaver
- Fiber stripper + drop cable stripper
- Spare electrodes
- Alcohol bottle + cooling tray
- AC adapter + power cord
- Carrying case
- Dust‑blowing ball + brush
- Instruction manual
🛡️ Service Commitment
Purchasing the TEKCN Super X Fusion Splicer from UFS includes:
- Warranty coverage (battery, adapter, and consumables per manufacturer policy)
- Professional support and authorized servicing
- Commitment to industry‑standard quality and reliability
| Color | Aqua |
|---|
Related products
-

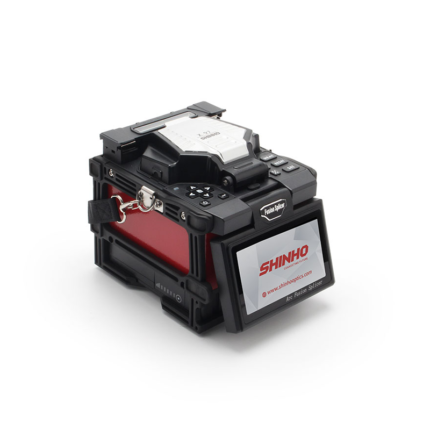

Shinho X97 Splicing Machine
