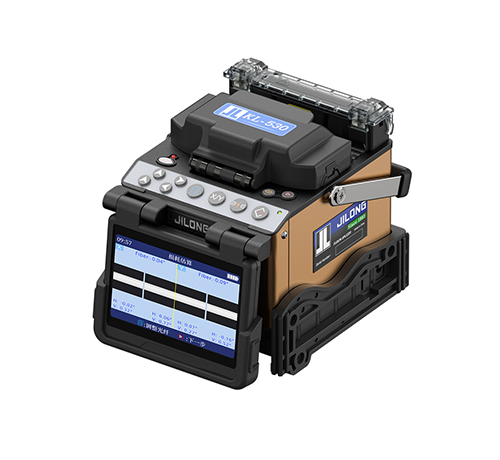

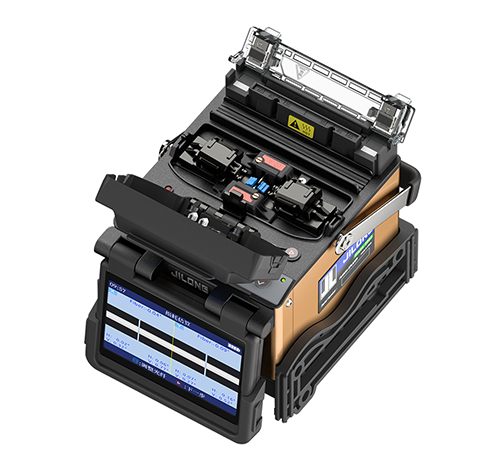

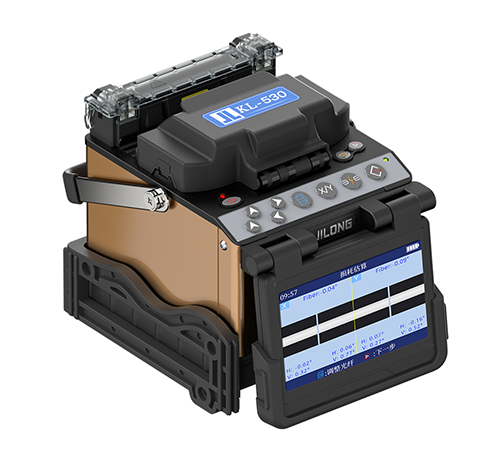

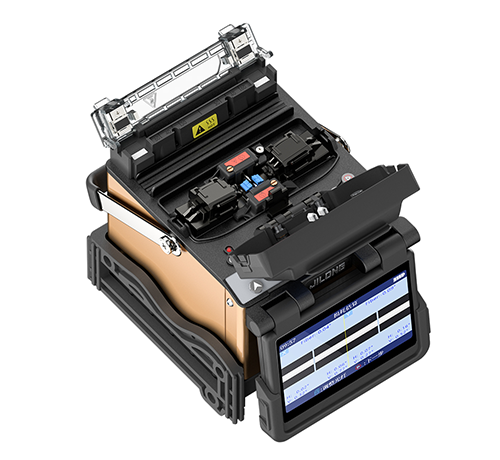

Jilong KL‑530 Optical Fiber Fusion Splicer
+ Free ShippingThe KL‑530 Core Alignment Fusion Splicer is a professional trunk fiber splicing machine designed for MAN, FTTH, and telecom projects. With 8‑second splicing, 18‑second heating, and a 5200mAh battery supporting 300+ cycles, it delivers ultra‑low splice loss, robust durability, and easy operation. Available now at Universal Fiber Solutions (UFS) — the trusted place to buy KL‑530 fusion splicers online at the best price.
Overview
The KL‑530 Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is engineered for precision, speed, and reliability. Featuring core alignment technology, it delivers 8‑second splicing and 18‑second heating cycles.
Its solid three‑proof design (waterproof, dustproof, dropproof), tool‑free electrode replacement, and 4.3‑inch HD LCD display make it ideal for trunk line metropolitan networks, FTTH deployments, and security monitoring installations.
⚡ Key Features
- 8‑second splicing – ultra‑fast performance
- 18‑second heating – adjustable heating cycles
- Core alignment technology – advanced precision system
- High‑capacity battery – 5200mAh, supports 300+ cycles per charge
- 4.3‑inch HD LCD display – splice loss visible at a glance
- Automatic ARC calibration – real‑time discharge correction
- Data storage – 10,000 splice records + 2,000 images
- Durable build – waterproof, dustproof, dropproof protection
- Universal fixture – supports jumper, pigtail, leather cable, and bare fiber
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | Core alignment |
| Splicing time | 8s (SM quick mode) |
| Heating time | 18s |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.01–0.04dB depending on fiber type |
| Display | 4.3‑inch HD LCD (800×480) |
| Battery | 5200mAh, >300 cycles per charge |
| Magnification | 320x |
| Protection | Waterproof, dustproof, dropproof |
| Operating environment | ‑20°C to +50°C, ≤95%RH, altitude ≤5000m |
| Weight | 1.6kg (without battery), 1.9kg (with battery) |

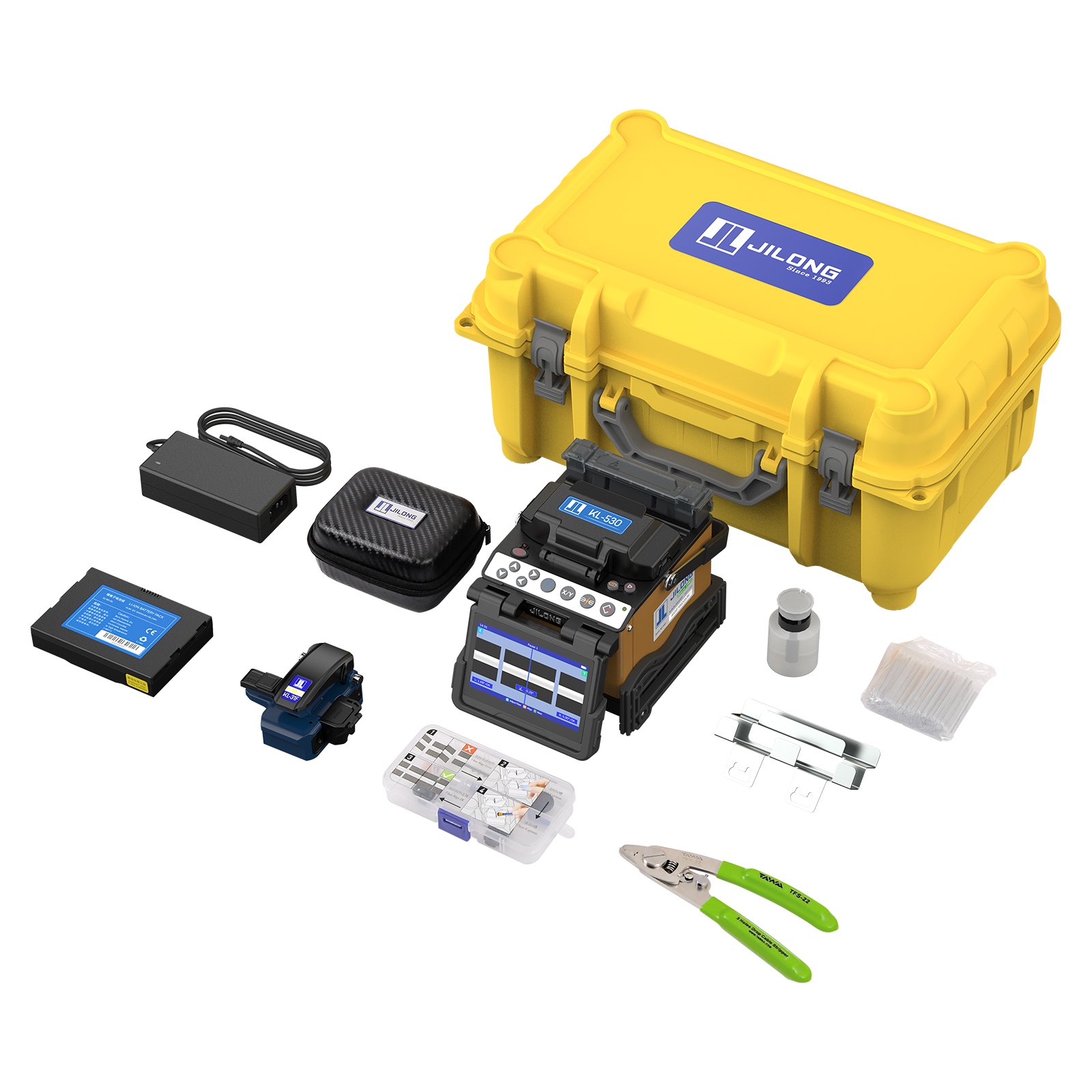

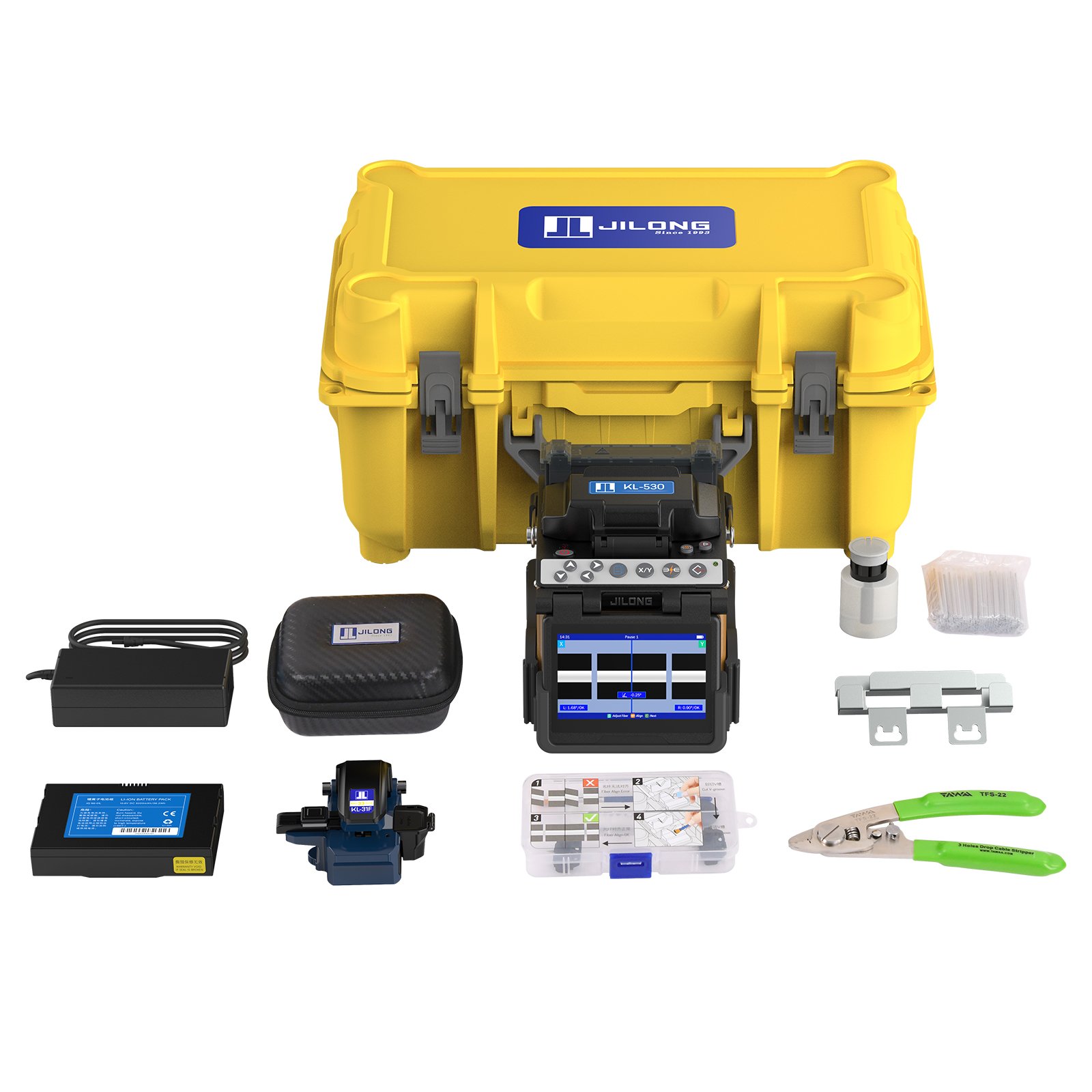

📦 Standard Package
- KL‑530 Fusion Splicer (Main Unit)
- Carrying case
- Fiber cleaver
- Fiber stripper + drop cable stripper
- Power cord + adapter
- Cooling tray
- Spare electrodes
- Cleaning brush
- Strap
- User manual
🛡️ Service Commitment
Purchasing the KL‑530 Fusion Splicer from UFS includes:
- Warranty coverage (battery, adapter, and consumables per manufacturer policy)
- Professional support and authorized servicing
- Commitment to industry‑standard quality and reliability
