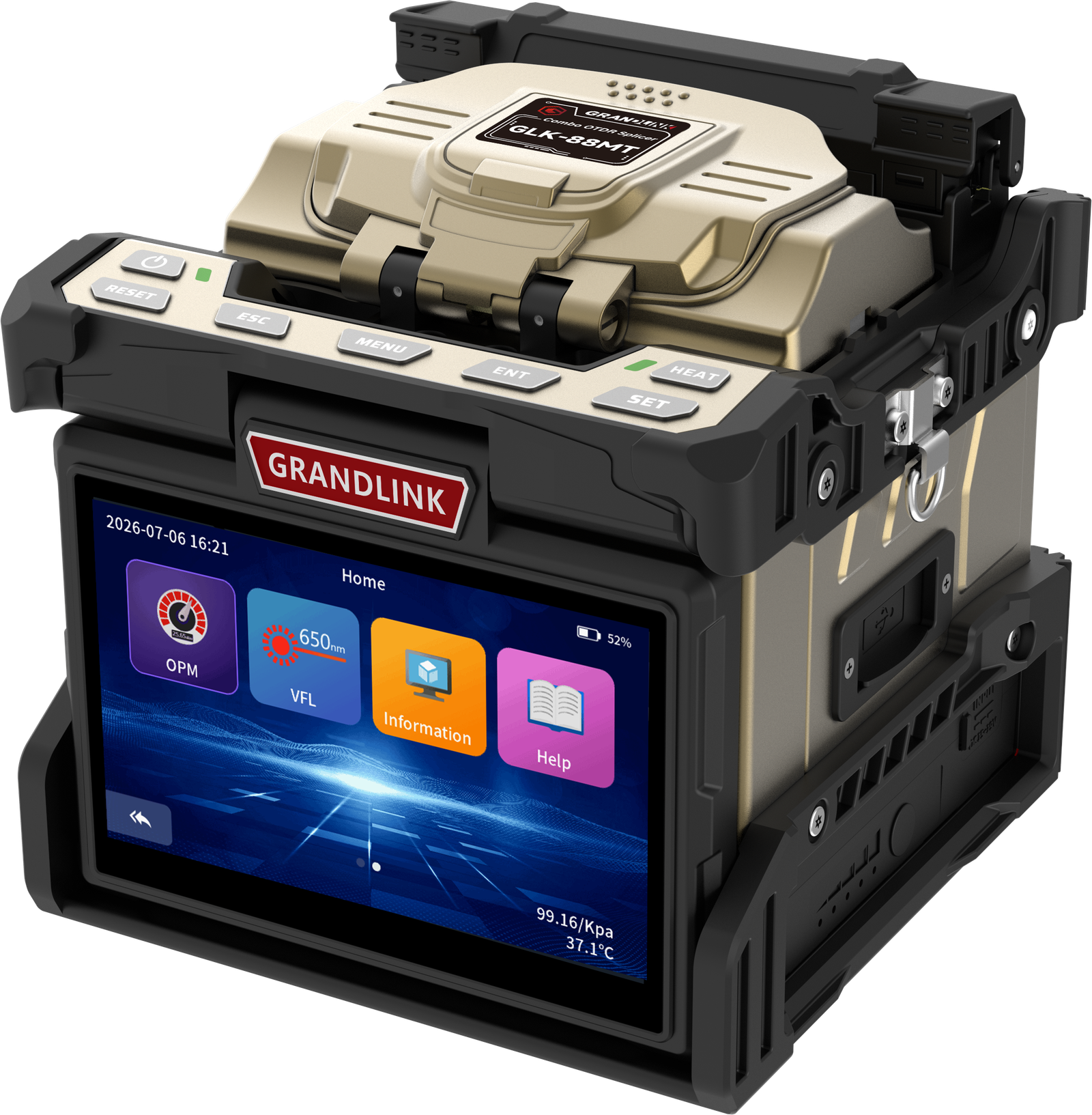

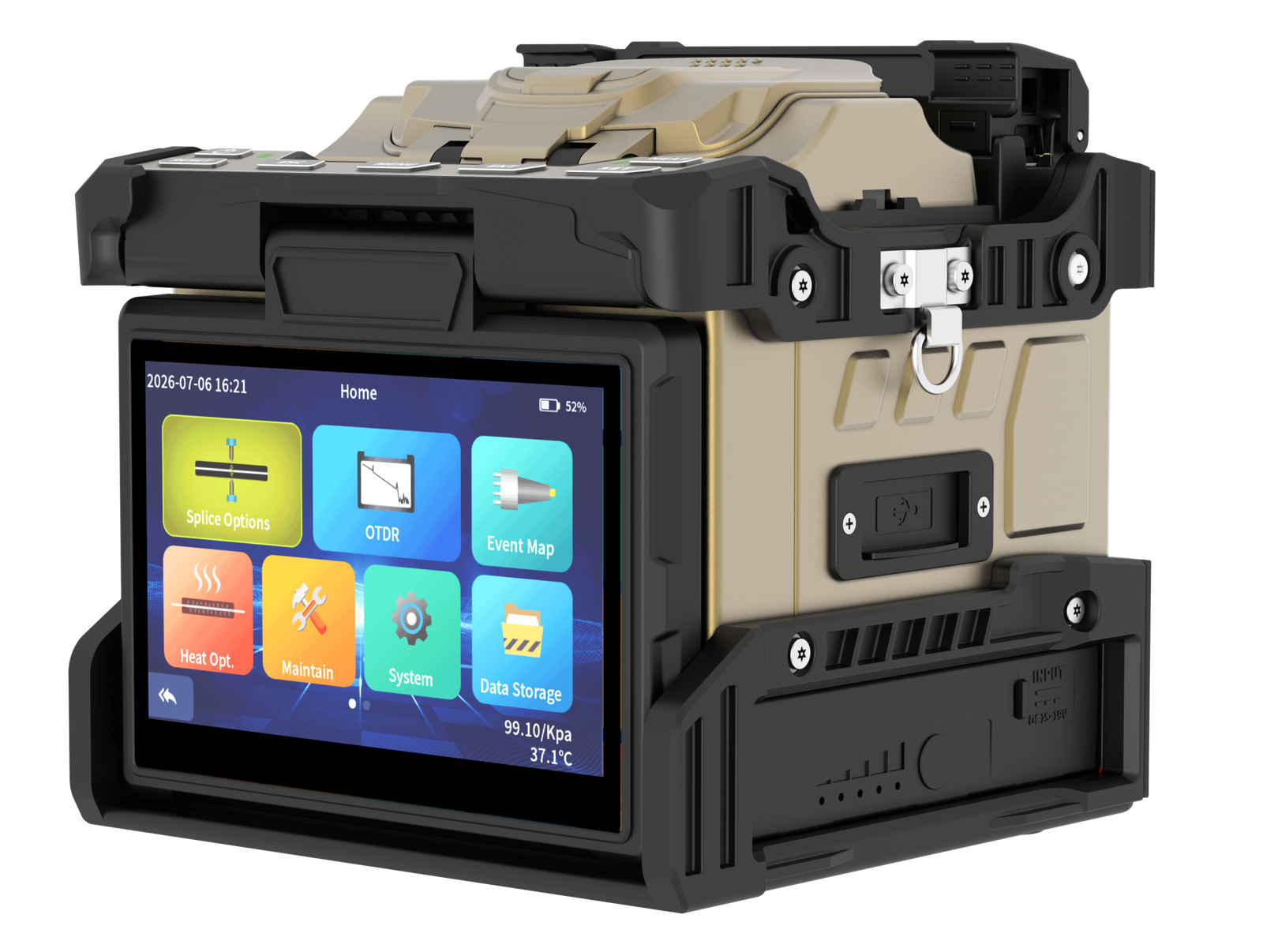

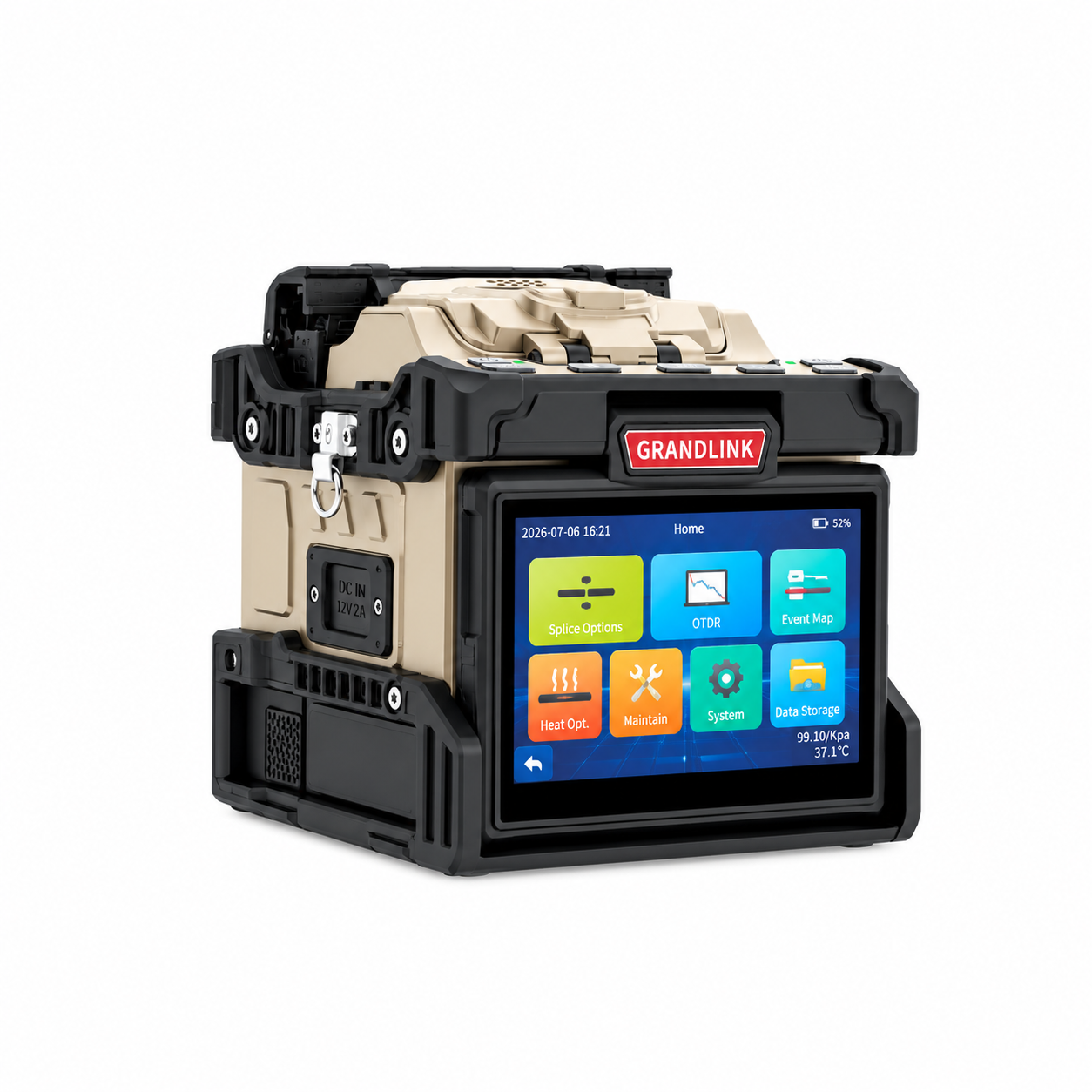

GRANDLINK GLK-88MT All-in-One Fusion Splicer with OTDR

GLK-88MT Fusion Splicer with OTDR, OPM & VFL

The GRANDLINK GLK-88MT Fusion Splicer is a new-generation all-in-one fiber optic splicing and testing solution designed to reduce the need for carrying multiple separate instruments in the field.

The GLK-88MT combines a fusion splicer, OTDR, Optical Power Meter (OPM) and Visual Fault Locator (VFL) into one compact unit. This integrated design allows fiber optic technicians to perform splicing, fiber testing and fault identification using a single device.

The product is being positioned in launch materials as an industry-first all-in-one solution combining fusion splicing, OTDR, OPM and VFL, making the GLK-88MT a notable new arrival for fiber optic professionals.

New Arrival in Pakistan

The GLK-88MT Fusion Splicer is a New Arrival in Pakistan, bringing an integrated approach to fiber optic installation and testing.

Instead of carrying separate equipment for:

• Fiber fusion splicing
• OTDR testing
• Optical power measurement
• Visual fault locating

the GLK-88MT combines these functions into one field-ready device.

For fiber optic technicians, contractors, ISPs and network installation teams, this can simplify the workflow and reduce the amount of equipment required on site.

---

World’s 1st All-in-One Fusion Splicer with OTDR, OPM & VFL

The GLK-88MT is marketed in launch materials as an industry-first all-in-one solution combining:

Fusion Splicer + OTDR + OPM + VFL

into a single machine.

This integrated architecture is one of the major highlights of the GLK-88MT Combo OTDR Splicer.

One Device. Multiple Fiber Optic Functions.

With the GLK-88MT, technicians can work with:

Fusion Splicing
Create permanent fiber-to-fiber connections using the integrated fusion splicing system.

OTDR
Test fiber links and identify events, loss and potential faults along the fiber route.

OPM — Optical Power Meter
Measure optical power levels for fiber link testing and troubleshooting.

VFL — Visual Fault Locator
Use visible red light to help identify fiber continuity and locate certain faults.

The combination of these functions makes the GLK-88MT Fusion Splicer particularly useful for field technicians who need both splicing and fiber testing capabilities.

---

6-Motor Real Core-to-Core Alignment

One of the most important features of the GLK-88MT Fusion Splicer is its 6-motor core alignment system.

The six-motor mechanism provides multi-axis fiber positioning and alignment, helping position the fiber cores accurately before the fusion process.

The GLK-88MT is therefore designed for real core-to-core alignment, rather than relying only on basic cladding alignment.

6-Motor Core Alignment Benefits

• Accurate fiber positioning
• Automatic alignment
• Improved splicing consistency
• Core-to-core alignment
• Suitable for professional fiber installations
• Automatic and manual operating options

The 6-motor core alignment system is one of the key selling points of this professional fiber fusion splicer.

---

Integrated OTDR Testing

The GLK-88MT Combo OTDR Splicer integrates an OTDR directly into the fusion splicing machine.

An Optical Time Domain Reflectometer (OTDR) can be used to examine fiber links and help identify events such as:

• Fiber breaks
• High-loss points
• Splice issues
• Connectors
• Bends
• Reflections
• End of fiber
• Unexpected events along the fiber route

The available product information specifies 1310nm and 1550nm OTDR live testing with a stated 22 dB specification.

This integrated OTDR functionality allows technicians to perform testing without switching to a separate OTDR device.

---

Built-in Optical Power Meter — OPM

The GLK-88MT Fusion Splicer also incorporates an Optical Power Meter (OPM).

OPM functionality can be used to measure optical power levels and assist technicians in evaluating fiber link performance.

The published product information lists an OPM measurement range of approximately -50 dBm to +26 dBm.

This makes the integrated OPM useful for fiber optic installation, commissioning, maintenance and troubleshooting tasks.

---

Built-in VFL — Visual Fault Locator

The GLK-88MT also includes a built-in VFL (Visual Fault Locator).

A VFL uses visible red light to help technicians check fiber continuity and identify certain problems in accessible sections of a fiber link.

The available product information specifies a 10mW VFL.

Having VFL functionality integrated into the same machine means technicians do not necessarily need to carry a separate VFL for basic visual fiber fault checking.

---

Fast Heating System

The GLK-88MT features a quick heating system designed for efficient fiber splicing workflows.

The product information highlights heating capability of approximately 10 seconds, allowing technicians to complete the splice protection process quickly.

Fast heating can be particularly useful during:

• FTTH installations
• Fiber maintenance
• ISP deployment
• Fiber cable repair
• Data center work
• Outdoor fiber installation
• Telecom network projects

---

3-Second Boot-Up

The GLK-88MT features a claimed 3-second boot-up, allowing technicians to start working quickly after powering on the machine.

For field technicians handling multiple fiber connections throughout the day, faster startup can help reduce unnecessary waiting time.

---

6200mAh Large-Capacity Battery

The GLK-88MT Fusion Splicer comes with a 6200mAh battery, providing portable operation for field fiber optic work.

A large-capacity battery is particularly useful for technicians working:

• Outdoors
• On towers
• In telecom cabinets
• In fiber distribution areas
• During emergency repairs
• At construction sites
• In locations without convenient AC power

The integrated battery helps make the GLK-88MT a portable fiber splicing and testing solution.

---

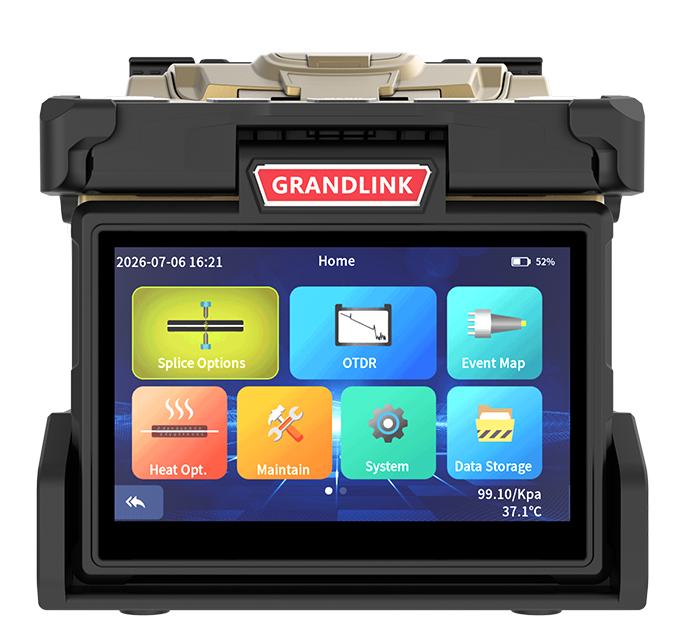

5-Inch HD IPS Capacitive Touchscreen

The machine features a 5-inch HD IPS capacitive touchscreen.

The touchscreen interface provides access to the device’s different functions, including:

• Splice options
• OTDR
• Event map
• OPM
• VFL
• Maintenance
• System settings
• Data storage

The visual interface is designed to make switching between the machine’s different fiber optic functions easier.

---

Rugged Metal Body

The GLK-88MT features a durable metal body designed for professional field use.

Its rugged construction makes it suitable for demanding environments where technicians need equipment that can be transported between different fiber installation and maintenance locations.

---

Multi-Functional Fiber Optic Machine

The major advantage of the GLK-88MT Combo OTDR Splicer is its multi-functional design.

Instead of using separate:

1. Fusion Splicer
2. OTDR
3. Optical Power Meter
4. Visual Fault Locator

the GLK-88MT brings these functions together into one integrated platform.

This can help fiber technicians simplify their equipment setup and move more efficiently between splicing and testing tasks.

---

GLK-88MT for Fiber Optic Technicians

The GLK-88MT Fusion Splicer is designed for professionals working with fiber optic networks.

It can be useful for:

• Fiber optic technicians
• ISP technicians
• FTTH installers
• Telecom contractors
• Fiber maintenance teams
• Network installation companies
• Data center technicians
• Fiber optic testing teams
• ODN installation teams
• Broadband network installers

---

GLK-88MT for FTTH Installation

For FTTH (Fiber to the Home) projects, technicians often need to splice fiber and verify the quality of the installed link.

The GLK-88MT combines these requirements into one device by providing:

Splicing → OTDR Testing → OPM → VFL

This makes the GLK-88MT all-in-one fusion splicer particularly suitable for fiber deployment and maintenance workflows.

---

GLK-88MT Technical Highlights

Note: Specifications can vary by production revision or manufacturer configuration. UFS should confirm final technical specifications with the supplier before publishing fixed numerical claims such as OTDR range, splice time or measurement accuracy.

---

Key Features of GLK-88MT

All-in-One Fiber Optic Solution

Fusion splicing, OTDR, OPM and VFL integrated into one machine.

6-Motor Core Alignment

Advanced multi-axis motorized alignment for professional fiber splicing.

Integrated OTDR

Perform fiber link testing without carrying a separate OTDR.

Built-in OPM

Measure optical power levels directly from the machine.

Built-in VFL

Perform basic visual fiber continuity and fault checks.

6200mAh Battery

Designed for portable field operation.

5-Inch Touchscreen

HD IPS capacitive touchscreen for easy operation.

Fast Startup

Approximately 3-second boot-up is highlighted in the product material.

Quick Heating

Heating time of approximately 10 seconds is highlighted in the supplied product material.

Bluetooth Remote Control

Bluetooth functionality is included among the listed product features.

Rugged Metal Construction

Designed for professional fiber optic field environments.

---

Why Choose GLK-88MT Fusion Splicer?

The GLK-88MT Fusion Splicer is designed around a simple idea: one machine for multiple fiber optic tasks.

For a technician, this can mean less equipment to carry and fewer device changes during a fiber installation or repair.

Its combination of 6-motor core alignment, fusion splicing, OTDR, OPM and VFL makes it a versatile tool for modern fiber optic network deployment and maintenance.

---

New GLK-88MT Fusion Splicer in Pakistan

Universal Fiber Solutions is introducing the GLK-88MT Fusion Splicer as a New Arrival in Pakistan for fiber optic professionals, ISPs, telecom contractors and network installation teams.

The GLK-88MT Combo OTDR Splicer brings fusion splicing and fiber testing capabilities into a single professional device.

If you are looking for a 6-motor core alignment fusion splicer with integrated OTDR, OPM and VFL in Pakistan, the GLK-88MT is designed to provide a compact all-in-one solution.

Contact Universal Fiber Solutions for availability, pricing and product information.
