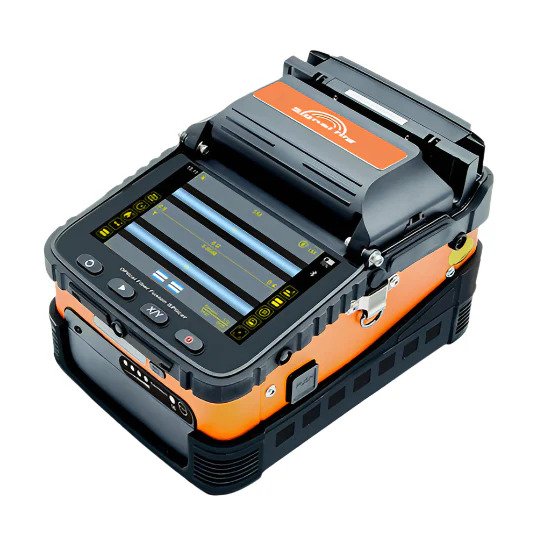

Signal Fire Ai-6C Fusion Splicing Machine
+ Free ShippingThe AI‑6C Fusion Splicer is an affordable, six‑motor fiber core alignment machine designed for FTTH installations, security monitoring, and short‑distance outdoor splicing. With 8‑second splicing, 18‑second heating, and a 5200mAh battery supporting up to 160 cores per charge, it offers professional performance at a competitive price. Available now at Universal Fiber Solutions (UFS) — your trusted source to buy fiber splicers online.
Overview
The AI‑6C / AI‑6C+ Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is an economical yet powerful splicing solution. Built with an industrial CPU and a 5‑inch color touchscreen, it delivers fast operation and intuitive control. With 320x magnification, users can easily observe fiber cores with the naked eye.
This splicer is ideal for security monitoring projects, FTTH entry, and short‑distance outdoor fiber installations, making it a cost‑effective choice for contractors, telecom operators, and engineering companies.
⚡ Key Features
- 8‑second splicing and 18‑second heating
- 5‑inch color touchscreen with intuitive interface
- 320x magnification for clear fiber core observation
- 5200mAh lithium battery – supports ~160 cores per charge
- USB charging port – powers mobile devices and external LED lights
- Bluetooth 4.2 wireless connectivity – remote monitoring via mobile app
- Multi‑language support – 11 global languages with remote software upgrades
- Waterproof, dustproof, and drop‑resistant design
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | Core/cladding, 6 motors |
| Splicing time | 8s |
| Heating mode | 18s (customizable) |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Display | 5‑inch color touchscreen |
| Battery | 5200mAh, ≤3h charging, ~160 cores per charge |
| Magnification | 300x single axis / 150x dual axis |
| Wireless | Bluetooth 4.2, 60m range |
| Protection | Waterproof, dustproof, drop‑resistant |
| Operating environment | ‑15°C to +50°C, ≤95%RH, altitude ≤5000m |
🔧 Built‑in Functions
- Three‑in‑one fiber holder – compatible with single/multi‑mode, bare fiber, pigtail, jumper, drop cable
- USB interface – supports external LED lighting and mobile charging
- Mobile app integration – remote management, splicing records, software upgrades
🛡️ Service Commitment
Purchasing the AI‑6C Fusion Splicer from UFS includes:
- 1‑year warranty (excluding consumables like electrodes, cleaver blades, and stripping tools)
- Professional support and authorized servicing
| Color | Aqua |
|---|
