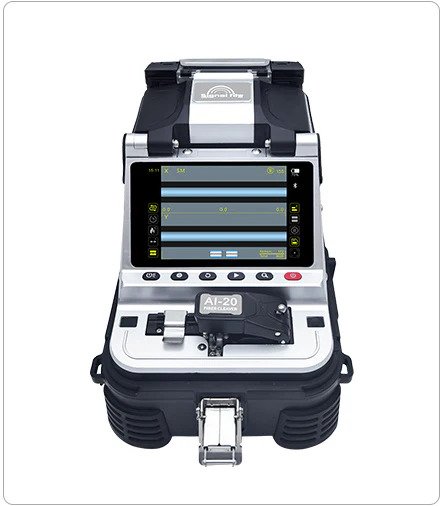

Signal Fire Ai-20 Fusion Splicing Machine
+ Free ShippingThe AI‑20 Fusion Splicer by Universal Fiber Solutions is a compact, lightweight, and highly integrated fiber splicing solution. With 1‑second startup, 6‑second fusion, and 15‑second heating, plus a 7800mAh battery supporting 240 cores per charge, it delivers speed, precision, and reliability for telecom, broadcasting, and optical cable construction projects.
Overview
The AI‑20 Fusion Splicer is the fourth‑generation full link integration splicer developed by Signal Fire and distributed by Universal Fiber Solutions (UFS). It combines a delayed return electric one‑step cleaver, built‑in Optical Power Meter (OPM), and Visual Fault Locator (VFL) functions, along with a 9‑in‑1 fiber stripper and combinable workbench. This integration reduces auxiliary tools, improves automation, and enhances overall splicing quality and efficiency.
Key Features
- Instant startup – ready in 1 second
- Rapid fusion – 6 seconds per splice
- Fast heating – 15 seconds per cycle
- High‑definition display – 5‑inch LCD screen, 320x magnification
- Long battery life – 7800mAh lithium battery, up to 240 cores per charge
- Durable design – waterproof, dustproof, drop‑resistant
Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | Core/cladding, 6 motors, 0.1μm accuracy |
| Splicing time | 6s |
| Heating mode | 15s (customizable) |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, G.654, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS) |
| Display | 5‑inch TFT color screen |
| Battery | 7800mAh, ≤3.5h charging, 240 cores per charge |
| Magnification | 320x single axis / 200x dual axis |
| Wireless | Bluetooth 4.2, 60m range |
| Protection | Waterproof, dustproof, drop‑resistant |
| Operating environment | ‑15°C to +50°C, ≤95%RH, altitude ≤5000m |
Built‑in Functions
- Delayed return cleaver – prevents fiber scratching, adjustable 0.2–2s
- Automatic blade rotation – 24 cutting points, tracked via mobile app
- OPM – supports multiple wavelengths (850nm–1625nm)
- VFL – 15mW output, flashing and steady modes
- USB charging – powers mobile devices during field work
Service Commitment
Purchasing the AI‑20 Fusion Splicer from UFS includes:
- 1‑year warranty (excluding consumables like electrodes and cleaver blades)
- Professional support and authorized servicing
| Color | Aqua |
|---|
