NOYAFA NF-919 3-in-1 Optical Fiber Tester

NOYAFA NF-919 3-in-1 Optical Fiber Tester

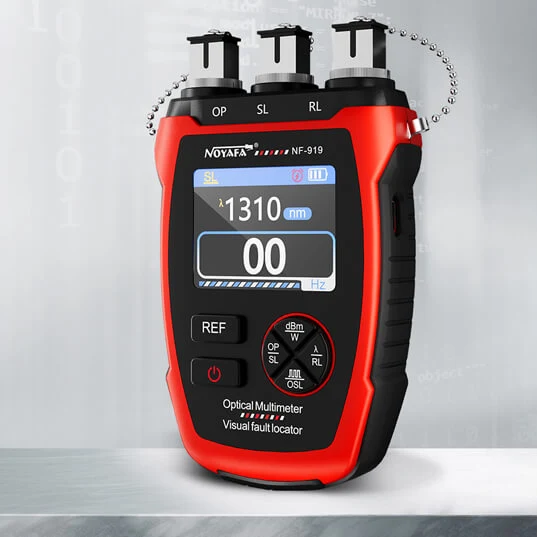

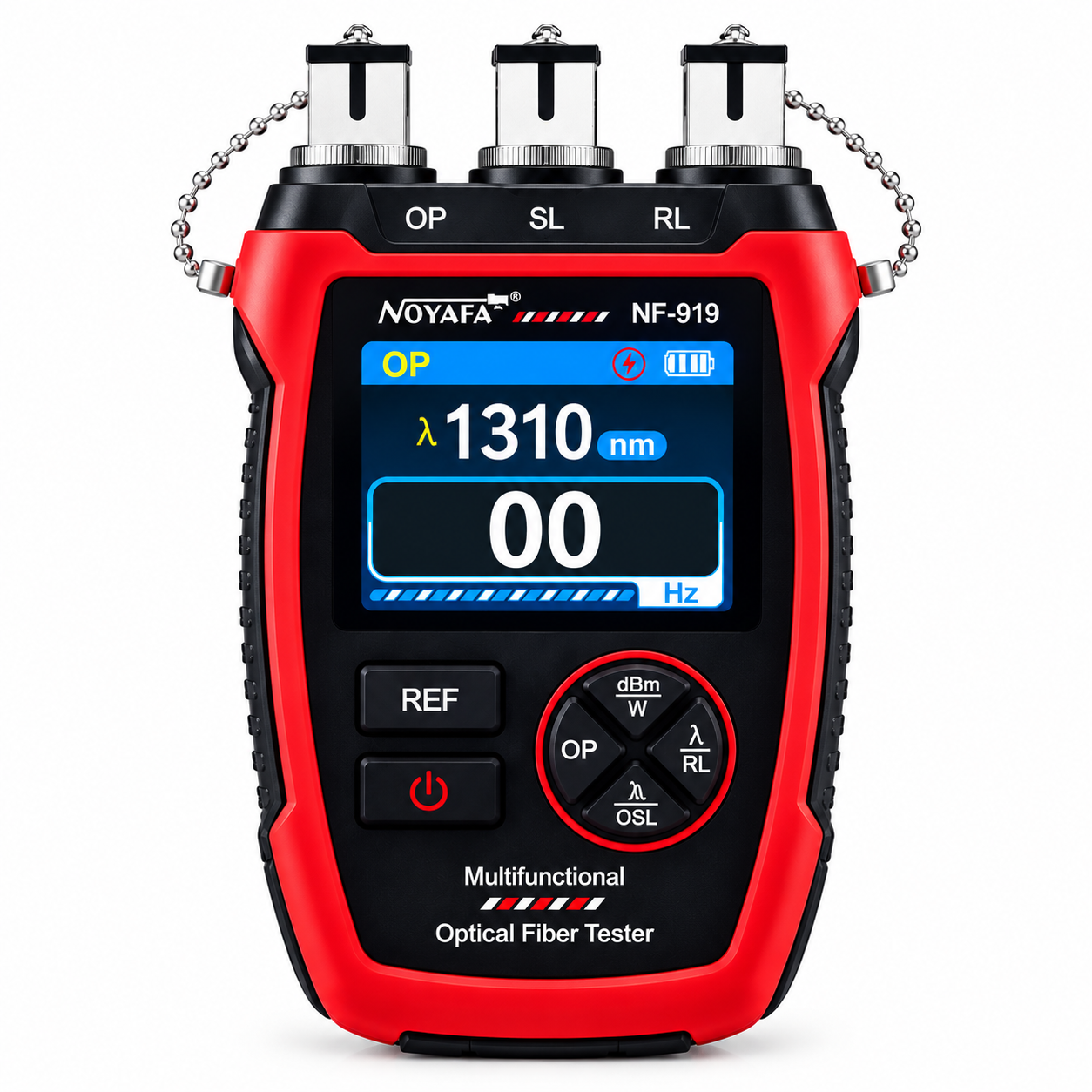

The NOYAFA NF-919 Optical Fiber Tester integrates an Optical Power Meter (OPM), Laser Light Source, and Visual Fault Locator (VFL) into one compact field testing device. It is designed for fiber optic installation, commissioning, maintenance, optical loss testing, and troubleshooting.

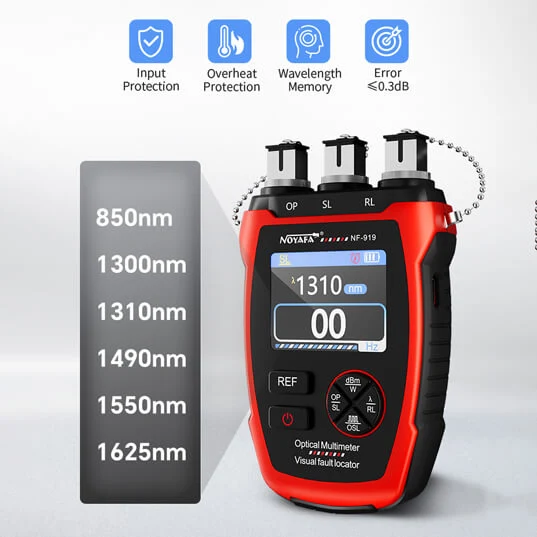

Optical Power Meter

The integrated Optical Power Meter (OPM) allows technicians to check important optical parameters including optical power, wavelength, frequency, loss, and fiber link data. The NF-919 provides testing accuracy with an error of less than 0.3 dB, supporting reliable fiber network measurements.

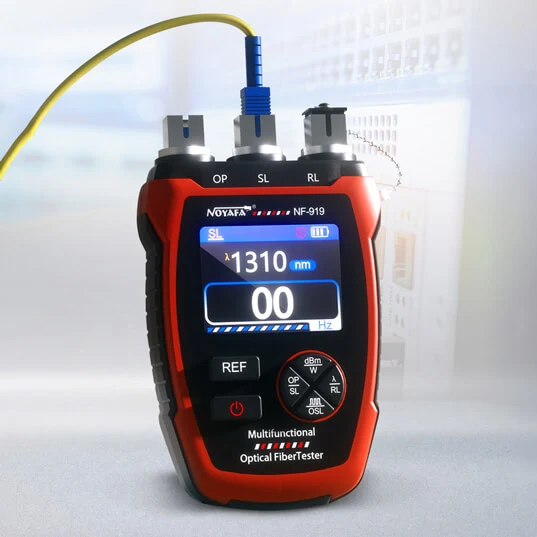

Laser Light Source

The built-in Laser Light Source provides stable optical signal emission for fiber link testing and total loss measurement. It can be used with the Optical Power Meter to evaluate fiber link loss and help identify transmission issues.

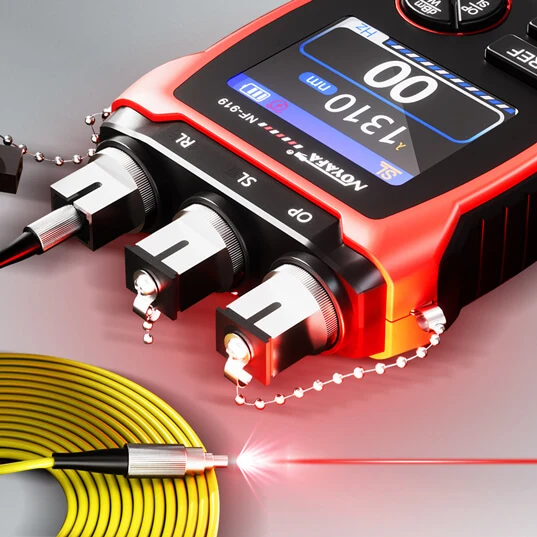

20mW Visual Fault Locator

The NF-919 features a 650nm Visual Fault Locator (VFL) with 20mW output power and a visual fault detection range of up to 20km, depending on fiber conditions.

The high-output VFL helps technicians identify visible fiber faults such as:

• Fiber breaks
• Excessive bends
• Damaged fiber sections
• Poor connections
• Fault locations along the fiber path

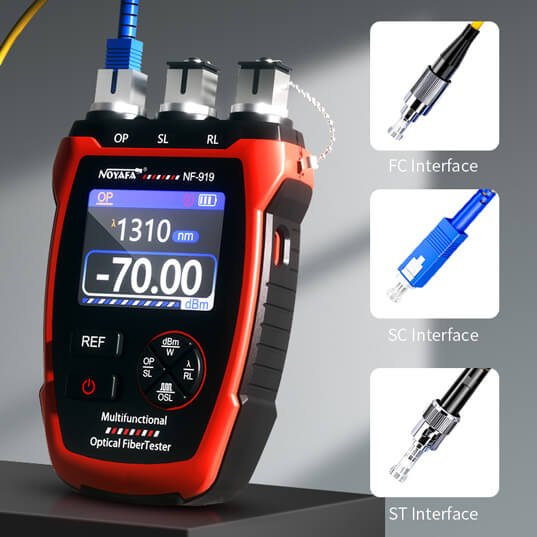

FC, SC & ST Interface Support

The NF-919 supports three commonly used fiber optic connector interfaces:

• FC
• SC
• ST

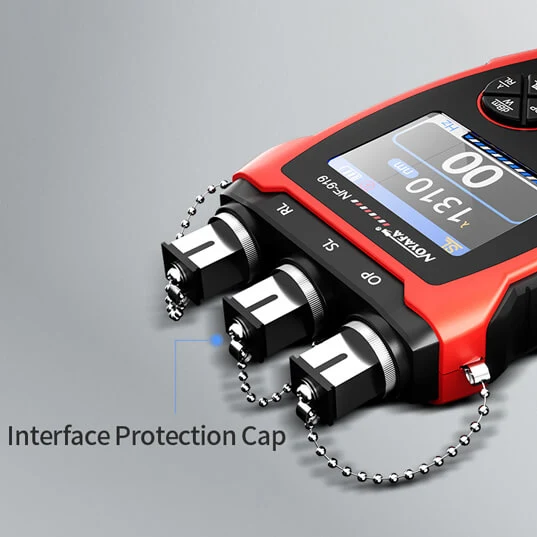

Protective caps help reduce dust and contamination on the fiber interfaces, supporting reliable testing and maintaining connector cleanliness.

Key Features

• 3-in-1 fiber testing: OPM + Light Source + VFL
• Optical power and wavelength testing
• Stable laser light source for loss measurement
• 20mW / 650nm VFL
• Up to 20km visual fault detection
• Testing accuracy of less than 0.3 dB
• FC, SC, and ST interface support

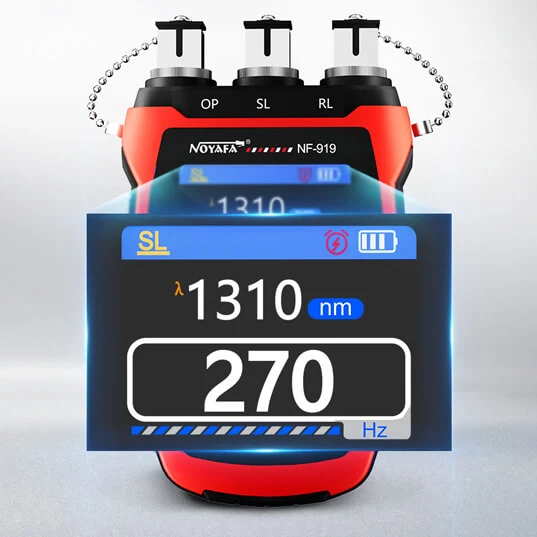

• High-definition color LCD display
• 1500mAh rechargeable lithium battery

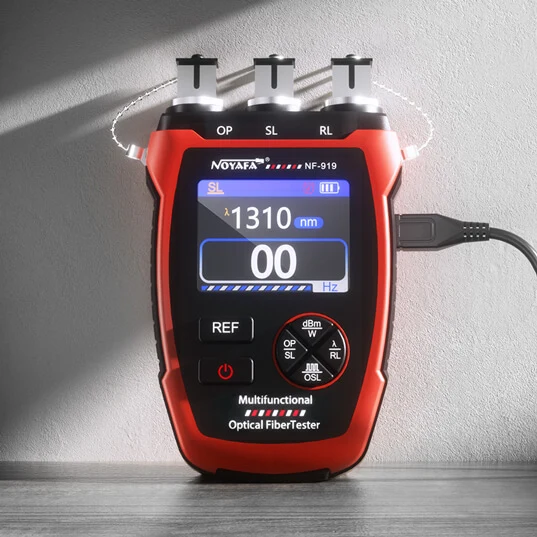

• USB Type-C charging
• 30-minute automatic shutdown
• Low-battery indicator
• Compact pocket-sized design
• Protective caps for fiber jacks

Technical Specifications

Specification	Details
Device Type	3-in-1 Optical Fiber Tester
Functions	OPM + Light Source + VFL
Optical Power Meter	Supported
Light Source	Laser Light Source
VFL Wavelength	650nm
VFL Output Power	20mW
VFL Detection Range	Up to 20km
Testing Accuracy	Error < 0.3 dB
Connector Interfaces	FC / SC / ST
Display	High-Definition Color LCD
Battery	1500mAh Lithium Battery
Charging	USB Type-C
Auto Shutdown	30 minutes
Design	Pocket-sized Handheld
Interface Protection	Protective caps

Fiber Optic Testing Applications

The NOYAFA NF-919 is suitable for:

• Fiber optic installation and commissioning
• FTTH and FTTx network testing
• Optical loss measurement
• Fiber link troubleshooting
• Long-distance fiber fault identification
• Telecom network maintenance
• ISP fiber infrastructure
• Data center fiber networks
• Enterprise fiber optic networks
• Field fiber testing and maintenance

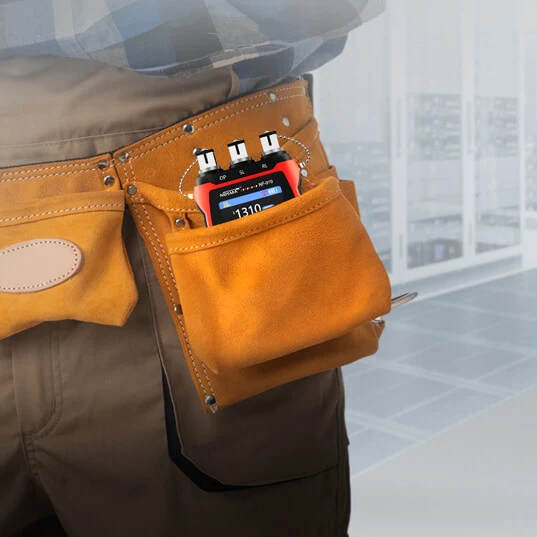

Portable Professional Fiber Tester

The pocket-sized NF-919 is designed for technicians who need multiple fiber testing functions in a portable instrument. Its 20mW VFL with up to 20km detection capability provides an effective solution for locating visible faults across extended fiber links.

The high-definition color display makes test results easy to read, while the 1500mAh rechargeable battery, USB Type-C charging, and protective fiber jack caps make the device practical for regular field operations.
