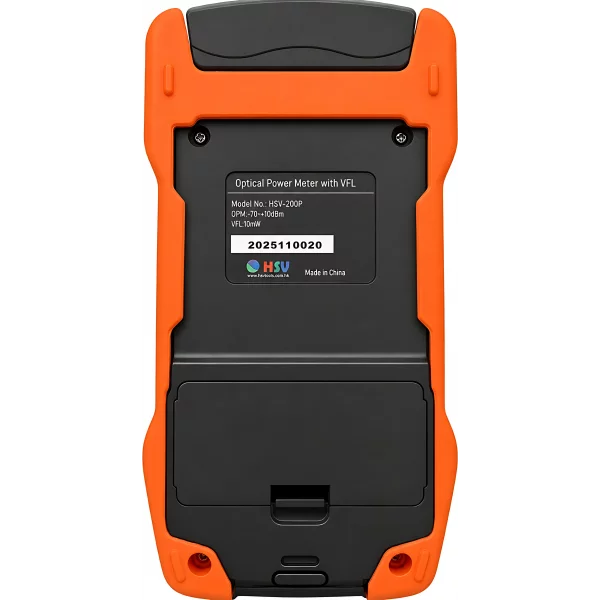

HSV-200P Optical Power Meter with VFL

HSV-200P Optical Power Meter with VFL

The HSV-200P Optical Power Meter with VFL is a multifunctional fiber testing instrument designed for accurate optical power measurement, fiber fault detection and network maintenance. It combines an Optical Power Meter, 10mW Visual Fault Locator (VFL), RJ45 cable testing and data storage in one compact and portable device.

Designed for professional FTTH, FTTx, LAN, telecom and CATV applications, the HSV-200P helps technicians measure optical signal power, identify fiber faults and perform basic Ethernet cable testing from a single handheld device.

Its wavelength auto-recognition function, rechargeable replaceable battery, USB charging and data-save capability make it practical for field technicians who need a reliable fiber testing solution for installation, troubleshooting and maintenance.

Key Features

• Accurate optical power measurement
• Built-in 10mW Visual Fault Locator
• 650nm visible red laser for fiber fault detection
• Wavelength auto recognition
• Supports multiple optical wavelengths
• Data save and result review function
• RJ45 Ethernet cable testing
• USB charging
• Replaceable rechargeable battery
• Automatic power-off function to conserve battery
• Compact and portable handheld design
• Clear LCD display
• Suitable for FTTH, FTTx, LAN, telecom and CATV networks

Optical Power Measurement

The HSV-200P is designed for measuring optical signal power in fiber optic networks. Its optical power measurement function helps technicians evaluate fiber link performance and identify abnormal signal levels during installation and maintenance.

The available specification lists a measurement range of -70 to +10 dBm, providing a broad range for optical power testing.

Multi-Wavelength Testing

The HSV-200P supports multiple optical wavelengths for testing different fiber network environments. Available wavelength specifications include:

• 850nm
• 980nm
• 1270nm
• 1300nm
• 1310nm
• 1490nm
• 1550nm
• 1577nm
• 1625nm
• 1650nm

The device also features wavelength auto recognition, helping technicians select and identify the required measurement wavelength during fiber testing.

Built-in 10mW VFL

The integrated 10mW Visual Fault Locator uses a visible red laser to help technicians quickly identify fiber breaks, bends and other visible fiber faults.

The VFL function is useful for fiber installation, troubleshooting and maintenance, especially when technicians need to visually trace a fiber link or locate a suspected fault.

RJ45 Cable Testing

The HSV-200P also provides RJ45 cable testing, allowing technicians to perform basic Ethernet cable verification alongside optical fiber testing.

This makes the device useful for technicians working with both fiber optic and LAN network installations.

Data Save Function

The built-in data save function allows test results to be stored and reviewed later. This helps technicians keep track of measurements during fiber installation, maintenance and troubleshooting.

Rechargeable & Replaceable Battery

The HSV-200P features a replaceable rechargeable battery designed for convenient field operation. The device also supports USB charging, allowing technicians to recharge it when required.

This design is useful for long-term fiber maintenance work where reliable portable power is important.

Automatic Power-Off

The automatic power-off function helps conserve battery power when the tester is not being used, extending operating time during field testing.

Technical Specifications

Specification	Details
Model	HSV-200P
Product Type	Optical Power Meter with VFL
Optical Power Measurement	Supported
Measurement Range	-70 to +10 dBm
Detector Type	InGaAs
Optical Wavelengths	850–1650nm, multiple wavelengths
Wavelength Recognition	Automatic
VFL	Built-in
VFL Output Power	10mW
VFL Wavelength	650nm
RJ45 Cable Test	Supported
Data Storage	Supported
Data Review	Supported
Battery	Replaceable Rechargeable Battery
Charging	USB Charging
Auto Power Off	Supported
Display	LCD
Design	Portable Handheld
Applications	FTTH, FTTx, LAN, Telecom, CATV

The measurement and wavelength specifications above are based on available HSV-200P product information; configuration details can vary by production version.

Applications

The HSV-200P is suitable for:

• FTTH fiber installation
• FTTx network maintenance
• Fiber optic troubleshooting
• LAN network installation
• Telecom fiber testing
• CATV systems
• Fiber link power measurement
• Fiber fault detection
• RJ45 cable testing
• Fiber installation and maintenance
• ISP field maintenance
• Network technician applications

Why Choose HSV-200P?

The HSV-200P Optical Power Meter with VFL combines several useful fiber and network testing functions in one portable instrument. With optical power measurement, 10mW VFL, wavelength recognition, RJ45 cable testing, data storage and rechargeable USB charging, it is designed to simplify everyday field testing and maintenance.

For customers looking to buy an optical power meter with VFL in Pakistan, the HSV-200P provides a practical solution for FTTH, FTTx, LAN, telecom and CATV applications.
