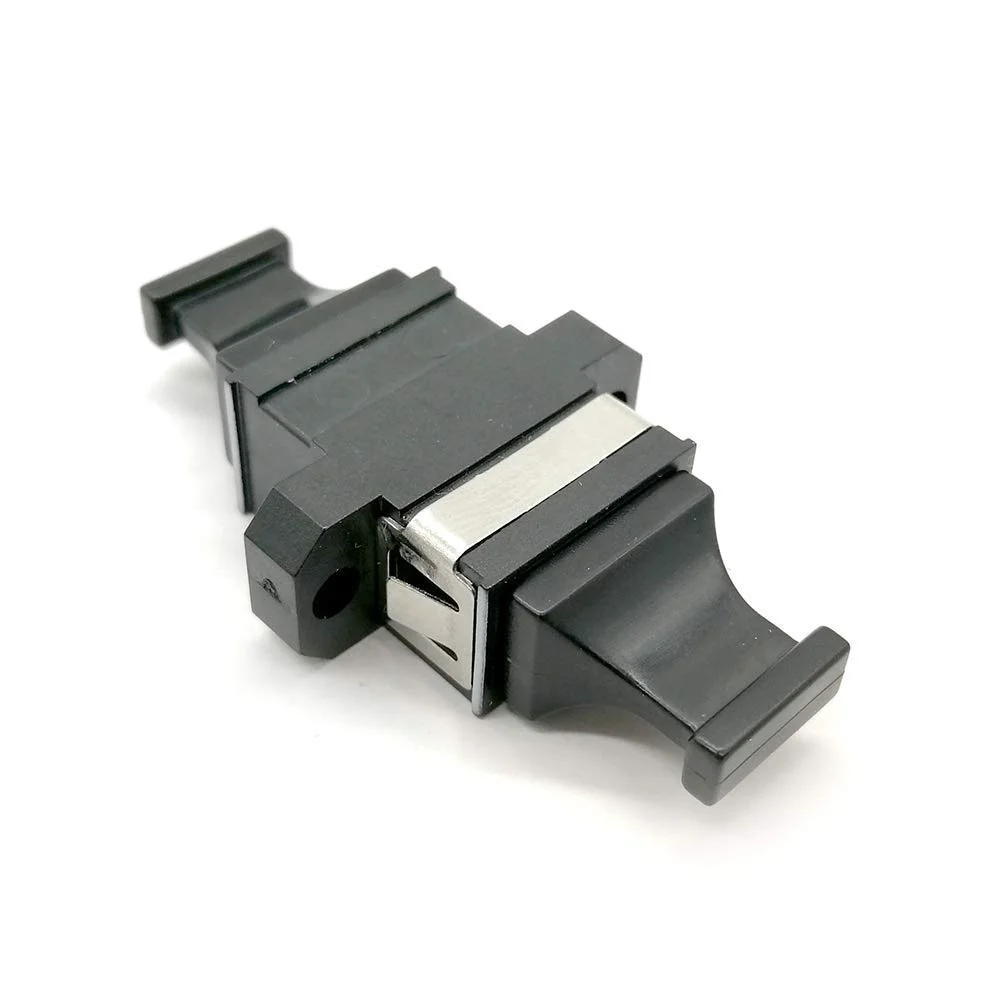

MPO/MTP Fiber Optic Adapter

MPO/MTP Fiber Optic Adapter

The MPO Adapter provides a reliable connection and precise alignment between MPO/MTP fiber optic connectors. Its compact design makes it ideal for high-density cabling systems, especially in data centers, telecom networks, patch panels, and fiber cassettes.

High-Density Fiber Connectivity

MPO/MTP adapters allow multiple fibers to be connected through a single compact interface. They are available for 12F, 24F, and higher fiber-count configurations, helping simplify high-density fiber installations.

The adapter is available in different keying options, including Key-Up to Key-Down and Key-Up to Key-Up, depending on the connector configuration.

Reliable Alignment & Performance

High-precision polymer or metal alignment pins help maintain accurate connector alignment for stable multi-fiber transmission.

Standard versions provide insertion loss of ≤0.35dB, while elite-grade versions can provide ≤0.2dB. Return loss is ≥50dB for UPC and ≥60dB for APC versions.

Technical Specifications

• Adapter Type: MPO to MPO
• Fiber Counts: 12F / 24F / Higher
• Fiber Type: Singlemode / Multimode
• Compatibility: OS2 / OM3 / OM4 / OM5
• Keying: Key-Up to Key-Down / Key-Up to Key-Up
• Alignment: Polymer or Metal Pins
• Color: Black
• Shutter Options: Aqua / Green
• Insertion Loss: ≤0.35dB Standard / ≤0.2dB Elite
• Return Loss: ≥50dB (UPC) / ≥60dB (APC)
• Durability: 500 Plug Cycles
• Operating Temperature: –40°C to +85°C
• Outer Sheath: Low Smoke Zero Halogen (LSZH)

Key Benefits

• Designed for MPO/MTP connectors
• Supports multiple fiber counts
• Compatible with OS2, OM3, OM4 and OM5
• Compact high-density design
• Precise multi-fiber alignment
• Low insertion loss options
• UPC and APC options
• Suitable for high-density fiber panels
• Wide operating temperature range

Applications

• Data Centers
• Telecom Networks
• High-Density Patch Panels
• Fiber Optic Cassettes
• Fiber Distribution Units
• Network Cabinets
• Enterprise Networks
• MPO/MTP Trunk Cabling
• Singlemode & Multimode Fiber Systems

Buy MPO Adapter in Pakistan

Looking to buy MPO Adapter in Pakistan? Universal Fiber Solutions (UFS) supplies reliable MPO/MTP fiber optic connectivity products for data centers, telecom operators, ISPs, and high-density fiber network projects.

Warranty & Support

Warranty: Subject to applicable terms
Technical Support: Available from Universal Fiber Solutions (UFS)
