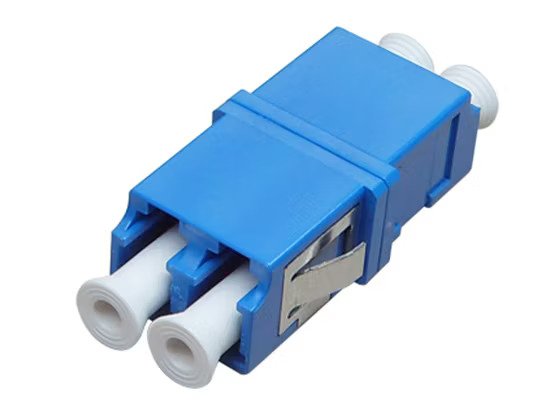

LC/UPC Duplex Fiber Optic Adapter

LC/UPC Duplex Fiber Optic Adapter

The LC/UPC Duplex Adapter provides a stable and efficient connection between LC fiber optic cables. Designed for Singlemode OS2 fiber systems, it is suitable for telecom, ISP, FTTH, and professional fiber networking applications.

Reliable Fiber Connectivity

The adapter uses high-precision zirconia ceramic sleeves to maintain accurate fiber alignment and stable optical transmission. With insertion loss ≤0.2dB and return loss ≥50dB, it provides reliable performance for singlemode fiber connections.

Compact Duplex Design

Its duplex configuration allows two fiber connections in one compact adapter, making it useful for high-density installations. The 9.6mm pitch panel mount design helps save space inside patch panels and fiber enclosures.

The durable phosphor bronze/stainless steel clip provides secure mounting, while the adapter is rated for 1000 plug cycles.

Technical Specifications

• Adapter Type: LC to LC Duplex
• Fiber Type: Singlemode
• Fiber Compatibility: OS2
• Polish Type: UPC
• Color: Blue
• Sleeve: Zirconia Ceramic
• Clip: Phosphor Bronze / Stainless Steel
• Mounting: Panel Mount
• Pitch: 9.6mm
• Insertion Loss: ≤0.2dB
• Return Loss: ≥50dB
• Durability: 1000 Plug Cycles
• Outer Sheath: Low Smoke Zero Halogen (LSZH)

Key Benefits

• Designed for OS2 singlemode fiber
• Duplex LC-to-LC connection
• Two fiber connections in one compact unit
• Low insertion loss
• High return loss
• High-precision ceramic sleeves
• Compact 9.6mm pitch design
• Durable and cost-effective
• Suitable for high-density fiber panels

Applications

• Fiber Optic Patch Panels
• ODF & Fiber Distribution Units
• Telecom Networks
• ISP Networks
• FTTH Networks
• Fiber Enclosures
• Network Cabinets
• Singlemode OS2 Fiber Systems

Buy LC/UPC Duplex Adapter in Pakistan

Looking to buy LC/UPC Duplex Adapter in Pakistan? Universal Fiber Solutions (UFS) supplies reliable fiber optic connectivity products for telecom, ISP, FTTH, data networking, and fiber infrastructure projects.

Warranty & Support

Warranty: Subject to applicable terms
Technical Support: Available from Universal Fiber Solutions (UFS)
