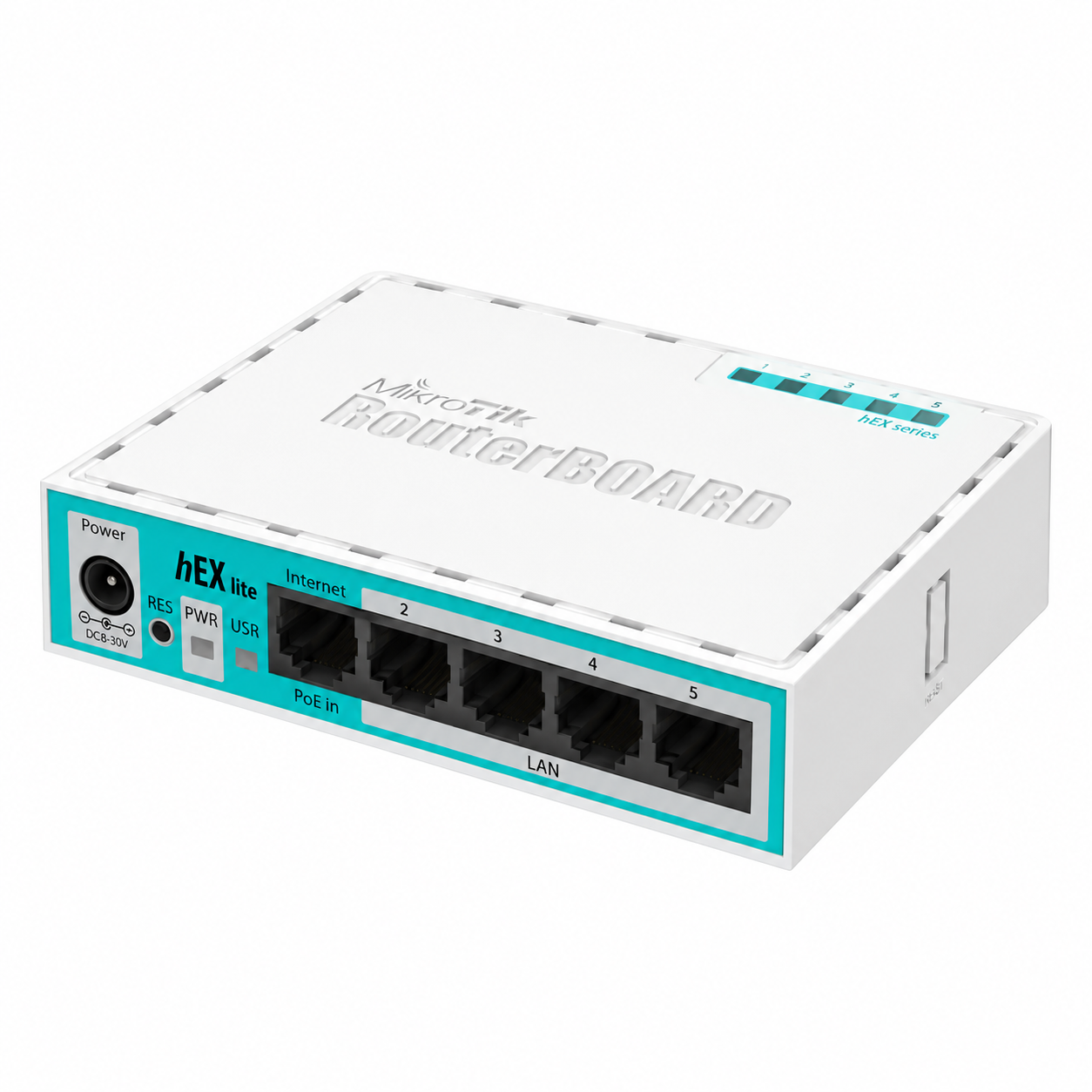

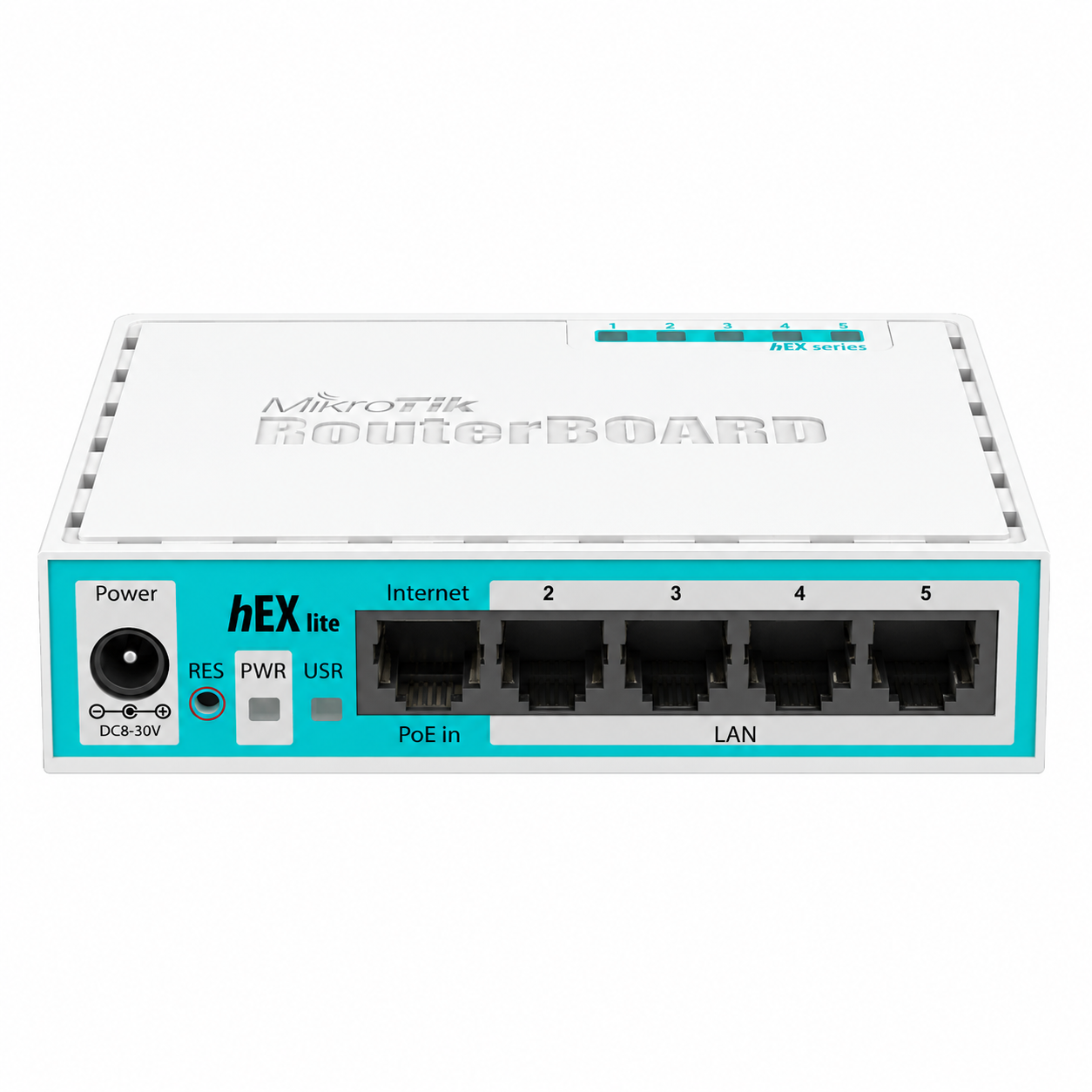

MikroTik RB750r2 hEX lite 5-Port Ethernet Router

The MikroTik RB750r2 hEX lite is a compact, affordable and reliable wired router designed for home networks, small offices and SOHO environments.

Featuring five 10/100 Ethernet ports, an 850MHz CPU, 64MB RAM and RouterOS Level 4, the hEX lite provides a practical platform for managing wired network connections and implementing advanced RouterOS features.

Its compact plastic enclosure and low power consumption make the MikroTik RB750r2 suitable for installations where space, simplicity and affordability are important.

---

5-Port Ethernet Router

The MikroTik hEX lite features five 10/100 Ethernet ports, providing multiple wired network connections in a single compact device.

The ports can be used for connecting:

• Desktop computers
• Laptops
• Network switches
• IP cameras
• Access points
• Printers
• Network storage
• Other Ethernet devices

For a basic wired home or small-office network, the five-port design provides flexibility without requiring a separate Ethernet switch for every installation.

---

Affordable MikroTik Router

The RB750r2 hEX lite was designed as an affordable entry-level MikroTik router while retaining the powerful RouterOS operating system.

It combines a compact design with features such as:

• Advanced routing
• Firewall
• NAT
• DHCP
• Bandwidth management
• User access control
• VLAN configuration
• MPLS capabilities
• Network monitoring

This makes the MikroTik RB750r2 more than a basic Ethernet router while maintaining a compact and budget-friendly design.

---

RouterOS Level 4

The MikroTik hEX lite comes with RouterOS Level 4 pre-installed and licensed.

RouterOS provides a wide range of networking features for users who need more control over their wired network.

Depending on the configuration, the RB750r2 can be used for:

• IP routing
• Firewall configuration
• NAT
• DHCP server
• DNS
• VLAN
• Bandwidth management
• Traffic shaping
• User access control
• MPLS
• Network monitoring

The RouterOS license is already included with the device, so there is no separate RouterOS license purchase required.

---

MPLS-Capable Router

One of the notable features of the MikroTik RB750r2 hEX lite is its support for MPLS functionality.

This makes the router suitable for network environments where MPLS-related configurations are required.

For network professionals, small ISPs and users experimenting with advanced networking technologies, the MikroTik hEX lite provides an affordable platform for RouterOS-based networking.

---

850MHz CPU

The MikroTik RB750r2 is powered by a QCA9533 CPU running at 850MHz.

CPU Specifications

• CPU: QCA9533
• CPU cores: 1
• CPU frequency: 850MHz
• Architecture: MIPSBE
• Switch chip: QCA9533

The hardware is designed for routing and networking workloads supported by RouterOS.

---

64MB RAM and 16MB Storage

The hEX lite includes:

• 64MB RAM
• 16MB Flash storage

This hardware configuration provides the resources required to operate RouterOS and its supported networking features.

---

Passive PoE Input

The MikroTik RB750r2 hEX lite supports passive PoE input, providing an alternative method of powering the router.

The device supports:

• DC jack input
• Passive PoE input

Supported input voltage:

6–30V

This gives network installers additional flexibility when deploying the router in different environments.

---

Compact Design

The MikroTik hEX lite uses a compact plastic enclosure with dimensions of:

113 × 89 × 28 mm

Its small footprint makes it suitable for:

• Homes
• Small offices
• SOHO networks
• Network labs
• Small ISP installations
• Space-constrained network cabinets

The device weighs approximately 129g without packaging and cables.

---

Low Power Consumption

The RB750r2 hEX lite is designed for low-power operation.

Its maximum power consumption is approximately:

2W

The device also uses passive cooling, eliminating the need for a cooling fan.

This makes it a practical option for small network installations where low power consumption and silent operation are desirable.

---

MikroTik hEX lite for Home Networks

The MikroTik RB750r2 can be used as a central wired router for a home network.

It can provide network connectivity and management for computers, smart devices, access points, printers and other Ethernet equipment.

RouterOS also allows users to configure features such as firewall rules, DHCP, NAT and bandwidth management.

---

MikroTik RB750r2 for Small Offices

For small offices, the MikroTik hEX lite provides a compact wired routing platform.

It can be configured for:

• Internet sharing
• Firewall protection
• DHCP
• NAT
• Bandwidth control
• User access management
• VLANs
• Advanced routing

Its five Ethernet ports allow multiple wired devices to connect directly to the router.

---

MikroTik RB750r2 Performance

MikroTik’s published Ethernet test results show that the RB750r2 can achieve approximately 493 Mbps at 1518-byte packets under the specified bridging and routing fast-path test configuration.

With 25 IP filter rules, the published result is approximately 493 Mbps at 1518-byte packets and approximately 213 Mbps at 64-byte packets.

These are controlled laboratory measurements. Actual network performance can vary depending on packet size, firewall configuration, queues, routing rules and other RouterOS features.

---

MikroTik RB750r2 Specifications

---

Key Features of MikroTik RB750r2

5 Ethernet Ports

Five 10/100 Ethernet ports provide wired connectivity for multiple network devices.

RouterOS Level 4

Full RouterOS functionality provides advanced network configuration options.

850MHz CPU

The QCA9533 850MHz processor provides the processing platform for routing and networking tasks.

64MB RAM

Provides the memory required for RouterOS and supported networking configurations.

MPLS Support

The RB750r2 is designed to support MPLS functionality through RouterOS.

Passive PoE

Supports passive PoE input between 6–30V.

Low Power Consumption

Maximum power consumption is approximately 2W.

Compact Plastic Enclosure

The small 113 × 89 × 28 mm enclosure is suitable for SOHO and space-constrained installations.

Fanless Operation

Passive cooling provides silent operation.

---

Why Choose MikroTik RB750r2 hEX lite?

The MikroTik RB750r2 hEX lite combines five Ethernet ports, RouterOS Level 4, MPLS capability and a compact design at an affordable price point.

It is suitable for users who need a MikroTik wired router for home, SOHO, small office, networking labs or basic ISP applications without requiring Gigabit Ethernet.

---

Buy MikroTik RB750r2 in Pakistan

Looking to buy MikroTik RB750r2 hEX lite in Pakistan?

Universal Fiber Solutions provides MikroTik networking products and fiber-optic solutions for homes, offices, businesses, ISPs and professional network installations.

The MikroTik RB750r2 hEX lite is a suitable option for customers looking for an affordable 5-port Ethernet router with RouterOS Level 4, passive PoE and MPLS support.

For MikroTik RB750r2 price in Pakistan, availability and networking requirements, contact Universal Fiber Solutions.
