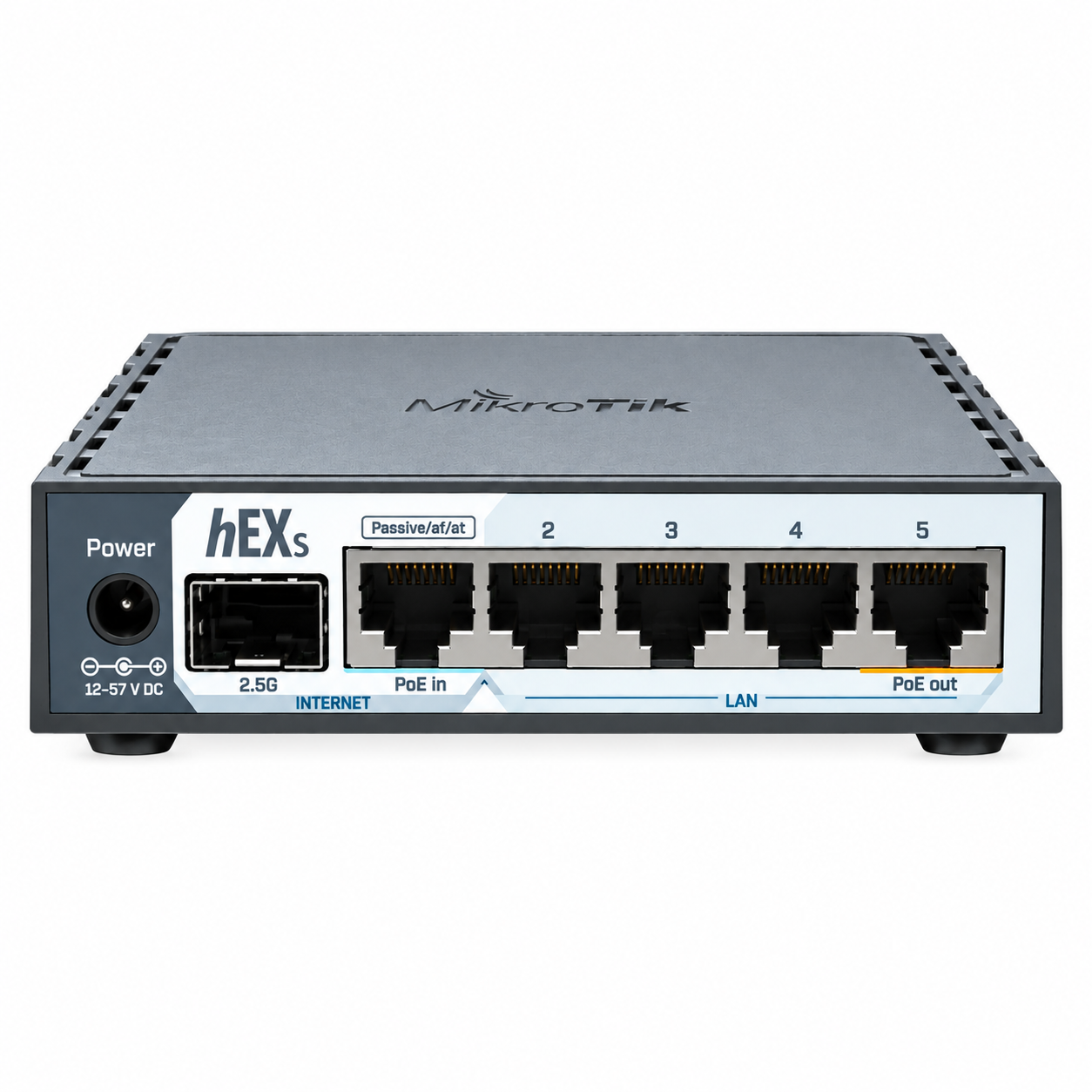

MikroTik hEX S (2025) E60iUGS 2.5G Gigabit Router

MikroTik hEX S 2025 2.5G Router

The MikroTik hEX S 2025 is a compact, affordable and powerful wired router designed for users who need high-speed networking without the cost and complexity of larger enterprise devices. With a 2.5G SFP port, five Gigabit Ethernet ports, PoE input and output, USB 3.0 and 512MB RAM, the hEX S 2025 provides flexible connectivity for homes, offices, laboratories, media environments and small business networks.

Powered by a dual-core 950 MHz ARM CPU and 512MB RAM, the MikroTik hEX S 2025 runs RouterOS v7 and supports advanced networking features including routing, VLANs, traffic management, bonding, firewall configuration and more.

2.5G SFP Uplink

One of the key features of the MikroTik hEX S 2025 is its 2.5 Gigabit SFP port. This provides a high-speed uplink option for compatible fiber or Ethernet SFP connections.

The 2.5G SFP interface can be useful for customers with high-speed fiber internet connections or local network environments where Gigabit connectivity is no longer sufficient.

For example, users with a multi-gigabit internet connection can use the 2.5G SFP port to connect compatible networking equipment and take advantage of higher-speed connectivity.

5 Gigabit Ethernet Ports

The MikroTik hEX S 2025 router features five 10/100/1000 Ethernet ports, providing reliable Gigabit connectivity for computers, switches, NAS devices, access points, servers and other network equipment.

The ports can be configured according to your network requirements, allowing flexible WAN, LAN and bridge configurations through RouterOS v7.

This flexibility makes the hEX S 2025 suitable for both simple wired networks and more advanced networking installations.

PoE Input and PoE Output

The MikroTik hEX S 2025 supports 802.3af/at PoE input and passive PoE output.

Ether5 provides PoE output, allowing compatible devices to receive power through Ethernet. The router supports up to 57V passive PoE output with a current limit of 0.5A.

This can simplify network installations by reducing the need for separate power adapters for compatible devices.

USB 3.0 for Storage and File Sharing

The MikroTik hEX S 2025 includes a full-size USB 3.0 Type-A port with up to 1A current output.

The USB interface can be used with compatible storage devices and supported RouterOS functions, providing additional flexibility for file sharing and network storage applications.

Powerful Dual-Core ARM Processor

The hEX S 2025 is powered by an EN7562CT dual-core ARM processor running at 950 MHz.

Combined with 512MB RAM and 128MB NAND storage, this hardware provides a strong platform for RouterOS v7 and advanced networking configurations.

Hardware Highlights

• Dual-core ARM CPU
• 950 MHz CPU frequency
• 512MB RAM
• 128MB NAND storage
• RouterOS v7
• RouterOS Level 4 license
• 5 × Gigabit Ethernet ports
• 1 × 2.5G SFP port
• USB 3.0 Type-A
• PoE input
• PoE output
• Passive cooling

RouterOS v7

The MikroTik hEX S 2025 comes with RouterOS v7 pre-installed and licensed.

RouterOS provides advanced networking capabilities that allow administrators to configure and manage their network according to their specific requirements.

Supported functionality includes:

• Advanced routing
• VLAN configuration
• Firewall
• NAT
• DHCP
• DNS
• VPN
• IPsec
• Traffic shaping
• Bandwidth management
• Link bonding
• Network monitoring
• Bridge configuration
• Routing protocols

The included RouterOS Level 4 license means there is no separate operating system license purchase required.

MikroTik hEX S 2025 for Home Networks

For advanced home networking, the MikroTik hEX S 2025 provides a powerful wired networking platform.

It can be used with:

• High-speed fiber internet
• NAS systems
• Gaming PCs
• Media servers
• Smart home devices
• Network switches
• Security camera systems
• Wired access points

Its 2.5G SFP interface provides additional flexibility for modern multi-gigabit networks.

MikroTik hEX S 2025 for Offices and Businesses

Small businesses and offices can use the MikroTik hEX S 2025 as a central wired router for network management, internet access, VLANs, firewall rules and traffic control.

Its compact design makes it suitable for installations where space is limited but advanced networking features are required.

2.5G Networking for Creators and NAS Users

The MikroTik hEX S 2025 can also be useful for users working with large files, network storage and media production.

A 2.5G network connection can provide higher local network speeds than traditional Gigabit Ethernet when compatible devices and infrastructure are used.

Users can also configure link bonding on compatible Ethernet interfaces to improve network connectivity between supported devices.

Compact and Wall-Mountable Design

The MikroTik hEX S 2025 has a compact design that can be installed in different environments. Its wall-mountable form factor makes it convenient for home offices, small businesses, network cabinets and laboratory environments.

The device uses passive cooling, helping maintain a simple and low-maintenance hardware design.

Flexible Power Options

The hEX S 2025 supports flexible power input through:

• DC jack
• PoE-IN

The DC input supports 12–57V, while PoE-IN supports 18–57V.

A 24V 1.2A power adapter is included with the device.

MikroTik hEX S 2025 Specifications

MikroTik hEX S 2025 Performance

According to MikroTik’s published test results, the hEX S 2025 can deliver high throughput under specific laboratory test configurations.

In the published routing test without additional processing, the device achieved approximately 3.65 Gbps at 512-byte packets under the stated test methodology.

With 25 IP filter rules, the published result was approximately 1.43 Gbps at 512-byte packets.

Actual performance can vary depending on packet size, firewall rules, queues, VLANs, VPN usage, traffic configuration and other RouterOS features enabled on the device.

IPsec Performance

The MikroTik hEX S 2025 also supports IPsec hardware acceleration.

MikroTik’s published testing shows approximately 351.7 Mbps for a single AES-128-CBC + SHA1 IPsec tunnel using 1400-byte packets under the specified test conditions.

Actual VPN performance depends on encryption settings, packet size, number of tunnels and network configuration.

---

Why Choose MikroTik hEX S 2025?

The MikroTik hEX S 2025 combines several useful features into a compact wired router:

• 2.5G SFP connectivity
• 5 Gigabit Ethernet ports
• PoE input and output
• USB 3.0
• 512MB RAM
• 950 MHz dual-core ARM CPU
• RouterOS v7
• Level 4 RouterOS license
• Flexible 12–57V DC power
• Wall-mountable design
• Advanced routing and network management

It is suitable for users who need a 2.5G MikroTik router, Gigabit wired connectivity and advanced RouterOS features in a compact and affordable package.

Buy MikroTik hEX S 2025 in Pakistan

Looking to buy MikroTik hEX S 2025 in Pakistan? Universal Fiber Solutions offers networking and fiber-optic solutions for homes, offices, businesses, ISPs and professional network installations.

The MikroTik hEX S 2025 E60iUGS is an excellent option for customers looking for a compact wired router with 2.5G SFP, Gigabit Ethernet, PoE, USB 3.0 and RouterOS v7.

Contact Universal Fiber Solutions for product availability, pricing and networking requirements.
