Huawei AR180 Enterprise Wireless Router | Wi-Fi 7

Huawei AR180 Enterprise-Grade Wireless Router

The Huawei AR180 is a compact enterprise wireless router designed for corporate offices, branch networks, small and medium businesses, and professional IT infrastructure. With Wi-Fi 7 technology, high-speed Ethernet connectivity, VPN capabilities, and centralized device management support, the AR180 provides a practical networking solution for businesses requiring reliable wireless and wired connectivity.

Key Features

The AR180 supports up to 100 connected terminals, 8 managed access points (APs), and 9 managed devices, making it suitable for business environments with multiple users and network endpoints. It supports 8 IPSec VPN tunnels and delivers up to 200Mbps VPN forwarding performance for secure business connectivity.

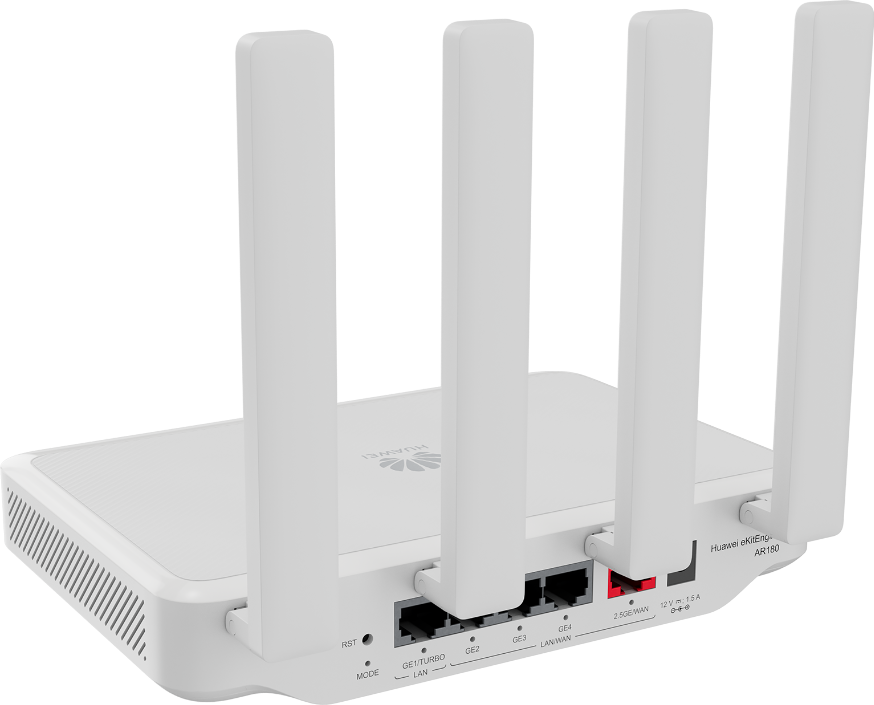

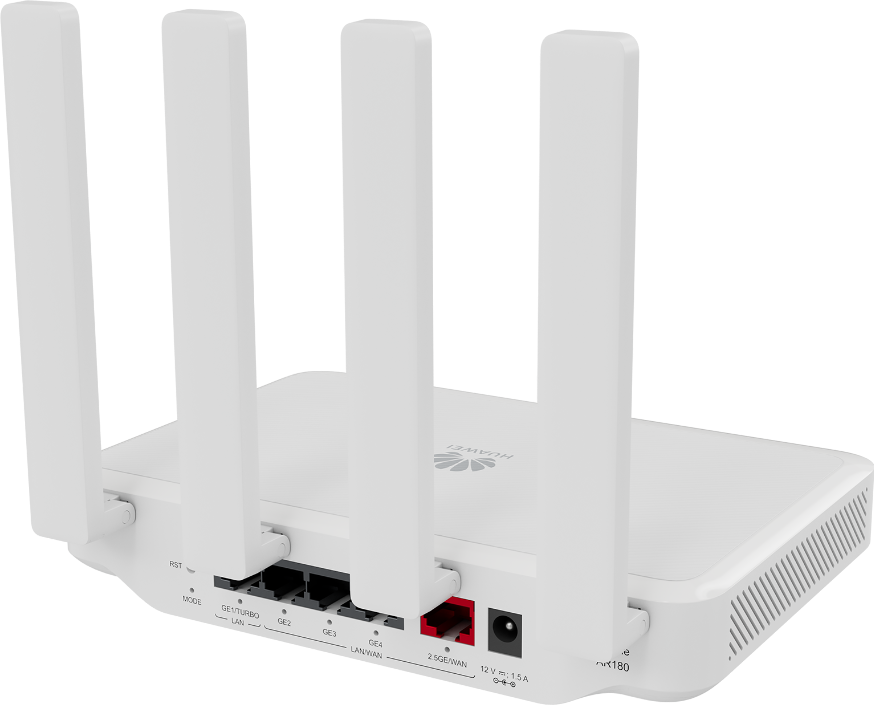

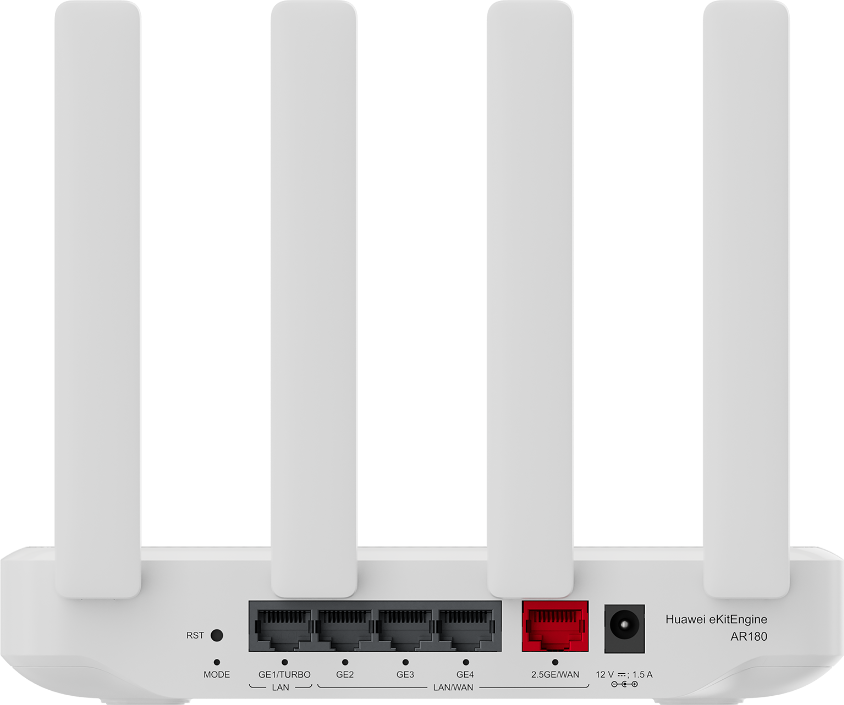

For high-speed network connections, the router provides 4 × GE RJ45 LAN ports supporting 10/100/1000Mbps and 1 × 2.5GE RJ45 WAN port supporting 100/1000/2500Mbps. Its maximum egress bandwidth is 2Gbps, supporting efficient data transmission for business applications and network traffic.

Technical Specifications

• Product: Huawei AR180 Enterprise Wireless Router
• Wireless Technology: Wi-Fi 7
• Connected Terminals: Up to 100
• Managed APs: Up to 8
• Managed Devices: Up to 9
• IPSec VPN Tunnels: 8
• VPN Forwarding Performance: Up to 200Mbps
• Egress Bandwidth: Up to 2Gbps
• LAN Interfaces: 4 × GE RJ45
• WAN Interface: 1 × 2.5GE RJ45
• GE Port Speed: 10/100/1000Mbps
• 2.5GE Port Speed: 100/1000/2500Mbps
• CPU: 1.3GHz dual-core
• Power Supply: AC power adapter
• Maximum Power Consumption: 13W
• Typical Power Consumption: 7W
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 5%–95% RH, non-condensing
• Dimensions: 35 × 195 × 130mm basic dimensions
• Weight: 0.63kg without packaging
• Installation: Workbench or wall-mounted
• Heat Dissipation: Natural heat dissipation

Business Networking Applications

The Huawei AR180 enterprise router is suitable for corporate network infrastructure, branch offices, professional offices, small and medium-sized businesses, and other commercial networking environments. Its combination of Wi-Fi 7 wireless connectivity, 2.5GE WAN, Gigabit Ethernet LAN ports and IPSec VPN support makes it suitable for organizations that need secure and high-performance network connectivity in a compact form factor.

Power and Reliability

The AR180 operates with an AC power adapter and supports an input voltage range of 90V AC to 264V AC at 45Hz–65Hz. It has a maximum output power rating of 24W and uses natural heat dissipation. The device supports an operating temperature of 0°C to 40°C and storage temperatures from -40°C to +70°C.

Certifications

The Huawei AR180 supports relevant EMC and safety certifications, including IEC/EN/UL 62368-1, EN 55032, EN 55035, EN 300386, EN 61000-3-2, EN 61000-3-3 and other applicable regional standards.

Get Huawei AR180 for Your Business Network

Universal Fiber Solutions provides professional networking and connectivity solutions for business and corporate requirements. The Huawei AR180 Wi-Fi 7 enterprise wireless router is a suitable option for organizations looking for modern wireless connectivity, secure VPN networking, Gigabit Ethernet and 2.5GE network performance in a compact enterprise router.

Contact Universal Fiber Solutions for Huawei AR180 availability, business networking requirements, product consultation and corporate deployment solutions.
