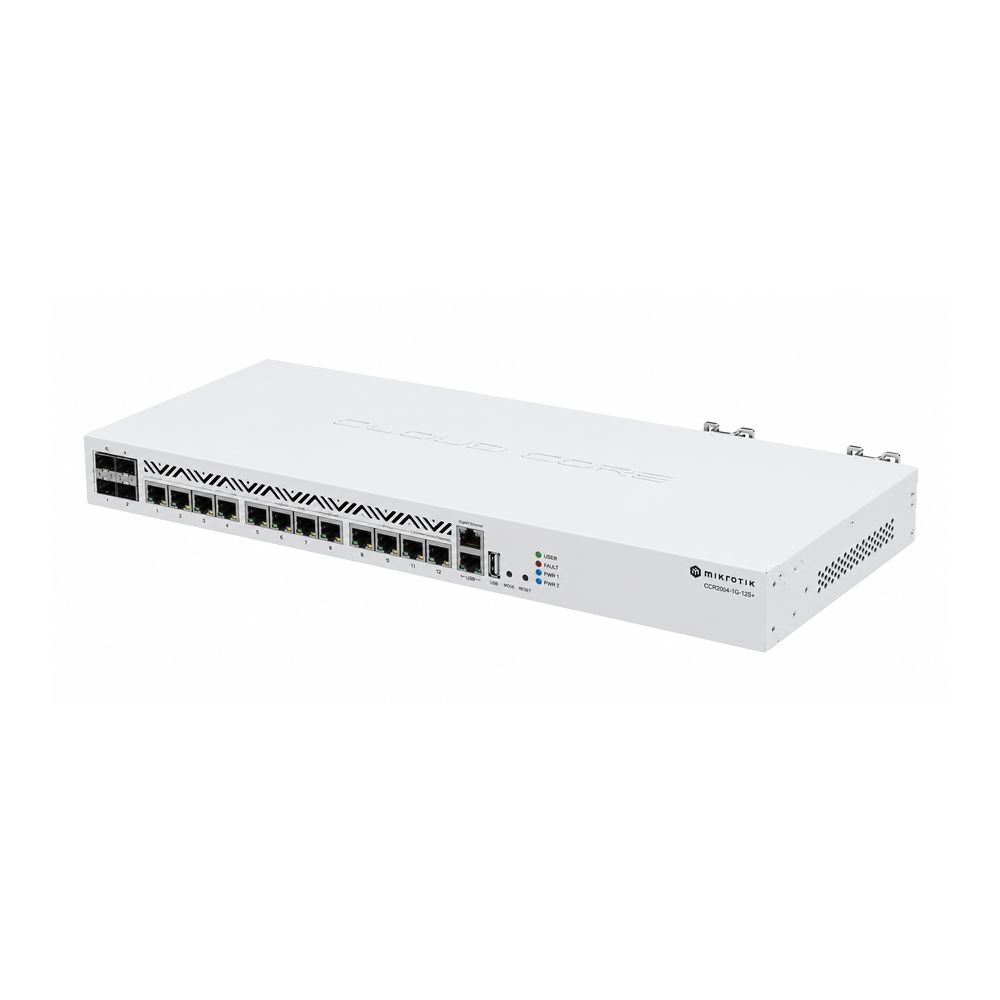

MikroTik CCR2116-12G-4S+ 16-Core Cloud Core Router

The MikroTik CCR2116-12G-4S+ is a high-performance Cloud Core Router designed for Internet Service Providers, enterprise networks, data centers and demanding 10G networking environments.

Powered by a 16-core ARM 64-bit CPU running at 2GHz and equipped with 16GB RAM, the CCR2116-12G-4S+ provides substantial processing capacity for advanced routing, BGP, firewall, traffic management and other RouterOS-based networking workloads.

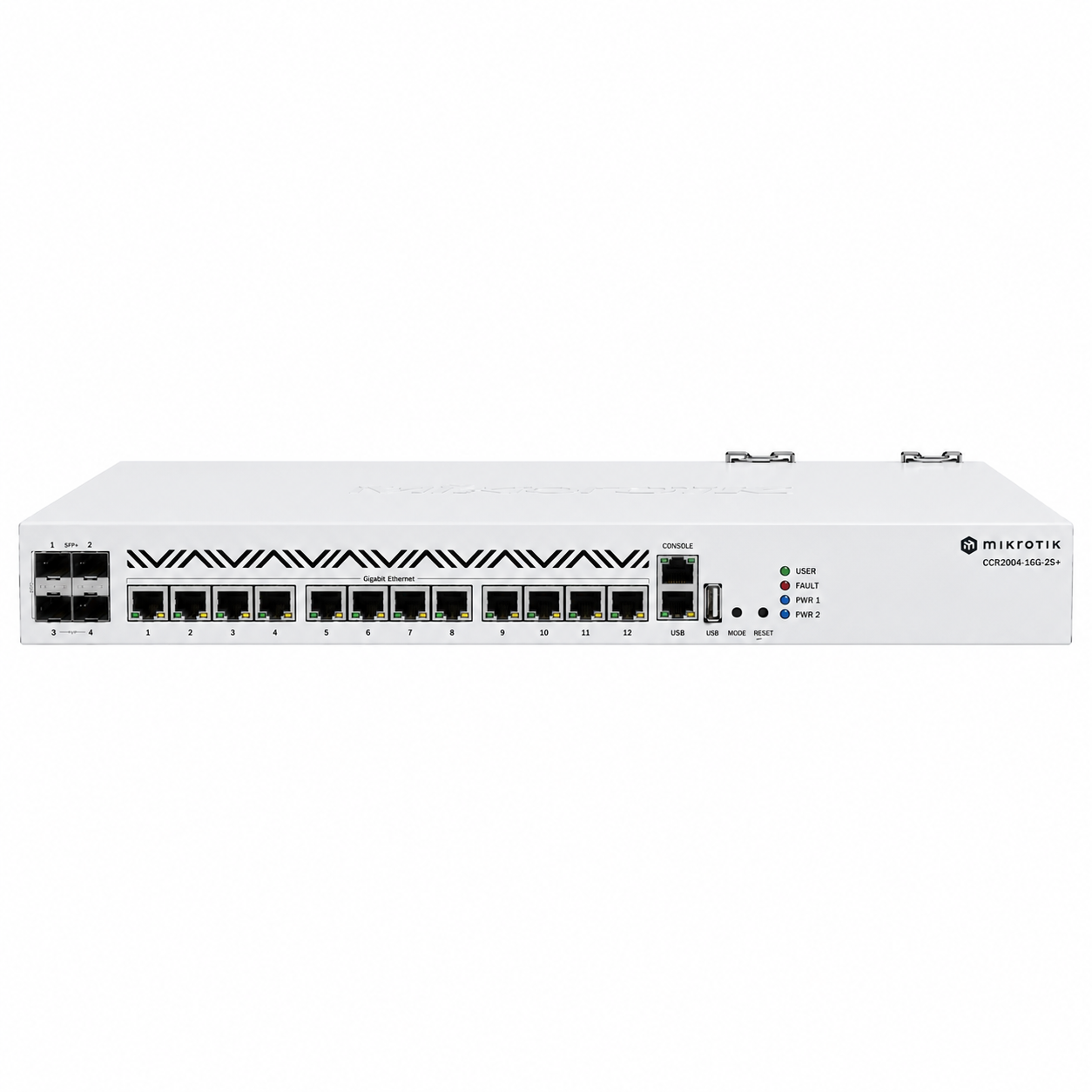

The router includes four 10G SFP+ ports along with 13 Gigabit Ethernet ports, providing a combination of high-speed fiber connectivity and multiple copper Ethernet interfaces.

With RouterOS v7, Layer 3 hardware offloading, dual redundant power supplies and an M.2 PCIe slot, the MikroTik CCR2116-12G-4S+ is designed for professional and ISP-level network deployments.

---

Powerful 16-Core ARM CPU

At the heart of the MikroTik CCR2116-12G-4S+ is an AL73400 16-core ARM 64-bit processor operating at 2GHz.

CPU Specifications:

• CPU: AL73400
• CPU Cores: 16
• CPU Frequency: 2GHz
• Architecture: ARM 64-bit
• Threads: 16
• RAM: 16GB

This processing platform is designed for demanding networking workloads, including routing, firewall processing, queues and dynamic routing protocols.

---

4x 10G SFP+ Ports

The CCR2116-12G-4S+ provides four 10G SFP+ ports for high-speed fiber and 10 Gigabit networking.

These ports can be used for:

• 10G uplinks
• Fiber backbone connections
• ISP aggregation
• Data center networking
• Core network connections
• High-speed inter-router links
• Enterprise network infrastructure

The four SFP+ interfaces make the MikroTik CCR2116 suitable for networks where 10G connectivity is required.

---

13 Gigabit Ethernet Ports

The router includes 13 × 10/100/1000 Ethernet ports.

According to the provided specifications, the Ethernet connectivity includes ports connected through the Marvell switch architecture as well as a dedicated Gigabit management connection directly connected to the CPU.

This provides flexible connectivity for:

• ISP networks
• Enterprise LANs
• Management networks
• Network aggregation
• Servers
• Switch uplinks
• Access networks

---

Layer 3 Hardware Offloading

One of the major features of the MikroTik CCR2116-12G-4S+ is support for Layer 3 Hardware Offloading (L3HW).

Hardware offloading can help move supported Layer 3 forwarding operations to dedicated switching hardware rather than processing every packet entirely through the CPU.

In MikroTik’s published test results, the CCR2116-12G-4S+ reaches up to approximately 51.3Gbps in the specified L3 hardware offloading test configuration.

Actual network performance depends on traffic patterns, configuration, packet sizes, routing rules and enabled features.

---

RouterOS v7

The MikroTik CCR2116-12G-4S+ comes with RouterOS v7 and a Level 6 license.

RouterOS provides professional networking capabilities including:

• BGP
• OSPF
• RIP
• Static routing
• Firewall
• NAT
• VLAN
• QoS
• Traffic shaping
• MPLS
• VPN
• DHCP
• IPv6
• Network monitoring
• Advanced routing policies

This makes the CCR2116 suitable for complex ISP and enterprise network configurations.

---

Designed for ISP and Enterprise Networks

The MikroTik CCR2116-12G-4S+ is designed for demanding networking environments.

It can be deployed for:

ISP Networks

• BGP routing
• Internet gateway
• Core routing
• Traffic management
• Network aggregation
• 10G uplinks

Enterprise Networks

• Core routing
• Inter-VLAN routing
• Firewall
• Network segmentation
• High-speed uplinks
• Redundant infrastructure

Data Center Networks

• 10G connectivity
• High-capacity routing
• Server connectivity
• Network aggregation
• Layer 3 switching/routing

---

BGP Routing

The high-performance CPU and RouterOS v7 make the MikroTik CCR2116-12G-4S+ suitable for networks requiring advanced dynamic routing.

BGP can be used for:

• ISP routing
• Multi-homing
• Upstream connectivity
• Autonomous System routing
• Internet edge routing
• Route exchange

The device is particularly suited to professional networks where dynamic routing and large routing configurations are required.

---

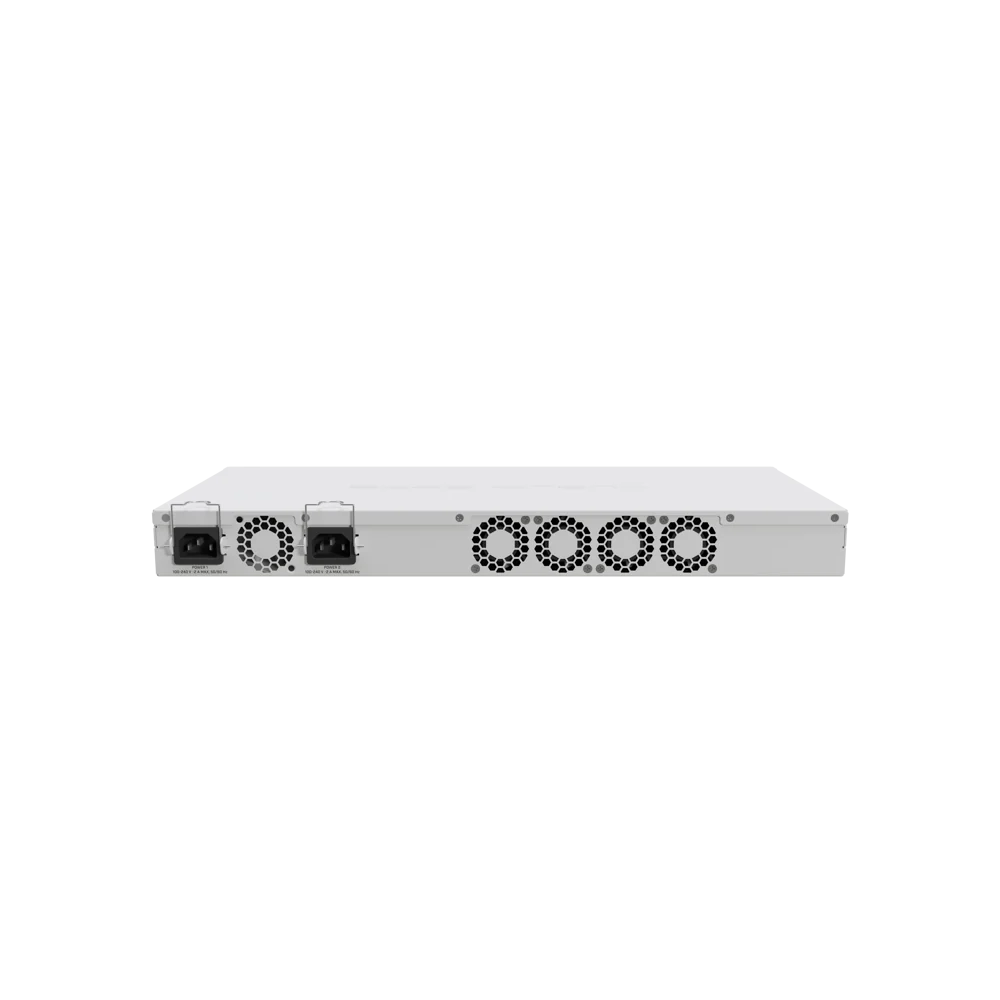

Dual Redundant Power Supply

Reliability is an important requirement for ISP and enterprise networking equipment.

The CCR2116-12G-4S+ features:

• 2 AC inputs
• 2 PSU slots
• 100–240V AC input
• Dual power supply support

This allows redundant power configurations to help maintain network availability if one power supply path becomes unavailable.

---

M.2 PCIe Slot

The MikroTik CCR2116 includes one M.2 slot.

This provides additional storage expansion capability for supported RouterOS applications and data-storage requirements.

---

16GB RAM

The router includes 16GB RAM, providing substantial memory capacity for demanding RouterOS configurations and professional network workloads.

Storage

• RAM: 16GB
• Storage: 128MB NAND
• M.2 slots: 1

---

IPsec Hardware Performance

The CCR2116-12G-4S+ also provides hardware-supported IPsec acceleration.

MikroTik’s published testing shows approximately 2Gbps throughput in the specified single-tunnel AES-128-CBC + SHA1, 1400-byte test configuration.

For 256 tunnels, the published results reach approximately 4.1Gbps under the specified test conditions.

Actual IPsec performance varies according to encryption settings, packet sizes, tunnel count and network configuration.

---

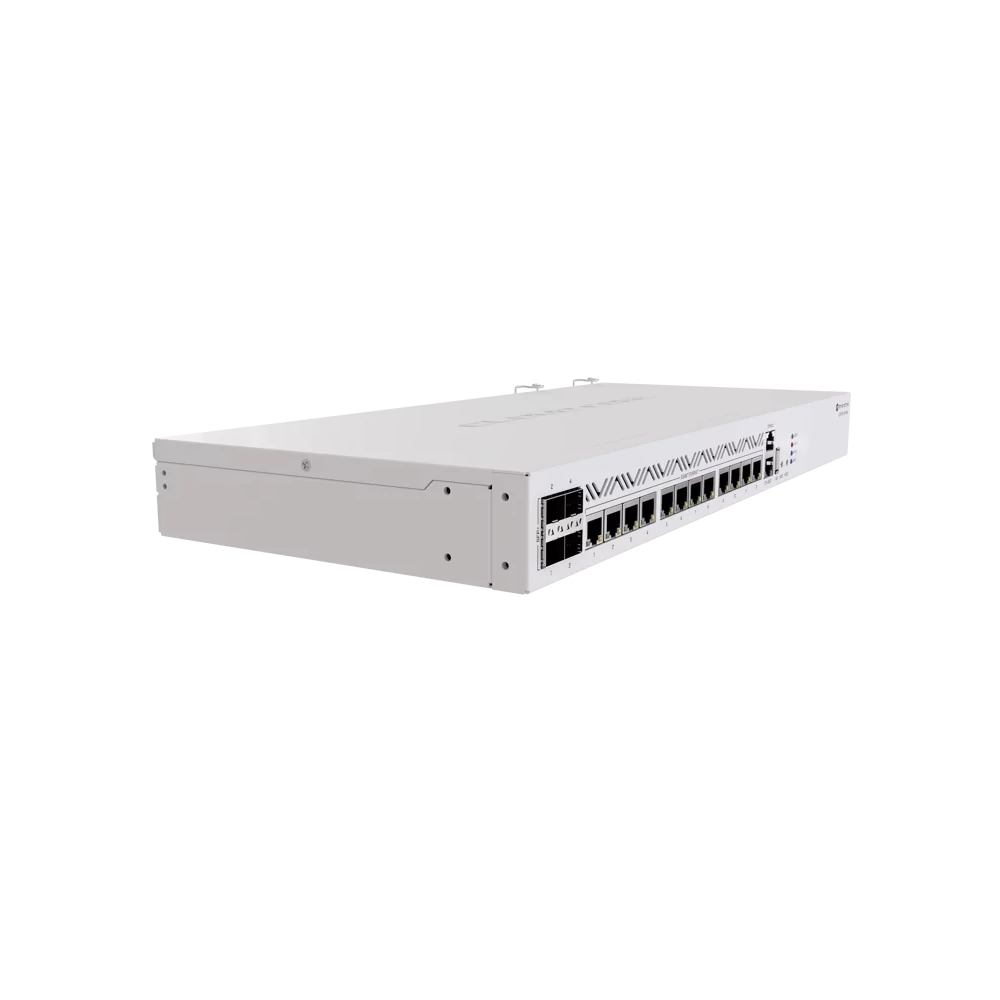

Professional Rack-Mount Design

The MikroTik CCR2116-12G-4S+ has a standard rack-mount form factor with dimensions of:

443 × 199 × 44 mm

It is suitable for professional network racks, server rooms, ISP infrastructure and data center environments.

The device uses four fans for active cooling.

---

MikroTik CCR2116-12G-4S+ Specifications

---

Key Features

16-Core 2GHz ARM CPU

High-performance AL73400 processor with 16 ARM cores.

4x 10G SFP+

Four 10 Gigabit SFP+ interfaces for high-speed fiber connectivity.

13x Gigabit Ethernet

Multiple 1G Ethernet ports for network devices, aggregation and management.

16GB RAM

Large memory capacity for demanding RouterOS configurations.

RouterOS v7

Advanced routing, firewall, BGP, VPN, QoS, VLAN and network management features.

Layer 3 Hardware Offloading

Hardware-assisted Layer 3 forwarding for supported configurations.

M.2 PCIe Slot

Built-in M.2 slot for supported storage expansion.

Dual Redundant Power

Two AC inputs and two PSU slots for professional network deployments.

Level 6 RouterOS License

Professional RouterOS licensing suitable for advanced routing environments.

---

MikroTik CCR2116 Performance

MikroTik’s published test data for the CCR2116-12G-4S+ reports the following results under specified laboratory conditions:

Routing — Fast Path:

• 1518-byte packets: approximately 39.0Gbps
• 512-byte packets: approximately 37.4Gbps
• 64-byte packets: approximately 15.3Gbps

Routing — L3 Hardware Offloading:

• 1518-byte packets: approximately 51.3Gbps
• 512-byte packets: approximately 50.0Gbps
• 64-byte packets: approximately 40.2Gbps

These figures are manufacturer test results using specialized equipment and specific configurations. Real-world throughput can differ depending on routing rules, firewall configuration, packet size, queues and other enabled features.

---

Who Should Use MikroTik CCR2116-12G-4S+?

The MikroTik CCR2116-12G-4S+ is suitable for:

• Internet Service Providers
• WISPs
• Enterprise networks
• Data centers
• Network operators
• ISP core networks
• High-speed fiber networks
• BGP environments
• 10G network deployments
• Professional network laboratories

---

Buy MikroTik CCR2116-12G-4S+ in Pakistan

Looking to buy MikroTik CCR2116-12G-4S+ in Pakistan?

Universal Fiber Solutions offers MikroTik networking equipment and fiber-optic networking solutions for ISPs, enterprises, businesses and professional network deployments.

The MikroTik CCR2116-12G-4S+ combines a 16-core ARM CPU, 16GB RAM, four 10G SFP+ ports, 13 Gigabit Ethernet ports, RouterOS v7, L3 hardware offloading and redundant power capabilities in a professional rack-mount router.

For MikroTik CCR2116 price in Pakistan, availability and professional networking requirements, contact Universal Fiber Solutions.
