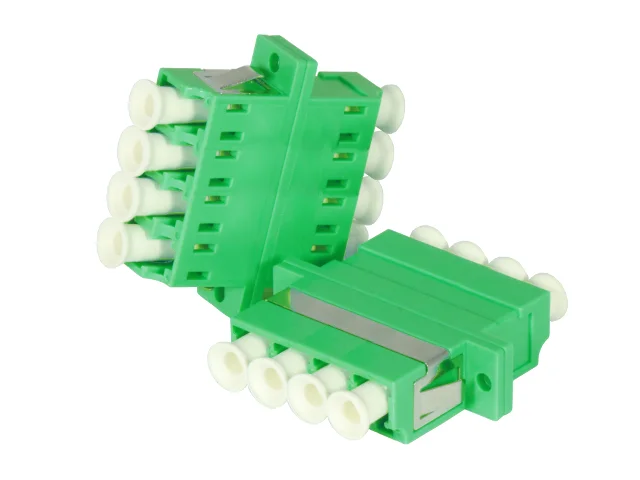

LC/APC Quad Fiber Optic Adapter

LC/APC Quad Fiber Optic Adapter

The LC/APC Quad Adapter provides a compact and reliable solution for connecting four LC fiber connections in a single adapter housing. Designed for Singlemode OS2 fiber networks, it is suitable for FTTH, telecom, ISP, data center, and fiber infrastructure applications.

High-Density Fiber Connection

With support for four fibers in one compact unit, this adapter helps maximize space inside patch panels and fiber enclosures. Its 9.6mm pitch high-density design is ideal for installations where panel space is limited.

APC Performance & Low Back Reflection

The adapter uses APC 8° angled polish technology, which helps reduce back reflection and provides high return loss of ≥60dB. High-precision zirconia ceramic sleeves ensure accurate fiber alignment and stable optical performance.

The stainless steel clip provides secure panel mounting, while the adapter is rated for 1000 plug cycles.

Technical Specifications

• Adapter Type: Quad LC to LC
• Fiber Connections: 4 Fibers
• Fiber Type: Singlemode
• Fiber Compatibility: OS2
• Polish Type: APC, 8° Angle
• Color: Green
• Sleeves: Zirconia Ceramic
• Clip: Stainless Steel
• Mounting: Panel Mount
• Pitch: 9.6mm
• Insertion Loss: ≤0.2dB
• Return Loss: ≥60dB
• Durability: 1000 Plug Cycles
• Outer Sheath: Low Smoke Zero Halogen (LSZH)

Key Benefits

• Supports 4 LC fiber connections
• Designed for OS2 singlemode fiber
• APC 8° angled polish
• High return loss ≥60dB
• Low insertion loss ≤0.2dB
• High-density compact design
• High-precision ceramic sleeves
• Secure stainless steel clip
• Durable up to 1000 plug cycles

Applications

• FTTH Networks
• Telecom Networks
• ISP Networks
• Data Centers
• Fiber Optic Patch Panels
• ODF & Fiber Distribution Units
• Fiber Enclosures
• Network Cabinets
• High-Density Fiber Installations

Buy LC/APC Quad Adapter in Pakistan

Looking to buy LC/APC Quad Adapter in Pakistan? Universal Fiber Solutions (UFS) supplies reliable fiber optic connectivity products for FTTH, telecom, ISP, data center, and networking projects.

Warranty & Support

Warranty: Subject to applicable terms
Technical Support: Available from Universal Fiber Solutions (UFS)
