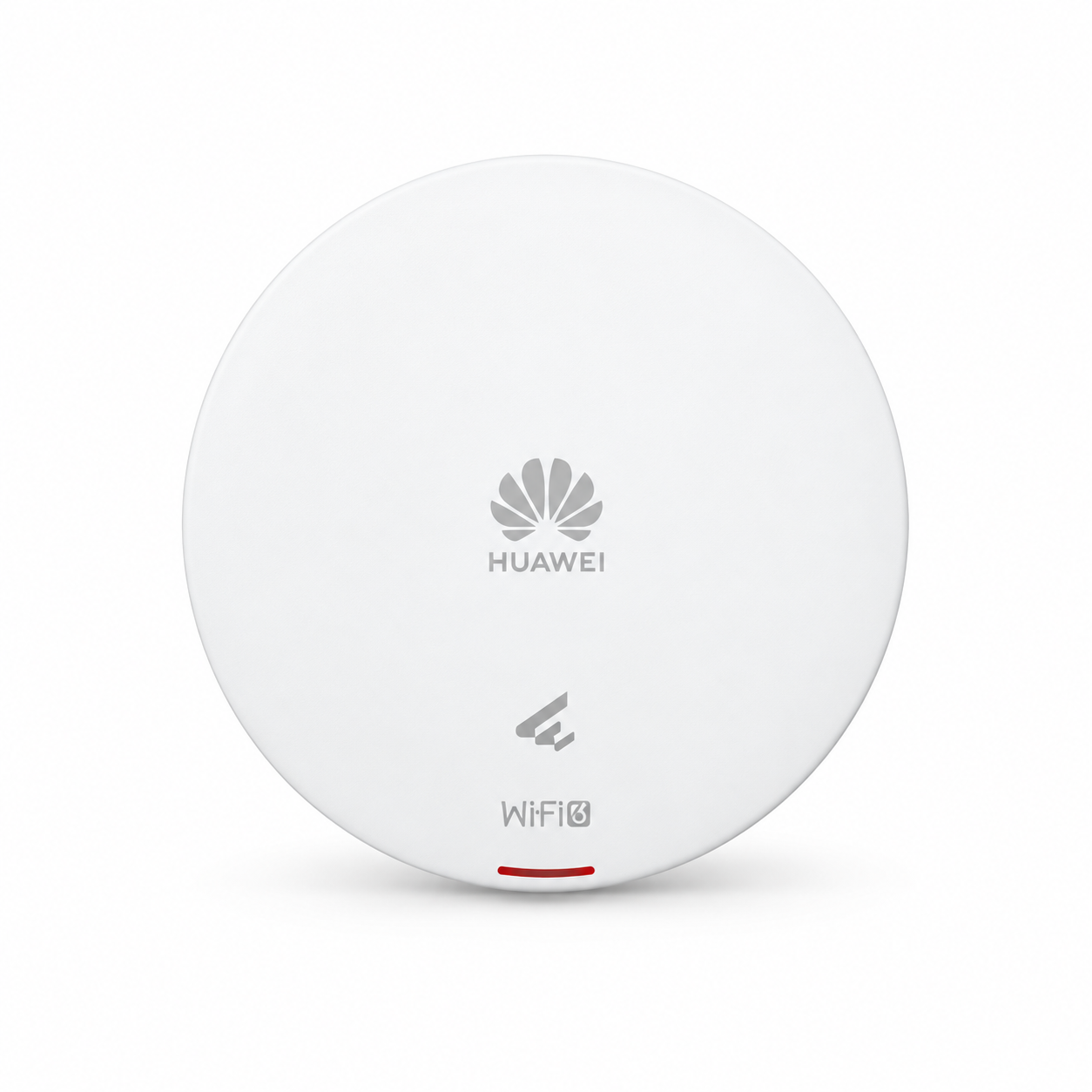

Huawei eKit AP361 Wi-Fi 6 Dual-Radio Access Point
+ Free ShippingThe Huawei eKit AP361 Wi-Fi 6 Access Point (Part Number: 50086871) is a dual-radio indoor wireless access point designed for business, SME and professional network deployments. It provides up to 1.775 Gbps device rate, supports 80 recommended access users, and features built-in smart antennas, up to 23 dBm combined transmit power and a 20 m optimal signal distance. With Gigabit Ethernet and PoE 802.3af support, the AP361 provides a practical solution for indoor Wi-Fi 6 deployments.
Huawei eKit AP361 Wi-Fi 6 Dual-Radio Access Point
The Huawei eKit AP361 is a Wi-Fi 6 dual-radio indoor access point designed for business, SME, office and professional wireless network deployments. It supports 2.4 GHz and 5 GHz wireless connectivity and delivers up to 1.775 Gbps device rate. The AP361 supports up to 80 recommended access users and provides an optimal signal distance of 20 meters.
The AP361 features built-in smart antennas, 2×2 MIMO on both radio bands, one Gigabit Ethernet port and PoE 802.3af power support. It can be installed on walls or ceilings using supported mounting options.
Key Features
- Huawei eKit AP361 Wi-Fi 6 Access Point
- Part Number: 50086871
- Dual-radio 2.4 GHz and 5 GHz
- Up to 1.775 Gbps device rate
- 80 recommended access users
- 20 m optimal signal distance
- Up to 23 dBm combined transmit power
- Built-in smart antennas
- 2×2 MIMO on 2.4 GHz and 5 GHz
- 1 × Gigabit RJ45 Ethernet port
- PoE 802.3af
- Wall and ceiling installation
- Compact indoor access point design
Technical Specifications
| Specification | Huawei eKit AP361 |
|---|---|
| Product Model | AP361 |
| Part Number | 50086871 |
| Wi-Fi Standard | 802.11b/g/n/ax (2.4 GHz); 802.11a/n/ac/ac Wave 2/ax (5 GHz) |
| Radio | Dual-radio |
| Operating Frequency | 2.4 GHz / 5 GHz |
| Device Rate | 1.775 Gbps |
| Recommended Users | 80 |
| Optimal Signal Distance | 20 m |
| MIMO | 2×2 on 2.4 GHz / 2×2 on 5 GHz |
| 2.4 GHz Channel Bandwidth | Up to 40 MHz |
| 5 GHz Channel Bandwidth | Up to 80 MHz |
| Maximum Transmit Power | 23 dBm combined |
| Ethernet Port | 1 × GE RJ45, 10/100/1000 Mbps |
| Antenna | Built-in smart antenna |
| Power Input | PoE 802.3af |
| Maximum Power Consumption | 9.4 W |
| Installation | Wall / Ceiling |
| Dimensions | Ø180 × 35 mm |
| Weight | 0.45 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5%–95% RH, non-condensing |
Antenna Specifications
| Frequency | Antenna Gain |
|---|---|
| 2.4 GHz | 4 dBi/chain peak, 2 dBi combined |
| 5 GHz | 5 dBi/chain peak, 3 dBi combined |
Applications
The Huawei eKit AP361 Wi-Fi 6 Access Point is suitable for:
- Corporate offices
- Small and medium-sized businesses
- Enterprise wireless networks
- Commercial buildings
- Schools and educational environments
- Indoor Wi-Fi deployments
- Business network upgrades
- Professional wireless network installations
Buy Huawei eKit AP361
Looking to buy Huawei eKit AP361 in Pakistan? Universal Fiber Solutions provides networking and wireless connectivity solutions for business and professional requirements. Contact UFS for Huawei eKit AP361 price, availability, bulk orders and technical information.
Related products
-
UniFi U7‑Pro WiFi 7 Access Point
Enterprise WiFi Access Points -

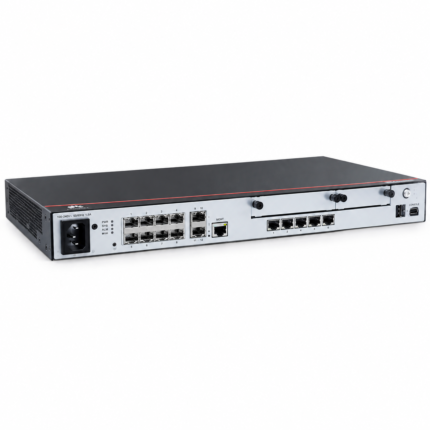

Huawei eKit AR730 Enterprise Router
