Huawei eKit S110-8P2ST 8-Port Gigabit PoE+ Switch

Huawei eKit S110-8P2ST 8-Port Gigabit PoE+ Switch

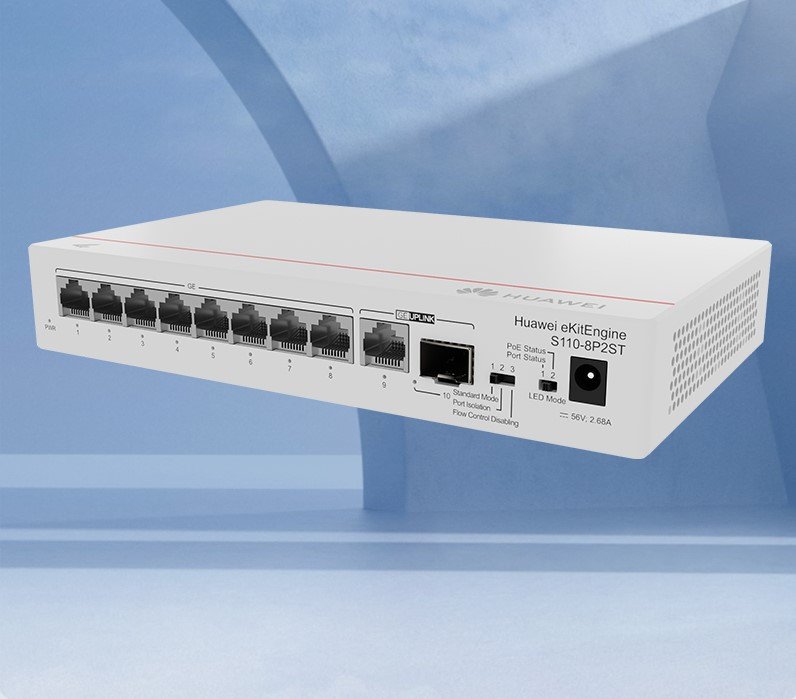

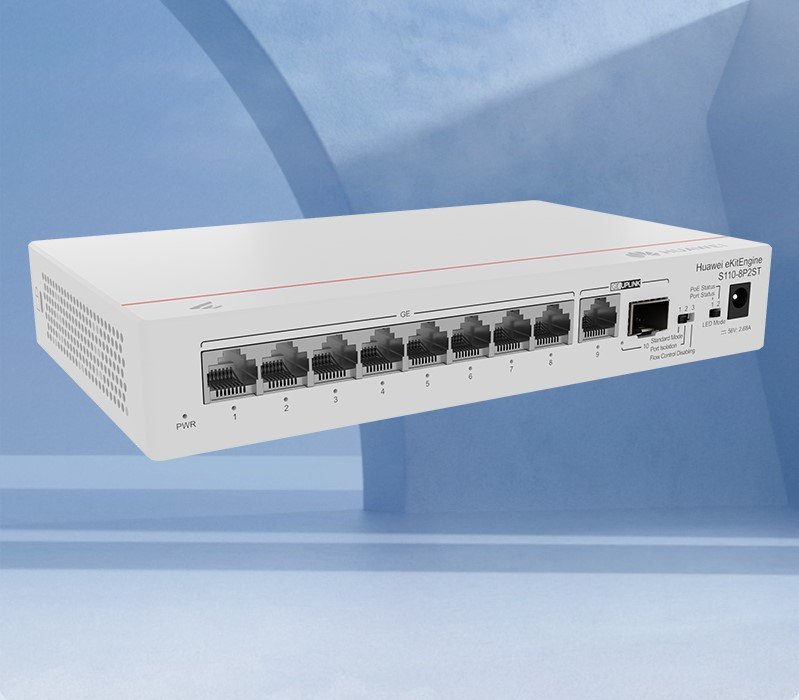

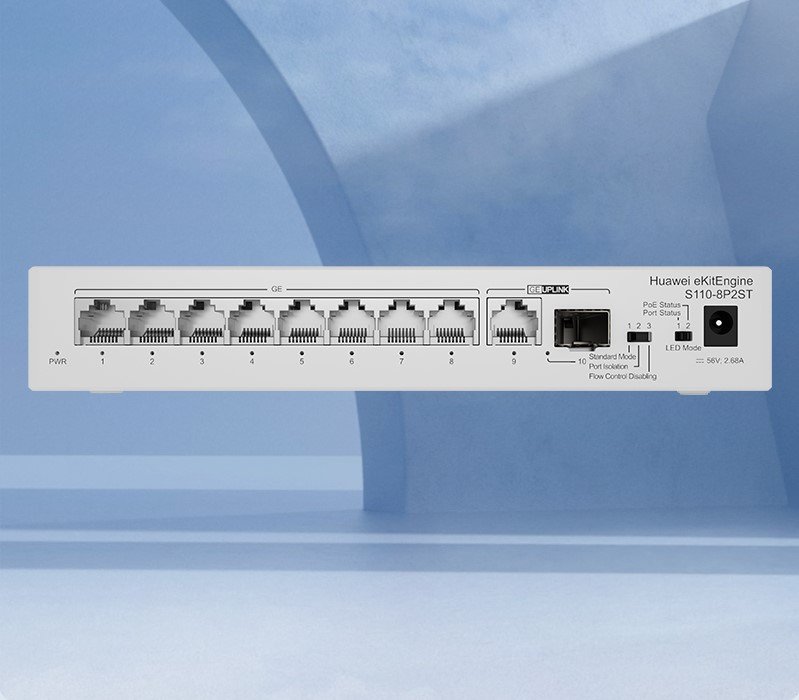

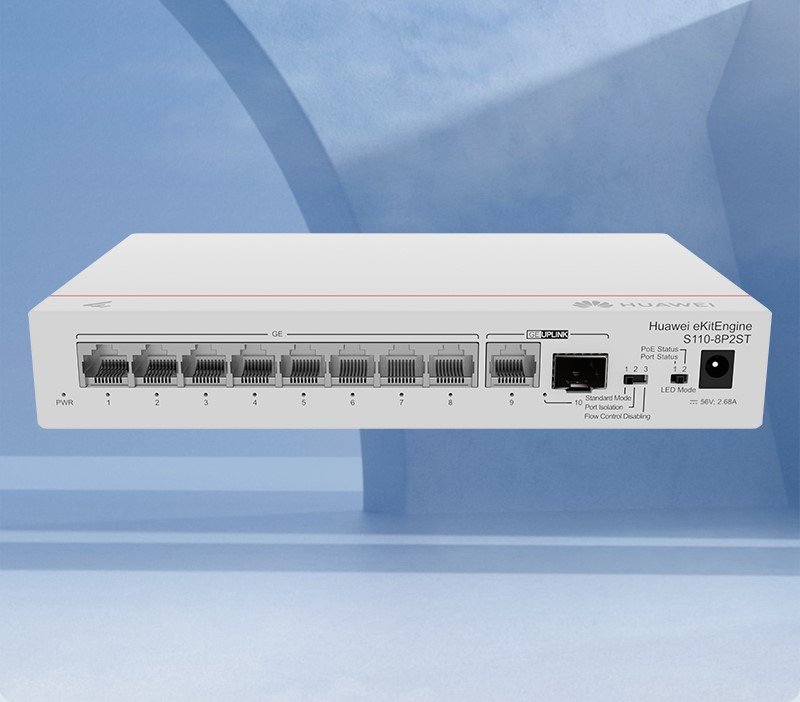

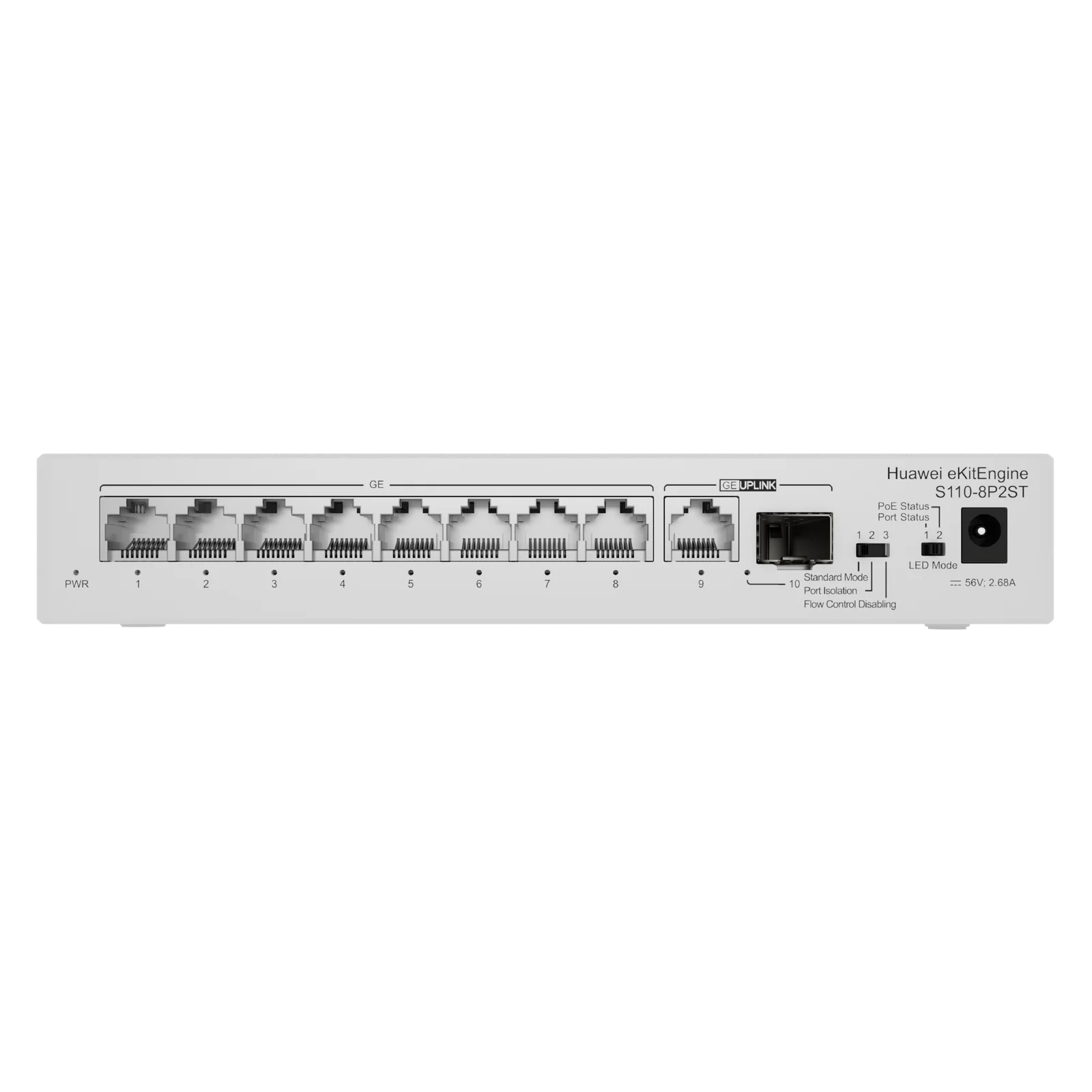

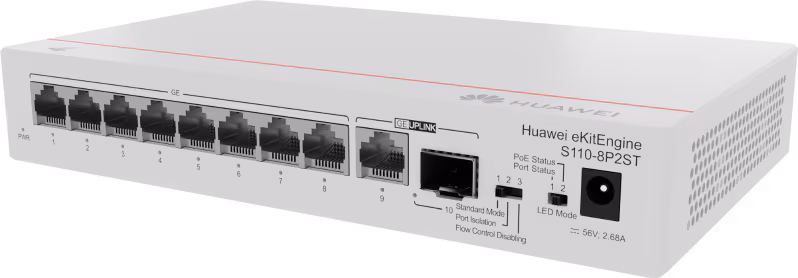

The Huawei eKit S110-8P2ST is a compact and reliable Gigabit PoE+ network switch designed for offices, retail stores, smart classrooms, CCTV surveillance, wireless access points, VoIP phones and other IP-based networking environments.

It features 8 x 10/100/1000BASE-T PoE+ ports, 1 x GE SFP port, and 1 x 10/100/1000BASE-T port. With a 124W maximum PoE power budget, 20 Gbit/s switching capacity, and 14.88 Mpps packet forwarding rate, it provides reliable connectivity for modern business networks.

Key Features

• 8 x 10/100/1000BASE-T PoE+ ports
• 1 x GE SFP port
• 1 x 10/100/1000BASE-T port
• 124W maximum PoE power budget
• Supports 802.3af (15.4W) and 802.3at (30W)
• Up to 8 devices at 15.4W or 4 devices at 30W
• 14.88 Mpps packet forwarding rate
• 20 Gbit/s switching capacity
• Natural heat dissipation
• Desk and wall mounting
• Compact 0.8U chassis
• 3 Years Warranty
• Complete Technical Support from Universal Fiber Solutions

Gigabit PoE+ Connectivity

The Huawei eKit S110-8P2ST provides Gigabit Ethernet connectivity while allowing compatible PoE devices to receive data and power through a single Ethernet cable. This helps simplify installations and reduce the need for separate power connections.

The switch provides 124W maximum PoE power and has 8 PoE+ interfaces.

PoE Capacity

Specification	Capacity
PoE+ Interfaces	8
Maximum PoE Power	124W
802.3af Full Load	8 × 15.4W
802.3at Full Load	4 × 30W

The actual number of powered devices depends on their individual power requirements and the available PoE budget.

Ideal for CCTV & IP Surveillance

The S110-8P2ST is suitable for CCTV and IP surveillance networks where compatible PoE cameras require both network connectivity and power. It can also be used with other PoE-enabled security devices.

Suitable applications include:

• IP CCTV systems
• Security camera networks
• Small and medium-sized surveillance installations
• PoE-enabled security devices

Office, Wi-Fi & VoIP Networks

The switch can connect computers, IP phones, wireless access points and other Ethernet devices in office and commercial environments.

Its PoE+ capability can simplify the installation of compatible PoE wireless access points and VoIP phones by providing power and network connectivity through Ethernet.

SFP Fiber Connectivity

The integrated GE SFP port provides connectivity with compatible SFP-based networking equipment and can be used to integrate the switch into a fiber-based network infrastructure.

Technical Specifications

Specification	Details
Product Model	Huawei eKit S110-8P2ST
Product Type	Gigabit PoE+ Network Switch
Ethernet Ports	8 x 10/100/1000BASE-T
SFP Port	1 x GE SFP
Additional Ethernet Port	1 x 10/100/1000BASE-T
Total Physical Ports	10
PoE+ Interfaces	8
Maximum PoE Power	124W
Packet Forwarding Rate	14.88 Mpps
Switching Capacity	20 Gbit/s
Installation	Desk Mounting, Wall Mounting
Heat Dissipation	Natural Heat Dissipation
Power Supply	Power Adapter
Rated Input Voltage	170–240V AC, 50/60Hz
Power Adapter Output	56V DC
Maximum Input Current	2.68A
Static Power Consumption	3W
Typical Power Consumption	11W
Maximum Power Without PoE	11W
Maximum Power at Full PoE Load	155W
Chassis Height	0.8U
Dimensions	35 × 210 × 130 mm
Maximum Dimensions	36.5 × 210 × 131.7 mm
Weight	1.11 kg
Operating Temperature	0°C to 40°C at 0–1800m
Storage Temperature	-40°C to +70°C
Operating Humidity	5%–95% RH, non-condensing
Operating Altitude	0–5000m
Service Port Surge Protection	Common Mode: ±4kV
Power Supply Surge Protection	Differential/ Common Mode: ±6kV
Certification	EMC, Safety & Manufacturing Certifications

Power & Operating Environment

The switch has a typical power consumption of 11W, while maximum consumption is 11W without PoE and 155W at full PoE load.

It operates from 0°C to 40°C at altitudes up to 1800m. At higher altitudes between 1800m and 5000m, the maximum operating temperature decreases by 1°C for every 220m increase in altitude.

The supported operating humidity is 5%–95% RH, non-condensing.

Applications

The Huawei eKit S110-8P2ST is suitable for:

• Office Networks
• CCTV & IP Surveillance
• Retail Stores
• Smart Classrooms
• Wireless Access Points
• VoIP Networks
• Fiber Network Infrastructure
• Small Business Networks
