New Model Fujikura 45S Fusion Splicer

New Model Fujikura 45S Fusion Splicer

The Fujikura 45S is a professional fiber fusion splicer designed for FTTH, FTTx, telecom, 5G, and fiber restoration applications. It uses active cladding alignment technology to provide reliable fiber positioning and accurate splicing. Its compact and rugged design makes it suitable for professional fiber technicians working in both indoor and outdoor environments.

Fast & Accurate Splicing

The Fujikura 45S provides fast and reliable splicing performance, with an average splicing time of 6–7 seconds in SM FAST mode and 8–10 seconds in SM AUTO mode. Its automatic fusion control helps optimize the arc process, while automatic fiber placement correction makes fiber positioning easier and reduces manual adjustment during operation.

Rugged & Portable Design

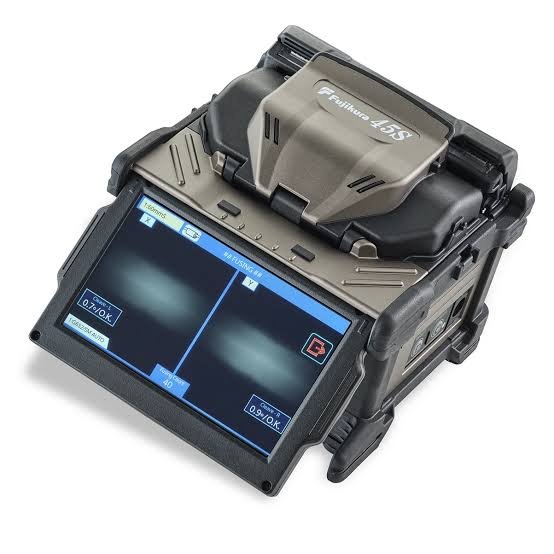

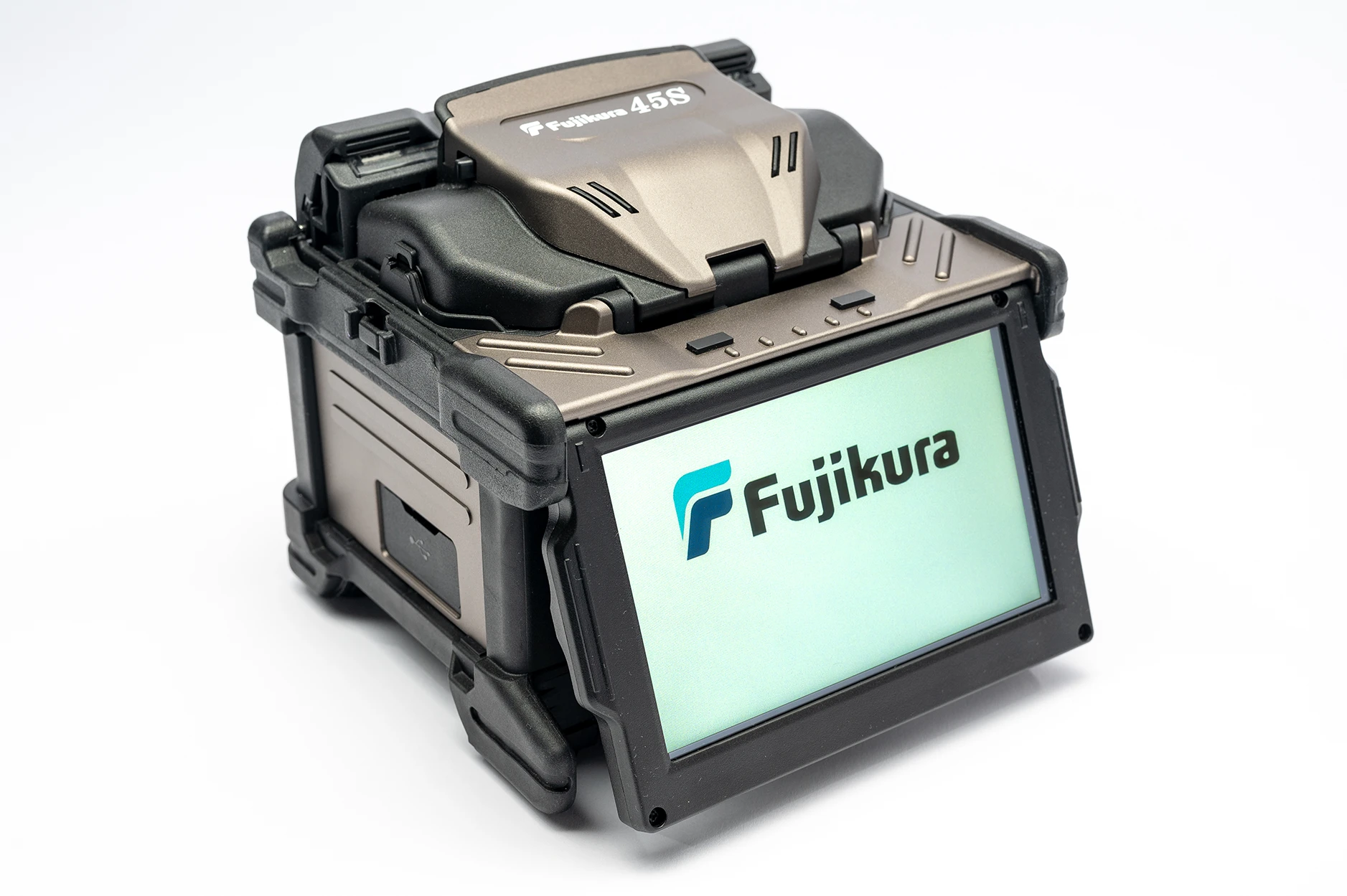

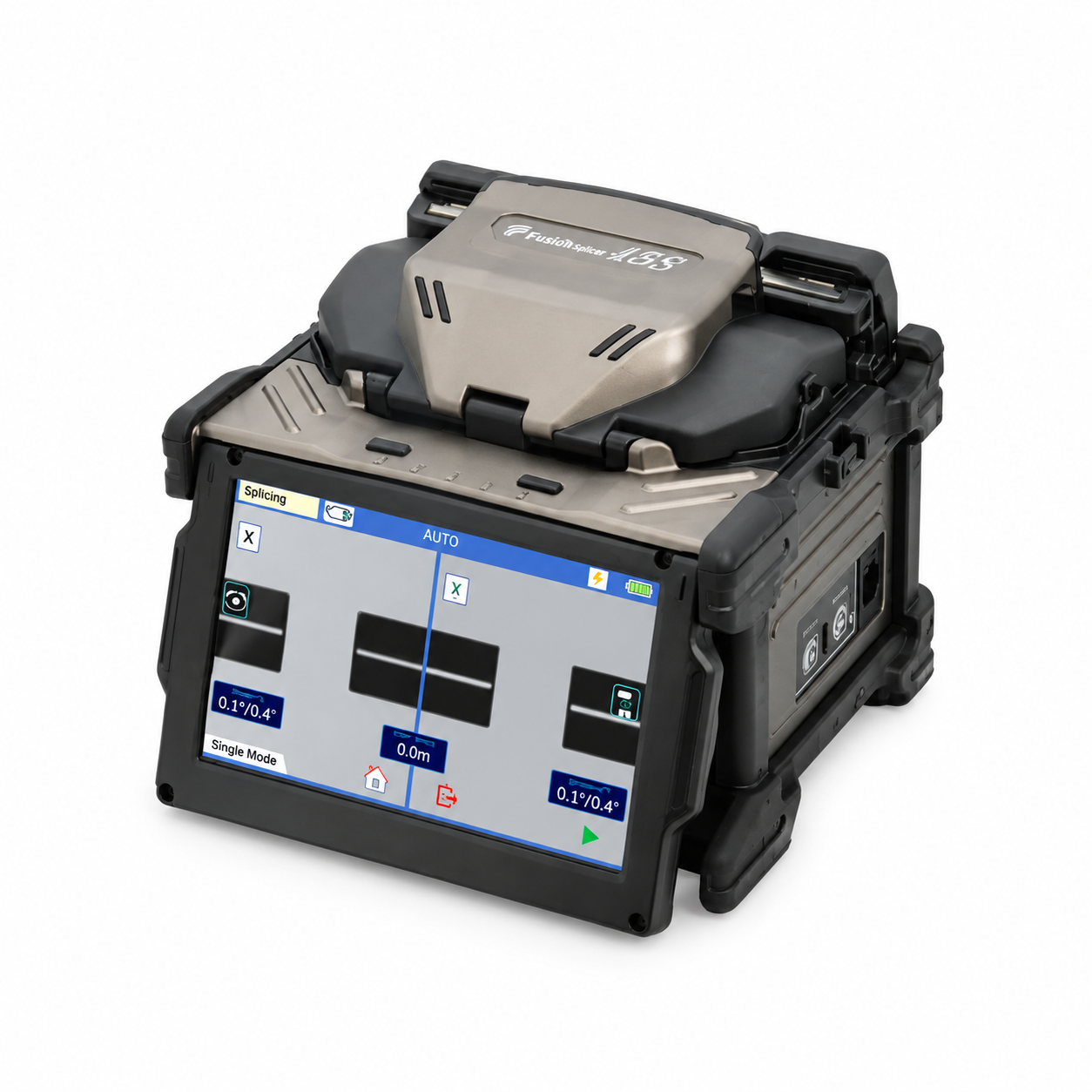

The compact Fujikura 45S weighs approximately 1.4 kg including the battery and features a 4.95-inch TFT touchscreen display with approximately 132–300X magnification. Its rugged construction is designed for resistance to shock, moisture, and dust, making it suitable for demanding field applications and professional fiber installation work.

Easy & Efficient Operation

The 45S includes automatic functions such as fusion control, blade management, splice start, and heater start. Its improved sheath clamp design and easy sleeve positioning help technicians complete the splicing process more efficiently. The machine also supports Bluetooth 5.2 and USB connectivity for additional functionality and data management.

Technical Specifications

• Model: Fujikura 45S
• Alignment: Active Cladding Alignment
• Fiber Type: Singlemode & Multimode
• Fiber Count: Single Fiber
• Splice Time: Avg. 6–7 sec. SM FAST
• Splice Time: Avg. 8–10 sec. SM AUTO
• Splice Loss: Avg. 0.03 dB for ITU-T G.652
• Heat Time: Approx. 15–22 sec.
• Electrode Life: Approx. 6,000 splices
• Display: 4.95-inch TFT Touchscreen
• Magnification: Approx. 132–300X
• Weight: Approx. 1.4 kg with battery
• Battery: Rechargeable Lithium-Ion
• Battery Capacity: Approx. 200 splice & heat cycles
• Bluetooth: 5.2

Key Benefits

• Active cladding alignment for accurate fiber positioning
• Fast and reliable fusion splicing
• Automatic fiber placement correction
• Automatic fusion control and blade management
• Compact and lightweight design
• Rugged construction for field environments
• Easy touchscreen operation
• Rechargeable battery for field use
• Suitable for professional fiber technicians
• Supports efficient fiber installation and restoration work

Applications

• FTTH / FTTx
• 5G Small Cell Sites
• Telecom Networks
• MDF / IDF Splicing
• Rural Fiber Deployments
• Fiber Restoration
• Fiber Termination
• Fiber Installation & Maintenance

Buy Fujikura 45S in Pakistan

Universal Fiber Solutions (UFS) offers the New Model Fujikura 45S Fusion Splicer for professional fiber optic installation, maintenance, termination, and splicing projects. The Fujikura 45S is a suitable solution for fiber technicians, ISPs, telecom companies, and network installation teams. Contact UFS for the latest price, availability, and technical support.

Warranty & Support

Warranty: 1-Year Factory Warranty.

Technical Support:
Available from Universal Fiber Solutions (UFS).
