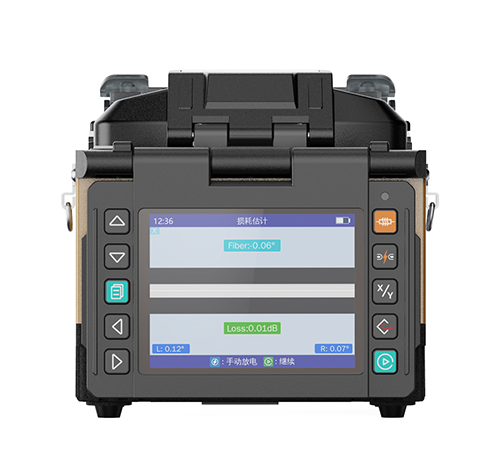

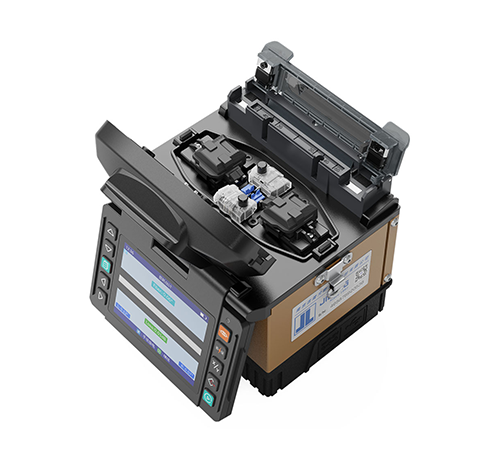

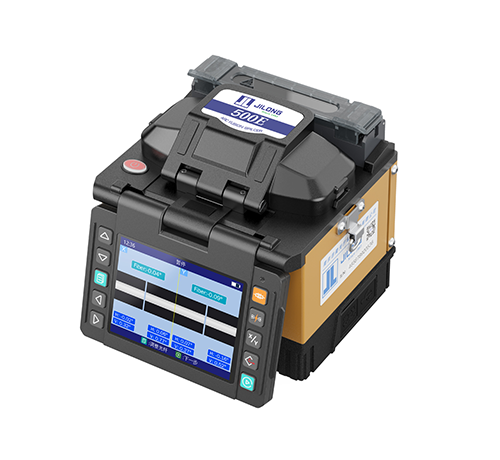

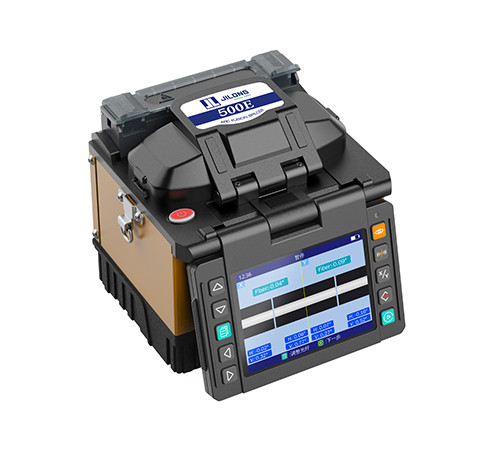

Jilong 500E Mini Optical Fiber Fusion Splicer
+ Free ShippingThe 500E Mini FTTx Fusion Splicer is a portable, economical fiber splicing machine designed for FTTH, security monitoring, and telecom projects. With 6‑second splicing, 18‑second heating, and a 4000mAh battery supporting 120+ cycles, it delivers stable performance, low splice loss, and easy operation. Available now at Universal Fiber Solutions (UFS) — the trusted place to buy 500E Mini fusion splicers online at the best price.
Overview
The 500E Mini Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is engineered for compact, efficient, and reliable fiber splicing. Featuring four‑motor clad alignment technology, it delivers 6‑second splicing and 18‑second heating cycles.
Its mini body design, double‑layer cooling tank, and tool‑free electrode replacement make it ideal for telecom operators, FTTH projects, and aerial fiber installations.
⚡ Key Features
- 6‑second splicing – ultra‑fast performance
- 18‑second heating – adjustable heating cycles
- Four‑motor clad alignment – precision fiber positioning

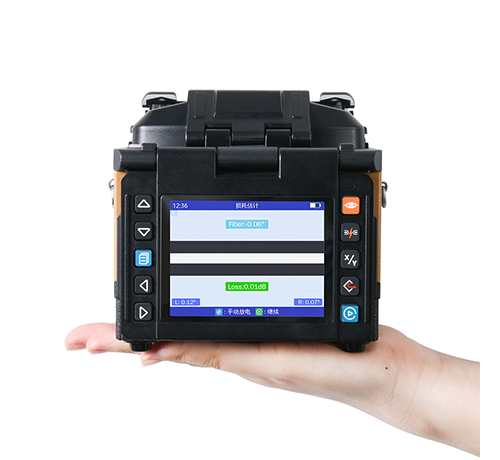

- Compact design – lightweight at only 1.35kg with battery
- High‑capacity battery – 4000mAh, supports 120+ cycles per charge
- 3.5‑inch HD display – 800×480 resolution with GUI interface
- Automatic ARC calibration – real‑time discharge correction
- Data storage – 10,000 splice records + 2,000 images
- Durable build – waterproof, dustproof, windproof, anti‑shock protection

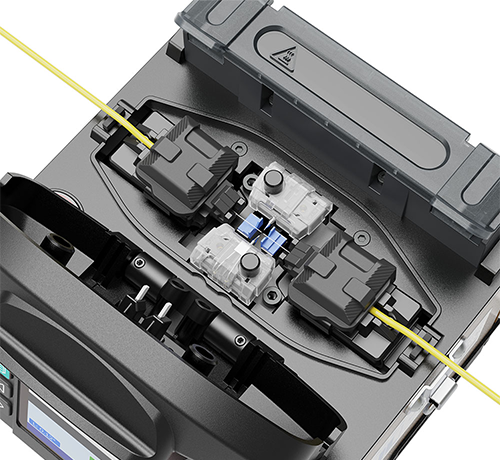

- Universal fixture – supports jumper, pigtail, leather cable, and bare fiber
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Fiber alignment | Four motors, clad alignment |
| Splicing time | 6s |
| Heating time | 18s |
| Fiber types | SMF/G.652, MMF/G.651, DSF/G.653, NZ‑DSF/G.655, BIF/G.657 |
| Splicing loss | 0.01–0.04dB depending on fiber type |
| Display | 3.5‑inch HD LCD (800×480) |
| Battery | 4000mAh, >120 cycles per charge |
| Magnification | 320x single axis / 160x dual axis |
| Protection | Waterproof, dustproof, windproof, anti‑shock |
| Operating environment | ‑20°C to +50°C, ≤95%RH, altitude ≤5000m |
| Weight | 1.06kg (without battery), 1.35kg (with battery) |
📦 Standard Package
- 500E Mini Fusion Splicer (Main Unit)
- Carrying case
- Fiber cleaver
- Fiber stripper + drop cable stripper
- Power cord + adapter
- Cooling tray
- Spare electrodes
- Cleaning brush
- Strap
- User manual
🛡️ Service Commitment
Purchasing the 500E Mini Fusion Splicer from UFS includes:
- Warranty coverage (battery, adapter, and consumables per manufacturer policy)
- Professional support and authorized servicing
- Commitment to industry‑standard quality and reliability
