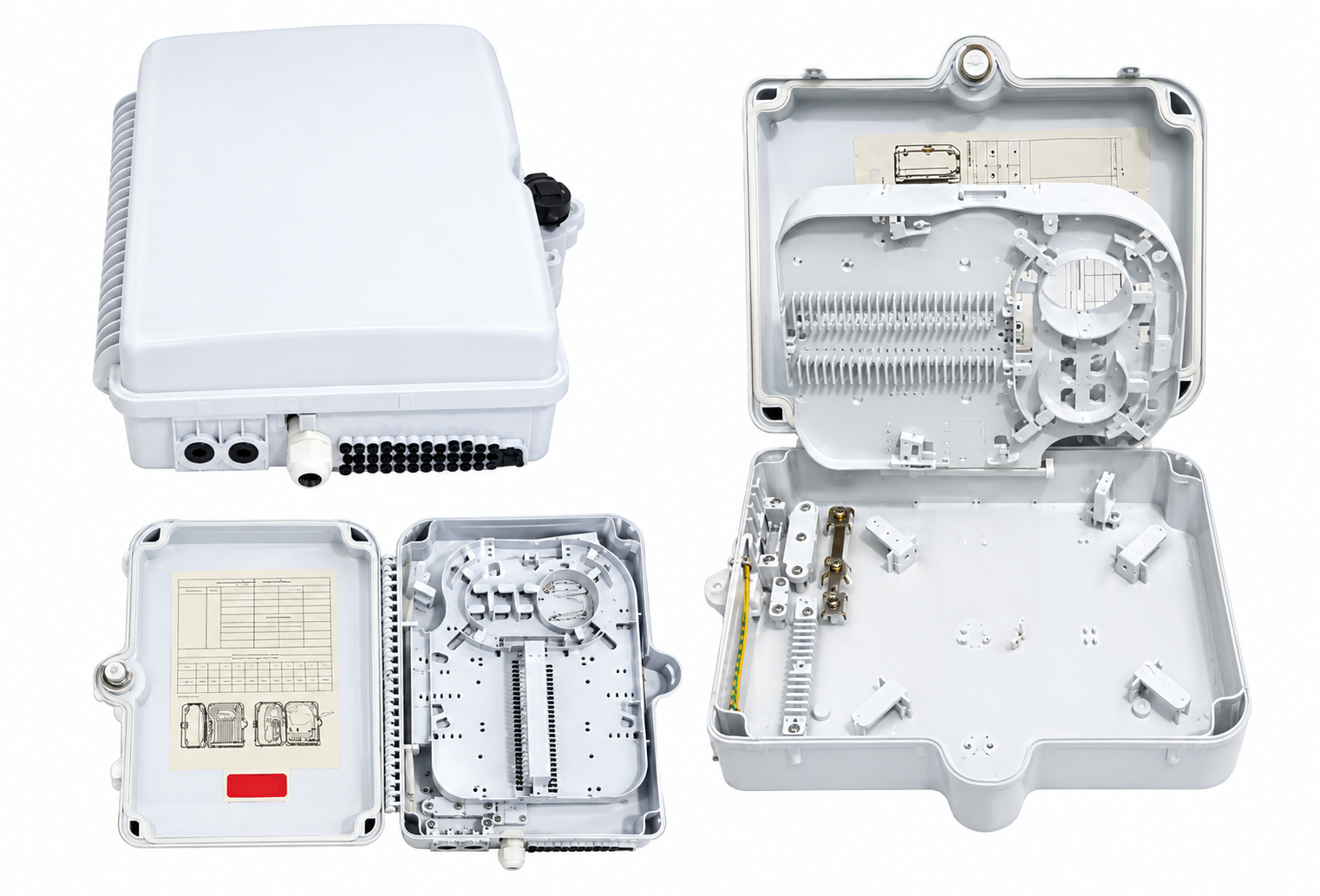

UFS-F24 24C Fiber Termination Box Wall Mount

24C Fiber Termination Box for FTTH & FTTx Networks

The UFS-F24 24C Fiber Termination Box is a large-capacity wall-mounted fiber optic enclosure developed for reliable fiber distribution, splicing, and termination in FTTH and FTTx access networks.

Equipped with a 1 × 24C splice tray, the enclosure supports up to 24 fibers, providing an organized solution for higher-capacity fiber connections. Its robust ABS housing offers durability and long service life, while the IP65 protection rating helps protect internal fiber components from dust and water ingress.

The UFS-F24 is suitable for both indoor and outdoor wall-mounted applications where secure and organized fiber management is required.

Key Features & Benefits

• Supports up to 24 fibers
• Includes 1 × 24C splice tray
• 2 cable inlets + 24 outlets for flexible cable routing
• Durable and robust ABS construction
• IP65 waterproof and dustproof protection
• Designed for FTTH and FTTx access networks
• Combines fiber splicing and termination in one enclosure
• Compact wall-mounted design
• Suitable for indoor and outdoor applications
• Lockable housing for improved security
• Easy re-entry for maintenance and inspection
• Convenient fiber cable organization and routing
• Suitable for high-capacity fiber distribution applications

Applications

The UFS-F24 24C Fiber Termination Box is suitable for:

• FTTH access networks
• FTTx fiber networks
• High-capacity fiber termination
• Fiber optic distribution networks
• Residential complexes
• Office buildings
• Enterprise networks
• Campus networks
• Industrial fiber installations
• Indoor wall-mounted fiber applications
• Outdoor wall-mounted fiber applications
• Fiber splicing and termination deployments

Fiber Capacity & Cable Management

The 24C Fiber Termination Box supports up to 24 fibers through a dedicated 1 × 24C splice tray.

With 2 cable inlets and 24 cable outlets, the enclosure provides flexible cable routing and distribution for higher-capacity fiber networks. The internal arrangement is designed to help maintain organized fiber connections while allowing convenient access during installation and maintenance.

Durable ABS Construction

The UFS-F24 is manufactured using high-grade ABS material, providing a strong and durable enclosure for fiber optic components. The robust housing is designed for long-term use in suitable indoor and outdoor wall-mounted environments.

Its compact enclosure design provides an effective balance between fiber capacity, cable management, and installation convenience.

IP65 Protection

The IP65-rated fiber termination box provides protection against dust and water ingress, making it suitable for network deployments where environmental protection is required.

The enclosure helps protect fiber splicing and termination components from external environmental conditions during normal network operation.

Easy Installation & Maintenance

The wall-mounted configuration allows the UFS-F24 Fiber Termination Box to be conveniently installed at suitable fiber distribution points. Its re-entry design provides easy access to internal components for inspection, maintenance, troubleshooting, and future network expansion.

The lockable housing provides additional security for the fiber connections and internal components.

Why Choose UFS-F24?

The UFS-F24 24C Fiber Termination Box Wall Mount provides a practical solution for high-capacity FTTH and FTTx fiber distribution applications. With support for up to 24 fibers, a 24C splice tray, 26 cable ports, durable ABS construction, IP65 protection, and lockable housing, it is designed for organized and secure fiber splicing and termination.

Technical Specifications

Parameter	Specification
Product Name	24C Fiber Termination Box Wall Mount
Model / SKU	UFS-F24-24C
Fiber Capacity	Up to 24 fibers
Splice Tray	1 × 24C
Cable Entry	2 Inlets + 24 Outlets
Total Cable Ports	26
Dimensions	320 (L) × 250 (W) × 115 (D) mm
Material	ABS
Color	White
Protection Class	IP65
Installation	Wall Mount
Housing Type	Termination Box
Version	Splice & Termination
Lockable	Yes
Wall/Pole Holder	Yes
Grounding	No
Valve	No
Weight	1.85 kg (approx.)

Mechanical Data

Parameter	Value
Dimensions	320 (L) × 250 (W) × 115 (D) mm
Cable Entry	2 Inlet + 24 Outlet
Color	White
Material	ABS
Splice Trays	1 × 24C
Weight	1.85 kg (approx.)

Technical / Capacity Data

Parameter	Value
Fiber Count	Up to 24 fibers
Protection Class (IP)	IP65
Closure with Grounding	No
Closure with Valve	No
Closure with Wall/Pole Holder	Yes
Distributor Housing Type	Termination Box
Version	Splice & Termination
Lockable	Yes
Splice Tray	1 × 24C
