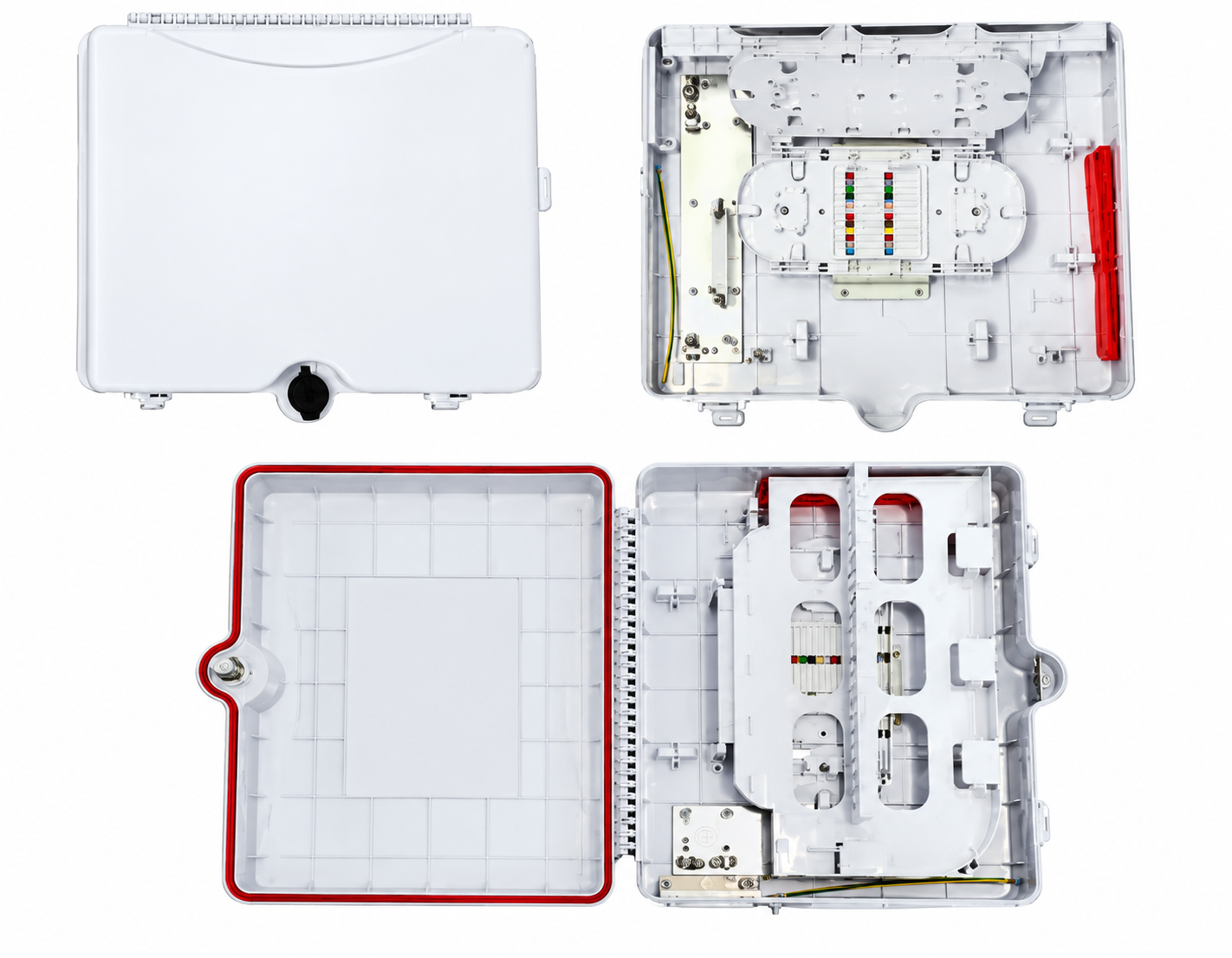

UFS-F48 24C/48C Fiber Termination Box Wall Mount

24C/48C Fiber Termination Box for FTTH & FTTx Networks

The UFS-F48 24C/48C Fiber Termination Box is a high-capacity wall-mounted fiber optic enclosure designed for large-scale fiber distribution, splicing, and termination applications.

The enclosure is available in 24-fiber and 48-fiber configurations, allowing network installers to select the appropriate splice capacity according to their fiber deployment requirements. The 24-fiber version uses 1 × 24C splice tray, while the 48-fiber version uses 2 × 24C splice trays.

Built from durable ABS material, the UFS-F48 provides a robust housing for fiber optic connections. Its IP65-rated enclosure helps protect internal components from dust and water ingress, making it suitable for appropriate indoor and outdoor installations.

Key Features & Benefits

• Available in 24-fiber and 48-fiber configurations
• Supports 1 × 24C or 2 × 24C splice trays
• Up to 48-fiber capacity
• 3 cable inlets + 48 outlets for flexible cable routing
• Durable, high-strength ABS housing
• IP65 waterproof and dustproof protection
• Designed for FTTH and FTTx access networks
• Supports fiber splicing, distribution, and termination
• Suitable for large-capacity fiber management
• Wall-mounted design for convenient deployment
• Lockable housing for improved security
• Easy access and re-entry for maintenance
• Suitable for indoor and outdoor fiber installations

Applications

The UFS-F48 Fiber Termination Box is suitable for:

• FTTH access networks
• FTTx fiber networks
• Large-capacity fiber distribution
• Fiber optic termination networks
• Fiber splicing applications
• Multi-dwelling units (MDUs)
• Residential complexes
• Office buildings
• Enterprise networks
• Industrial fiber networks
• Campus networks
• Data center fiber installations
• Indoor wall-mounted applications
• Outdoor wall-mounted applications

24C & 48C Fiber Capacity Options

The UFS-F48 Fiber Termination Box provides flexible capacity options for different network requirements.

24-Fiber Configuration

The UFS-F48-24C configuration includes:

• 1 × 24C splice tray
• Capacity: 24 fibers
• Suitable for medium-to-large fiber distribution applications

48-Fiber Configuration

The UFS-F48-48C configuration includes:

• 2 × 24C splice trays
• Capacity: 48 fibers
• Suitable for high-capacity fiber distribution and termination applications

Each splice tray supports 24 fibers, allowing the enclosure to be configured according to the required fiber capacity.

Flexible Cable Routing

The enclosure provides 3 cable inlets and 48 outlets, supporting flexible fiber cable routing and distribution.

This port configuration helps installers manage multiple fiber connections within a single enclosure while maintaining an organized fiber distribution arrangement.

Durable ABS Construction

The UFS-F48 is manufactured using high-strength ABS material, providing a durable housing for fiber optic components. The robust construction is designed to support long-term network deployments in suitable indoor and outdoor environments.

IP65 Protection

The IP65 Fiber Termination Box provides protection against dust and water ingress. This makes the enclosure suitable for fiber network deployments where environmental protection is required.

The protected housing helps safeguard internal fiber splicing and termination components during normal network operation.

Secure & Lockable Housing

The UFS-F48 features a lockable enclosure, providing additional security for fiber connections and internal components.

The secure housing is particularly useful in shared residential, commercial, enterprise, and industrial network environments.

Easy Maintenance & Re-Entry

The enclosure is designed for convenient access during installation, inspection, maintenance, and troubleshooting. Its re-entry design allows technicians to access internal fiber components when required without replacing the complete enclosure.

Why Choose UFS-F48?

The UFS-F48 24C/48C Fiber Termination Box Wall Mount provides a flexible high-capacity solution for FTTH and FTTx fiber distribution. With 24-fiber and 48-fiber configuration options, durable ABS construction, IP65 protection, multiple cable ports, lockable housing, and dedicated 24C splice trays, it is suitable for organized fiber splicing, distribution, and termination in large-scale network deployments.

Technical Specifications

Parameter	Specification
Product Name	24C/48C Fiber Termination Box Wall Mount
Model / SKU	UFS-F48-24C / UFS-F48-48C
Fiber Capacity	24 / 48 fibers
Splice Tray Options	1 × 24C / 2 × 24C
Fiber Capacity per Tray	24 fibers
Cable Entry	3 Inlets + 48 Outlets
Total Cable Ports	51
Dimensions	380 (L) × 355.8 (W) × 125 (D) mm
Material	ABS
Color	White
Protection Class	IP65
Installation	Wall Mount
Housing Type	Termination Box
Version	Splice & Termination
Lockable	Yes
Wall/Pole Holder	Yes
Grounding	No
Valve	No
Weight	2.6 kg (approx.)

Product Variants

Item No.	Description	Fiber Capacity
UFS-F48-24C	With 1 × 24C Splicing Tray	24 fibers
UFS-F48-48C	With 2 × 24C Splicing Trays	48 fibers

Mechanical Data

Parameter	Value
Dimensions	380 (L) × 355.8 (W) × 125 (D) mm
Cable Entry	3 Inlet + 48 Outlet
Color	White
Material	ABS
Splice Trays	1 × 24C (24 fibers) / 2 × 24C (48 fibers)
Weight	2.6 kg (approx.)

Technical / Capacity Data

Parameter	Value
Fiber Count	24 / 48 fibers
Protection Class (IP)	IP65
Closure with Grounding	No
Closure with Valve	No
Closure with Wall/Pole Holder	Yes
Distributor Housing Type	Termination Box
Version	Splice & Termination
Lockable	Yes
Splice Tray	24 fibers each tray
