V-SOL V1600GT 2 Port GPON OLT

V-SOL V1600GT 2 Port GPON OLT

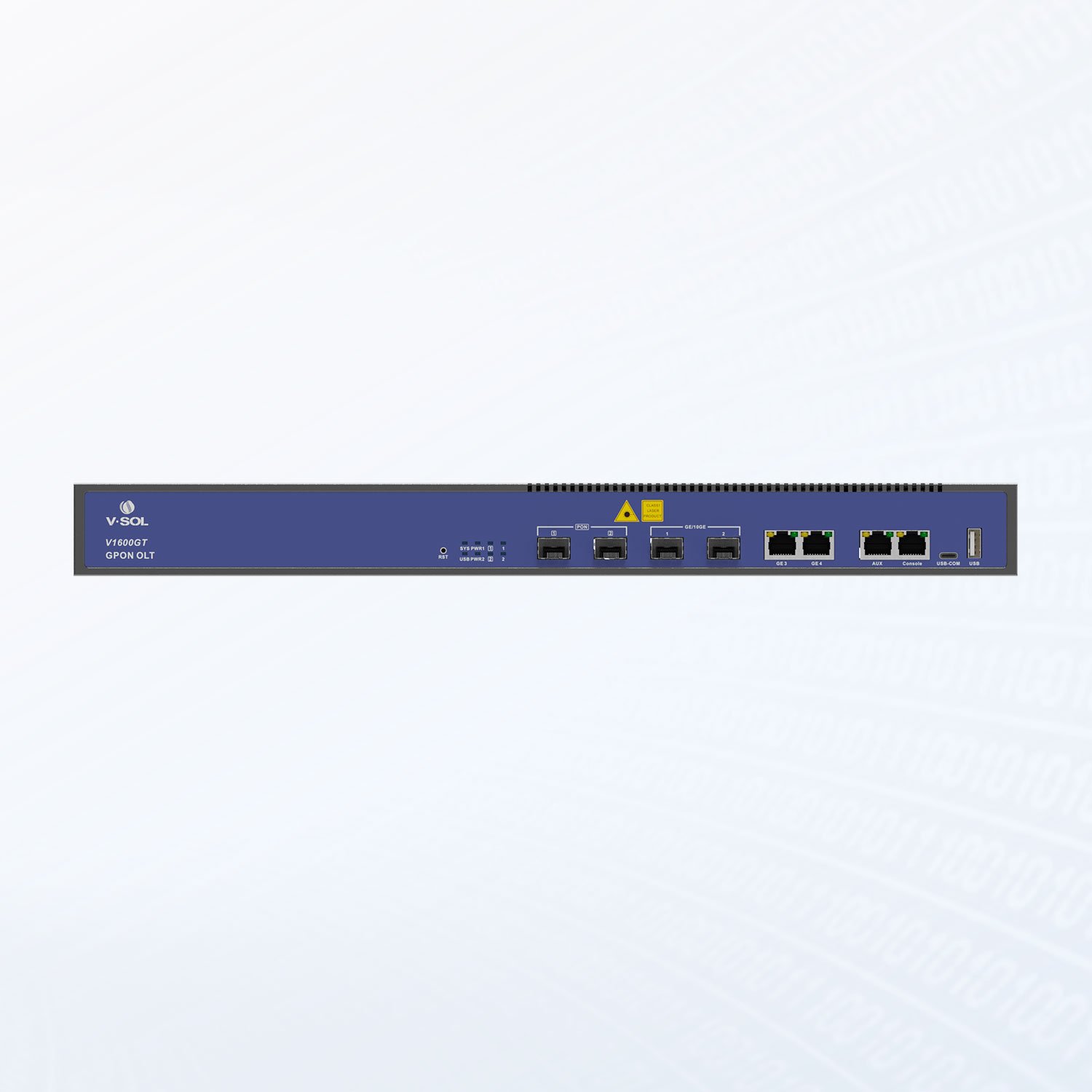

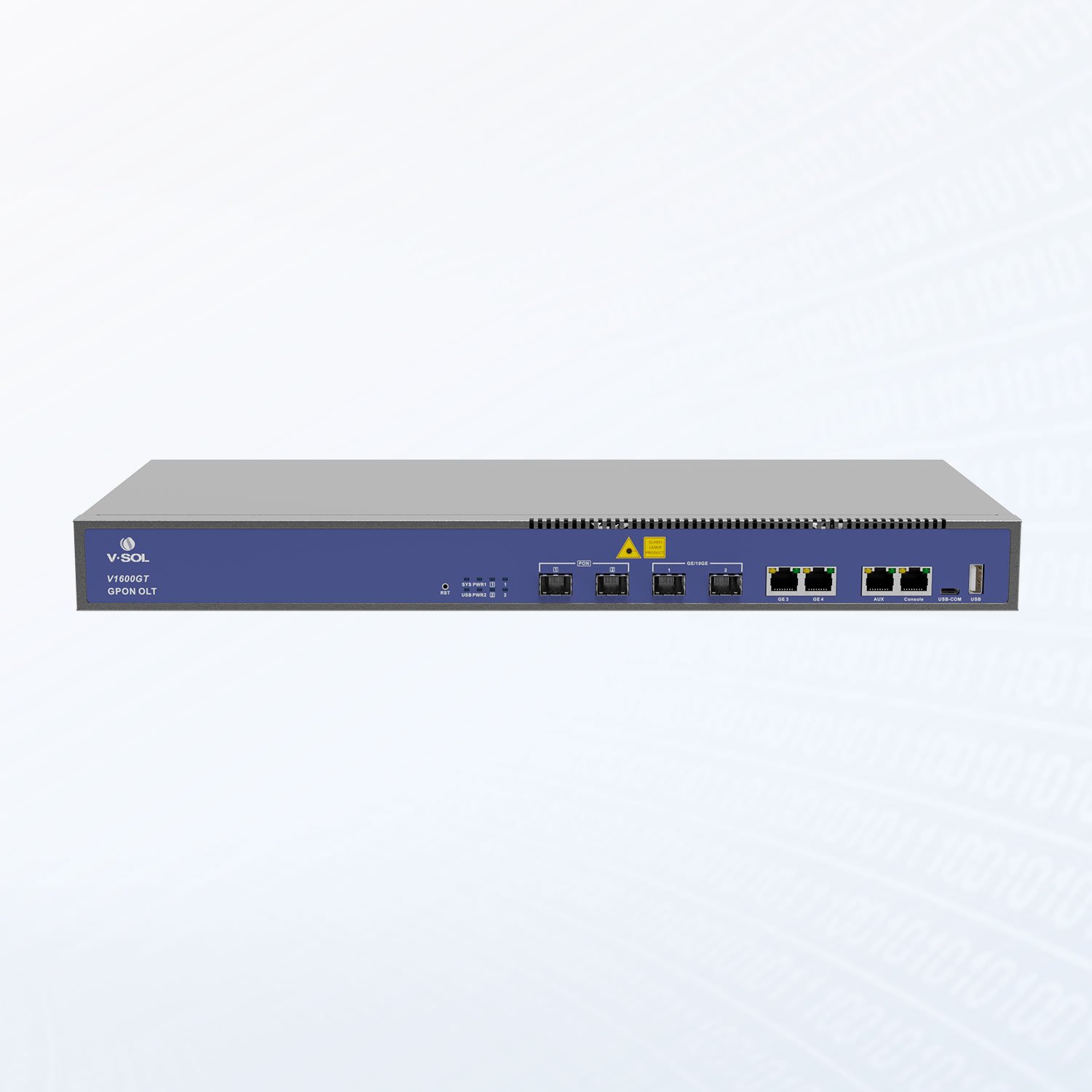

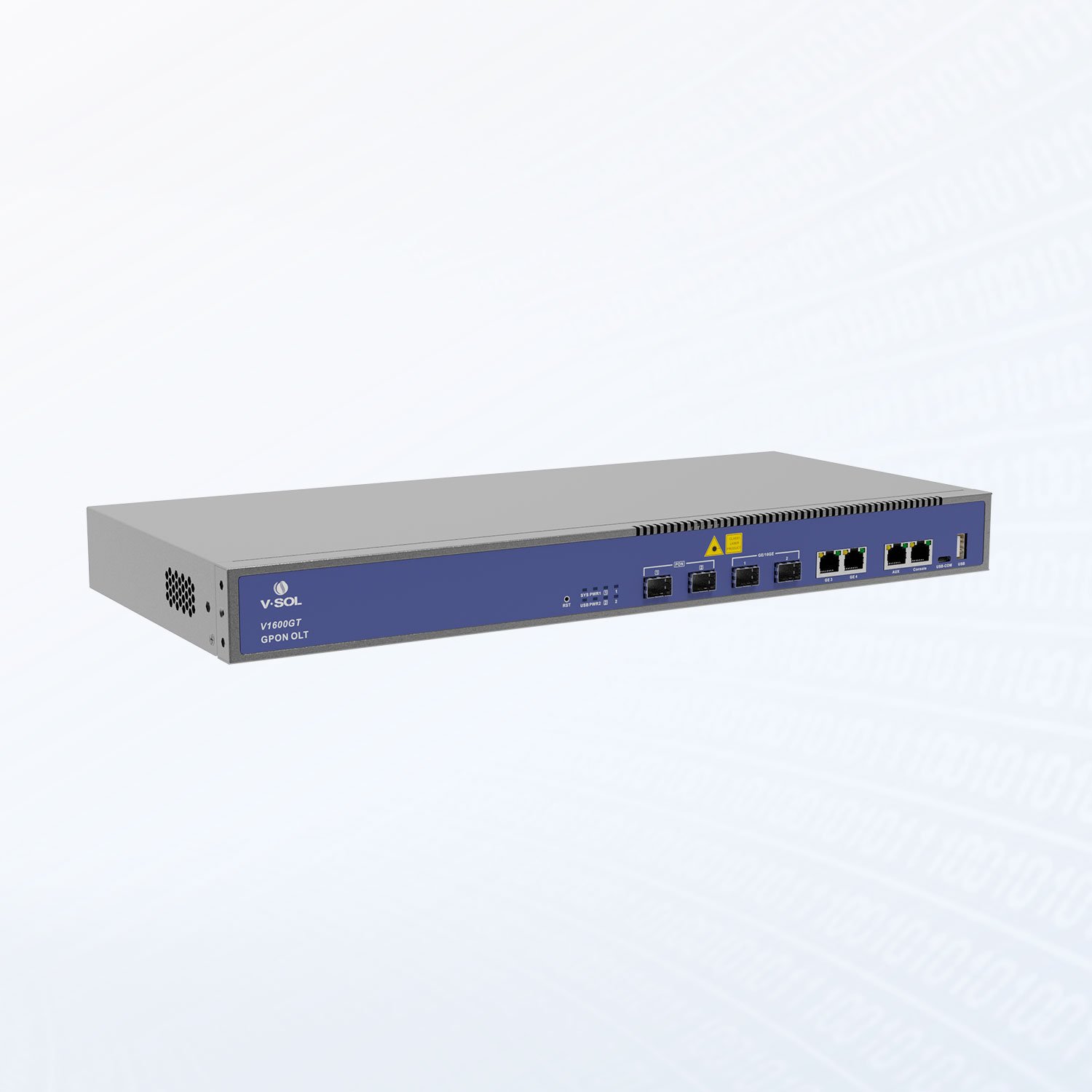

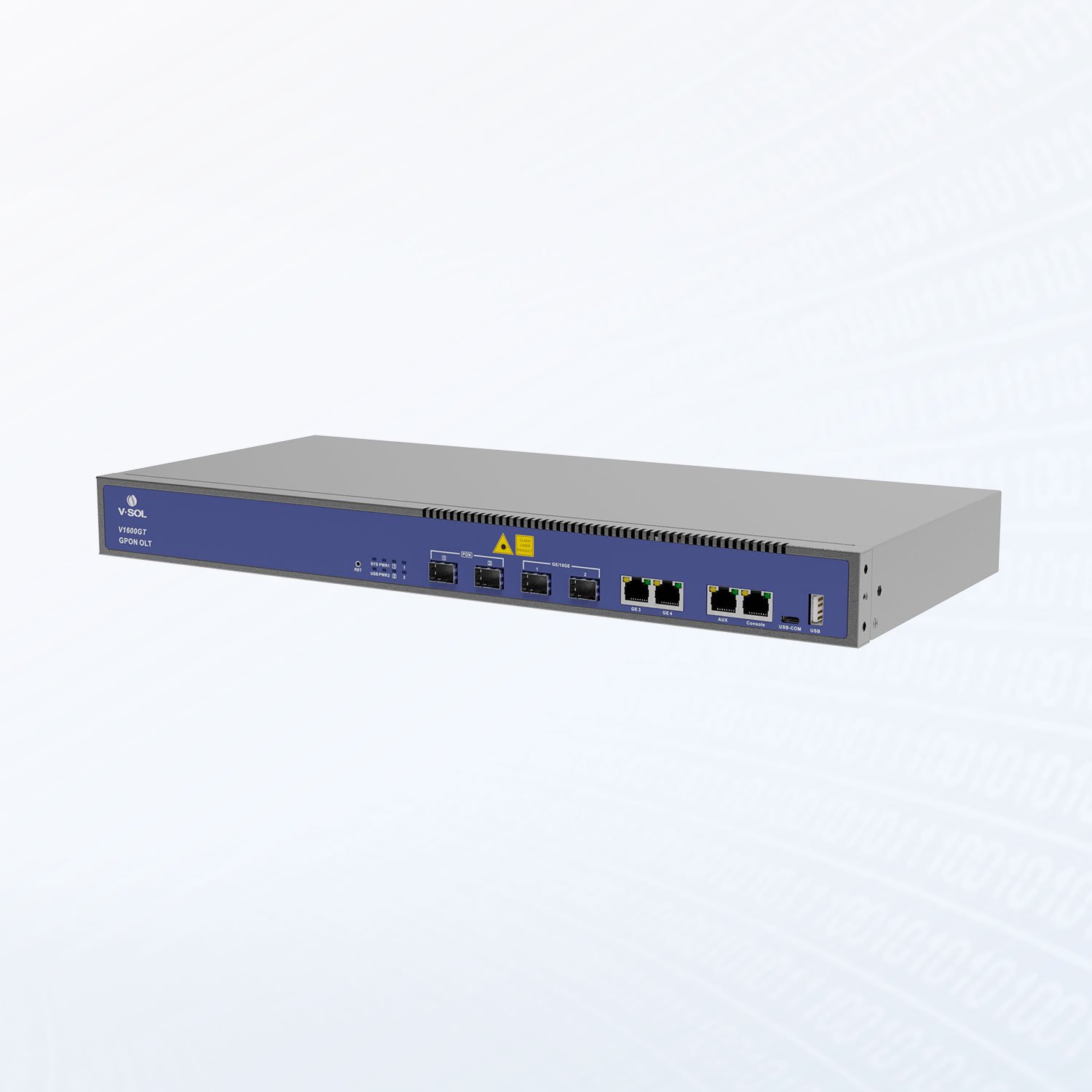

The V-SOL V1600GT is a compact and high-performance 2 Port GPON OLT designed for FTTH, FTTx, and small to medium fiber network deployments. Its simple design and flexible uplink options make it suitable for ISPs, remote areas, commercial buildings, smart industrial parks, and cost-sensitive network projects.

Reliable GPON Connectivity

The V1600GT features 2 GPON ports and supports up to 1:128 splitting ratio with a transmission distance of up to 20 km. It complies with the ITU-T G.984 GPON standard and provides efficient bandwidth management through T-CONT DBA and GEM Port traffic management.

Flexible Uplink Ports

The OLT provides:

• 2 × Gigabit RJ45 ports
• 2 × GE SFP / 10GE SFP+ slots

This allows flexible integration with Gigabit and 10G fiber uplink networks.

Advanced Network Features

The V-SOL V1600GT supports VLAN, VLAN Translation, QinQ, LACP, QoS, Port Isolation, Storm Control, ACL, Rate Limiting, RSTP, DHCP Server, DHCP Relay, and DHCP Snooping.

It also supports IGMP Snooping with up to 1K Layer 2 multicast groups for efficient multicast traffic management.

ONT Management & Security

The GPON OLT supports ONT auto-discovery, link detection, remote software upgrades, online ONT configuration, alarm management, port monitoring, and power-off alarm functions.

Management is available through Web, Telnet and CLI.

Security features include data encryption, ACL, port isolation, DHCP Option 82, and broadcast storm protection.

IPv4 & IPv6 Support

The V1600GT supports IPv4 and IPv6 networking with ARP Proxy, static routing, IPv6 routing, IPv6 Ping, IPv6 Telnet, IPv6 ACL, and MLD V1/V2 Snooping.

Technical Specifications

Product Model: V-SOL V1600GT
Product Type: GPON OLT
GPON Ports: 2
Maximum Splitting Ratio: 1:128
Transmission Distance: Up to 20 km
GPON Speed: 2.488 Gbps Downstream / 1.244 Gbps Upstream
PON Connector: SC/UPC
Fiber Type: 9/125 μm Single Mode Fiber
TX Wavelength: 1490 nm
RX Wavelength: 1310 nm

Uplink Ports: 2 × GE RJ45 + 2 × GE SFP/10GE SFP+
Supported PON Modules: Class C++, C+++, C++++
Backplane Bandwidth: 208 Gbps
Forwarding Rate: 40.176 Mpps

Management: Web, Telnet, CLI
Management Port: 1 × 10/100/1000BASE-T
Console: 1 × Console + USB-COM + USB 2.0
Dimensions: 442 × 200 × 43.6 mm
Weight: 2.485 kg
Power Consumption: 35W
AC Power: 100–240V
DC Power: -36V to -75V
Operating Temperature: -20°C to +60°C

Key Benefits

• 2 GPON ports
• Up to 1:128 splitting ratio
• Up to 20 km transmission distance
• 2 Gigabit RJ45 uplinks
• 2 GE/10GE SFP/SFP+ uplinks
• Supports Class C++, C+++, and C++++ modules
• Advanced VLAN, QoS, LACP and ACL features
• ONT auto-discovery and remote management
• IPv4 and IPv6 support
• Compact 1U rack-mount design

Applications

The V-SOL V1600GT GPON OLT is suitable for:

• Internet Service Providers (ISPs)
• FTTH and FTTx Networks
• Remote and Rural Fiber Networks
• Commercial Buildings
• Smart Industrial Parks
• Enterprise Networks
• Residential Fiber Networks
• Small and Medium Network Deployments

Buy V-SOL V1600GT GPON OLT from Universal Fiber Solutions

Looking to buy a 2 Port GPON OLT in Pakistan? The V-SOL V1600GT provides reliable GPON connectivity, flexible uplinks, 20 km transmission, and advanced network management features for FTTH and FTTx deployments.

Universal Fiber Solutions supplies fiber optic and networking equipment with technical assistance and customer support. Compatible GPON SFP modules, 1G/10G SFP modules, and ONT/ONU devices are also available according to your network requirements.

1 Year Warranty & Technical Support

Universal Fiber Solutions provides a 1-year warranty and professional technical support for the V-SOL V1600GT GPON OLT. Contact us for the latest price, product availability, bulk orders, and technical assistance.
