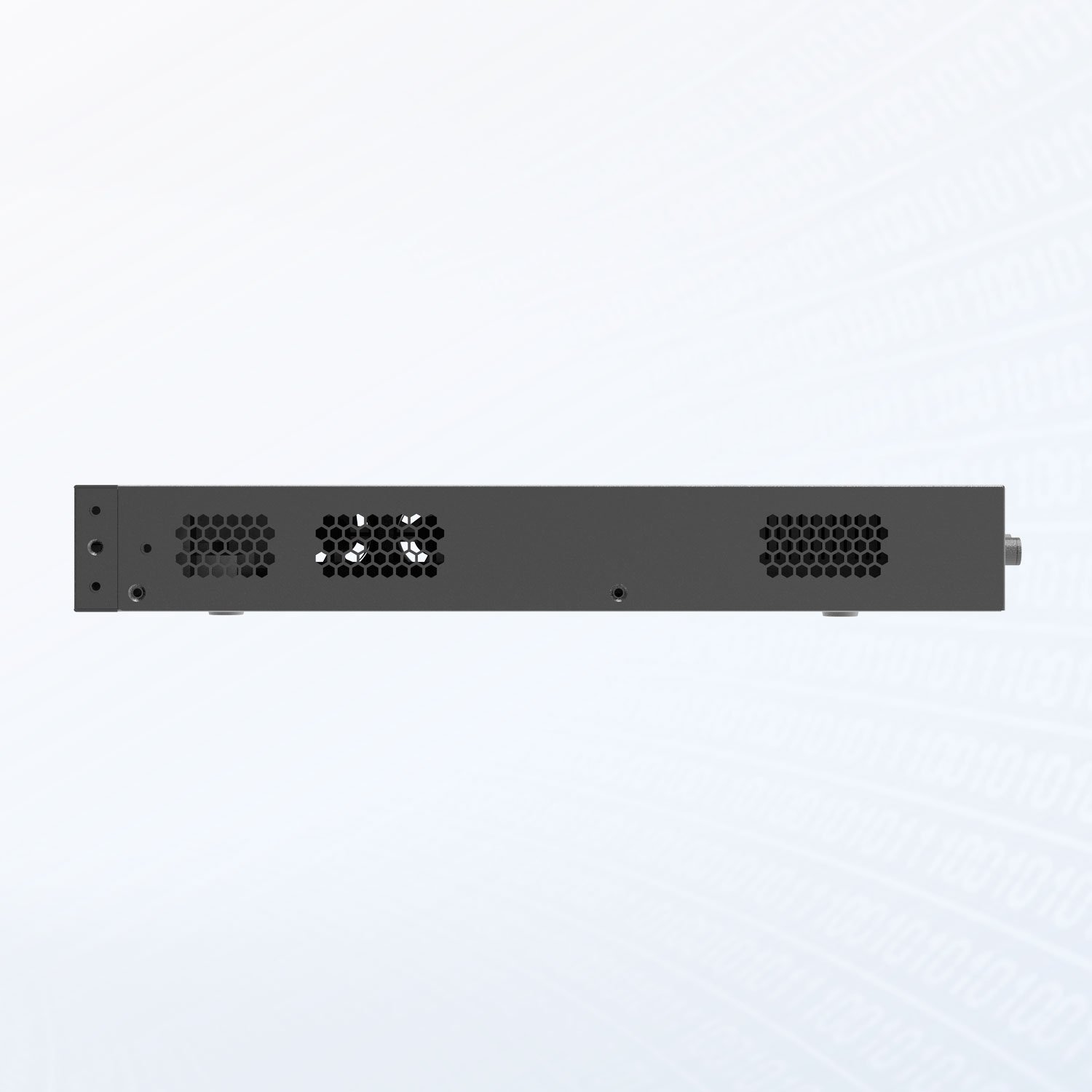

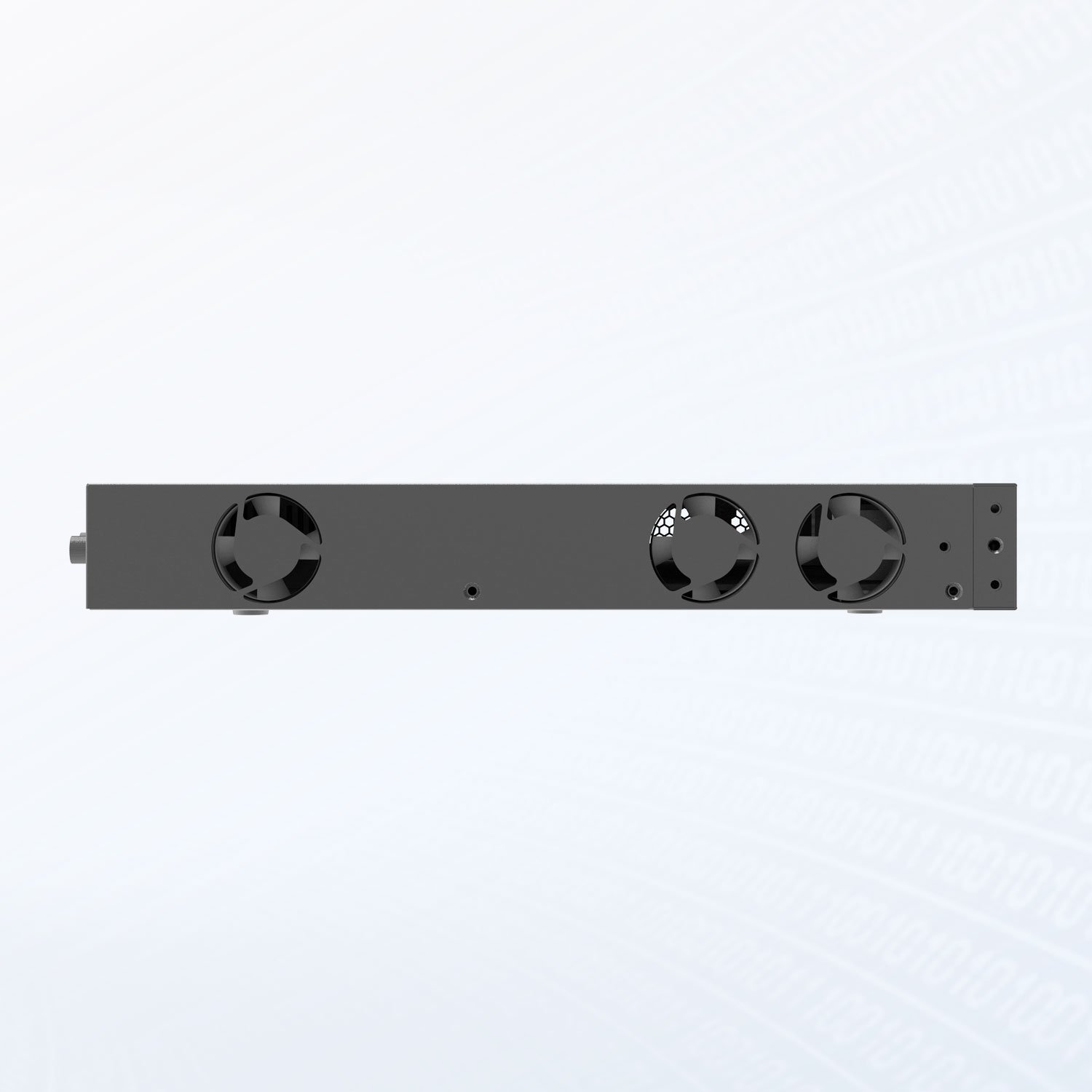

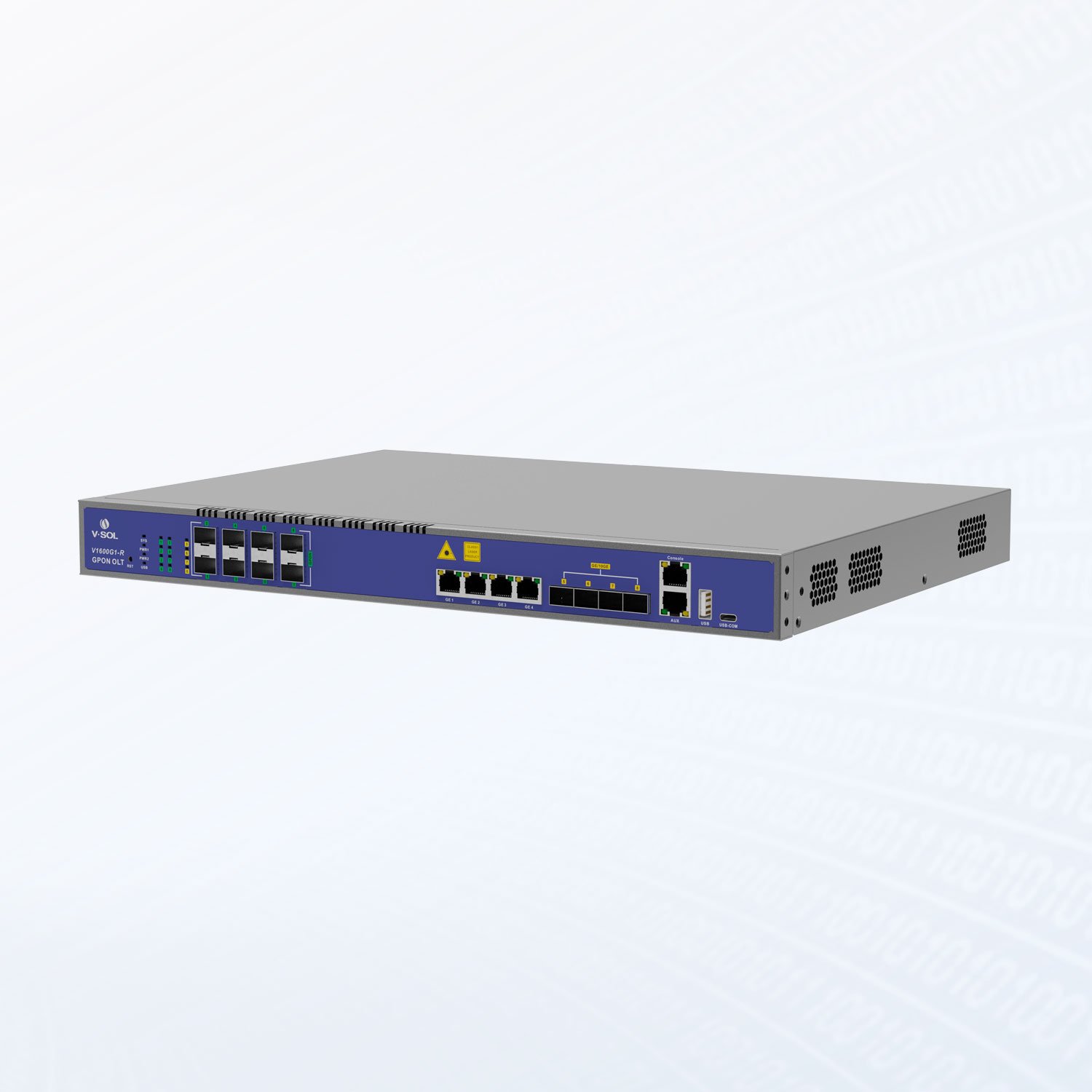

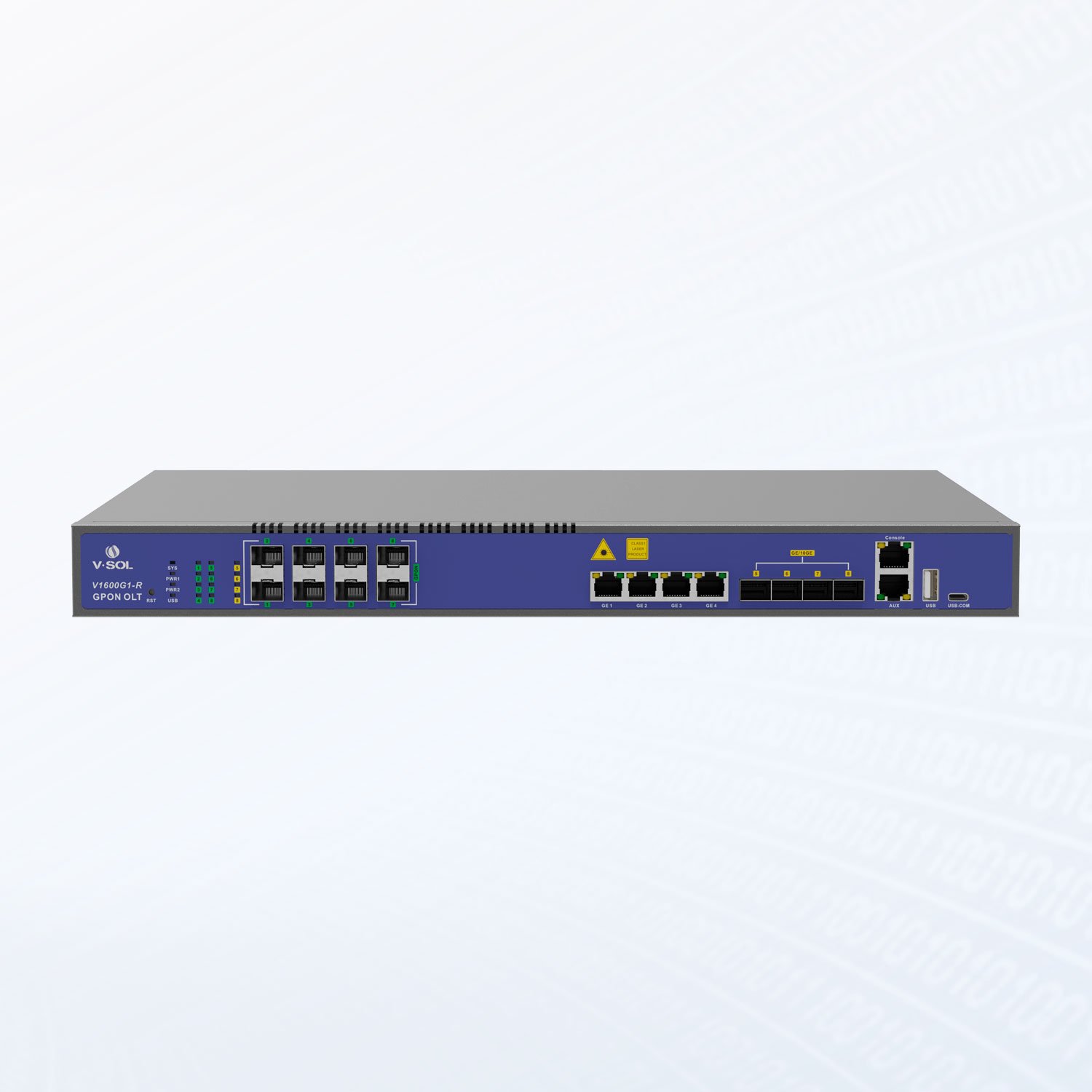

V-SOL V1600G1-R 8 Port Layer 3 GPON OLT

V-SOL V1600G1-R 8 Port Layer 3 GPON OLT

The V-SOL V1600G1-R is a professional 8 Port GPON OLT designed for FTTH, FTTx, ISP, enterprise, commercial, and industrial fiber network deployments. Its compact 1U rack-mount design makes it suitable for remote areas, low-density locations, industrial parks, commercial buildings, and space-limited network rooms.

High-Performance GPON Connectivity

The V1600G1-R features 8 GPON ports and supports a maximum splitting ratio of 1:128 with a transmission distance of up to 20 km.

It provides GPON speeds of 2.488 Gbps downstream and 1.244 Gbps upstream and complies with the ITU-T G.984.x standard.

Flexible Uplink Connectivity

The OLT provides 8 uplink interfaces:

• 4 × Gigabit Ethernet RJ45 ports
• 4 × GE SFP / 10GE SFP+ slots

This allows flexible integration with Gigabit and high-speed 10G fiber networks.

Advanced Layer 2 & Layer 3 Features

The V1600G1-R supports VLAN, VLAN Translation, QinQ, QoS, LACP, RSTP, Port Isolation, Storm Control, ACL, Rate Limiting, and Flow Control.

Layer 3 features include ARP Proxy, Static Routing, RIP v1/v2, RIPng, OSPF v2/v3, and hardware routing support.

It also supports DHCP Server, DHCP Relay, DHCP Snooping, and DHCP Option 82.

ONT Management & Security

The OLT supports ONT auto-discovery, link detection, remote software upgrades, online ONT configuration, port monitoring, user management, and alarm management.

Management is available through EMS, Web, SNMP, Telnet, CLI, and SSH v2.

Security features include RADIUS, TACACS+, IP Source Guard, ACL, data encryption, port isolation, and broadcast storm protection.

Multicast & IPv6 Support

The V-SOL V1600G1-R supports IGMP Snooping and up to 16K IP multicast groups for efficient multicast traffic management.

IPv6 features include NDP, IPv6 routing, IPv6 Ping, IPv6 Telnet, IPv6 ACL, and MLD V1/V2 Snooping.

Technical Specifications

Product Model: V-SOL V1600G1-R
Product Type: Layer 3 GPON OLT
GPON Ports: 8
Maximum Splitting Ratio: 1:128
Transmission Distance: Up to 20 km
GPON Speed: 2.488 Gbps Downstream / 1.244 Gbps Upstream
PON Connector: SC/UPC
Fiber Type: 9/125 μm Single Mode Fiber
TX/RX Wavelength: 1490/1310 nm

Uplink Ports: 4 × GE RJ45 + 4 × GE/10GE SFP/SFP+
Supported PON Modules: Class B+, C, C+, C++, C+++, C++++
Backplane Bandwidth: 240 Gbps
Forwarding Rate: 124.992 Mpps

Management: EMS, Web, SNMP, Telnet, CLI, SSH v2
Management Port: 1 × 10/100/1000BASE-T
Additional Interfaces: Console, USB 2.0, Type-C USB

Dimensions: 442 × 319 × 43.6 mm
Weight: 4.14 kg
Power Consumption: 40W
AC Power: 100–240V, 50/60Hz
DC Power: -36V to -75V
Operating Temperature: -20°C to +60°C
Storage Temperature: -40°C to +70°C

Key Benefits

• 8 high-capacity GPON ports
• Up to 1:128 splitting ratio
• Up to 20 km transmission distance
• 4 Gigabit RJ45 uplinks
• 4 GE/10GE SFP/SFP+ uplinks
• Advanced Layer 2 and Layer 3 routing
• RIP and OSPF support
• Advanced VLAN, QoS and LACP features
• ONT auto-discovery and remote management
• IPv4 and IPv6 support
• 16K IP multicast groups
• Compact 1U rack-mount design

Applications

The V-SOL V1600G1-R GPON OLT is suitable for:

• Internet Service Providers (ISPs)
• FTTH and FTTx Networks
• Remote and Rural Fiber Networks
• Enterprise Networks
• Commercial Buildings
• Smart Industrial Parks
• FTTM Networks
• Residential Fiber Networks

Buy V-SOL V1600G1-R GPON OLT from Universal Fiber Solutions

Looking to buy an 8 Port GPON OLT in Pakistan? The V-SOL V1600G1-R provides reliable GPON connectivity, flexible 1G/10G uplinks, Layer 3 routing, and advanced network management for professional FTTH and FTTx deployments.

Universal Fiber Solutions supplies fiber optic and networking equipment with technical assistance and customer support. Compatible GPON SFP modules, 1G SFP, 10G SFP+ modules, and ONT/ONU devices are also available according to your network requirements.

1 Year Warranty & Technical Support

Universal Fiber Solutions provides a 1-year warranty and professional technical support for the V-SOL V1600G1-R GPON OLT. Contact us for the latest price, product availability, bulk orders, and technical assistance.
