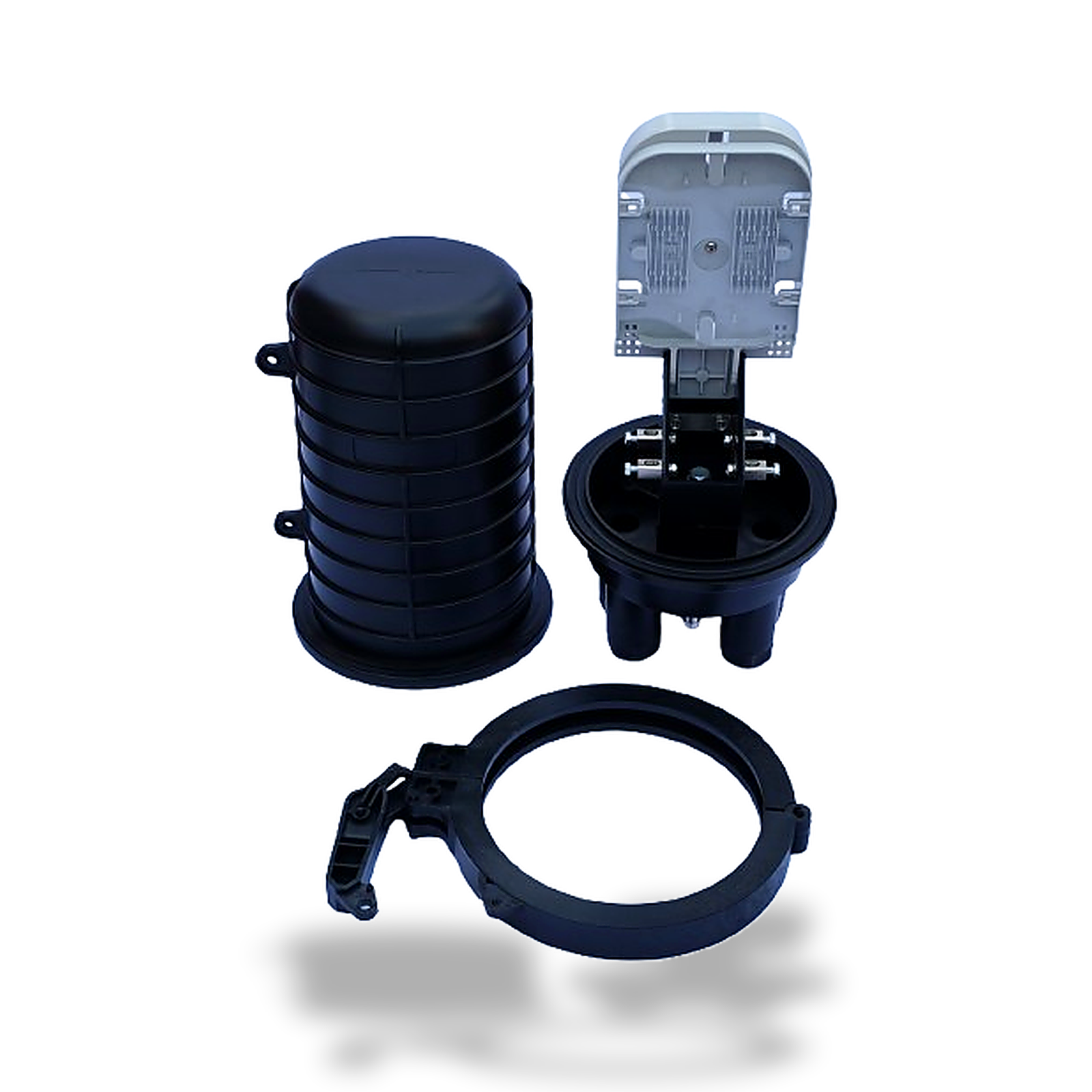

UFS 12–48 Core Fiber Optic Dome Joint Enclosure (IP68)
+ Free ShippingThe UFS 12–48 Core Fiber Optic Dome Joint Enclosure (IP68) is a premium fiber optic splice closure designed for FTTH, FTTx, ISP, telecom, metro, and backbone fiber networks. Supporting 12 to 48 fiber cores, it features a rugged PP + GF housing, IP68 waterproof protection, and a compact dome design for reliable performance in aerial, underground, duct, pole, and wall-mounted installations.
✔ Supports 12–48 Fiber Cores
✔ IP68 Waterproof & Dustproof
✔ PP + GF UV Resistant Material
✔ 2 Cable Inlets + 4 Cable Outlets
✔ Pole, Wall, Duct & Underground Installation
✔ Expandable Splice Tray System
UFS 12–48 Core Fiber Optic Dome Joint Enclosure (IP68)
The UFS 12–48 Core Fiber Optic Dome Joint Enclosure is engineered to provide superior protection for fiber optic splices in outdoor and indoor fiber networks. Designed for FTTH, FTTx, telecom, ISP, backbone, metro, and enterprise applications, this enclosure protects optical fibers against water, dust, UV rays, moisture, and harsh environmental conditions.
Manufactured from premium PP + GF (Polypropylene + Glass Fiber), the enclosure offers outstanding mechanical strength, flame resistance, UV protection, and long service life. Its compact dome design allows easy cable routing while supporting 12, 24, and 48 fiber core configurations through modular splice trays.
With IP68-rated sealing, the enclosure provides complete waterproof and dustproof protection, making it ideal for aerial, underground, duct, pole-mounted, wall-mounted, and manhole installations.
Whether you’re deploying a new FTTH network or maintaining an existing telecom infrastructure, the UFS 12–48 Core Fiber Optic Dome Joint Enclosure delivers reliable performance, easy installation, and long-term fiber protection.
Features & Benefits
- Supports 12–48 Fiber Cores
- Compatible with 12C, 24C & 48C configurations
- High-Strength PP + GF (Polypropylene + Glass Fiber) Construction
- IP68 Waterproof & Dustproof Protection
- UV Resistant & Flame Retardant Housing
- Compact Dome Design
- 2 Cable Inlets + 4 Cable Outlets
- Expandable Modular Splice Tray System
- Compatible with Loose Tube, Ribbon & Single Fiber Cables
- Lockable Enclosure Design
- Easy Installation & Maintenance
- Long Service Life
Applications
- FTTH (Fiber To The Home)
- FTTx Networks
- Telecom Infrastructure
- Internet Service Providers (ISPs)
- Metro Fiber Networks
- Backbone Fiber Networks
- Underground Fiber Installation
- Aerial Fiber Installation
- Pole Mount Installation
- Wall Mount Installation
- Duct Networks
- Manhole Installation
- Enterprise Networks
- Data Centers
- Emergency Fiber Cable Restoration
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | UFS 12–48 Core Fiber Optic Dome Joint Enclosure |
| Type | Dome Type Fiber Optic Joint Closure |
| Fiber Capacity | 12–48 Core |
| Product Variants | 12 Core / 24 Core / 48 Core |
| Material | PP + GF (Polypropylene + Glass Fiber) |
| Protection Rating | IP68 |
| Cable Ports | 2 Inlets + 4 Outlets |
| Dimensions | 350 × Ø230 mm |
| Color | Black |
| Splice Trays | 1–4 × 12 Fiber Trays |
| Mounting | Pole, Wall, Underground, Duct & Aerial |
| Operating Temperature | -40°C to +65°C |
| Waterproof | Yes |
| Dustproof | Yes |
| UV Resistant | Yes |
| Grounding | Yes |
| Lockable | Yes |
Package Includes
- 1 × UFS 12–48 Core Fiber Optic Dome Joint Enclosure
- 1–4 × 12 Core Splice Trays (According to Variant)
- Cable Sealing Kit
- Mounting Accessories
- Installation Hardware
