Signal Fire AI-30 Fiber Fusion Splicer

Signal Fire AI-30 Fiber Fusion Splicer

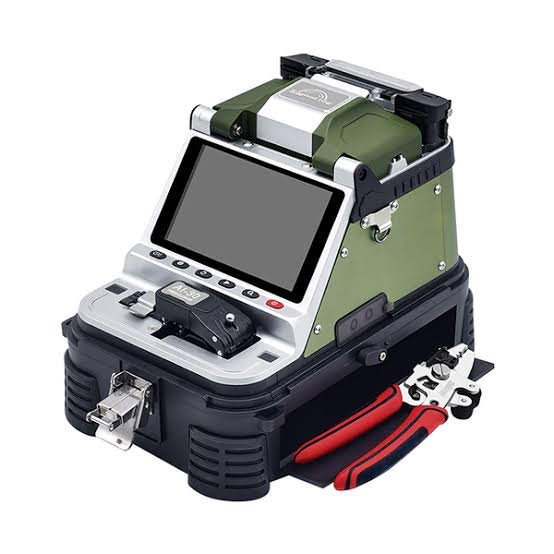

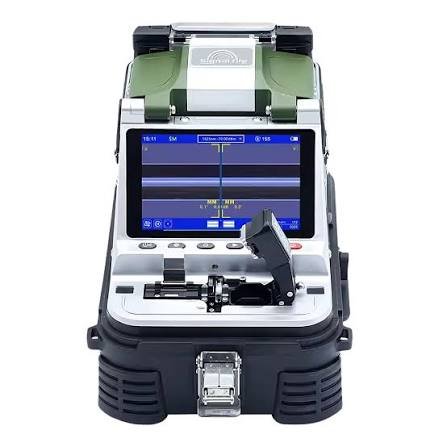

The Signal Fire AI-30 Fiber Fusion Splicer is a fourth-generation optical fiber fusion splicing machine developed for professional fiber optic installation, maintenance and longer-distance mainline fiber optic cable projects. Its full-link integration design combines fiber fusion splicing with a built-in delayed-return electric one-step fiber cleaver, Optical Power Meter (OPM) and Visual Fault Locator (VFL), helping reduce the need for separate equipment.

The AI-30 uses six motors and high-precision fiber alignment technology to provide accurate fiber positioning and efficient splicing. Its real-time luminous flux assisted alignment technology analyzes the alignment point with the lowest splicing loss when used in environments with a stable optical signal link.

Key Features

• Fourth-generation fiber fusion splicer
• Six-motor fiber alignment system
• Core/cladding alignment
• Real-time luminous flux assisted alignment
• Built-in high-precision electric one-step fiber cleaver
• Integrated OPM and VFL
• 5-inch color touchscreen
• Up to 320× magnification
• 7800mAh lithium battery
• Approximately 240 cores continuous fusion and heating
• Approximately 6-second splicing time
• Approximately 15-second heating time
• Automatic, semi-automatic and manual splicing modes
• Three-in-one fiber holder
• Bluetooth 4.2 connectivity
• Mobile APP support
• Data storage and export functionality
• Multilingual interface
• Compact and portable design
• Suitable for outdoor fiber optic construction

Fiber Compatibility

The Signal Fire AI-30 supports various fiber types, including:

• Single-mode fiber (SMF/G.652)
• Multimode fiber (MMF/G.651)
• Dispersion-shifted fiber (DSF/G.653)
• G.654 fiber
• Non-zero dispersion-shifted fiber (NZ-DSF/G.655)
• Bend-insensitive fiber (BIF/G.657)

It is designed for splicing bare fiber, pigtails, drop fiber, patch cords and other compatible fiber applications.

Built-In OPM & VFL

The integrated Optical Power Meter (OPM) supports multiple wavelengths and a measurement range of -50 to +30 dBm. The built-in Visual Fault Locator (VFL) provides 15mW output with flashing and constant-light modes and supports fiber line tracking, breakpoint and light-leakage detection.

Battery & Portable Design

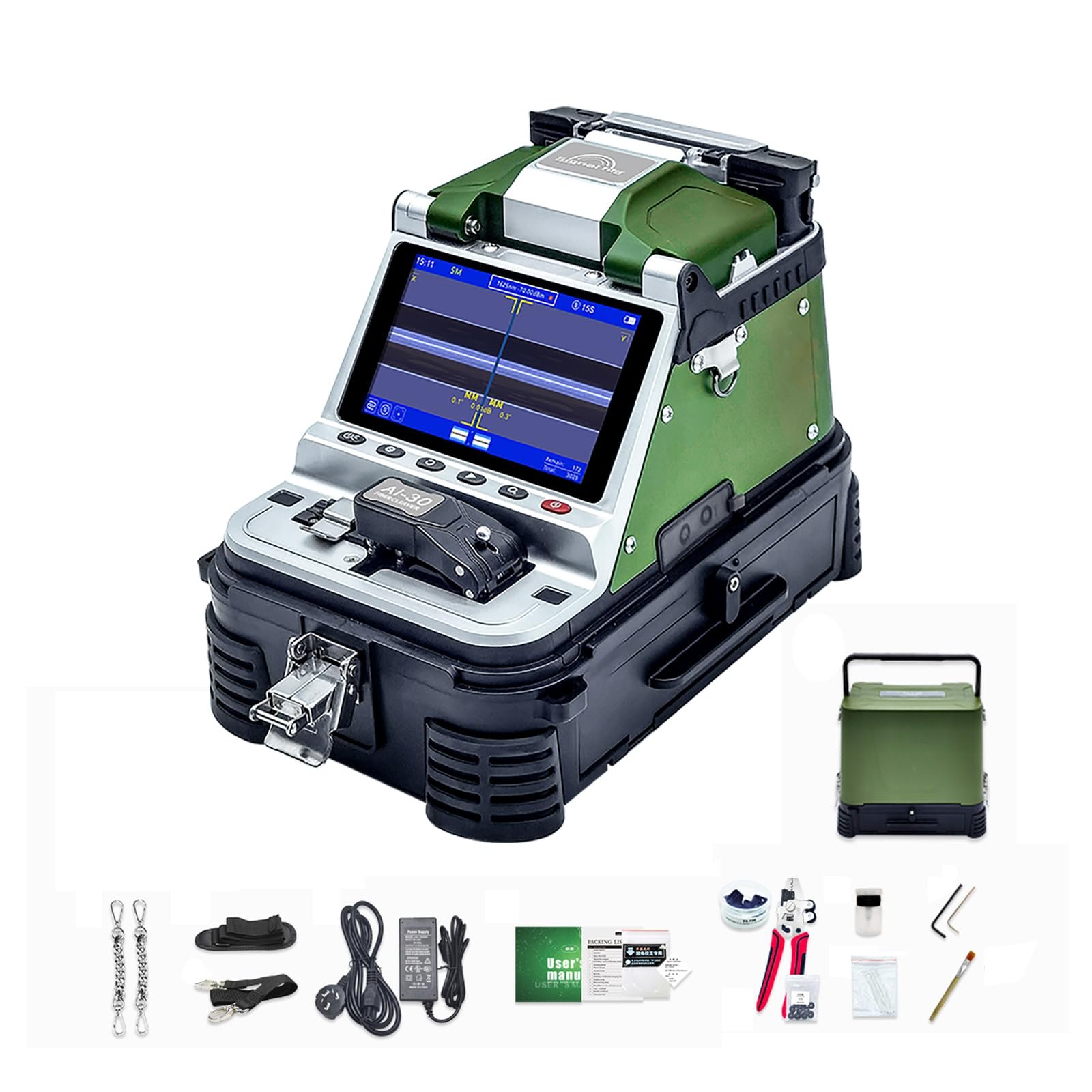

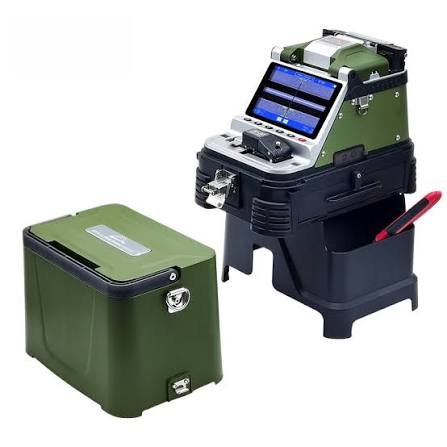

The AI-30 features a 7800mAh lithium battery with a charging time of approximately 3.5 hours. According to the product specifications, it can continuously fuse and heat approximately 240 cores on a full charge. With a machine weight of approximately 3.09 kg and a complete toolbox set weighing approximately 5.50 kg, the AI-30 is designed for portable fiber optic construction work.

Buy Signal Fire AI-30 from Universal Fiber Solutions

Looking to buy a Signal Fire AI-30 Fiber Fusion Splicer? Universal Fiber Solutions provides fiber optic equipment and solutions for professional networking and telecommunications applications. Contact UFS to check the AI-30 fiber fusion splicer price, availability and purchasing options.
