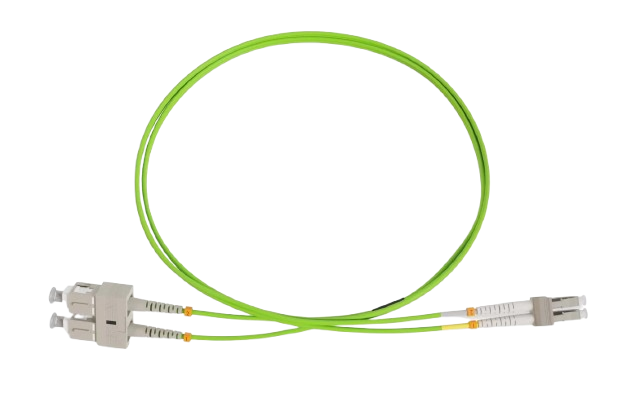

SC/UPC to LC/UPC OM5 Multimode Fiber Optic Patch Cord | Universal Fiber Solutions
+ Free ShippingSC/UPC LC/UPC OM5 Multimode Fiber Optic Patch Cord from Universal Fiber Solutions is a next-generation optical jumper cable designed for high-bandwidth data center and enterprise network applications. Featuring hybrid SC/UPC and LC/UPC connectors with OM5 wideband multimode fiber, it delivers reliable performance for 40G, 100G, and 400G Ethernet networks with SWDM technology support.
Universal Fiber Solutions offers SC/UPC LC/UPC OM5 Multimode Fiber Optic Patch Cord, an advanced fiber connectivity solution designed for modern high-speed network infrastructures. This hybrid optical jumper cable combines an SC/UPC connector on one end and a compact LC/UPC connector on the other, providing flexible connectivity for enterprise and data center environments.
The OM5 multimode fiber optic patch cord uses Wideband Multimode Fiber (WBMMF) technology, optimized for Shortwave Division Multiplexing (SWDM) applications. It supports multiple wavelengths between 850nm and 953nm, enabling efficient high-capacity data transmission for next-generation Ethernet networks.
Designed for 40G, 100G, and 400G Ethernet applications, this OM5 fiber patch cord provides low insertion loss, stable optical performance, and reliable connectivity in high-density cabling environments.
Universal Fiber Solutions supplies premium fiber optic patch cords in Pakistan for data centers, telecom operators, enterprises, and professional networking projects requiring advanced fiber infrastructure solutions.
Features & Benefits
- Hybrid SC/UPC to LC/UPC connector configuration
- OM5 Wideband Multimode Fiber (WBMMF) technology
- Optimized for SWDM transmission applications
- Supports 40G, 100G, and 400G Ethernet networks
- Compact LC connector for high-density installations
- Low insertion loss for reliable optical performance
- High stability for long-term network operation
- Available in simplex and duplex versions
- LSZH/PVC jacket options available
- Suitable for modern enterprise and data center cabling
- Compliant with IEC, TIA/EIA, and Telcordia GR-326 standards
- RoHS & REACH compliant
Applications
- Next-Generation Data Centers
- 40G / 100G / 400G Ethernet Networks
- SWDM Optical Transmission Systems
- Cloud Computing Infrastructure
- Virtualization Environments
- High-Density Fiber Cabling
- Enterprise LAN/WAN Networks
- Telecom Network Infrastructure
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | SC/UPC – LC/UPC |
| Fiber Type | Multimode OM5 (Wideband MMF) |
| Polishing Type | UPC (Ultra Physical Contact) |
| Insertion Loss | ≤ 0.25 dB |
| Return Loss | ≥ 30 dB |
| Jacket Material | LSZH / PVC |
| Cable Diameter | 2.0 mm / 3.0 mm |
| Operating Wavelength | 850 – 953 nm (Optimized for SWDM) |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Length Options | 1m, 2m, 3m, 5m, 10m or Customized |
