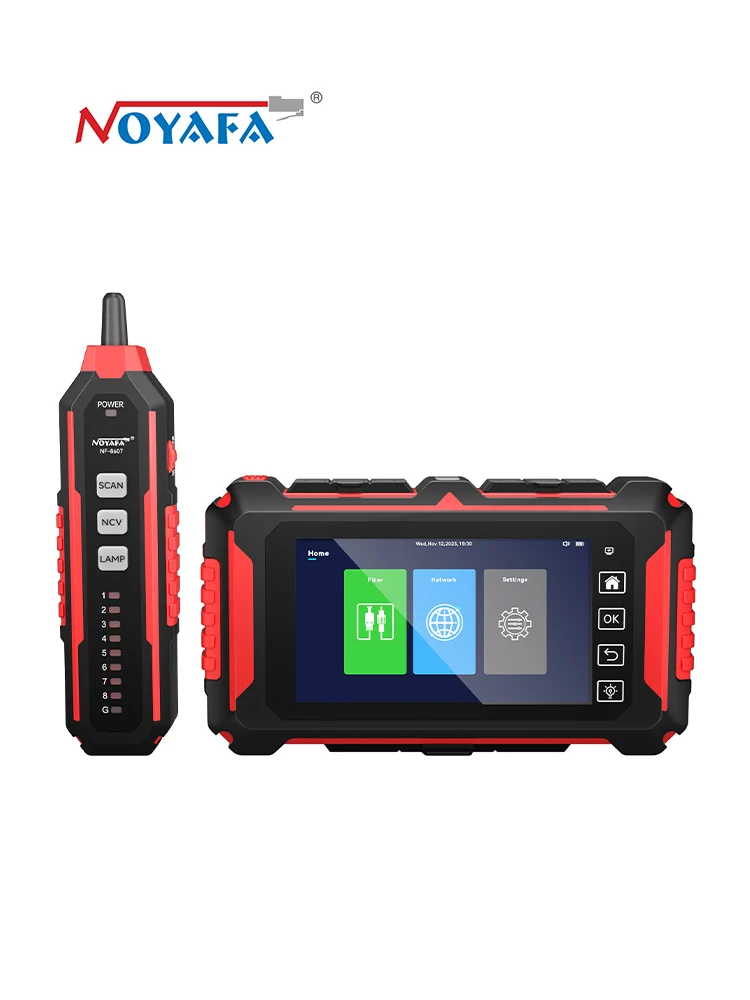

NOYAFA NF-8607 All-in-One Fiber & Network Tester

NOYAFA NF-8607 All-in-One Fiber & Network Tester

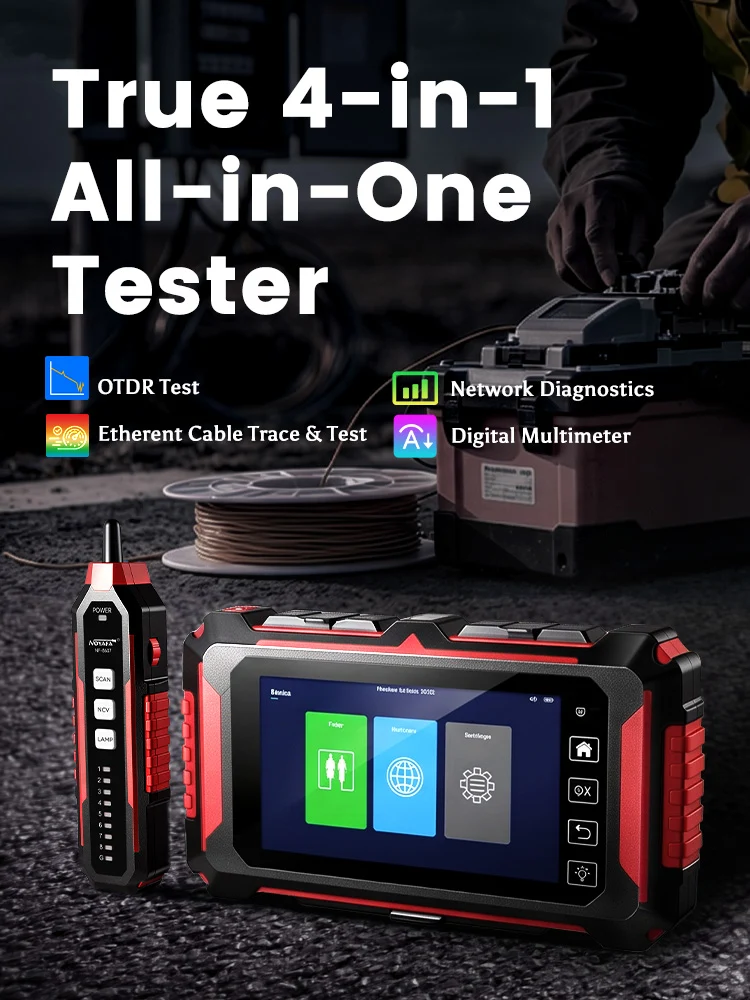

The NOYAFA NF-8607 All-in-One Fiber & Network Tester is a multifunctional testing solution designed for fiber optic installation, network diagnostics and field maintenance. It combines multiple essential testing functions in one portable device, helping technicians reduce the need to carry separate testing instruments.

The NF-8607 integrates a 150km OTDR, Optical Power Meter (OPM), 10mW Visual Fault Locator (VFL), PoE testing, IP scanning, Ping testing, Ethernet cable testing and a digital multimeter into a single professional testing platform.

It is suitable for FTTH installation, ISP network maintenance, data center deployment, CCTV and PoE installation, enterprise networking, CATV and general network troubleshooting.

Key Features

• All-in-one fiber and network testing solution
• 150km long-distance OTDR
• Dual OTDR wavelength: 1310nm / 1550nm
• Auto and Expert OTDR testing modes
• Breakpoint detection and event mapping
• Optical Power Meter with -70 to +10dBm measurement range
• Supports up to 10 wavelengths from 850nm to 1650nm
• Built-in 10mW VFL
• 650nm visible red laser
• Continuous and flashing VFL modes
• PoE voltage and power testing
• IP device scanning
• PING/network latency testing
• Ethernet switch port flashing
• CAT5/CAT6 cable length testing
• Cable breakpoint and fault detection
• Digital and analog cable tracing
• Built-in digital multimeter
• AC/DC voltage and current measurement
• Resistance, capacitance and frequency measurement
• 5.5-inch TFT HD touchscreen
• 1280 × 720 display resolution
• 3.7V 4000mAh lithium battery
• Type-C charging port
• Approximately 7 hours operating time
• Built-in LED light

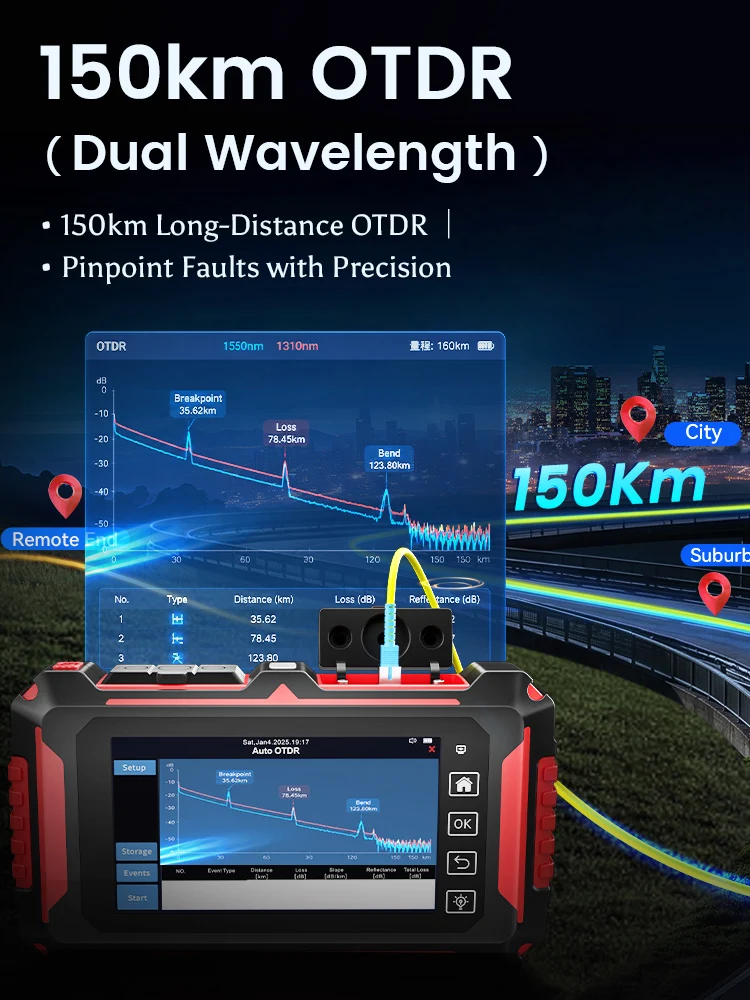

150km OTDR Testing

The NF-8607 features a long-distance OTDR with testing capability up to 150km and supports 1310nm and 1550nm wavelengths.

It provides both Auto and Expert OTDR modes, along with breakpoint detection and event mapping to help technicians identify fiber faults, bends, breaks and signal-loss events efficiently.

This makes the NF-8607 suitable for FTTH deployment, ISP networks, long-distance fiber links and backbone fiber maintenance.

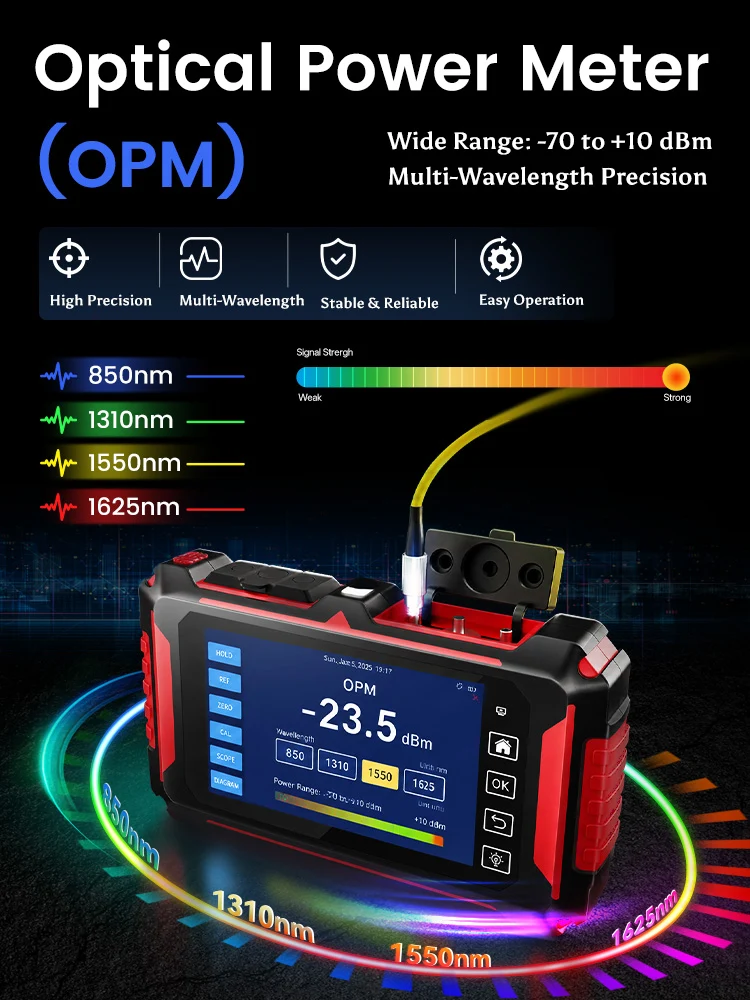

Optical Power Meter

The built-in Optical Power Meter (OPM) supports a measurement range of -70dBm to +10dBm and supports up to 10 wavelengths between 850nm and 1650nm.

This allows technicians to measure optical signal levels and evaluate fiber link performance during installation and maintenance.

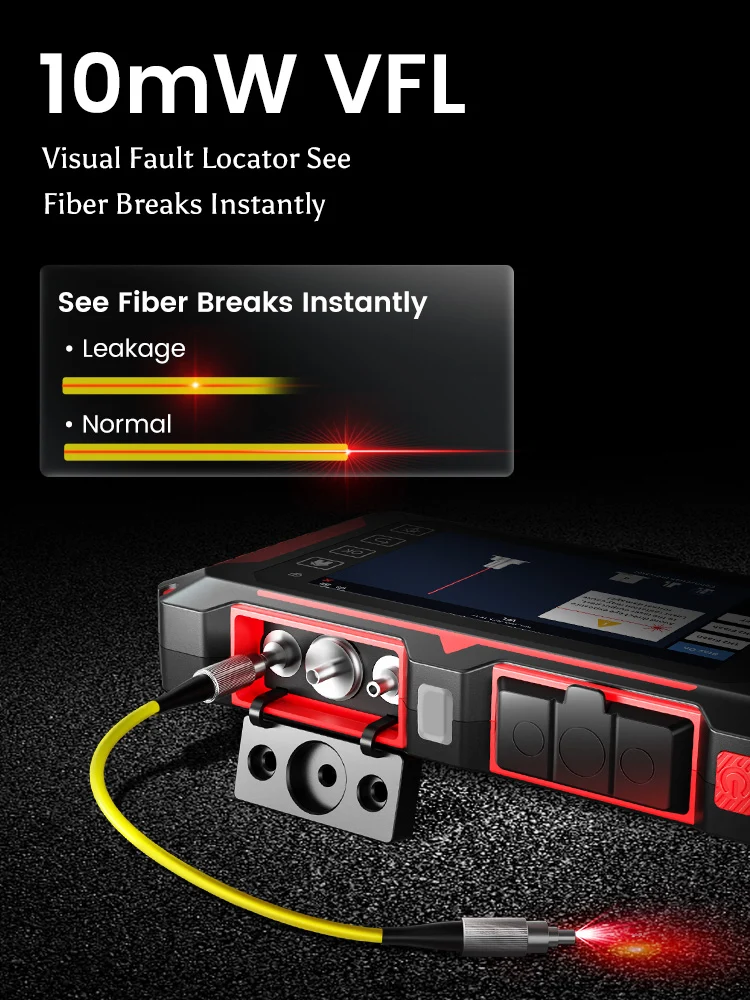

10mW Visual Fault Locator

The integrated 10mW VFL uses a 650nm visible red laser for quick visual identification of fiber breaks, bends and other faults.

The VFL supports both continuous and flashing modes, making it useful for fiber installation, maintenance and troubleshooting.

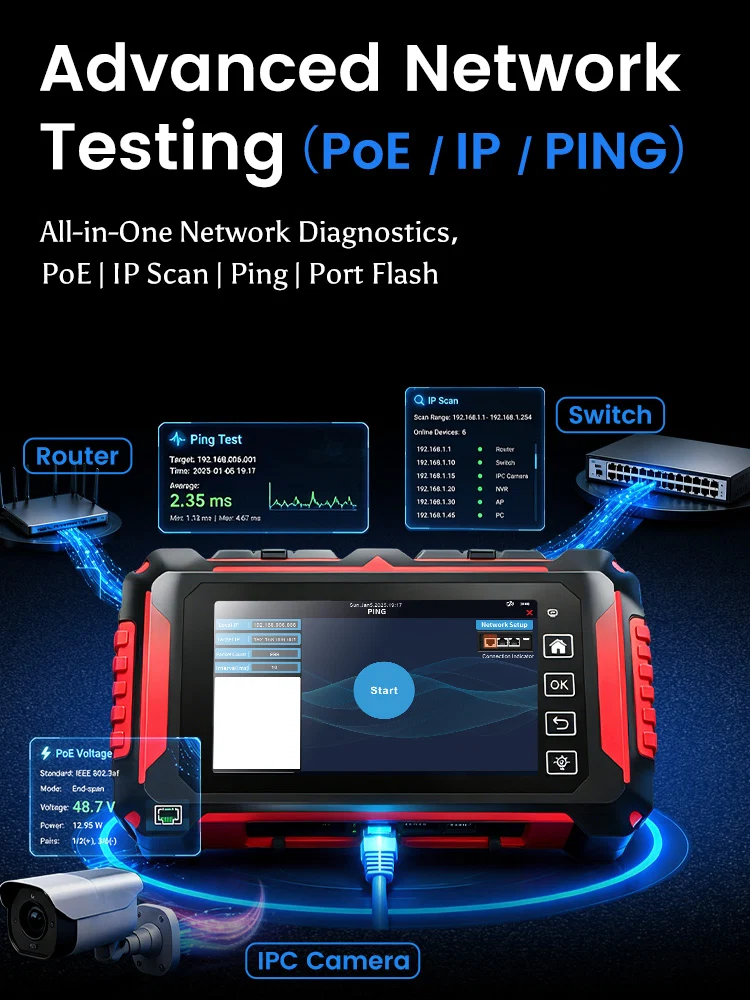

Network Diagnostics

The NF-8607 provides several network troubleshooting functions in one device, including:

• PoE voltage testing
• PoE power measurement
• IP device scanning
• PING testing
• Network latency testing
• Switch port flashing

These functions make the tester particularly useful for CCTV installation, PoE camera setup, enterprise network maintenance and network troubleshooting.

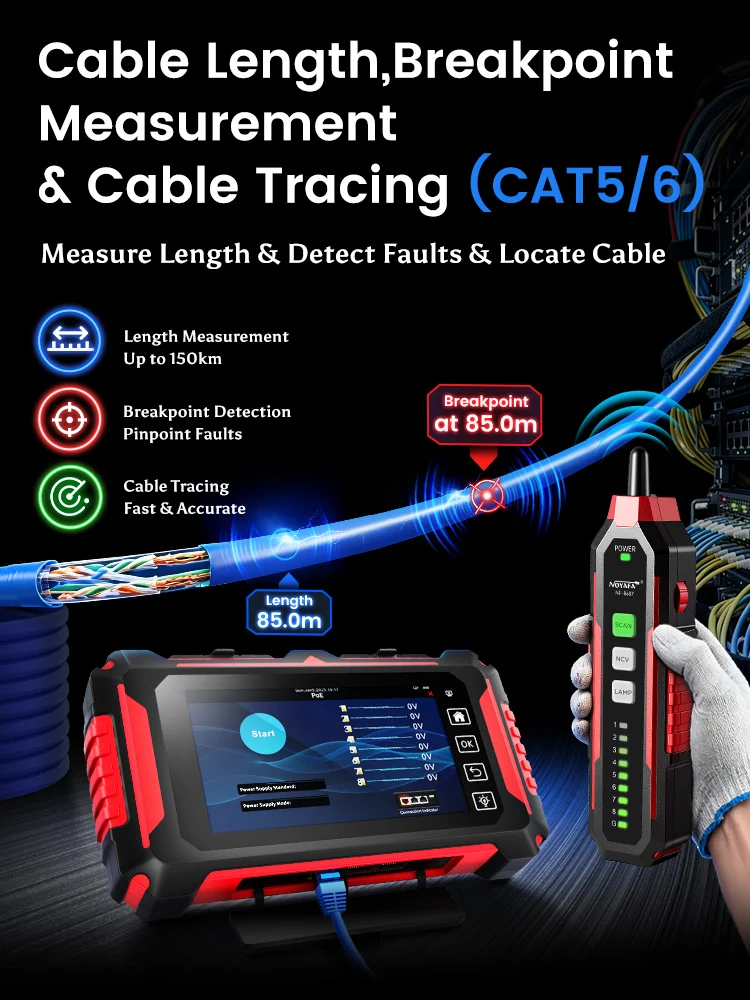

Ethernet Cable Testing & Tracing

The NF-8607 supports CAT5/CAT6 Ethernet cable testing with a testing range of approximately 5 to 300 meters.

It can measure cable length, identify faults and locate cable problems without dismantling existing wiring. The integrated cable tracing function can also help technicians identify target cables in bundles using digital or analog signal detection.

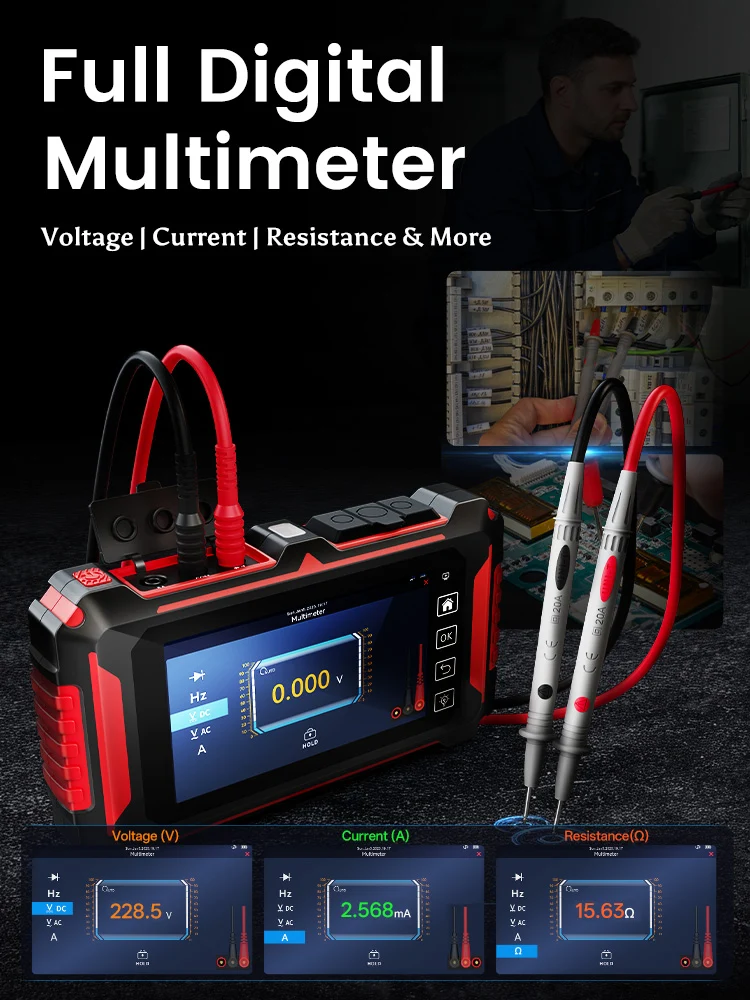

Built-in Digital Multimeter

The integrated digital multimeter allows technicians to perform multiple electrical measurements without carrying a separate multimeter.

Supported measurements include:

• AC voltage
• DC voltage
• AC/DC current
• Resistance
• Capacitance
• Frequency

This makes the NF-8607 useful for multifunctional field installation and maintenance work.

5.5-Inch HD Touchscreen

The NF-8607 features a 5.5-inch TFT HD touchscreen with a 1280 × 720 resolution, providing a clear interface for viewing test results and operating the device.

Battery & Charging

The NF-8607 is powered by a 3.7V 4000mAh lithium battery and provides approximately 7 hours of operating time.

It features a Type-C charging port with an approximately 4-hour charging time.

Technical Specifications

Specification	Details
Model	NF-8607
Product Type	All-in-One Fiber & Network Tester
OTDR Range	Up to 150km
OTDR Wavelength	1310nm / 1550nm
OTDR Mode	Auto / Expert
OTDR Features	Breakpoint Detection / Event Mapping
OPM Range	-70 to +10dBm
OPM Wavelengths	Up to 10 wavelengths, 850–1650nm
VFL Output	10mW
VFL Wavelength	650nm
VFL Modes	Continuous / Flashing
PoE Testing	Supported
IP Scan	Supported
PING Test	Supported
Port Flash	Supported
Ethernet Cable	CAT5/CAT6
Cable Testing Range	5–300m
Cable Tracing	Digital / Analog
Digital Multimeter	Built-in
Display	5.5-inch TFT HD
Resolution	1280 × 720
Screen	Capacitive Touch Panel
Battery	3.7V 4000mAh Lithium Battery
Operating Time	Approximately 7 Hours
Charging Port	Type-C
Charging Time	Approximately 4 Hours
Working Temperature	-10°C to +50°C
Storage Temperature	-40°C to +70°C
LED Light	Supported

Specifications are based on NOYAFA’s published NF-8607 product information.

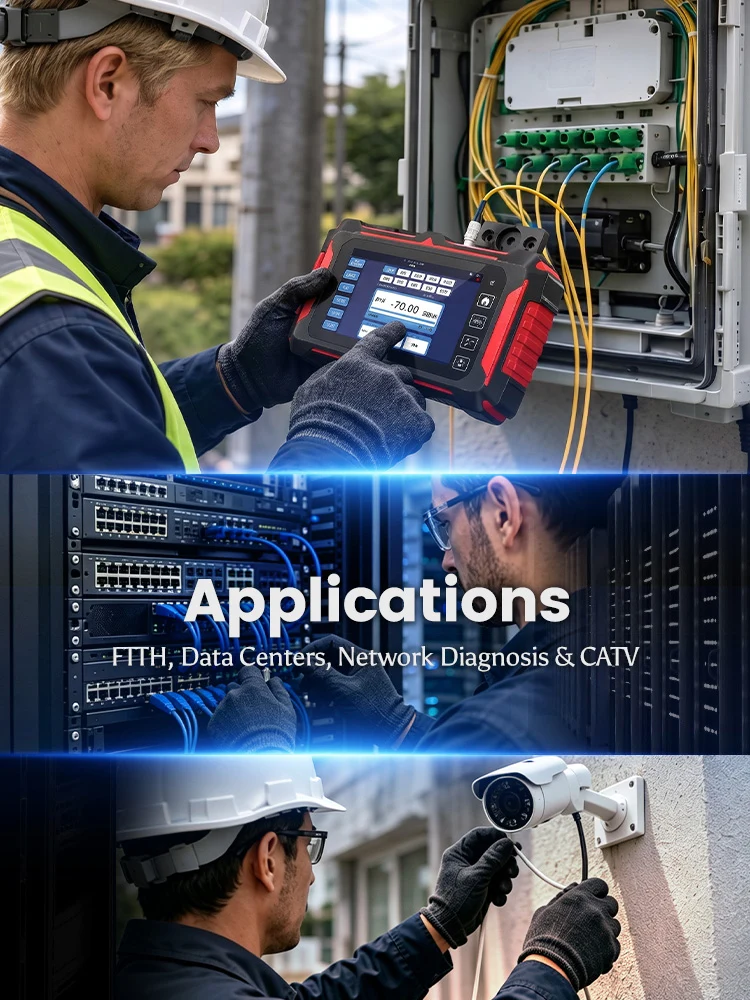

Applications

The NOYAFA NF-8607 is suitable for:

• FTTH fiber installation and maintenance
• ISP fiber network troubleshooting
• Data center network deployment
• Enterprise network maintenance
• CCTV installation
• PoE camera installation
• Ethernet cable testing
• Fiber optic fault diagnosis
• Backbone fiber maintenance
• CATV network applications
• Telecom field testing
• Network installation and commissioning

Why Choose NOYAFA NF-8607?

The NOYAFA NF-8607 combines fiber testing, Ethernet network diagnostics and electrical measurement functions into one professional field tester.

Instead of carrying separate OTDR, optical power meter, VFL, PoE tester, cable tester and multimeter, technicians can use one multifunctional device for a wide range of installation and maintenance tasks.

For professionals looking to buy an all-in-one fiber and network tester in Pakistan, the NF-8607 offers a practical solution for FTTH, ISP, data center, CCTV, PoE and enterprise network applications.
