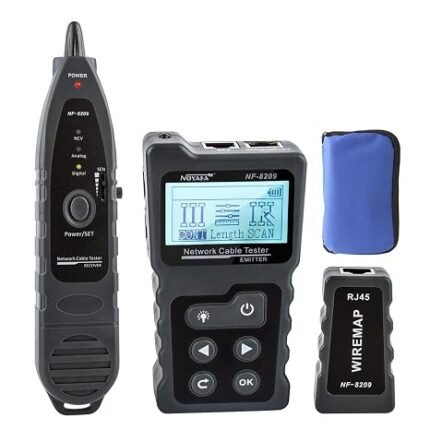

NOYAFA NF-8209S Network Cable Tester

NOYAFA NF-8209S Network Cable Tester

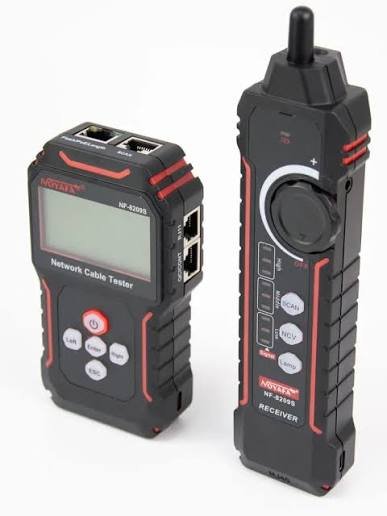

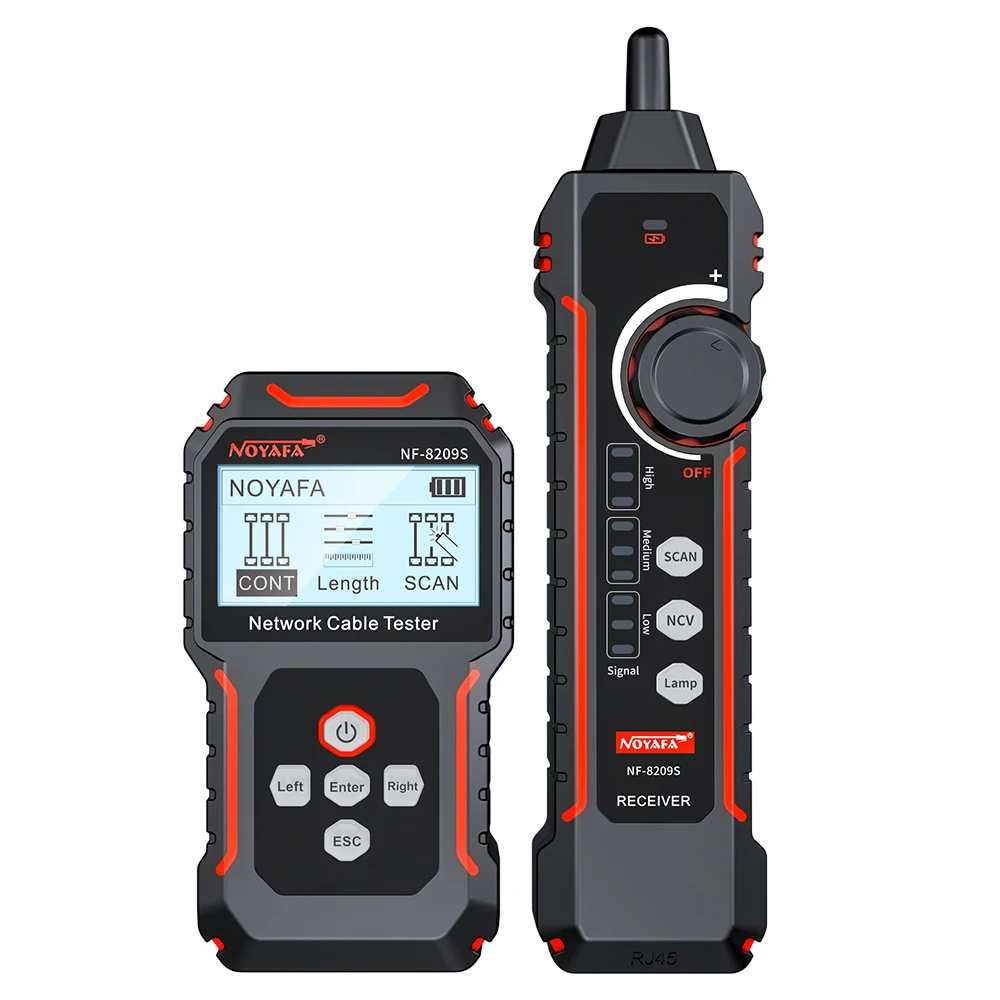

The NOYAFA NF-8209S Network Cable Tester is a professional cable testing and tracing solution for Ethernet network installation, structured cabling, troubleshooting, and maintenance. It combines digital and analog cable scanning with wire mapping, cable fault testing, length measurement, PoE testing, Port Flash, RJ45 crimp verification, and NCV detection.

Designed for network installers, IT technicians, telecom professionals, and enterprise infrastructure teams, the NF-8209S helps simplify daily LAN cable testing and network troubleshooting.

Digital & Analog Network Cable Tracing

The NF-8209S supports both digital and analog scanning modes, allowing technicians to locate target CAT5/CAT6 cables in different working environments.

The dual-mode tracing system provides flexibility for general cable identification as well as environments where interference may affect cable tracing. The receiver also provides adjustable sensitivity for more controlled cable locating.

The cable scanning system supports a maximum tracing range of up to 600m, depending on cable and environmental conditions.

CAT5 & CAT6 Wire Mapping

The NF-8209S supports CAT5 and CAT6 cable testing and can distinguish between STP and UTP network cables.

It can identify common cable wiring conditions including:

• Normal wiring
• Open circuit
• Short circuit
• Crossed pairs
• Incorrect cable sequence
• STP / UTP identification

The wire mapping function provides a practical way to verify Ethernet cable installation before connecting network equipment.

Network Cable Length Testing

The built-in cable length tester measures CAT5/CAT6 network cables from 2.5m to 200m in the documented specification set, with measurement accuracy varying by cable length.

This function can help technicians:

• Estimate installed cable length
• Identify cable problems
• Check cable runs
• Support structured cabling documentation
• Troubleshoot network installation issues

PoE Testing

The NF-8209S provides PoE testing for identifying power delivery through Ethernet cables.

It can detect:

• PoE voltage from DC 5–60V
• Power supply pin configuration
• End-span power
• Mid-span power
• 8-core power supply
• Unknown power supply mode
• IEEE 802.3af/at and non-standard PoE types

This makes the NF-8209S useful for troubleshooting PoE switches, access points, IP cameras, VoIP equipment, and other Ethernet-powered devices.

Port Flash for Switch & Router Identification

The Port Flash function helps technicians identify the corresponding Ethernet port on a switch or router.

The NF-8209S supports identification of:

• Full-duplex / half-duplex
• Auto-negotiation / non-auto-negotiation
• 10M / 100M / 1000M switch connections

This can simplify cable identification and port management in server rooms, network racks, offices, and structured cabling installations.

RJ45 Crimp Testing

The NF-8209S includes an RJ45 crimp quality test for checking terminated network cables.

The QC test supports 8P testing, with a response time of less than one second and minimum recognition down to 10cm. This helps installers verify RJ45 connector termination and identify potential wiring or contact problems.

NCV Voltage Detection

The receiver includes Non-Contact Voltage (NCV) detection for identifying AC voltage without direct electrical contact.

The documented NCV range is AC 70–1000V, 50/60Hz. This function provides an additional safety feature when technicians are working around mixed electrical and network cabling environments.

Key Features

• Digital and analog network cable tracing
• Adjustable receiver sensitivity
• CAT5/CAT6 cable testing
• STP and UTP identification
• Wire mapping
• Open, short and crossed-pair detection
• Cable length measurement up to 200m
• Cable tracing range up to 600m
• PoE voltage and power-mode testing
• IEEE 802.3af/at and non-standard PoE detection
• Port Flash for 10M/100M/1000M network ports
• RJ45 8P crimp quality testing
• NCV AC voltage detection
• Backlit 128 × 64 dot-matrix LCD
• Adjustable automatic shutdown
• Voice prompt and headphone support
• Rechargeable 1400mAh lithium battery
• Type-C charging

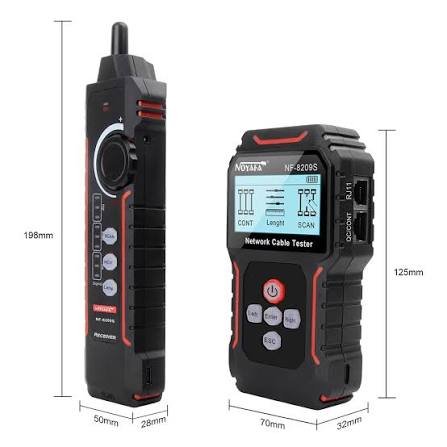

Technical Specifications

Specification	Details
Product Type	Network Cable Tester & Cable Tracer
Model	NF-8209S
Cable Type	CAT5 / CAT6
Cable Support	STP / UTP
Wire Mapping	Supported
Cable Fault Testing	Normal / Open / Short / Cross
Cable Length Test	2.5–200m
Cable Tracing Range	Up to 600m
Scan Modes	Digital / Analog
Scan Frequency	455KHz
PoE Test Voltage	DC 5–60V
PoE Standards	IEEE 802.3af/at & Non-standard
Port Flash	10M / 100M / 1000M
RJ45 Crimp Test	8P
NCV Detection	AC 70–1000V, 50/60Hz
LCD	128 × 64 Dot-Matrix, Backlit
Transmitter Battery	3.7V 1400mAh Li-ion
Receiver Battery	3.7V 1400mAh Li-ion
Charging	Type-C
Auto Shutdown	15 / 30 / 60 min / Off
Receiver Sensitivity	Adjustable
Receiver Features	Voice Prompt, Headphone Support

Specifications are based on the available NOYAFA/manual documentation; some manufacturer/distributor versions list different cable-length limits, so the exact hardware revision should be confirmed before publishing a different range.

Applications

The NOYAFA NF-8209S is suitable for:

• Ethernet cable installation
• CAT5/CAT6 cable testing
• LAN cable troubleshooting
• Structured cabling projects
• Network cable tracing
• PoE network testing
• Switch and router port identification
• RJ45 connector testing
• Telecom network maintenance
• Enterprise IT infrastructure
• Data center network maintenance
• Server room cable management

Professional Network Cable Testing from UFS

Universal Fiber Solutions (UFS) provides professional NOYAFA network cable testers and networking test equipment for IT professionals, telecom operators, ISPs, network installers, data centers, and enterprise infrastructure projects.

The NOYAFA NF-8209S Network Cable Tester provides cable tracing, wire mapping, length measurement, PoE testing, Port Flash, RJ45 crimp testing, and NCV detection in a practical field-testing solution.

Contact UFS for NOYAFA NF-8209S availability, technical assistance, and professional network cable testing solutions.
