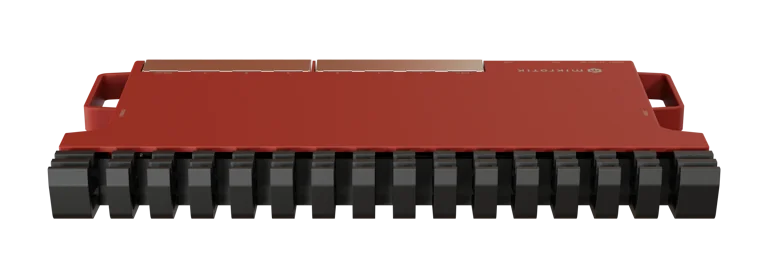

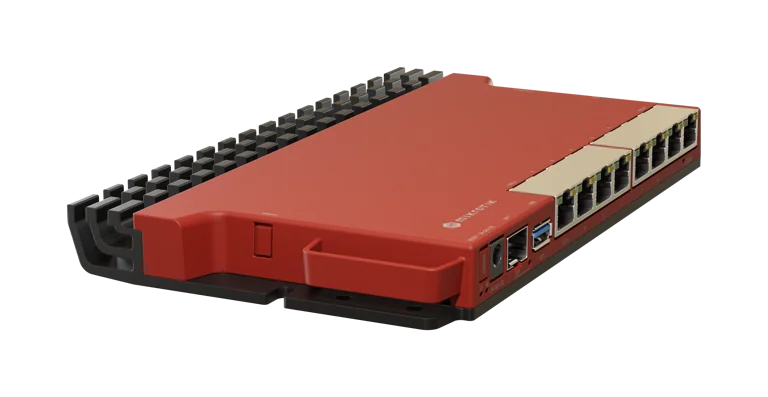

MikroTik L009UiGS-RM Router

MikroTik L009UiGS-RM Router – High-Performance Rackmount Networking

The MikroTik L009UiGS-RM Router is a next-generation networking device designed to deliver improved routing performance, flexible connectivity, and efficient rack space management. Developed as an upgrade to the popular RB2011 series, the L009 combines modern ARM architecture, Gigabit Ethernet connectivity, advanced RouterOS v7 features, and a compact rackmount design.

Available from Universal Fiber Solutions, this MikroTik router is suitable for business networks, ISP infrastructure, enterprise connectivity, and professional network management environments.

Powerful ARM Processor and Improved Performance

The MikroTik L009UiGS-RM features a dual-core IPQ-5018 ARM processor running at 800 MHz, supported by 512MB RAM and 128MB NAND storage. Its modern ARM architecture offers improved processing capabilities for routing, firewall filtering, network management, and other RouterOS features.

According to MikroTik, the L009 product line can deliver up to four times the performance of the RB2011 in many tested scenarios. Actual throughput depends on packet size, configuration, firewall rules, and network conditions.

Eight Gigabit Ethernet Ports

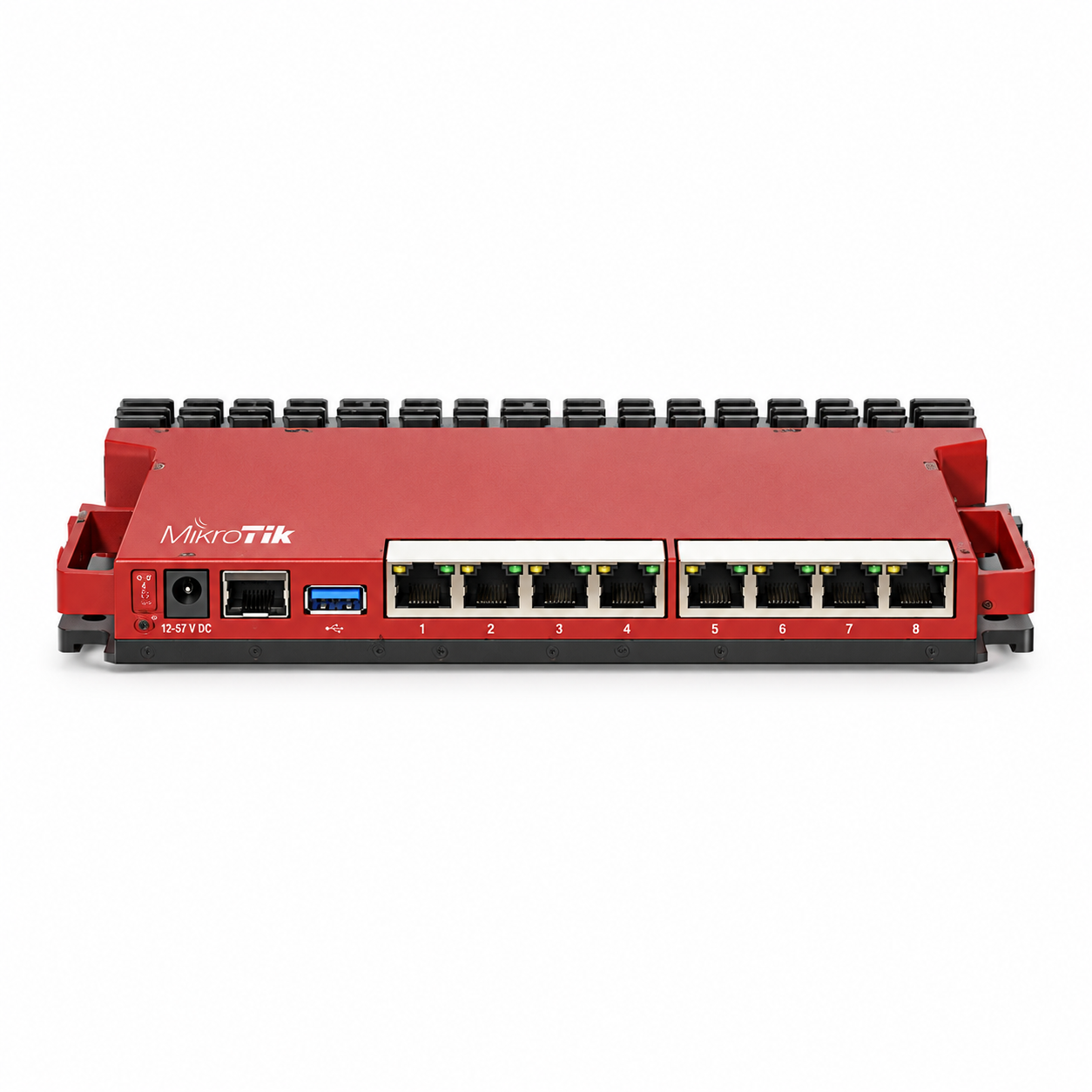

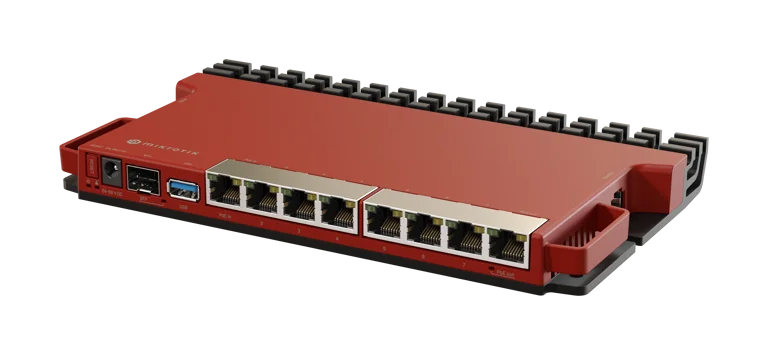

This rackmount router includes eight 10/100/1000 Mbps Gigabit Ethernet ports for connecting computers, switches, access points, servers, and other network devices. Gigabit connectivity provides flexibility for small and medium-sized business networks, network distribution, and ISP installations.

The dedicated switching architecture also supports a range of network configurations, depending on the selected routing, bridging, and filtering settings.

2.5G SFP Connectivity

The MikroTik L009UiGS-RM includes one SFP cage that supports both 1 Gigabit and compatible 2.5 Gigabit SFP modules. This provides flexible uplink connectivity for supported fiber modules and compatible networking equipment.

The 2.5G SFP capability can help network administrators build higher-speed uplinks without replacing the entire router infrastructure.

PoE-In and Passive PoE-Out

The device supports PoE-in through Ether1, allowing it to receive power through a compatible Ethernet connection. It also includes passive PoE-out on Ether8 for powering compatible network equipment.

Important: PoE-out works only when the router is powered through its DC jack. Check voltage, current, polarity, and device compatibility before connecting PoE-powered equipment.

RouterOS v7 and Advanced Network Management

With RouterOS v7 preinstalled and a Level 5 license, the MikroTik L009UiGS-RM provides access to a wide range of networking and administration features, including:

• Routing and traffic management
• Firewall rules and packet filtering
• VPN and IPsec configuration
• Bandwidth management and queues
• Network monitoring and access control
• VLAN and bridge configuration
• Container support for compatible projects and configurations

Available features and performance depend on the RouterOS version, configuration, and hardware requirements.

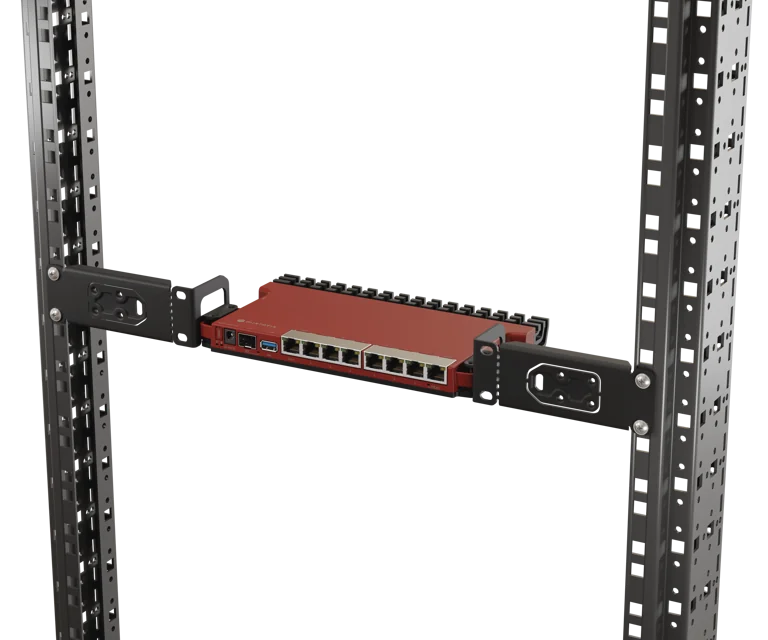

Compact 1U Rackmount Design

The L009UiGS-RM comes with rackmount accessories for convenient installation in compatible server racks. Its compact enclosure is designed to improve rack space utilization and provides passive cooling without a dedicated fan.

The rackmount form factor makes it a practical option for server rooms, ISP cabinets, and professional networking environments where efficient equipment placement is important.

USB 3.0 and Console Connectivity

The router includes a USB 3.0 Type-A port for compatible peripherals, such as supported USB storage devices or LTE modems. RouterOS container projects may also be possible when the software, storage, and configuration requirements are met.

An RJ45 serial console port provides direct access for device configuration and troubleshooting.

MikroTik L009UiGS-RM Technical Specifications

• Product Code: L009UiGS-RM
• Architecture: ARM 32-bit
• CPU: IPQ-5018 dual-core, 800 MHz
• RAM: 512MB
• Storage: 128MB NAND
• Operating System: RouterOS v7
• RouterOS License: Level 5
• Ethernet Ports: 8 × Gigabit Ethernet
• SFP: 1 × SFP, 2.5G supported
• PoE-In: 802.3af/at, 24–56V
• PoE-Out: Passive PoE on Ether8
• Power Input: DC jack and PoE-in
• DC Input Voltage: 24–56V
• USB: 1 × USB 3.0 Type-A
• Console: RJ45 serial
• Cooling: Passive
• Maximum Power Consumption: 40W
• Power Consumption Without Attachments: 8W
• Mounting: 1U rackmount accessories included
• Operating Temperature: -40°C to 70°C

Why Choose MikroTik L009UiGS-RM from Universal Fiber Solutions?

The MikroTik L009UiGS-RM is a versatile choice for network administrators and businesses looking for a compact router with Gigabit Ethernet, advanced routing capabilities, and flexible SFP connectivity.

Whether you are upgrading an existing RB2011 setup, building a business network, or expanding an ISP infrastructure, this router offers a combination of performance, connectivity, and efficient rackmount installation.

Contact Universal Fiber Solutions for product availability, pricing, and assistance in choosing the right MikroTik networking solution for your requirements.
