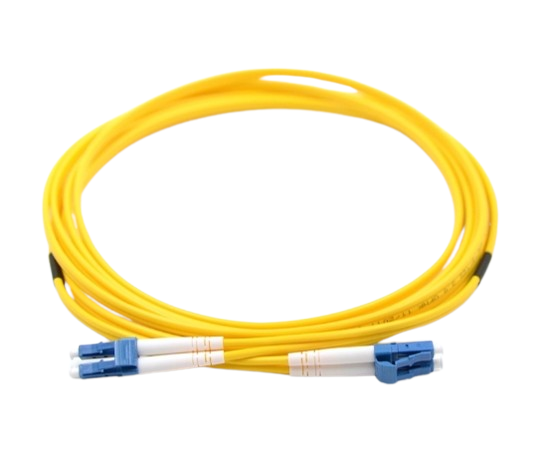

LC/UPC – LC/UPC Singlemode Fiber Optic Patch Cord

Universal Fiber Solutions LC/UPC Singlemode Fiber Optic Patch Cord is a premium quality optical jumper cable designed for high-speed and reliable fiber optic network connections.

This LC/UPC to LC/UPC patch cord features LC connectors with Ultra Physical Contact (UPC) polishing on both ends, providing low insertion loss, high return loss, and superior optical performance for professional communication networks.

Manufactured with high-quality singlemode G.657A1 or G.652D optical fiber, this fiber optic patch cord offers excellent flexibility, lightweight construction, and long-lasting durability for demanding network environments.

The compact LC connector design makes it ideal for high-density fiber installations including data centers, telecom networks, FTTH deployments, CATV systems, and enterprise LAN/WAN infrastructure.

Universal Fiber Solutions fiber patch cords are manufactured according to international standards including IEC, TIA/EIA, and Telcordia GR-326 to ensure reliable performance, compatibility, and quality assurance.

Key Features & Benefits

✓ LC/UPC connectors on both ends for high-density fiber connections.

✓ Premium singlemode G.657A1 / G.652D optical fiber.

✓ UPC polishing technology for low insertion loss and high return loss.

✓ Lightweight and flexible design for easy installation.

✓ Available in simplex and duplex configurations.

✓ Durable LSZH and PVC jacket options.

✓ Excellent signal stability for high-speed optical networks.

✓ Suitable for FTTH, telecom, CATV, LAN, WAN, and data center applications.

✓ Compliant with IEC, TIA/EIA, and Telcordia GR-326 standards.

✓ RoHS and REACH compliant.

✓ Customized cable lengths available.

Applications

• FTTH / FTTx Access Networks

• Telecommunications Networks

• Data Center Fiber Connectivity

• LAN and WAN Fiber Connections

• CATV and Broadband Networks

• Enterprise Networking Solutions

• Optical Distribution Systems

• Fiber Testing Equipment Connections

• High-Speed Fiber Communication Systems

Technical Specifications

Parameter	Specification
Connector Type	LC/UPC – LC/UPC
Fiber Type	Singlemode G.657A1 / G.652D
Polishing Type	UPC (Ultra Physical Contact)
Mode	Singlemode Fiber
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB
Jacket Material	LSZH / PVC
Cable Diameter	2.0 mm / 3.0 mm
Operating Wavelength	1310 nm / 1550 nm
Operating Temperature	-20°C to +75°C
Storage Temperature	-40°C to +85°C
Length Options	1m, 2m, 3m, 5m, 10m or Customized
Standards Compliance	IEC, TIA/EIA, Telcordia GR-326
Compliance	RoHS & REACH

Why Choose Universal Fiber Solutions?

Universal Fiber Solutions is a trusted supplier of fiber optic products and networking solutions in Pakistan, providing reliable connectivity solutions for telecom operators, ISPs, enterprises, and professional installers.

Our LC/UPC Singlemode Fiber Optic Patch Cords deliver high optical performance, low signal loss, and durable connectivity for modern fiber networks.

Whether you are deploying FTTH networks, upgrading telecom infrastructure, or building enterprise data centers, Universal Fiber Solutions provides quality fiber optic solutions with professional support.
