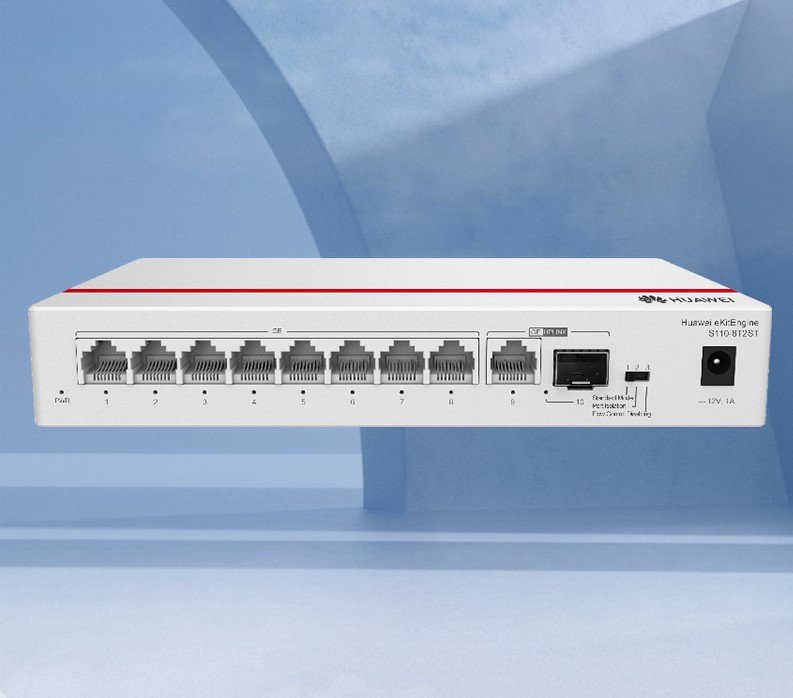

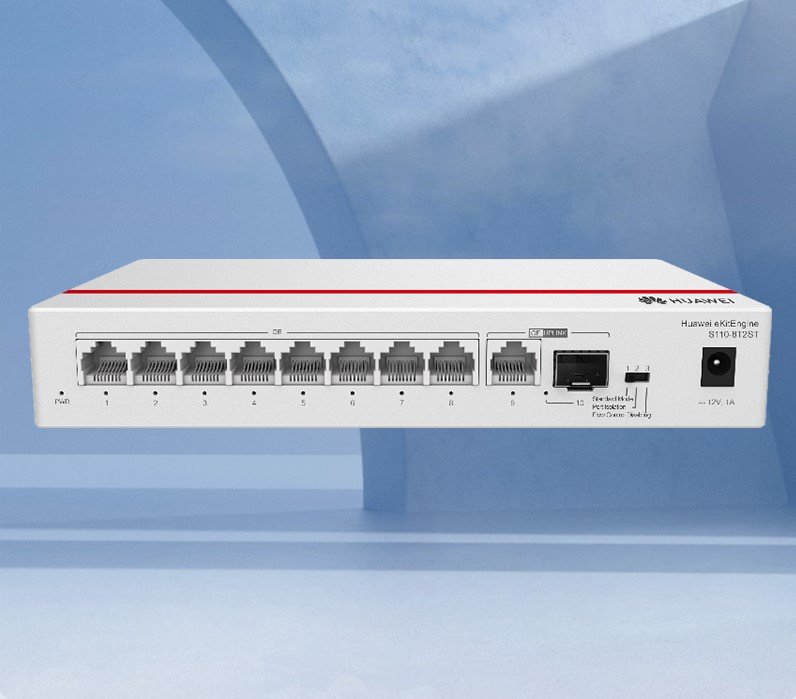

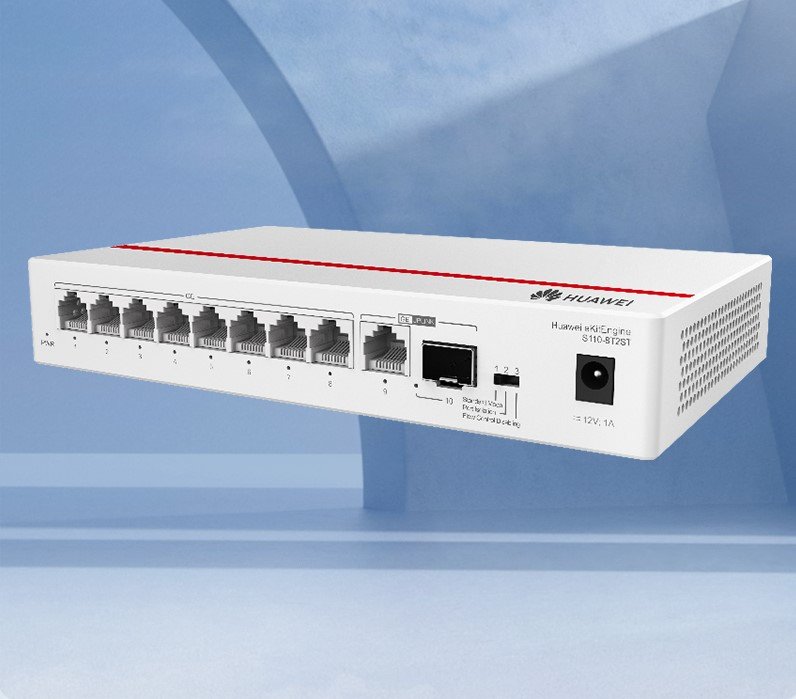

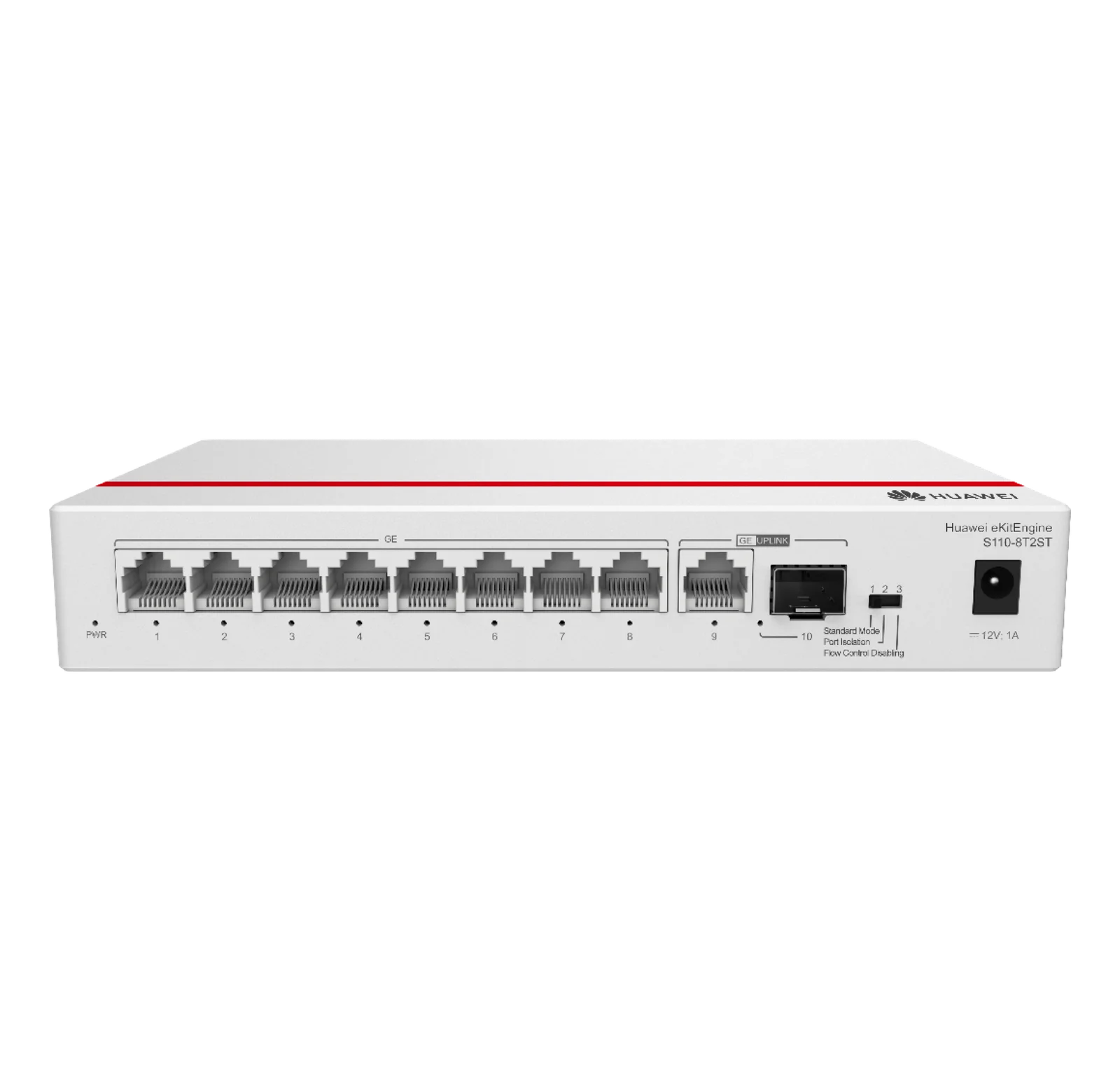

Huawei eKit S110-8T2ST 8-Port Gigabit PoE+ Switch

Huawei eKit S110-8T2ST Gigabit PoE+ Switch

The Huawei eKit S110-8T2ST is a reliable Gigabit PoE+ network switch designed for offices, retail stores, smart classrooms, CCTV surveillance, IP devices and other business networking environments.

It features 8 x 10/100/1000BASE-T ports, 1 x GE SFP port, and 1 x 10/100/1000BASE-T port. With a 20 Gbit/s switching capacity and 14.88 Mpps packet forwarding rate, it provides reliable connectivity for modern business networks.

Key Features

• 8 x 10/100/1000BASE-T Gigabit ports
• 1 x GE SFP port
• 1 x 10/100/1000BASE-T port
• PoE+ support
• 20 Gbit/s switching capacity
• 14.88 Mpps packet forwarding rate
• Desk and wall mounting
• Power adapter supply
• Compact 0.8U chassis
• Suitable for offices, retail, classrooms and surveillance
• 3 Years Warranty
• Complete Technical Support from Universal Fiber Solutions

Gigabit PoE+ Connectivity

The S110-8T2ST provides Gigabit Ethernet connectivity for computers, IP cameras, wireless access points, VoIP phones and other compatible network devices.

Its PoE+ support allows compatible powered devices to receive network data and power through Ethernet cabling, helping simplify network installations.

CCTV & Surveillance Networks

The Huawei eKit S110-8T2ST can be used as part of CCTV and IP surveillance networks, depending on the power and network requirements of connected devices. It provides Gigabit connectivity for compatible IP cameras and other Ethernet-based surveillance equipment.

Office & Business Networks

The switch is suitable for small and medium-sized offices, retail stores, smart classrooms and commercial networks. Its compact design supports both desk and wall installation, making it suitable for space-conscious network deployments.

SFP Fiber Connectivity

The integrated GE SFP port provides a flexible connectivity option for compatible fiber-optic networking equipment and can help integrate the switch into fiber-based network infrastructure.

Technical Specifications

Specification	Details
Product Model	Huawei eKit S110-8T2ST
Product Type	Gigabit PoE+ Network Switch
Ethernet Ports	8 x 10/100/1000BASE-T
Additional Ethernet Port	1 x 10/100/1000BASE-T
SFP Port	1 x GE SFP
Total Physical Ports	10
PoE	PoE+
Packet Forwarding Rate	14.88 Mpps
Switching Capacity	20 Gbit/s
Installation	Desk Mounting, Wall Mounting

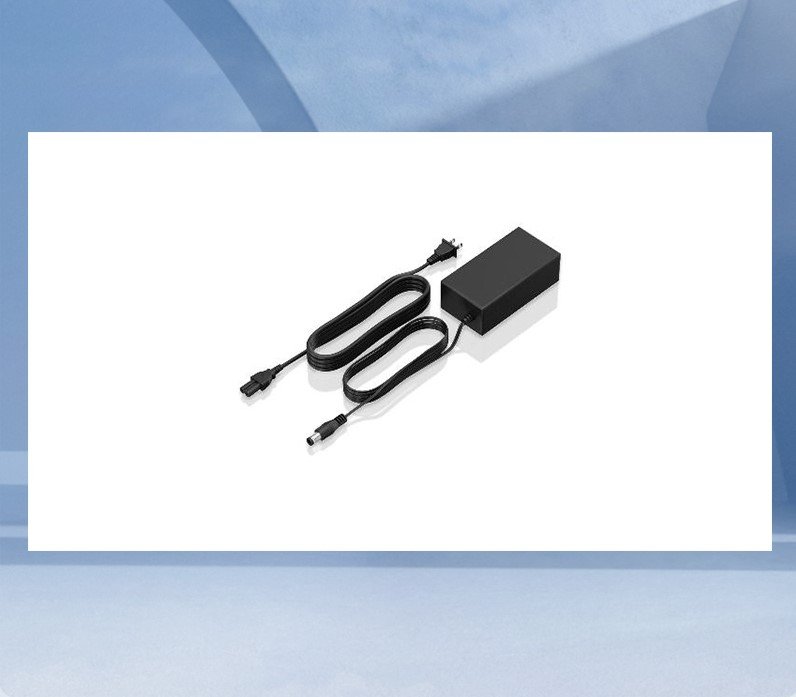

Power Supply	Power Adapter
Rated Input Voltage	100–240V AC, 50/60Hz
Power Adapter Output	56V DC
Input Voltage Range	90–264V AC
Static Power Consumption	4W
Typical Power Consumption	11W
100% Power Consumption	11W
Dimensions	35 × 210 × 130 mm
Maximum Dimensions	36.5 × 210 × 131.7 mm
Chassis Height	0.8U
Weight	1.11 kg
Operating Temperature	0°C to 40°C at 0–1800m
Storage Temperature	-40°C to +70°C
Operating Humidity	5%–95% RH, non-condensing
Operating Altitude	0–5000m
Service Port Surge Protection	Common Mode: ±4kV
Power Supply Surge Protection	Differential/Common Mode: ±6kV

Applications

The Huawei eKit S110-8T2ST is suitable for:

• Office Networks
• CCTV & IP Surveillance
• Retail Stores
• Smart Classrooms
• Business Ethernet Networks
• Wireless Access Points
• IP-Based Devices
• Fiber Network Infrastructure
• Commercial Network Expansion

Why Buy from Universal Fiber Solutions?

When you purchase the Huawei eKit S110-8T2ST from Universal Fiber Solutions, you receive:

• 3 Years Warranty
• Complete Technical Support
• Professional product guidance
• Networking solution support
• Assistance with product selection
• Genuine product supply

Whether you are upgrading an existing network or building a new business network, the S110-8T2ST provides Gigabit connectivity, PoE+ support and flexible installation options.

Buy Huawei eKit S110-8T2ST in Pakistan

Looking to buy Huawei eKit S110-8T2ST in Pakistan? It is a practical choice for offices, CCTV systems, retail stores, smart classrooms and commercial networks.

Contact Universal Fiber Solutions for current pricing, product availability, warranty information and complete technical support.
