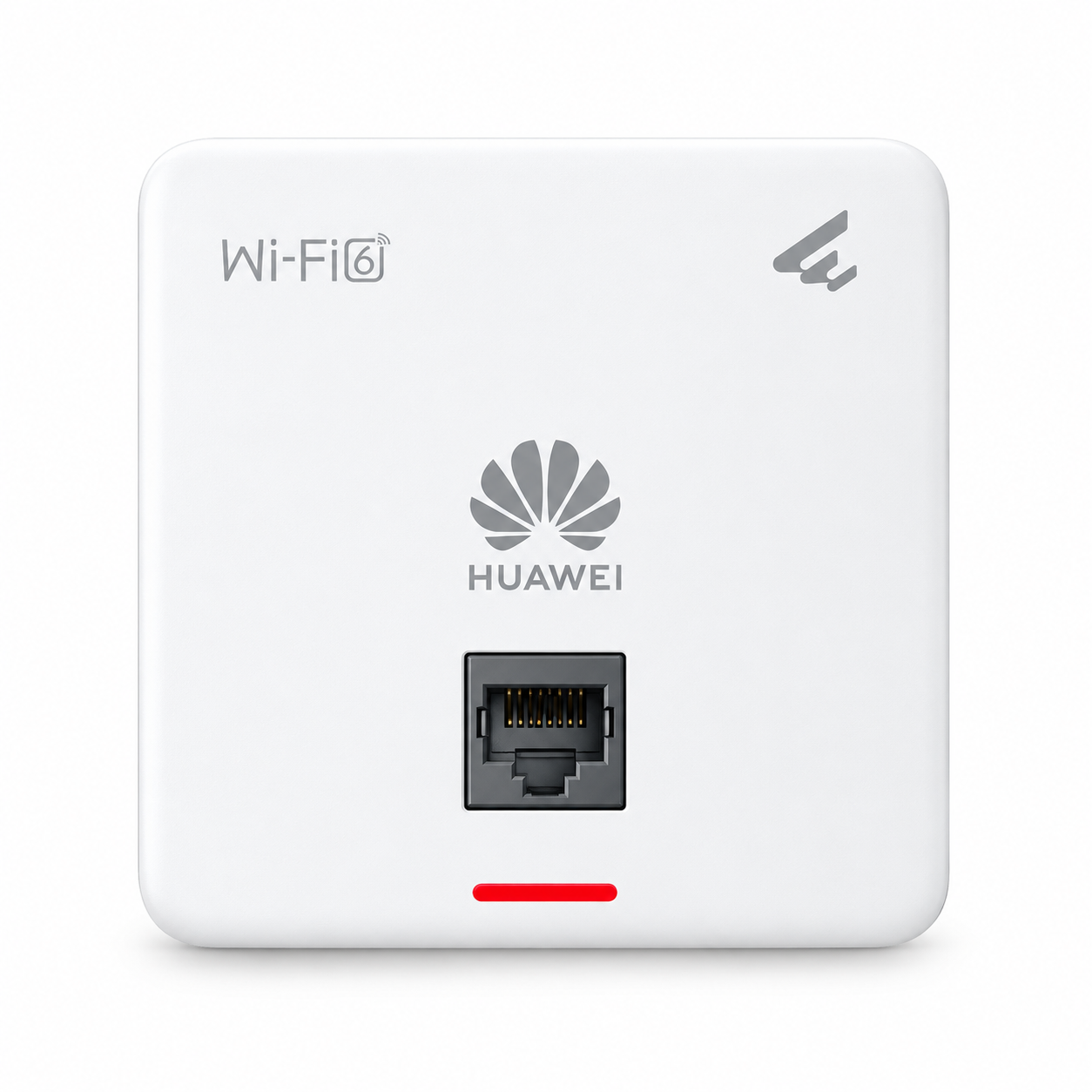

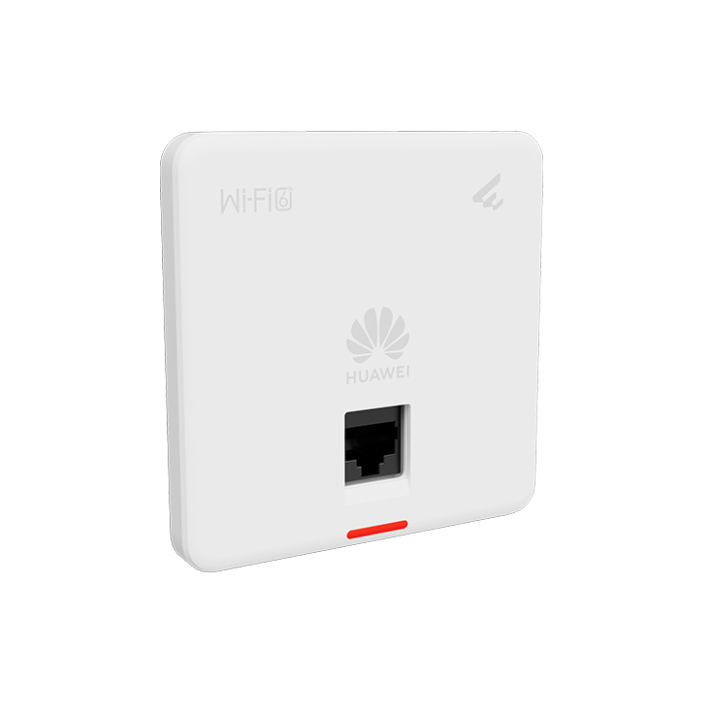

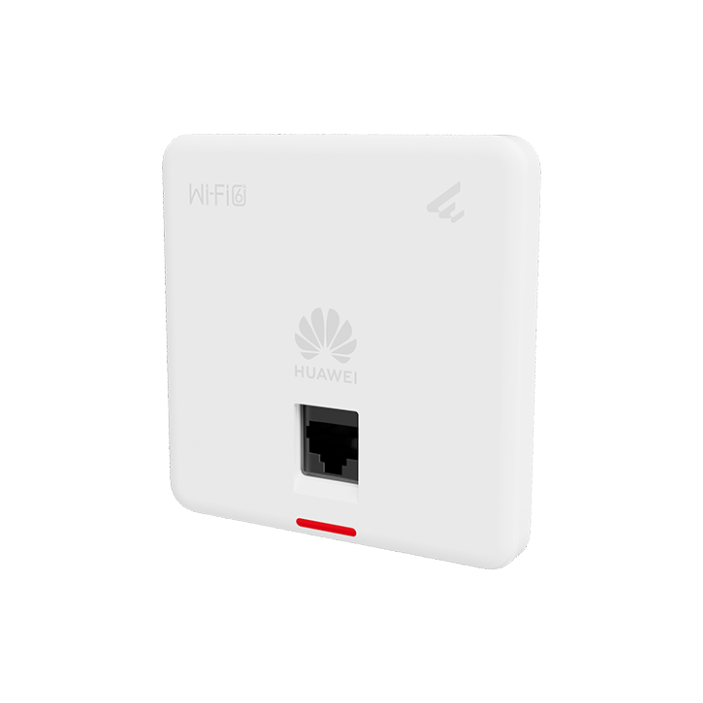

Huawei AP160 Wi-Fi 6 86×86 Wall Plate Access Point

Huawei AP160 Wi-Fi 6 Wall Plate Access Point

The Huawei AP160 Wi-Fi 6 wall plate access point is a compact wireless networking solution designed for hotels, offices, branch networks and other indoor enterprise Wi-Fi environments. Its standard 86×86 wall plate design allows it to be installed directly into a compatible 86mm junction box, providing a clean and space-efficient wireless network deployment.

The AP160 supports 802.11ax (Wi-Fi 6) technology with dual-radio 2.4GHz and 5GHz operation and delivers a combined device rate of up to 1.775Gbps. Its built-in smart antennas provide optimized wireless coverage for suitable indoor environments.

Dual-Radio Wi-Fi 6 Connectivity

The Huawei AP160 operates on both 2.4GHz and 5GHz frequency bands, providing dual-radio wireless connectivity for business users and connected devices.

The 2.4GHz radio supports up to 40MHz channel bandwidth, while the 5GHz radio supports up to 80MHz. Both radios use 2×2 MIMO, providing a device rate of up to 1.775Gbps under supported conditions.

User Capacity & Wireless Coverage

The AP160 supports up to 128 access users, with 48 users recommended for typical deployment scenarios. Its optimal signal distance is up to 15 meters, depending on building construction, installation conditions, interference and the overall wireless network design.

The integrated smart antenna system is designed to provide efficient indoor wireless coverage while maintaining the compact wall plate form factor.

PoE Network Installation

The Huawei AP160 uses PoE as its power supply and supports IEEE 802.3af. PoE simplifies installation by allowing power and network connectivity to be delivered through Ethernet, reducing the need for a separate local power connection.

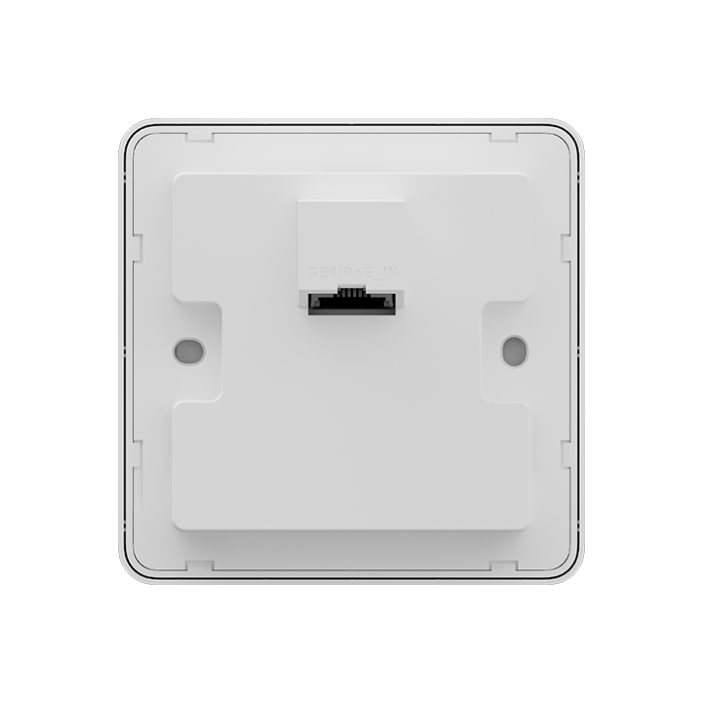

The access point provides 2 × GE RJ45 Ethernet ports, supporting 10/100/1000Mbps auto-sensing connectivity.

Huawei AP160 Technical Specifications

• Product Model: Huawei AP160
• Product Type: Wi-Fi 6 Wall Plate Access Point
• Wireless Standard: 802.11ax
• 2.4GHz Standard: 802.11b/g/n/ax
• 5GHz Standard: 802.11a/n/ac/ac Wave 2/ax
• Device Rate: Up to 1.775Gbps
• Radio: Dual-radio
• Operating Bands: 2.4GHz and 5GHz
• Recommended Access Users: 48
• Maximum Access Users: 128
• Optimal Signal Distance: Up to 15m
• MIMO: 2×2 on 2.4GHz and 5GHz
• Maximum Channel Bandwidth: 40MHz on 2.4GHz; 80MHz on 5GHz
• Maximum Transmit Power: 20dBm combined
• Antenna: Built-in smart antenna
• Ethernet Ports: 2 × GE RJ45
• Ethernet Speed: 10/100/1000Mbps auto-sensing
• Power Supply: PoE
• PoE Standard: IEEE 802.3af
• Maximum Power Consumption: 9.1W
• Dimensions: 86 × 86 × 42.5mm
• Weight: 0.14kg without packaging
• Installation: 86mm junction box
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 5%–95% RH, non-condensing
• Storage Temperature: -40°C to +70°C
• Operating Altitude: -60m to +5000m

Enterprise Wi-Fi Applications

The Huawei AP160 enterprise Wi-Fi access point is suitable for indoor wireless deployments where a compact wall-mounted solution is required. It can be used in hotels, offices, branch locations, commercial buildings and professional networking environments.

Its combination of Wi-Fi 6, dual-radio connectivity, 1.775Gbps device rate, PoE power and smart antenna technology provides a practical solution for business wireless networking.

Compact 86×86 Wall Plate Design

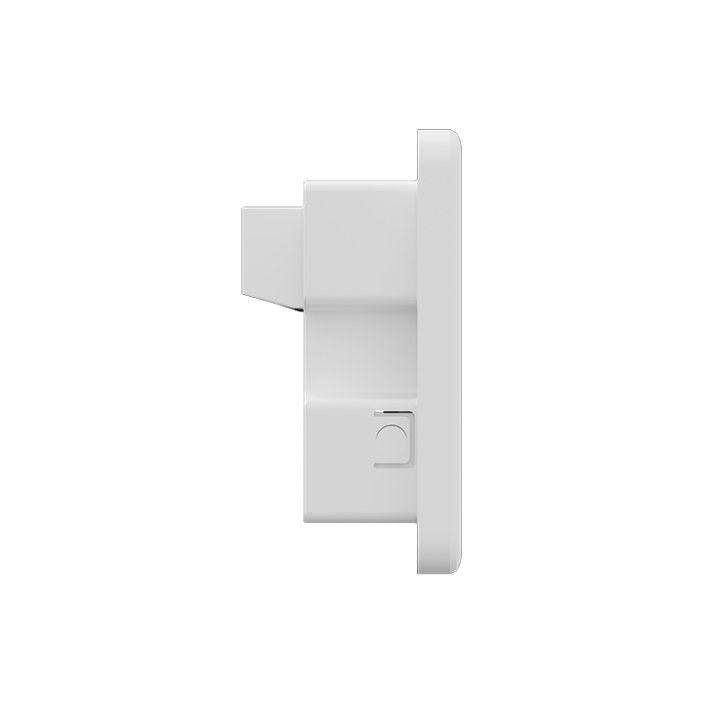

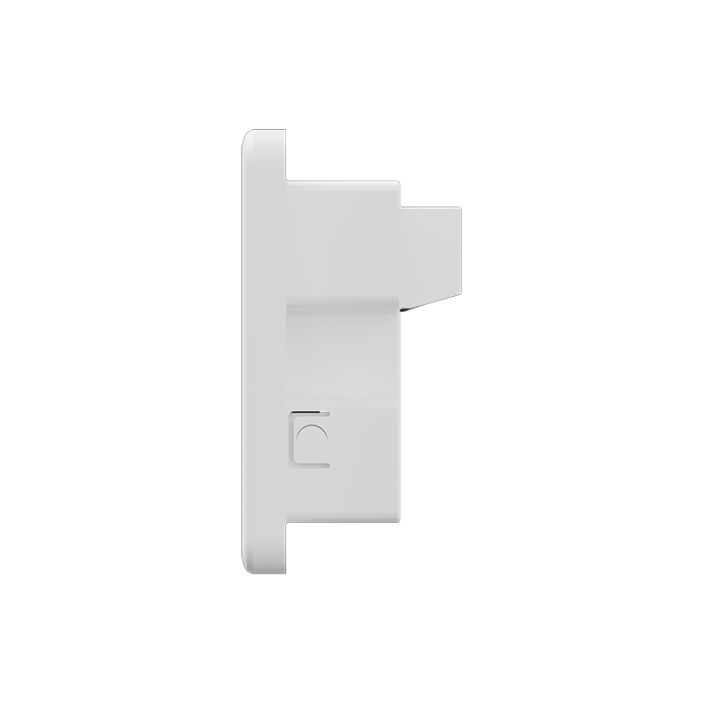

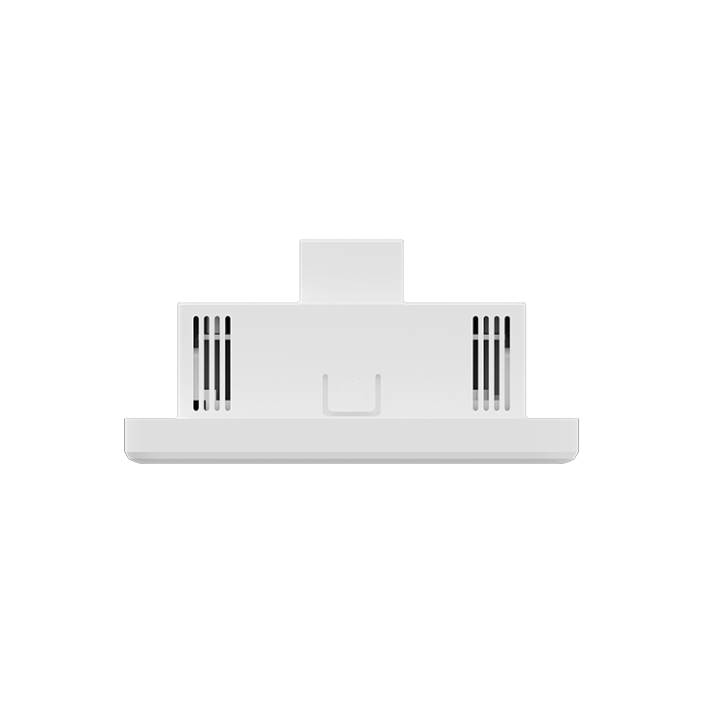

A major feature of the AP160 is its 86×86mm wall plate form factor. The access point is designed for installation in an 86mm junction box, allowing it to integrate neatly into suitable indoor locations.

With dimensions of only 86 × 86 × 42.5mm and a weight of approximately 0.14kg, the AP160 is suitable for space-conscious wireless network installations.

Reliable Indoor Wireless Connectivity

The AP160 is designed for continuous indoor operation within a temperature range of 0°C to 40°C and relative humidity of 5% to 95% RH, non-condensing. Its service port also includes surge protection to support reliable network operation in suitable deployment environments.

Buy Huawei AP160 Wi-Fi 6 Access Point

Universal Fiber Solutions provides professional enterprise Wi-Fi and networking solutions for corporate, commercial and business requirements. The Huawei AP160 Wi-Fi 6 wall plate access point is suitable for organizations looking for compact indoor wireless connectivity with dual-radio Wi-Fi 6, PoE installation and Gigabit Ethernet connectivity.

Contact Universal Fiber Solutions for Huawei AP160 availability, pricing, technical consultation and enterprise Wi-Fi deployment requirements in Pakistan.
