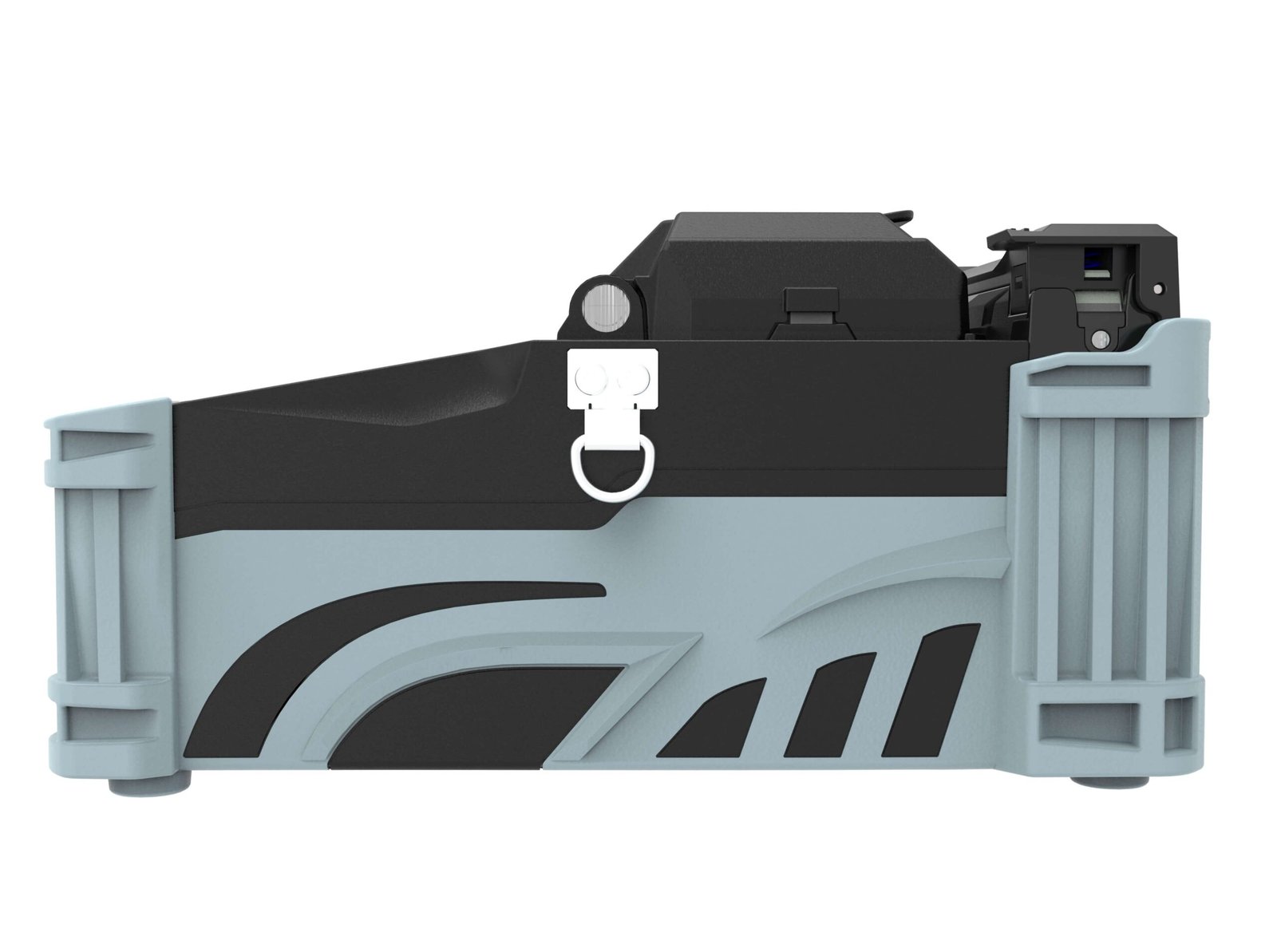

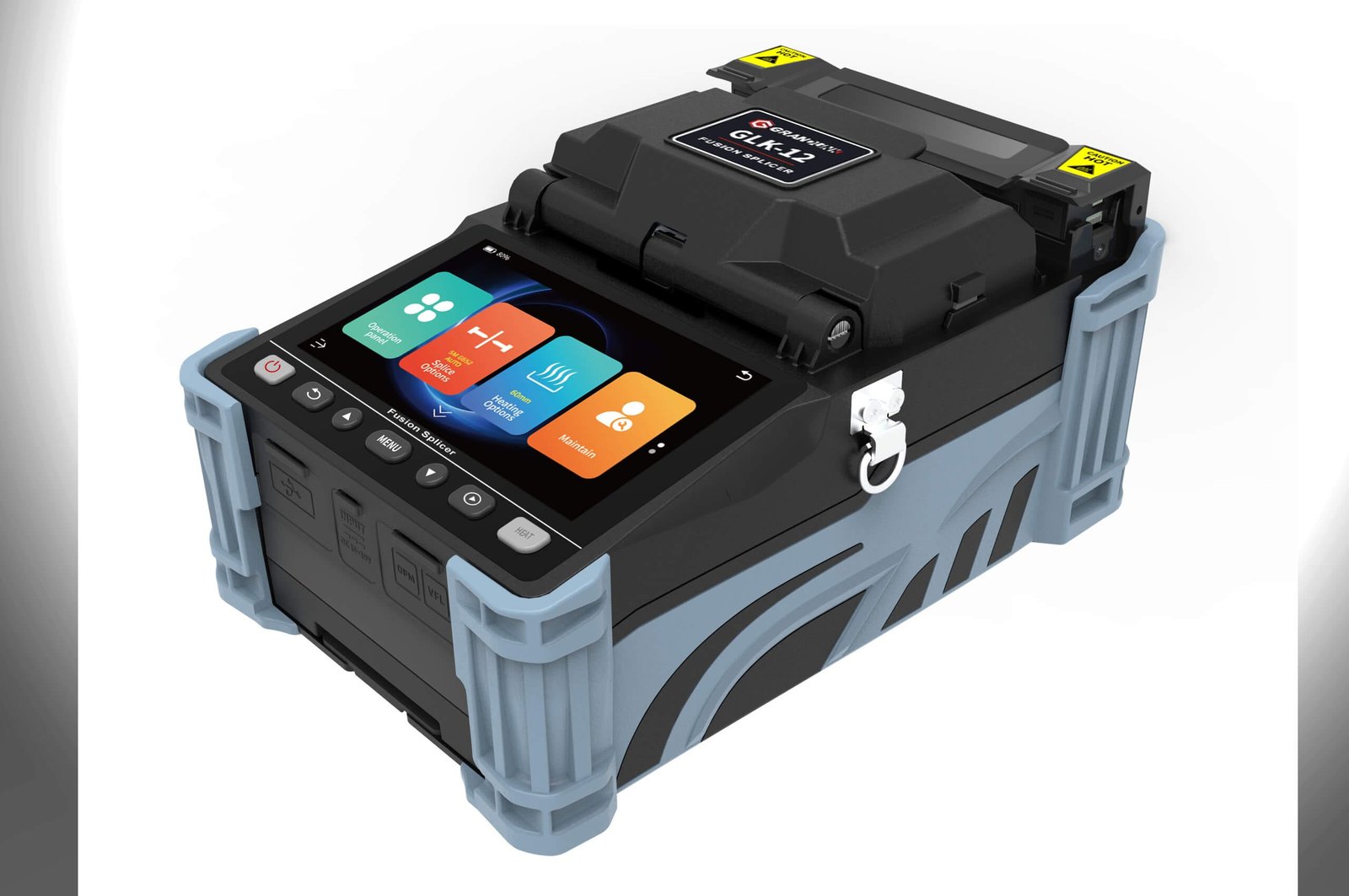

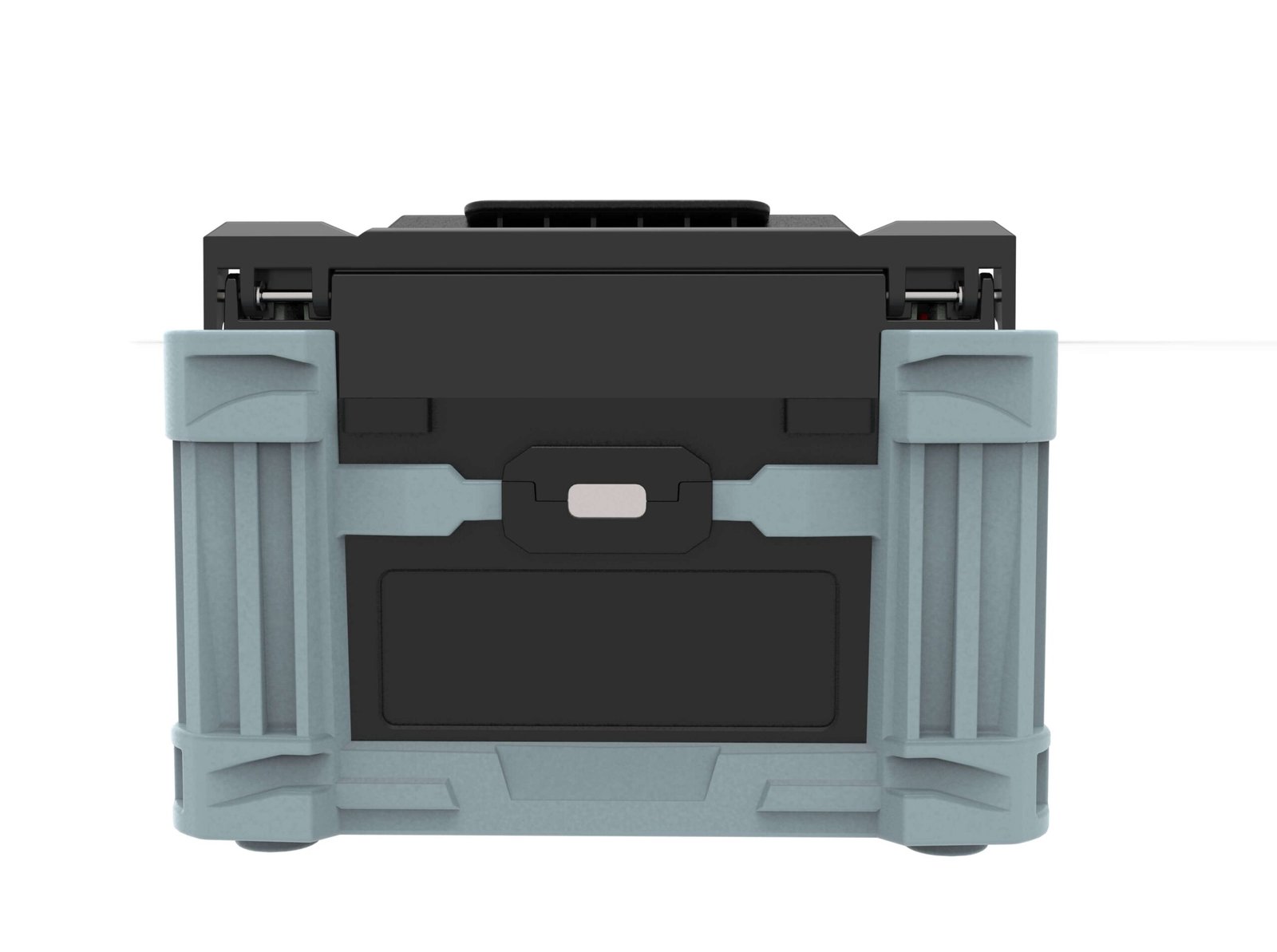

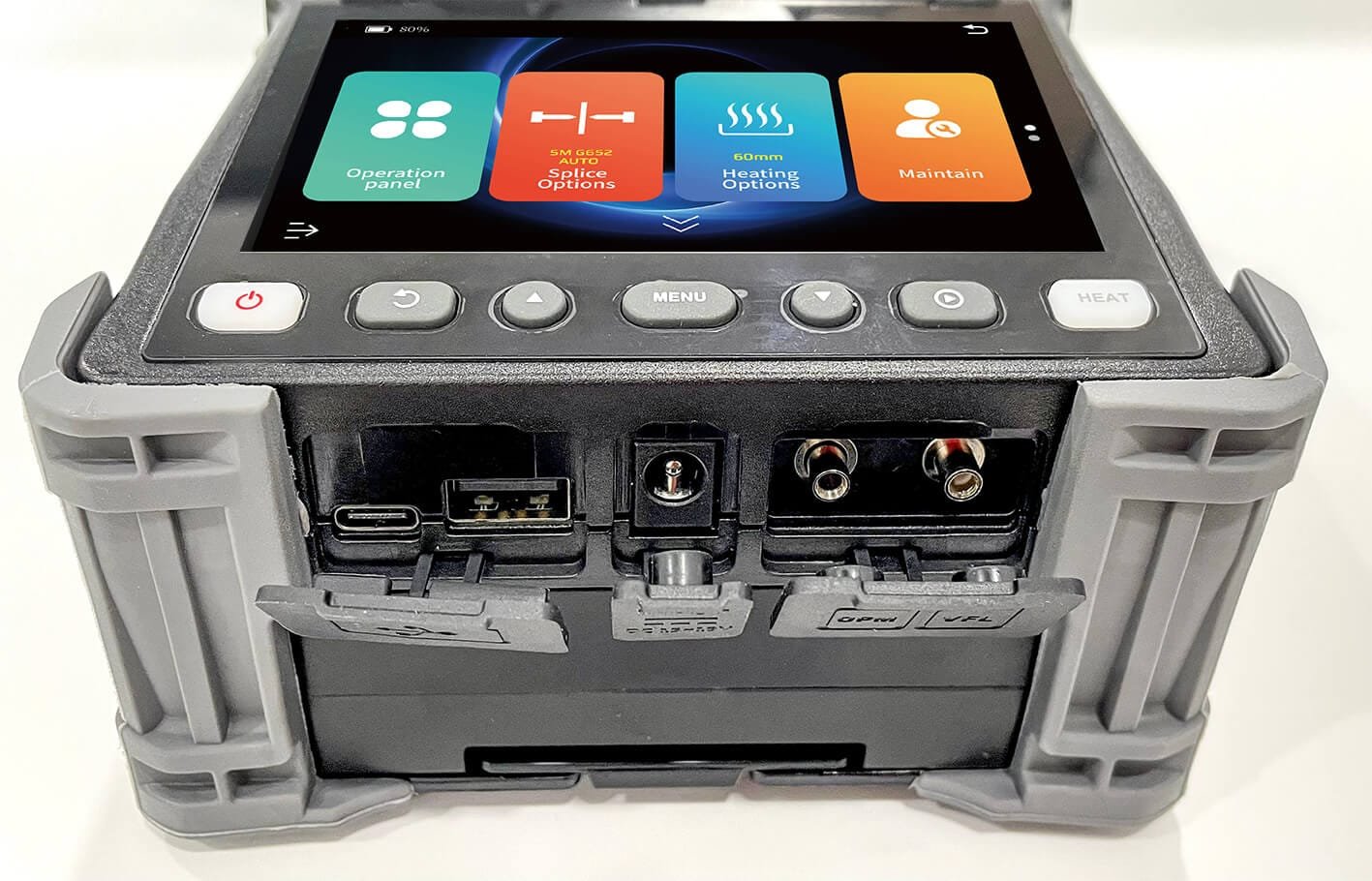

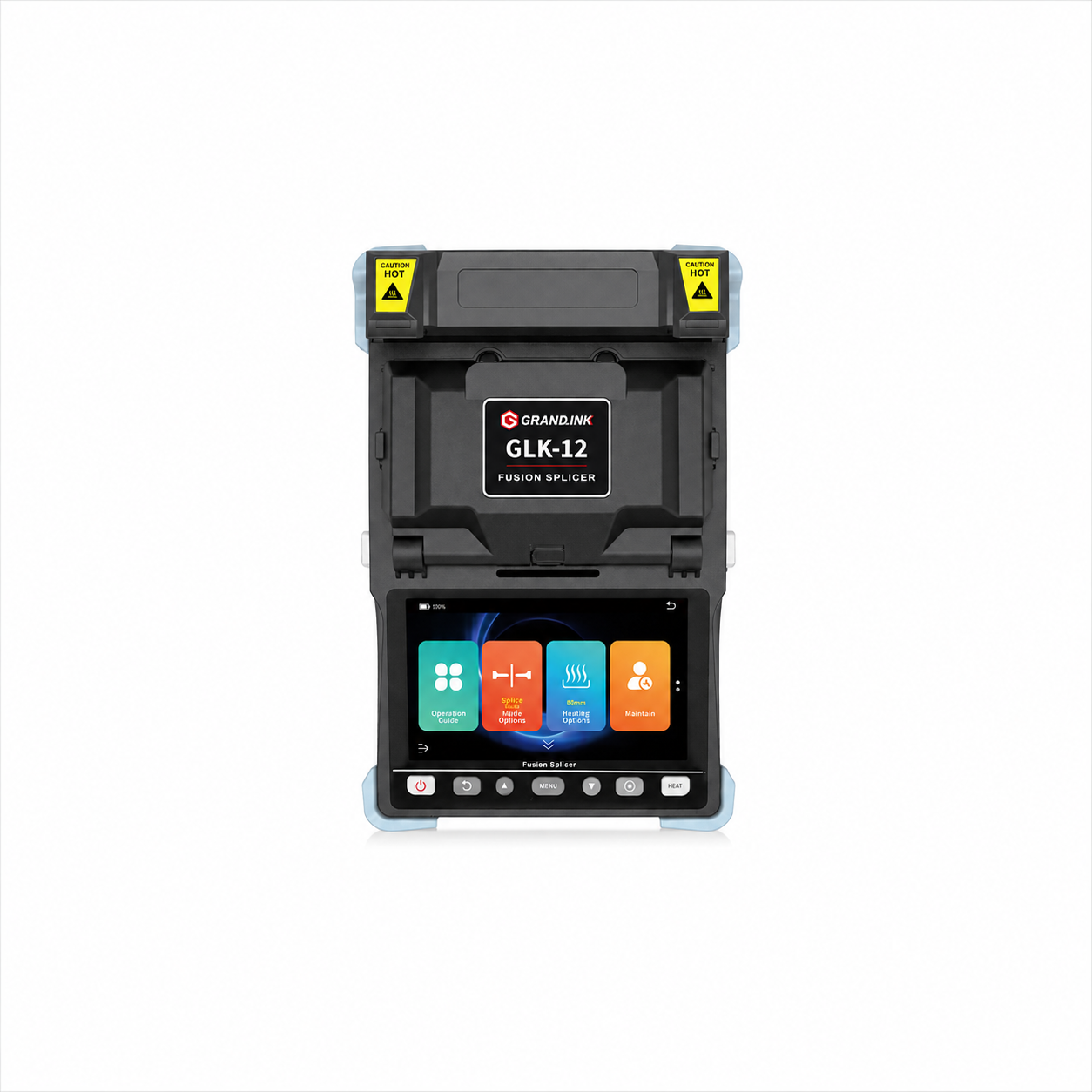

Grand Link GLK 12 Fusion Splicing Machine
+ Free ShippingThe Grandlink GLK‑12 Fusion Splicer is a high‑performance FTTH fiber splicing machine designed for telecom, broadband, and backbone fiber projects. With 6‑second splicing, 18‑second heating, and a 5200mAh battery supporting 200+ cycles, it delivers ultra‑low splice loss, intelligent arc correction, and modular expansion (Bluetooth, IoT, VFL, OPM). Available now at Universal Fiber Solutions (UFS) — the trusted place to buy Grandlink GLK‑12 fusion splicers online at the best price.
Overview
The Grandlink GLK‑12 Optical Fiber Fusion Splicer, distributed by Universal Fiber Solutions (UFS), is engineered for speed, precision, and adaptability. Featuring four‑motor alignment with precision XY guide rails, it delivers 6‑second splicing and 18‑second heating cycles.
Its intelligent arc correction, real‑time optical image analysis, and environmental adaptation algorithms make it ideal for telecom operators, FTTH projects, and professional fiber technicians.
⚡ Key Features
- 6‑second splicing – ultra‑fast performance
- 18‑second heating – efficient heating cycles
- 5200mAh battery – supports 200+ cycles per charge

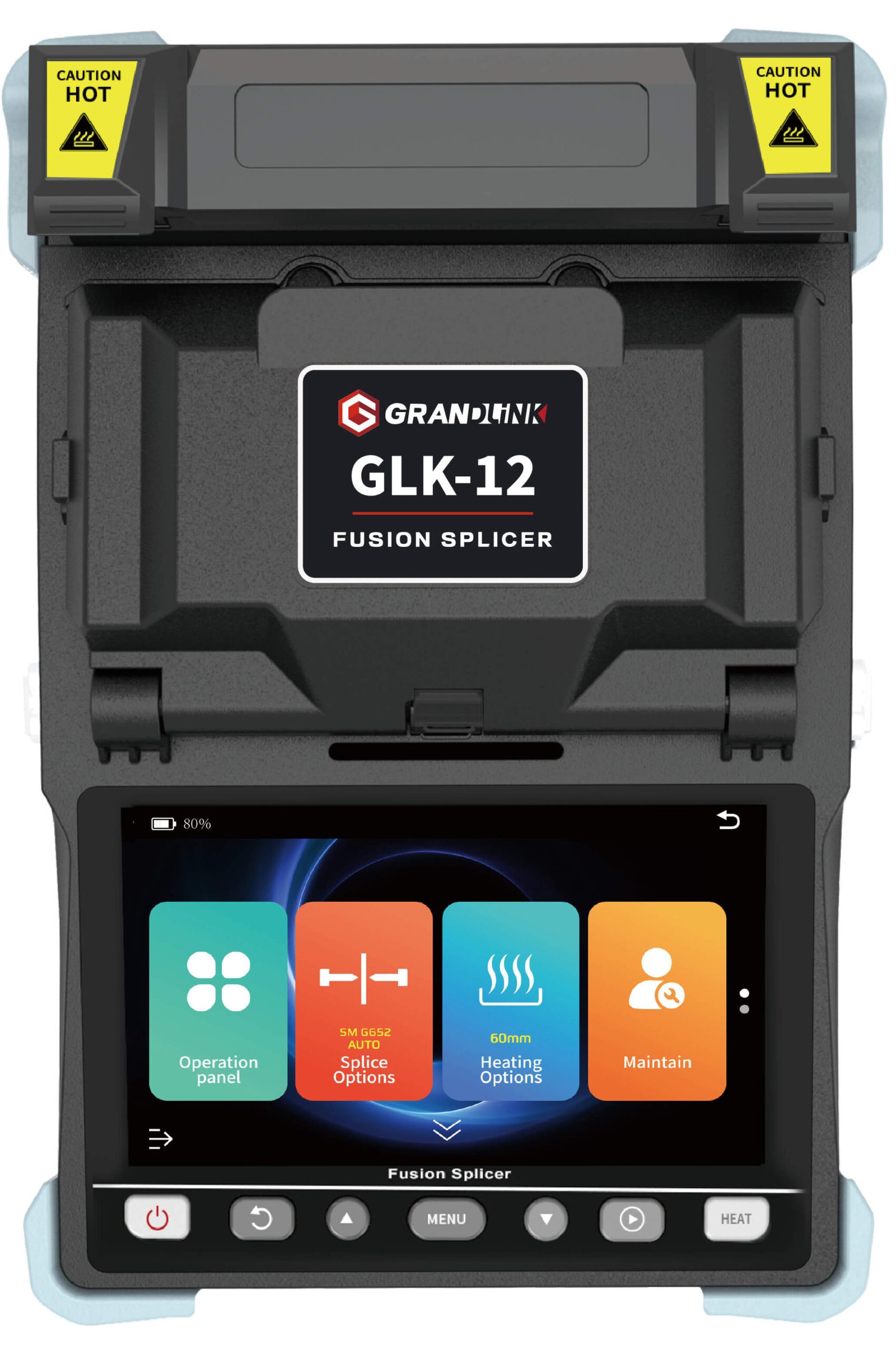

- 4.3‑inch HD touchscreen – capacitive touch with smart GUI
- 320x magnification – precise fiber alignment
- Voice broadcast prompts – real‑time operation guidance
- Modular expansion – Bluetooth, IoT, VFL, OPM optional modules
- Data storage – 60,000 splice records + 6,000 images
- Durable build – waterproof, dustproof, anti‑shock, aviation aluminum body
- Smart analytics – real‑time arc correction, fiber end‑face evaluation, abnormality detection
📊 Technical Specifications
| Parameter | Details |
|---|---|

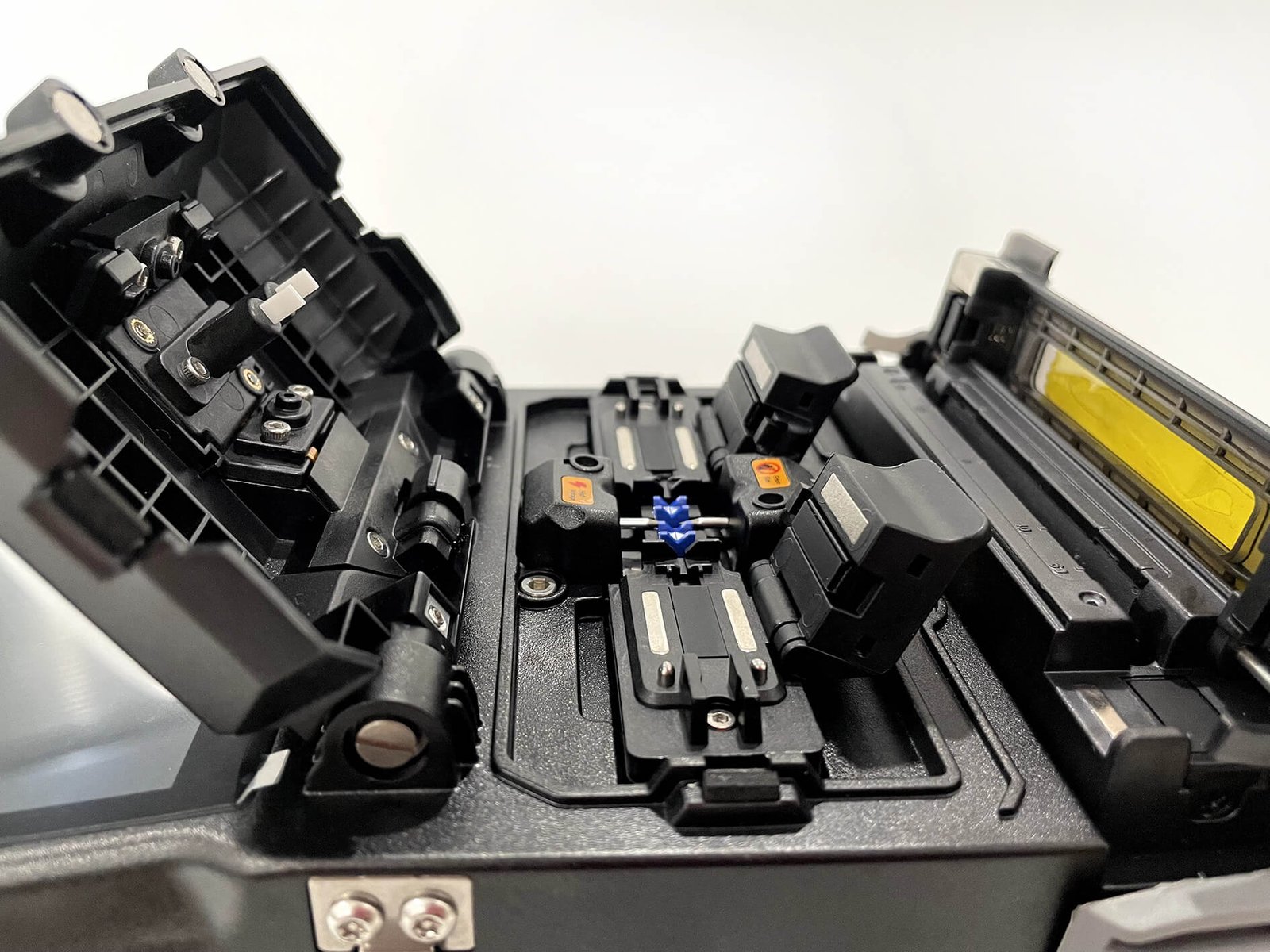

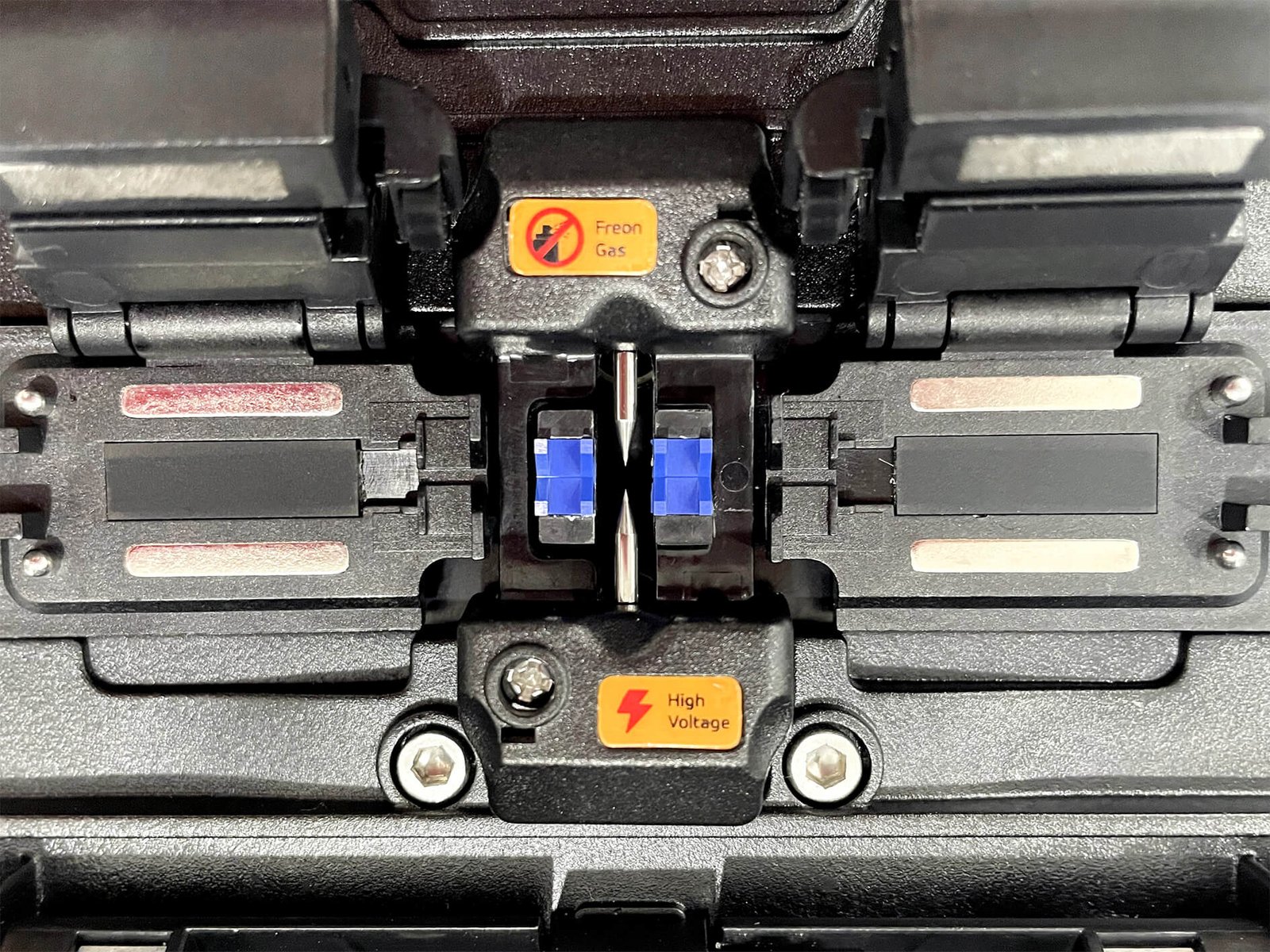

| Fiber alignment | Four motors, XY bidirectional precision rails |
| Splicing time | 6s |
| Heating time | 18s |
| Fiber types | G.651, G.652, G.653, G.655, G.657 |
| Splicing loss | Typical ≤0.04dB |
| Display | 4.3‑inch HD capacitive touchscreen |
| Battery | 5200mAh, >200 cycles per charge |
| Magnification | 320x |
| Protection | Waterproof, dustproof, anti‑shock |
| Operating environment | ‑40°C to +80°C, ≤95%RH, altitude ≤5000m |
📦 Standard Package
- GLK‑12 Fusion Splicer (Main Unit)
- Carrying straps + portable handbag
- Instruction manual + test report
- Fiber cleaver
- Fiber stripper + drop cable stripper
- Spare electrodes
- Alcohol bottle + cooling tray
- AC adapter + power cord
- Dust‑blowing ball + brush
🛡️ Service Commitment
Purchasing the Grandlink GLK‑12 Fusion Splicer from UFS includes:
- Warranty coverage (battery, adapter, and consumables per manufacturer policy)
- Professional support and authorized servicing
- Commitment to industry‑standard quality and reliability
