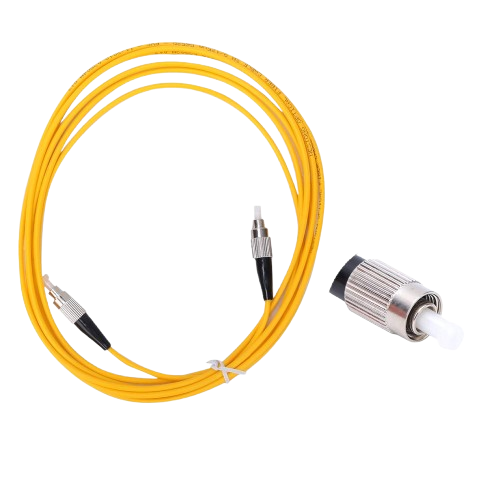

FC/UPC – FC/UPC Singlemode Fiber Optic Patch Cord

Universal Fiber Solutions FC/UPC Singlemode Fiber Optic Patch Cord is a premium quality optical fiber jumper cable designed to provide stable, high-speed, and reliable fiber connections for modern communication networks.

This FC/UPC to FC/UPC patch cord uses high-quality singlemode fiber technology with precision polished UPC connectors on both ends. The threaded FC connector design ensures strong mechanical locking, excellent alignment, and reliable performance even in industrial and high-vibration environments.

Designed for professional telecom installations, FTTH deployments, broadband networks, data centers, CATV applications, and optical testing equipment, this fiber optic patch cord delivers excellent signal transmission with minimum optical loss.

Manufactured according to international quality standards including IEC, TIA/EIA, and Telcordia GR-326, Universal Fiber Solutions fiber patch cords provide durability, flexibility, and long-lasting performance for critical fiber optic applications.

Key Features & Benefits

✓ FC/UPC connectors installed on both ends for secure optical connection.

✓ Singlemode G.657A1 / G.652D fiber options for high-performance transmission.

✓ Low insertion loss for efficient optical signal transfer.

✓ High return loss for improved network reliability.

✓ Screw-type FC connector design provides vibration-resistant connectivity.

✓ Available in simplex and duplex configurations.

✓ Flexible LSZH and PVC jacket options.

✓ Suitable for telecom, FTTH, CATV, LAN, WAN, and data center networks.

✓ RoHS and REACH compliant for environmental safety.

✓ Custom lengths available according to project requirements.

Applications

• FTTH / FTTx Access Networks

• Fiber Internet Broadband Networks

• Telecommunications Infrastructure

• CATV Fiber Networks

• Data Centers and Enterprise Networks

• Optical Test Equipment and Measurement Systems

• LAN / WAN Fiber Connections

• Industrial Fiber Communication Systems

• High-Vibration Network Environments

Technical Specifications

Parameter	Specification
Connector Type	FC/UPC – FC/UPC
Fiber Type	Singlemode G.657A1 / G.652D
Polishing Type	UPC (Ultra Physical Contact)
Mode	Singlemode Fiber
Insertion Loss	≤ 0.3 dB
Return Loss	≥ 50 dB
Jacket Material	LSZH / PVC
Cable Diameter	2.0 mm / 3.0 mm
Operating Wavelength	1310 nm / 1550 nm
Operating Temperature	-20°C to +75°C
Storage Temperature	-40°C to +85°C
Length Options	1m, 2m, 3m, 5m, 10m or Customized
Standards Compliance	IEC, TIA/EIA, Telcordia GR-326
Compliance	RoHS & REACH

Why Choose Universal Fiber Solutions?

Universal Fiber Solutions provides reliable fiber optic products and networking solutions for telecom operators, ISPs, enterprises, and professional installers across Pakistan.

Our FC/UPC Singlemode Fiber Optic Patch Cords are manufactured for high-performance fiber networks, ensuring stable connectivity, excellent optical performance, and long-term reliability.

Whether you need FTTH deployment products, telecom fiber accessories, or data center connectivity solutions, Universal Fiber Solutions delivers quality products with professional support.
