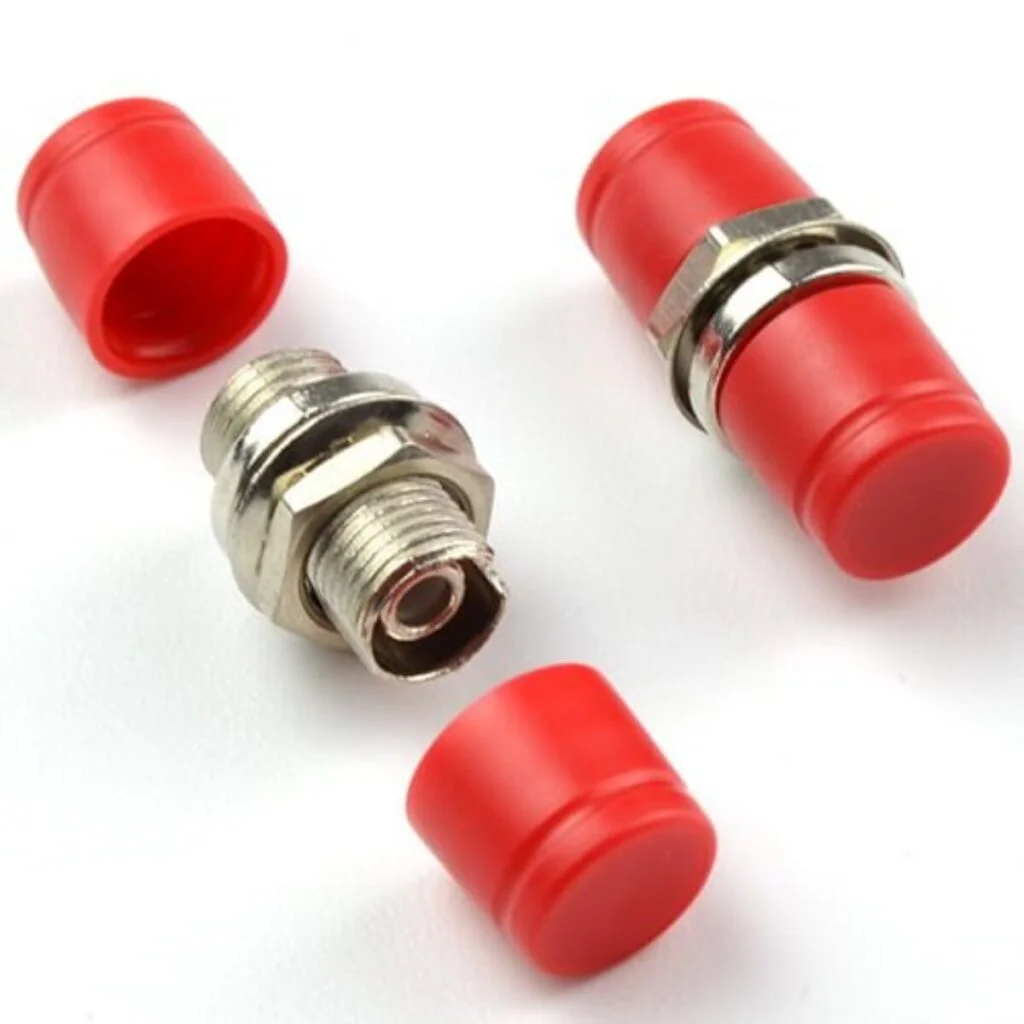

FC/UPC Simplex Fiber Optic Adapter

FC/UPC Simplex Fiber Optic Adapter

The FC/UPC Simplex Adapter provides a stable and secure connection between two FC fiber optic cables. Designed for Singlemode OS2 fiber systems, it is suitable for telecom, ISP, FTTH, and professional fiber networking applications.

Secure & Reliable Connection

The adapter features a threaded metal housing and coupling nut that helps provide a secure connection between FC connectors. Its high-precision zirconia ceramic sleeve maintains accurate fiber alignment for stable optical performance.

With insertion loss ≤0.2dB and return loss ≥50dB, it provides reliable connectivity for singlemode fiber networks.

Durable Metal Design

The adapter uses a nickel-plated brass housing for durability and secure mounting. Its simplex design supports one fiber connection while the red color identifies it as a UPC singlemode adapter.

It is rated for up to 1000 plug cycles for repeated installation and maintenance.

Technical Specifications

• Adapter Type: FC to FC Simplex
• Fiber Type: Singlemode
• Fiber Compatibility: OS2
• Polish Type: UPC
• Color: Red
• Sleeve: Zirconia Ceramic
• Housing: Nickel-Plated Brass
• Coupling: Threaded Coupling Nut
• Insertion Loss: ≤0.2dB
• Return Loss: ≥50dB
• Durability: 1000 Plug Cycles
• Outer Sheath: Low Smoke Zero Halogen (LSZH)

Key Benefits

• Designed for OS2 singlemode fiber
• FC-to-FC simplex connection
• Low insertion loss
• High return loss
• Precision zirconia ceramic sleeve
• Secure threaded coupling design
• Durable nickel-plated brass housing
• Reliable for repeated connections
• LSZH construction

Applications

• Telecom Networks
• ISP Networks
• FTTH Networks
• Fiber Optic Patch Panels
• ODF & Fiber Distribution Units
• Fiber Enclosures
• Network Cabinets
• Singlemode OS2 Fiber Systems
• Fiber Testing & Communication Equipment

Buy FC/UPC Simplex Adapter in Pakistan

Looking to buy FC/UPC Simplex Adapter in Pakistan? Universal Fiber Solutions (UFS) supplies reliable fiber optic connectivity products for telecom, ISP, FTTH, and networking projects.

Warranty & Support

Warranty: Subject to applicable terms
Technical Support: Available from Universal Fiber Solutions (UFS)
