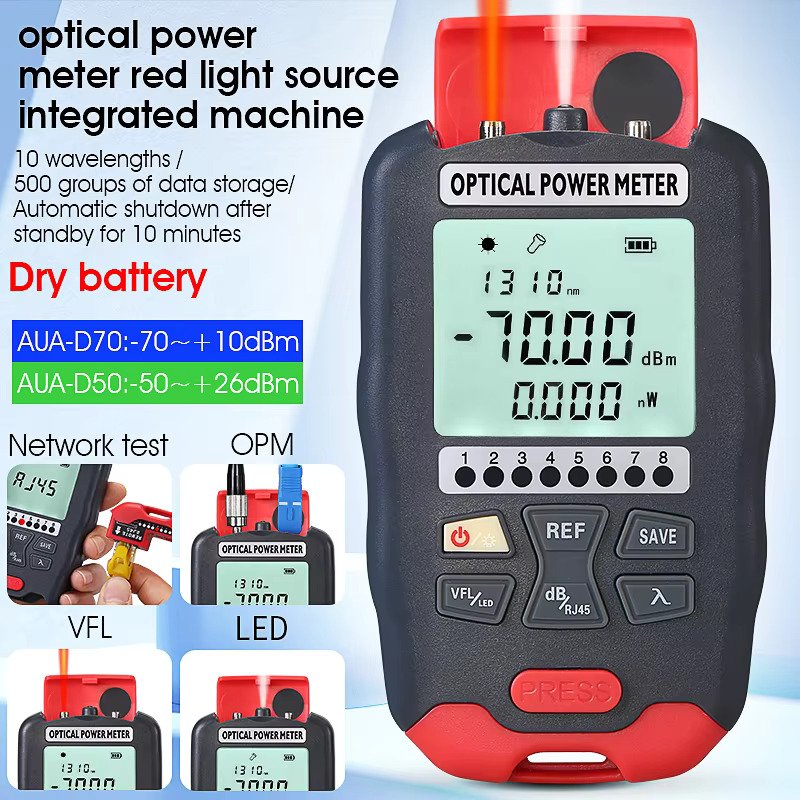

COMPTYCO AUA‑D70 Optical Multi‑Meter

The COMPTYCO AUA‑D70 High Precision Optical Multi‑Meter is a multifunctional handheld fiber optic diagnostic tool designed for FTTH installation, telecom maintenance, and ISP projects. With integrated Optical Power Meter (OPM), Visual Fault Locator (VFL), LED lighting, and RJ45 cable tester, it provides complete testing capability in one compact device.

🔑 Key Features

• Measurement Range: –70 to +10 dBm (AUA‑D70) / –50 to +26 dBm (AUA‑D50).
• Wavelengths Supported: 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm (10 wavelengths).

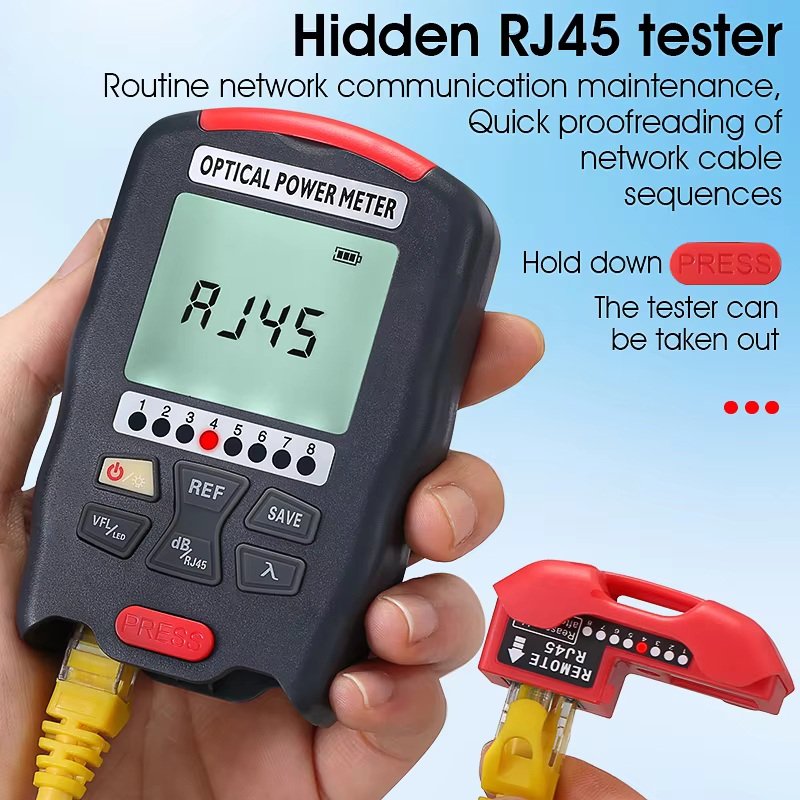

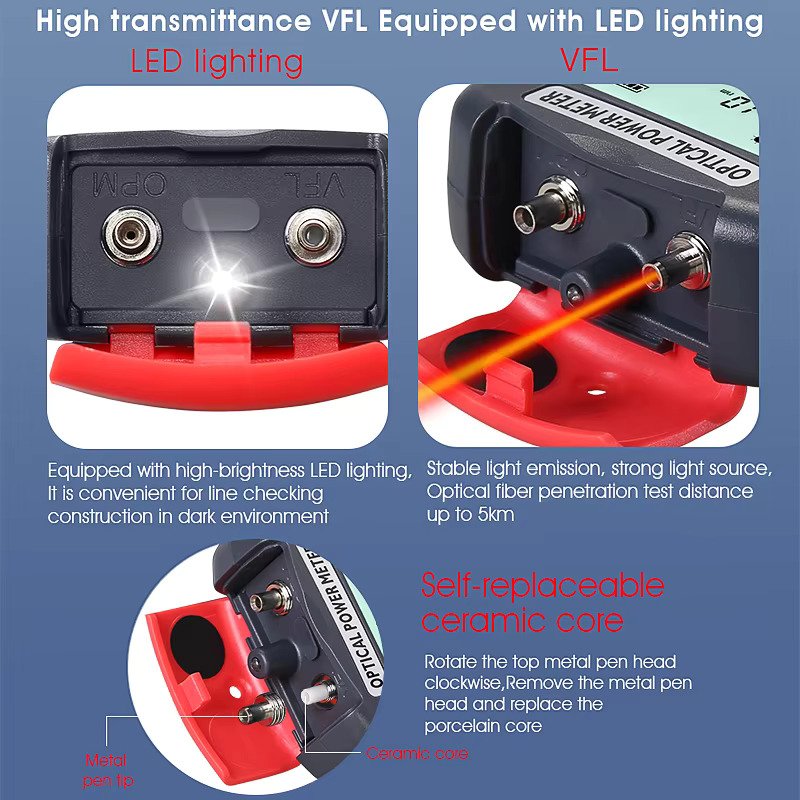

• Integrated Functions: Optical Power Meter (OPM), Visual Fault Locator (VFL up to 50 mW), LED lighting, RJ45 cable tester.
• Data Storage: Save up to 500 measurement records.
• Auto Power‑Off: Device shuts down automatically after 10 minutes idle.

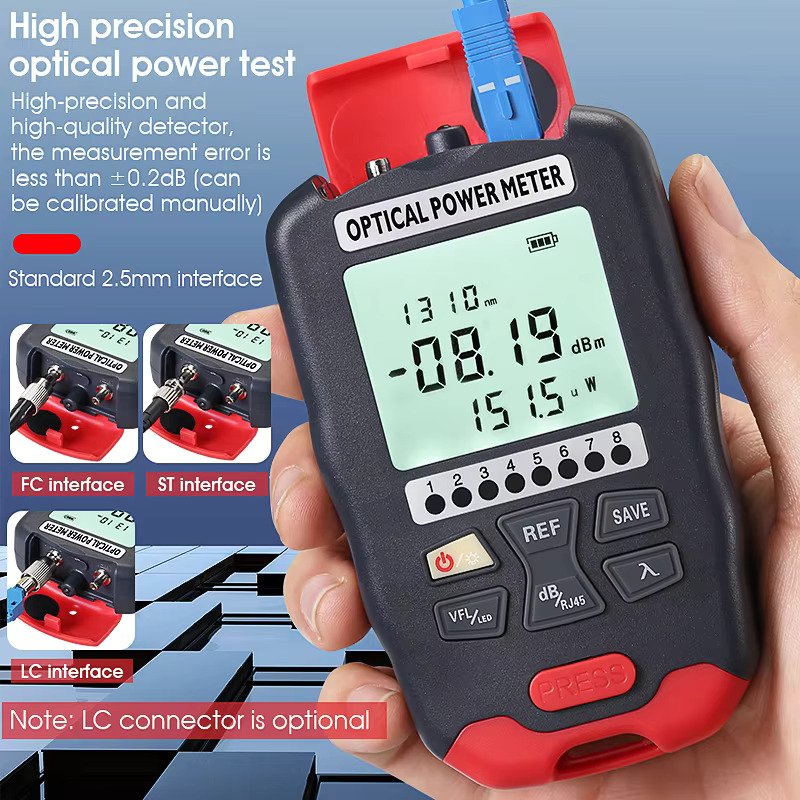

• Interface: Universal 2.5 mm connector compatible with SC, FC, ST adapters (LC optional).
• Display: High‑resolution LCD with 0.01 dB resolution.
• Self‑Calibration: User calibration function for long‑term accuracy.
• Power Source: Dry battery powered, portable design.
• Size & Weight: 18 × 8.9 × 4.2 cm, 0.2 kg.

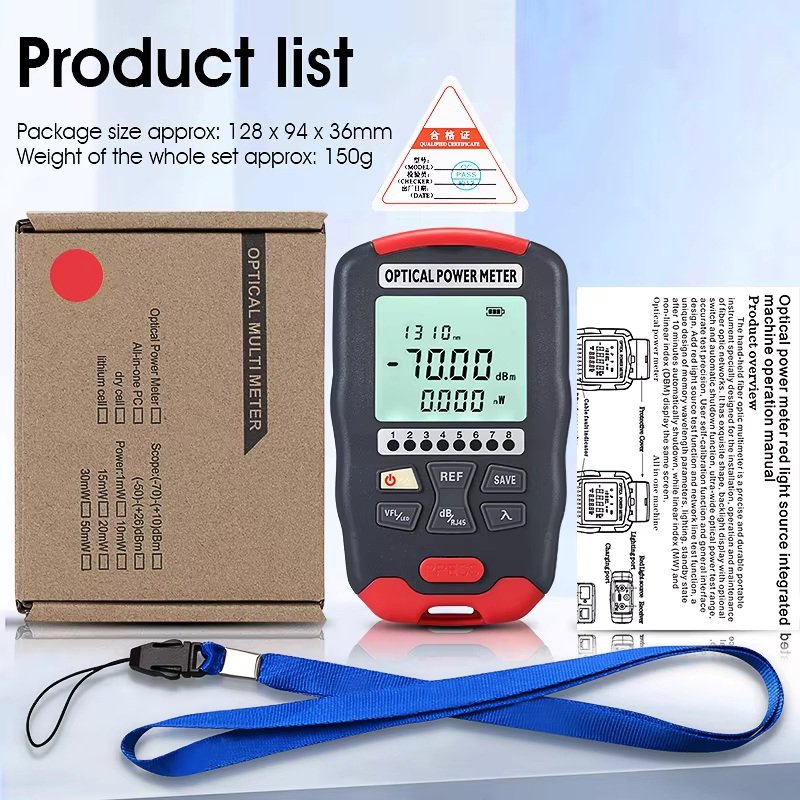

📦 Package Includes

• COMPTYCO AUA‑D70 Optical Multi‑Meter unit
• SC/FC/ST universal connectors
• RJ45 tester module
• Carrying case & accessories

⚠️ Warranty Information

This product and its accessories are sold without manufacturer warranty. Universal Fiber Solutions ensures genuine COMPTYCO products and provides customer support for usage guidance.
