LGX TYPE 1×32 FTTH Fiber Optic Splitter

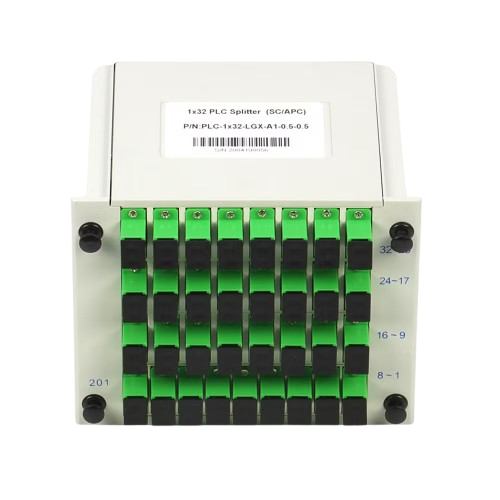

LGX Type 1×32 FTTH Fiber Optic PLC Splitter

The LGX Type 1×32 FTTH Fiber Optic PLC Splitter is a high-quality passive optical component designed for modern FTTH (Fiber To The Home), FTTx, GPON, EPON, and broadband fiber networks. This PLC splitter efficiently distributes one optical input signal into 32 output fibers while maintaining excellent signal uniformity, low insertion loss, and reliable optical performance.

Manufactured using advanced Planar Lightwave Circuit (PLC) technology, the ABS Type 1×32 PLC Splitter provides stable signal distribution with high accuracy and long-term durability. Its compact LGX module housing offers excellent protection and easy installation inside FTTH distribution boxes, ODF systems, FDH cabinets, and fiber optic network enclosures.

This 1×32 Fiber Optic Splitter is an ideal solution for ISPs, telecom operators, and enterprise networks requiring efficient optical power distribution for high-speed fiber connectivity across Pakistan.

---

Applications

• FTTH (Fiber To The Home) Access Networks
• FTTx Fiber Distribution Networks
• GPON & EPON Passive Optical Networks
• ISP Broadband Internet Networks
• CATV Fiber Optic Systems
• Fiber Distribution Hub (FDH) Applications
• ODF (Optical Distribution Frame) Installations
• Telecom and Data Communication Networks
• Fiber Optic Testing & Measurement Systems

---

Features & Benefits

• High-performance 1×32 PLC Fiber Optic Splitter
• LGX compact module housing for easy installation
• Supports wide operating wavelength range from 1260nm to 1650nm
• Excellent optical signal uniformity across all outputs
• Low insertion loss for efficient fiber transmission
• Low Polarization Dependent Loss (PDL)
• High return loss for improved network stability
• Reliable performance for long-term FTTH deployment
• Compatible with GPON, EPON, and PON network architectures
• Suitable for indoor and outdoor fiber distribution applications
• Customized fiber length options available

---

Technical Specifications

Parameter	Specification
Product Name	LGX Type 1×32 FTTH Fiber Optic PLC Splitter
Splitter Type	PLC (Planar Lightwave Circuit) Splitter
Configuration	1 Input / 32 Outputs
Working Wavelength	1260 – 1650 nm
Fiber Type	G.657A1 (Customizable)
Insertion Loss	≤ 16.8 dB
Uniformity	≤ 1.5 dB
Polarization Dependent Loss (PDL)	≤ 0.3 dB
Return Loss	≥ 55 dB
Directionality	≥ 55 dB
Fiber Length	1.0 Meter (Customized Available)
Maximum Power Handling	1000 mW
Temperature Stability	≤ 0.5 dB (-20°C to +75°C)
Operating Temperature	-20°C to +75°C
Storage Temperature	-20°C to +75°C
Housing Type	LGX Module

---

Why Choose LGX Type 1×32 PLC Splitter?

The LGX Type 1×32 FTTH PLC Splitter provides a cost-effective and reliable solution for optical signal distribution in fiber networks. Its compact design, stable optical performance, and high durability make it suitable for large-scale FTTH deployments, broadband expansion projects, and telecom infrastructure.

Universal Fiber Solutions provides quality fiber optic networking products in Pakistan, including PLC splitters, ODF, fiber cables, OLT, ONU/ONT, patch cords, and complete FTTH solutions for ISPs and network professionals.
