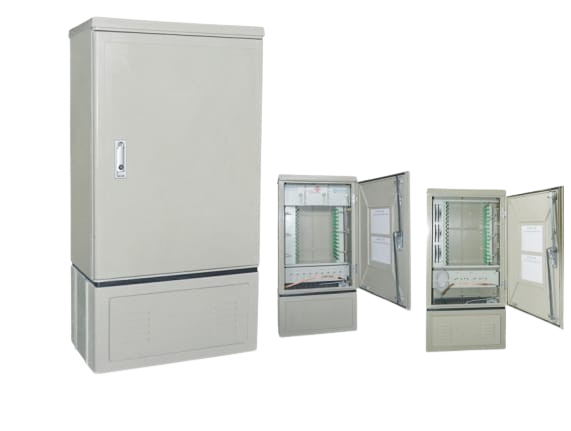

144 Core SMC Outdoor Fiber Optic Cabinet (UFS-FDH144F) | IP65 Fiber Distribution Hub
+ Free ShippingThe 144 Core SMC Outdoor Fiber Optic Cabinet (UFS-FDH144F) is a high-capacity Fiber Distribution Hub designed for FTTH, FTTx, CATV, Metro, and Telecom networks. Built with durable SMC/Metal construction and IP65 outdoor protection, it provides secure fiber splicing, termination, distribution, and long-term network reliability.
The 144 Core SMC Outdoor Fiber Optic Cabinet (UFS-FDH144F) is a reliable and high-performance Fiber Distribution Hub (FDH) designed for centralized fiber splicing, termination, and distribution in modern optical networks.
Manufactured from high-quality SMC (Sheet Molding Compound) or Metal, this outdoor fiber cabinet provides excellent resistance against UV rays, corrosion, moisture, dust, and mechanical impact. Its strong construction makes it suitable for long-term outdoor installation in challenging environmental conditions.
Supporting up to 144 fiber cores, the UFS-FDH144F is an ideal solution for FTTH, FTTx, Backbone, CATV, Metro, and Telecommunication networks. The modular internal design ensures organized fiber routing, easy maintenance, proper bend radius protection, and efficient network expansion.
This Fiber Distribution Hub is designed for telecom operators, ISPs, contractors, and enterprise networks that require secure, durable, and scalable fiber management solutions.
Key Features
| Feature | Description |
|---|---|
| Fiber Capacity | Supports up to 144 Fiber Cores |
| Construction Material | Durable SMC / Metal Body |
| Protection Level | IP65 Waterproof & Dustproof Design |
| Outdoor Protection | Resistant to UV, Corrosion & Mechanical Impact |
| Fiber Management | Modular Splice Tray Arrangement |
| Adapter Support | SC, LC, FC & ST Compatible |
| Cable Management | Spacious Internal Routing Design |
| Fiber Protection | Maintains ≥30mm Bend Radius |
| Security | Lockable Door System |
| Installation | Easy Maintenance & Expansion |
| Surface Finish | Outdoor Powder-Coated Finish |
| Standards | IEC & GR Compliant |
Applications
| Application | Usage |
|---|---|
| FTTH Networks | Fiber To The Home Distribution |
| FTTx Deployment | Fiber Access Network Expansion |
| Telecom Networks | Optical Fiber Distribution |
| Backbone Networks | Central Fiber Management |
| CATV Systems | Cable Television Fiber Infrastructure |
| Metro Networks | Urban Fiber Connectivity |
| Data Centers | Fiber Interconnection Points |
| ISP Networks | Broadband Fiber Deployment |
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | 144 Core SMC Outdoor Fiber Optic Cabinet |
| Model Number | UFS-FDH144F |
| Product Type | Outdoor Fiber Distribution Hub (FDH) |
| Fiber Capacity | 144 Fibers |
| Ports | 144 |
| Width | 550 mm |
| Height | 1050 mm |
| Depth | 310 mm |
| Material | SMC / Metal |
| Protection Level | IP65 (Outdoor) |
| Color | Light Gray / Green (Powder-Coated) |
| Adapter Compatibility | SC / LC / FC / ST |
| Standards | IEC & GR Standards |
Ordering Information
| Model Number | Description |
|---|---|
| UFS-FDH-O144-SC-SX | 144 SC Simplex Outdoor Fiber Distribution Hub |
| UFS-FDH-O144-LC-DX | 144 LC Duplex Outdoor Fiber Distribution Hub |
Product Benefits
✔ High-density fiber distribution up to 144 cores.
✔ Durable SMC/Metal construction for outdoor environments.
✔ IP65 protection against dust, water, and weather conditions.
✔ Excellent fiber routing and cable organization.
✔ Protects optical performance with proper bend radius control.
✔ Supports multiple adapter configurations.
✔ Secure locking system for equipment protection.
✔ Easy installation, maintenance, and future upgrades.
✔ Suitable for telecom operators, ISPs, CATV, and enterprise networks.
Why Choose Universal Fiber Solutions?
Universal Fiber Solutions provides high-quality Fiber Optic Networking Products in Pakistan for telecom operators, ISPs, contractors, and enterprise customers.
We offer reliable Fiber Distribution Hubs, Fiber Cabinets, ODF solutions, and networking equipment with competitive pricing, technical support, and nationwide delivery.
Our products are designed according to international standards to provide long-term performance and network reliability.
Buy 144 Core Outdoor Fiber Optic Cabinet in Pakistan
Looking for a reliable 144 Core Outdoor Fiber Optic Cabinet for your FTTH, FTTx, or telecom project?
The UFS-FDH144F Fiber Distribution Hub provides secure fiber management, outdoor durability, and scalable network solutions.
Contact Universal Fiber Solutions today for the latest price, bulk order discounts, technical support, and fast delivery across Pakistan.
