Duct Type Optical Fiber Cable – Single Mode G.652.D (12F to 144F)

Universal Fiber Solutions offers SINGLE MODE G.652.D Duct Type Optical Fiber Cable, a high‑capacity, heavy‑duty solution for modern communication infrastructure.

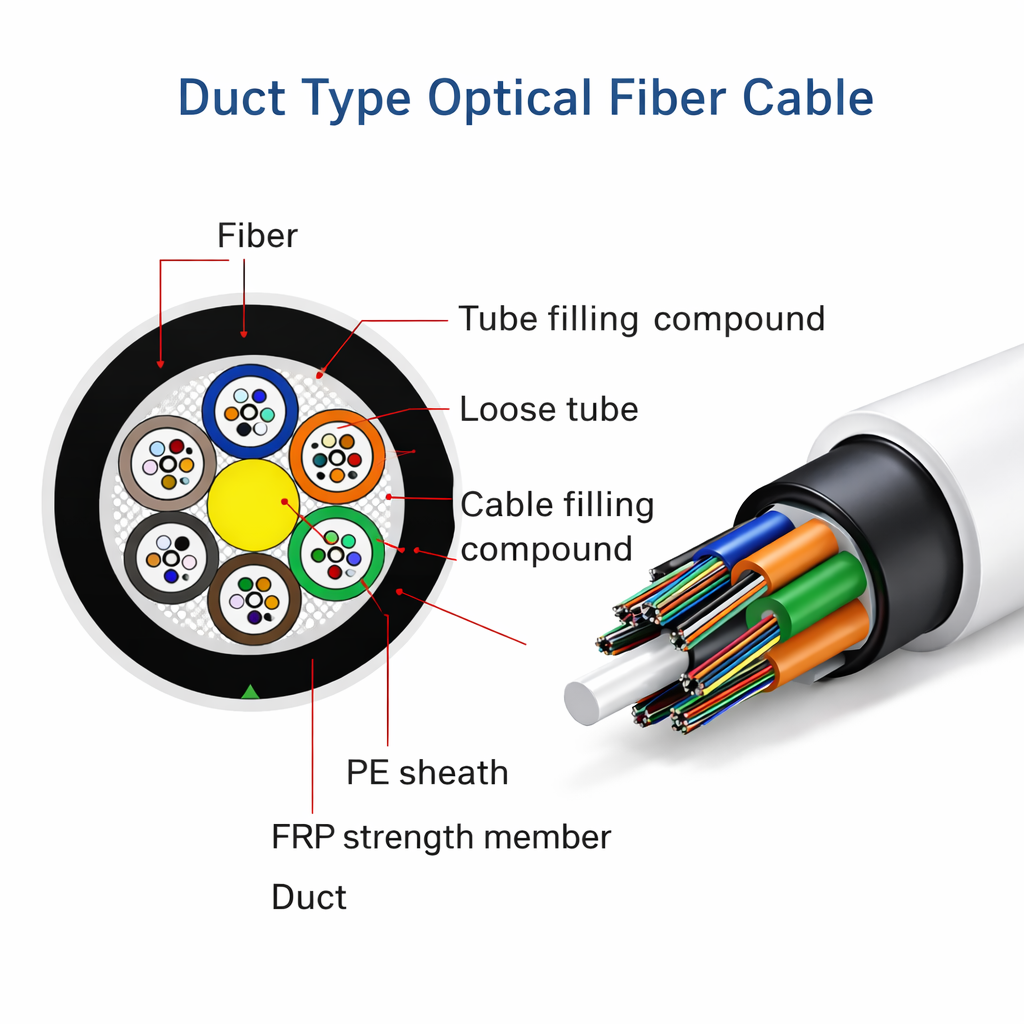

These cables are specially engineered for duct and conduit installations, ensuring long‑term durability, crush resistance, and environmental protection. With FRP central strength members, water‑blocking yarns/tapes, and HDPE/MDPE sheath, they deliver stable performance across extreme temperatures (–20 °C to +70 °C).

Available in 12F to 144F fiber counts, these cables are ideal for:

• Inter‑office trunking – Reliable backbone for corporate communication
• Data & video transmission – High‑speed connectivity for enterprises
• SCADA & telemetry systems – Oil, gas, and electricity network monitoring
• Duct & pipeline installations – Suitable for concrete and underground conduits
• Power cable proximity – Safe installation near electrical infrastructure

🔑 Features & Benefits

• High Fiber Capacity – Supports 12F to 144F for large‑scale networks
• Durable Construction – FRP strength member + HDPE sheath for long life
• Water Blocking Design – Dual protection with yarns/tapes for duct environments
• Crush Resistance – Withstands up to 2500 N for pipeline installations
• Versatile Applications – Telecom, SCADA, enterprise, and utility networks
• International Standards – Manufactured as per IEC‑60794

📊 Technical Specifications

Optical Characteristics

• Mode Field Diameter: 8.6–9.5 µm ±0.7
• Cladding Diameter: 125 µm ±1
• Core‑Clad Concentricity Error: ≤0.8 µm
• Cladding Non‑Circularity: ≤2%
• Cut‑off Wavelength: ≤1260 nm
• Chromatic Dispersion: ≤3.5 ps/nm·km @1310 nm; ≤18 ps/nm·km @1550 nm
• Attenuation: ≤0.35 dB/km @1310 nm; ≤0.21 dB/km @1550 nm
• PMD: ≤0.2 ps/√km

Mechanical Characteristics

• Tensile Strength: 3000 N (Max)
• Crush Strength: 2500 N (Max)
• Minimum Bending Radius: 10 × OD (no load), 20 × OD (with load)
• Temperature Range: –20 °C to +70 °C
